2CBM Q345 Q235 Grab Bucket Crane Spare Parts Electric Motor Grab

Short Description:

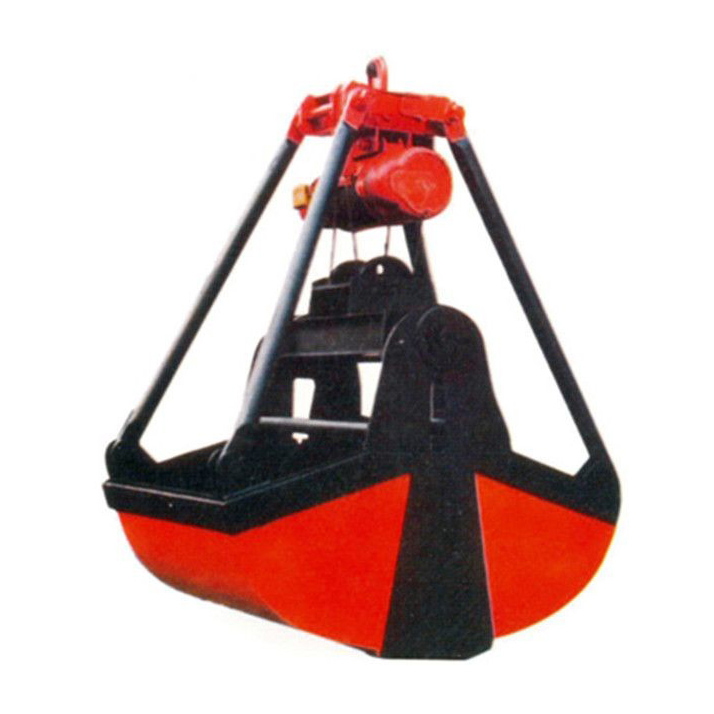

Electric motor grabs are commonly used in various multi-purpose cranes, with their own opening and closing mechanism, which can load and unload materials at any height. The productivity is higher than the single-rope grab, easy to use and disassemble, and high in loading and unloading power. Suitable for grabbing all kinds of loose objects. When using this grab, add a cable reel to transmit energy according to the lifting height. Note: This grab cannot be operated underwater.

Product name: Electric Motor Grab

Volume:0.3-5m³


  • Brand Name: KORIG
  • Place of Origin: Henan, China
  • Customize Service: Available
  • Certification: CE ISO SGS
  • Min.Order Quantity: 1 set
  • Payment Terms: L/C, T/T, Western Union
  • Delivery Time: 20~30 Workdays
  • Supply Ability: 1000 Set/Month
  • Port of Shipment: Qingdao Port, Tianjin Port, Shanghai Port
  • Packaging Details: Electrical parts are packed in wooden boxes, and steel structural parts are packed in color tarpaulin.
  • Product Detail

    company information

    FAQ

    Product Tags

    working principle

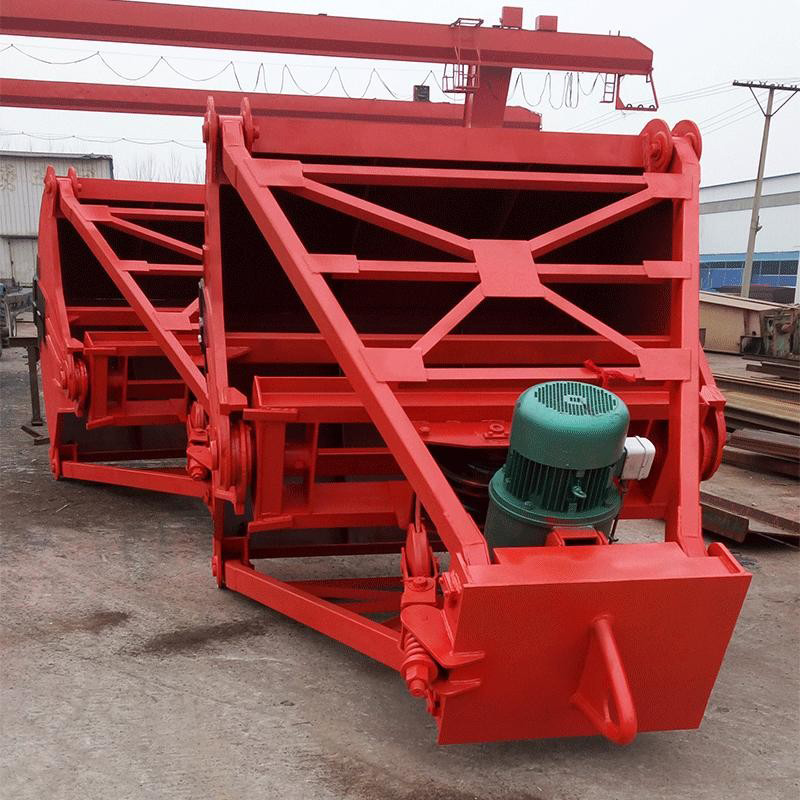

    The electric motor grab itself has a closing mechanism, and it has a variety of styles. It is a standard electric hoist or hoist mounted on the grab as an opening and closing mechanism. The motor grab can be seen as moving the ratio and reel to the grab itself. Since the motor grab is no longer subjected to the upward pulling force of the closed rope like a four-rope grab when it is closed, the grab’s own weight all plays a role in digging. Because of its large grabbing capacity, it is most suitable for grabbing ore materials.

    parameter

    Model Volume(m3) Type The rate of material (t/m3) The rate of pulley capturing the material(t) Dia of steel rope(mm) Power(kw) Self weight(t)
    ZD15 1.5 heavy ≤2 5 3 15 15 2.9
    ZD20 2 heavy ≤2 5 4 15 18.5 3.6
    ZD25 2.5 heavy ≤2 5 5 16 22 4.4
    ZD30 3 middle ≤1.2 5 3.6 16 22 4.68
    ZD60 6 light ≤1 5 6 16 22 5.6
    ZD10 1 heavy ≤2.5 4 2.5 15 11 2.8
    ZD50 5 light ≤1 4 5 17.5 22 4.1

    Features of Electric Grab

    1. The capacity is from 1.5 CBM to 5 CBM;
    2. Control distance is 200 meters;
    3. Grab material is Q235B and Q345B (ASTM A6);
    4. it is most suitable for grabbing ore materials..

    Certifications

    We have passed CE, GOST, SGS, and OHSAS & ISO9001:2000 international quality control,ISO14001:1996 environment and ISO9001:2001 health and safety certifications. We have a perfect quality-control system, a strict management system, and strong production capability and advanced testing measures to ensure the high production and high quality.

    • 2CBM Q345 Q235 Grab Bucket Crane Spare Parts Electric Motor Grab (1)
    • 2CBM Q345 Q235 Grab Bucket Crane Spare Parts Electric Motor Grab (2)
    • 2CBM Q345 Q235 Grab Bucket Crane Spare Parts Electric Motor Grab (3)

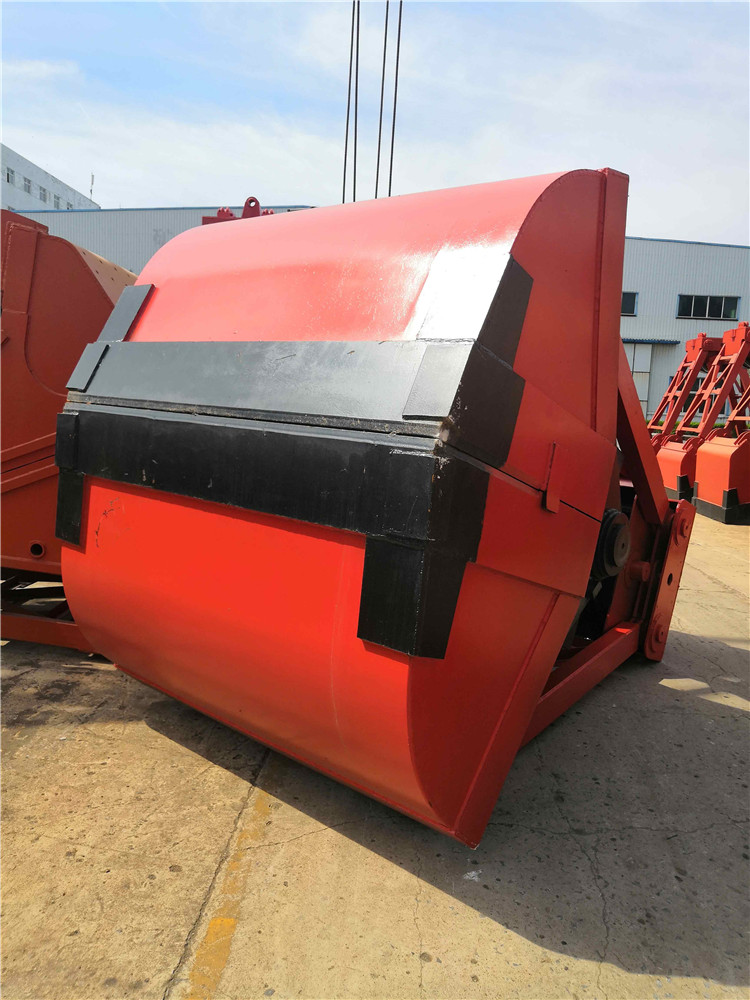

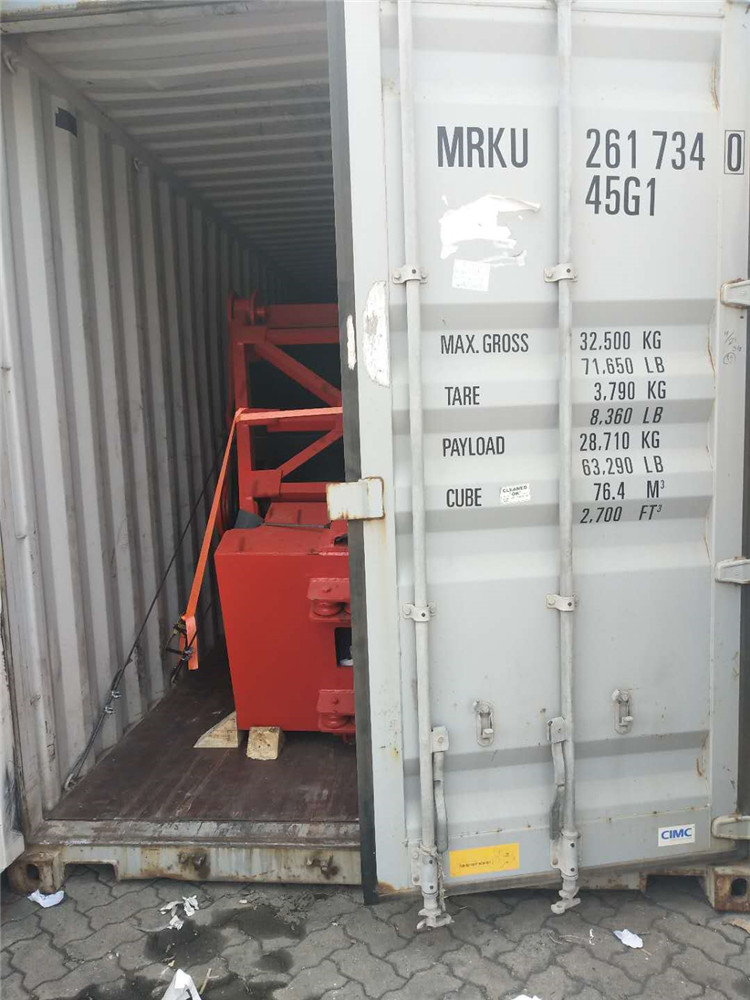

    • 2CBM Q345 Q235 Grab Bucket Crane Spare Parts Electric Motor Grab (2)

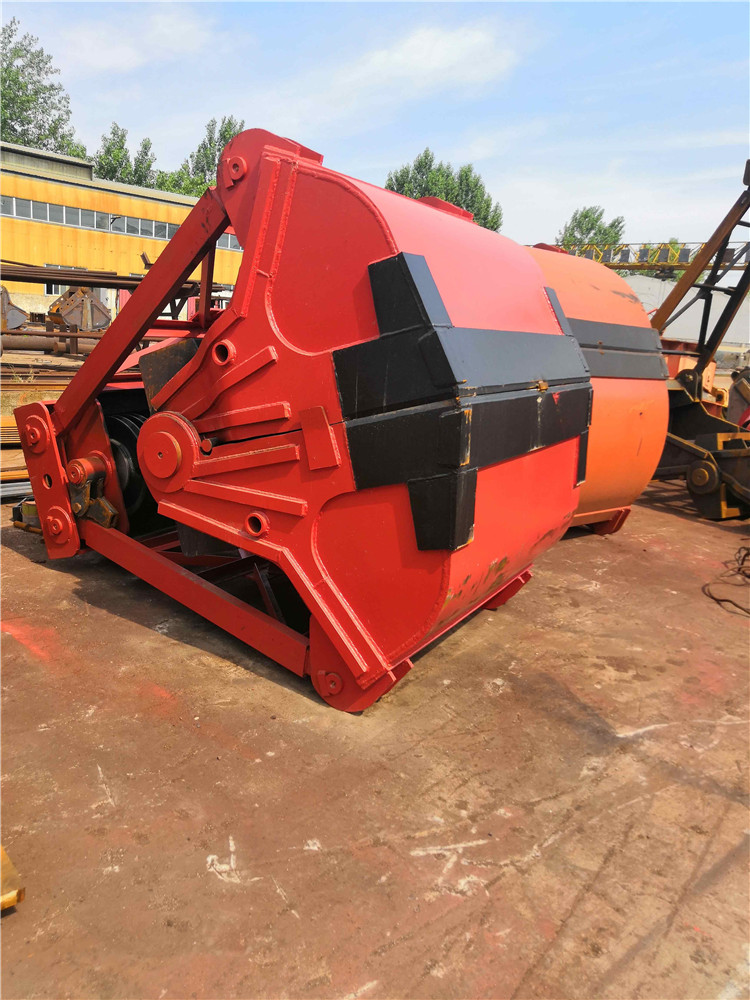

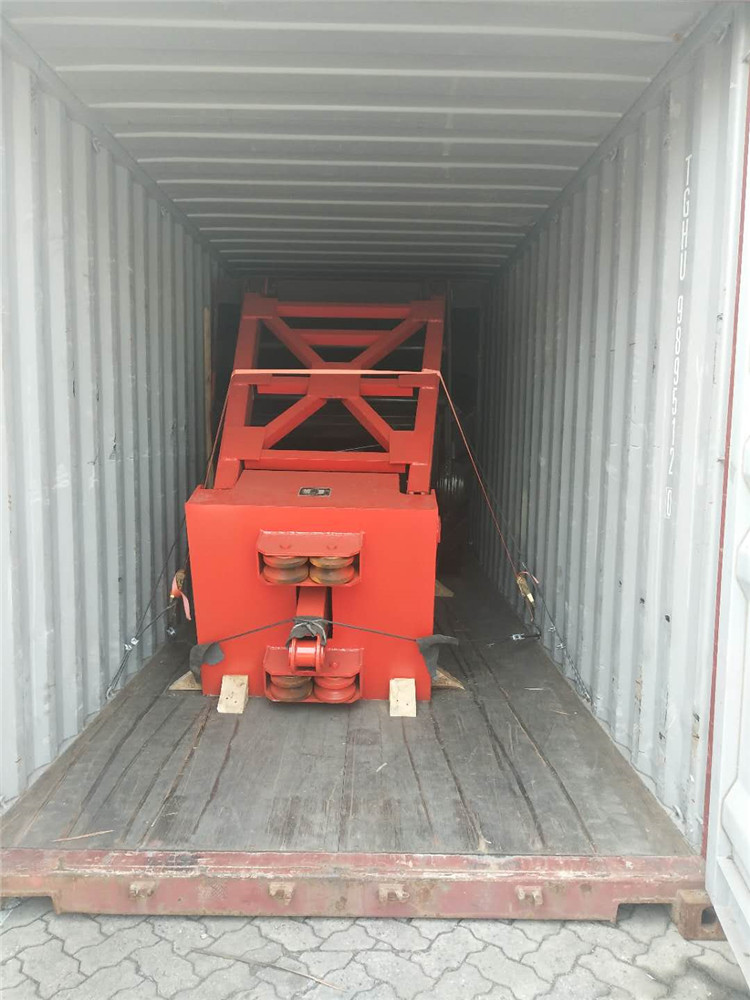

    • 2CBM Q345 Q235 Grab Bucket Crane Spare Parts Electric Motor Grab (3)

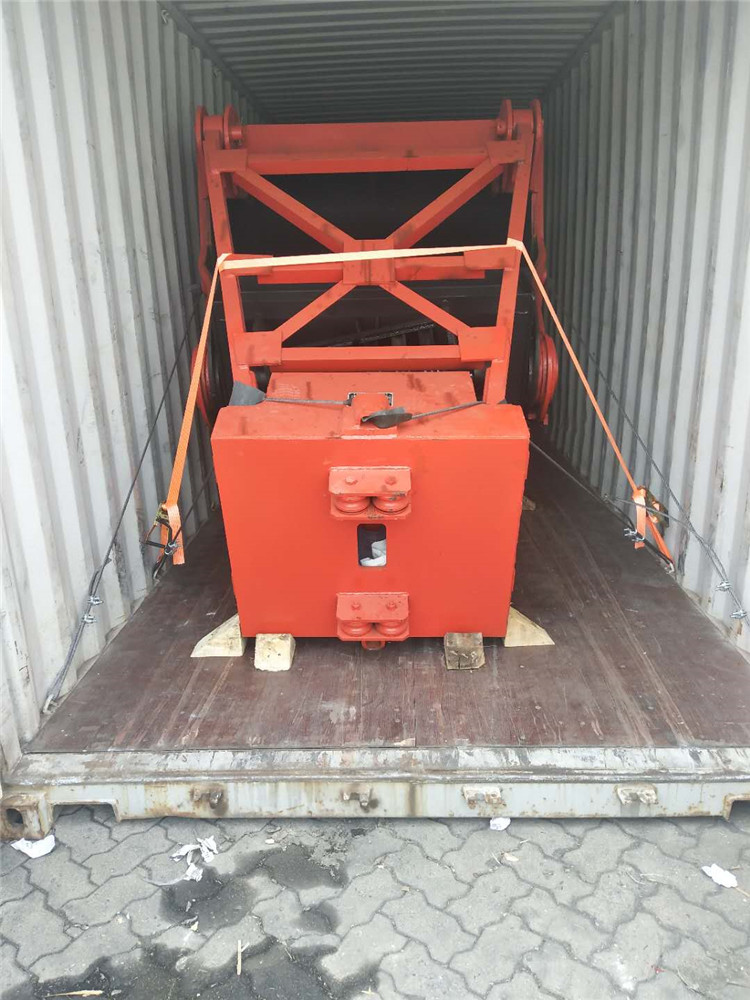

    • 2CBM Q345 Q235 Grab Bucket Crane Spare Parts Electric Motor Grab (1)

  • Previous:
  • Next:

  • About KORIGCRANES

    KORIGCRANES ( HENAN WEIHUA KORIG CRANES CO., LTD) located in crane hometown of China (cover more than 2/3 crane market in China), who is a trusted professional industry crane manufacturer and leading exporter. Specialized in design, manufacturing, installation and service of Overhead crane, Gantry crane, Port crane, Electric hoist etc, we have passed ISO 9001:2000, ISO 14001:2004, OHSAS 18001:1999, GB/T 19001-2000, GB/T 28001-2001, CE, SGS, GOST, TUV, BV and so on.

    Product Application

    To meet the demands of the oversea market, we independent research and development European type overhead crane, gantry crane; electrolytic aluminum multi-purpose overhead crane, hydro-power station crane etc. European type crane with light dead weight, compact structure, lower energy consumption etc. Many main performance reach the industry advanced level.
    KORIGCRANES Widely used in machinery, metallurgy, mining, electric power, railway, petroleum, chemical, logistics and other industries. Service for hundreds of large enterprises and national key projects such as China Datang Corporation, China Guodian Corporation, SPIC, Aluminum Corporation Of China(CHALCO), CNPC, Power China, China Coal, Three Gorges Group, China CRRC, Sinochem International, etc.

    Our Market

    Our cranes has been exported cranes to more than 110 countries for example Pakistan, Bangladesh, India, Vietnam, Thailand, Indonesia, Philippines, Malaysia、USA, Germany, France, Australia, Kenya, Ethiopia, Nigeria, Kazakhstan, Uzbekistan, Saudi Arabia、UAE、Bahrain、Brazil, Chile, Argentina, Peru etc and received good feedback from them. Very happy to be friends with each other come from all of the world and hope to establish long-terms good cooperation.

    KORIGCRANES has steel pre-treatment production lines, automatic welding production lines, machining centers, assembly workshops, electrical workshops, and anti-corrosion workshops. Can independently complete the whole process of crane production.

    Q. What’s the information should I provide when inquiry?
    More details or drawings, better.
    A: Lift capacity B: span C: lift height D: power source; other specials you give us will be more appreciated.

    Q. How many operating methods for my selection?
    Standard operating methods:
    A: remote control with push buttons
    B: cabin (space capsule seat) control with joystick. Choose any type as you like.

    Q. Can this type work in hazardous environment?
    A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.

    Q. Can you provide the serious lifting tools?
    A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!

    Q. How can we install the crane?
    A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
