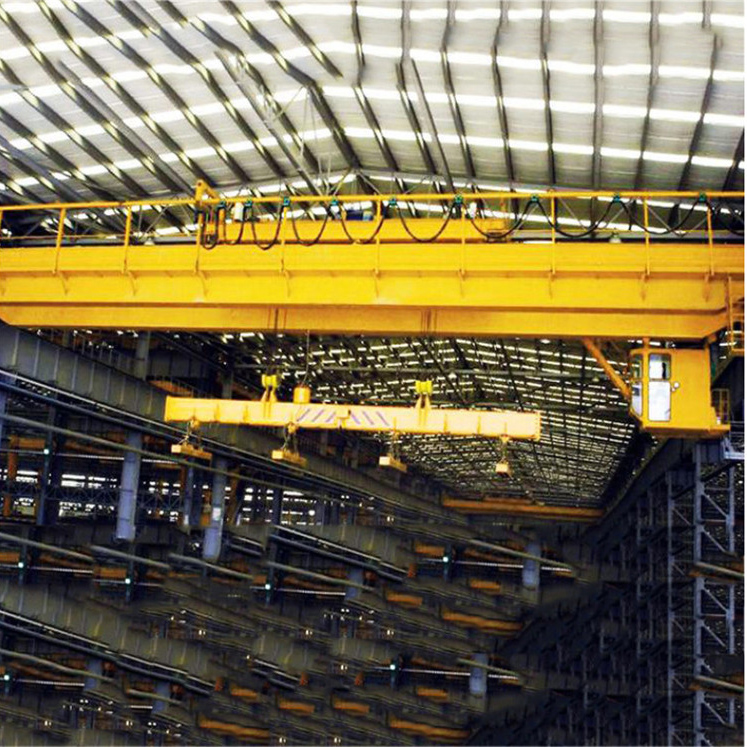

Bridge Crane with Electromagnetic Hanging Beam

Short Description:

Electromagnetic bridge cranes with removable electric disks are especially suitable for heavy loading and unloading and handling of magnetic ferrous metal products and materials (such as steel ingots, section steels, pig iron blocks) in fixed spans indoors or in the open air in metallurgical plants. It is also commonly used in factories and warehouses to transport materials such as steel, iron blocks, scrap iron, scrap steel, iron filings and so on.

Product name:Bridge Crane with Electromagnetic Hanging Beam

Capacity :5+5t,10+10t,16+16t

Span: 10.5m-31.5m

Lifting height 6-30m

Working class is A6,A7

Control model: cabin control,remote control,pendent line control.

  • Brand Name: KORIG
  • Place of Origin: Henan, China
  • Customize Service: Available
  • Certification: CE ISO SGS
  • Min.Order Quantity: 1 set
  • Payment Terms: L/C, T/T, Western Union
  • Delivery Time: 20~30 Workdays
  • Supply Ability: 1000 Set/Month
  • Port of Shipment: Qingdao Port, Tianjin Port, Shanghai Port
  • Packaging Details: Electrical parts are packed in wooden boxes, and steel structural parts are packed in color tarpaulin.
  • Product Detail

    company information

    FAQ

    Product Tags

    overview

    The lifting equipment electromagnetic bridge crane belongs to the heavy-duty (A6,A7,A8 ) work system.
    The magnet could reserve 10~30 minutes when power is off suddenly. And the electromagnetic spreader size and shape can be customized according to the steel materials lifted.

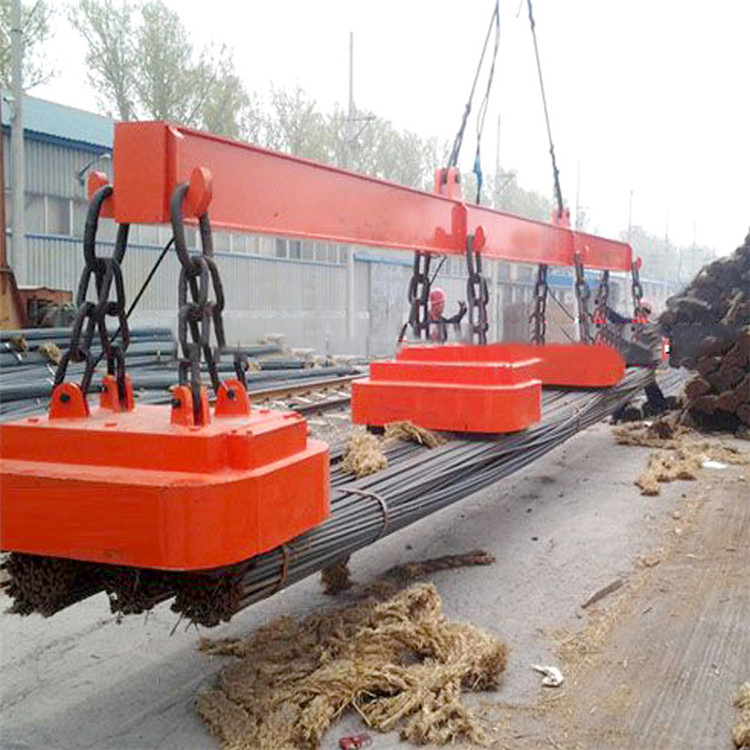

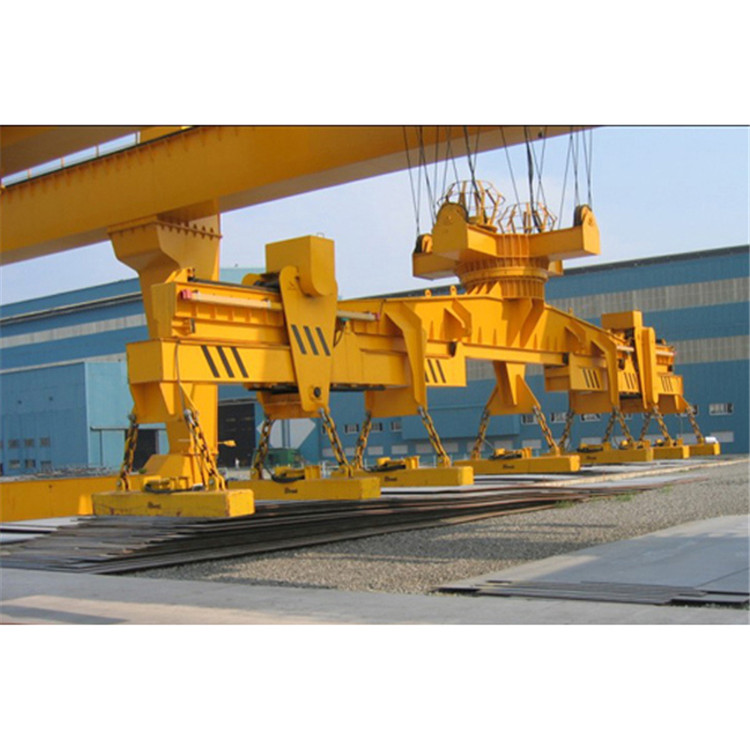

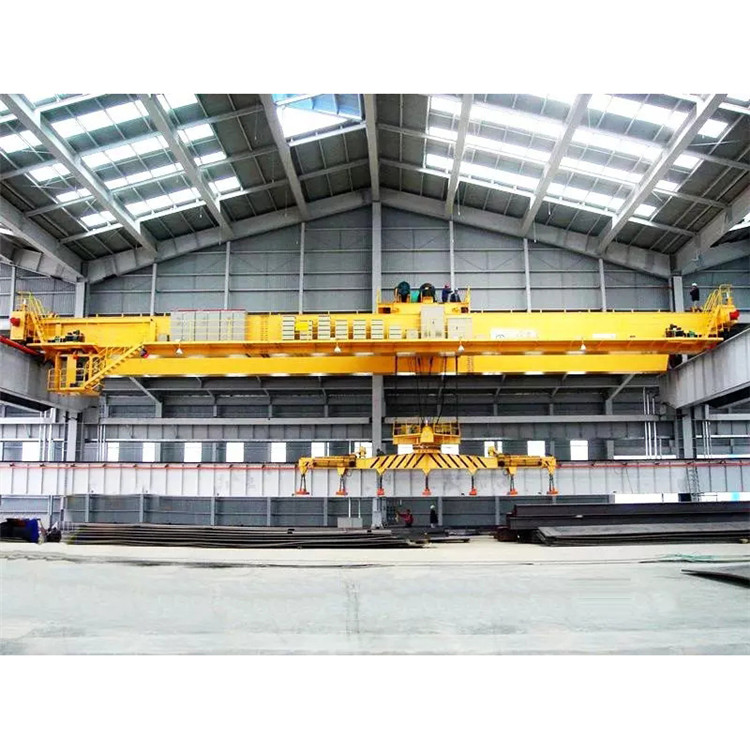

    There are 2 kinds of electromagnet spreader: electromagnetic chuck/disc and electromagnetic hanging beam. While the electromagnetic hanging beam also can be 2 kinds: non-rotating beam (vertical or parallel to main girder) and rotating beam (includes upper rotating mechanism and hanging beam).

    working principle

    Using low voltage and low current to control high voltage and high current circuits, the risk of electric shock is small. Machines that use electromagnetic principles to transport steel objects. The main part of the electromagnetic bridge crane is the magnet. When the current is turned on, the electromagnet will firmly attract the steel objects and lift them to the destination. Cut off the current, the magnetism disappeared, and the steel object was put down. Electromagnetic crane is very convenient to use

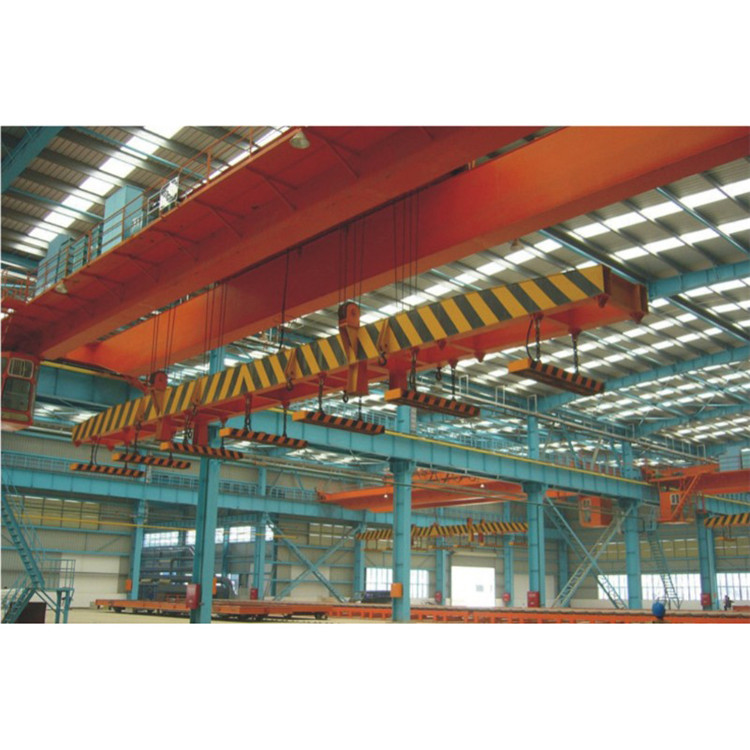

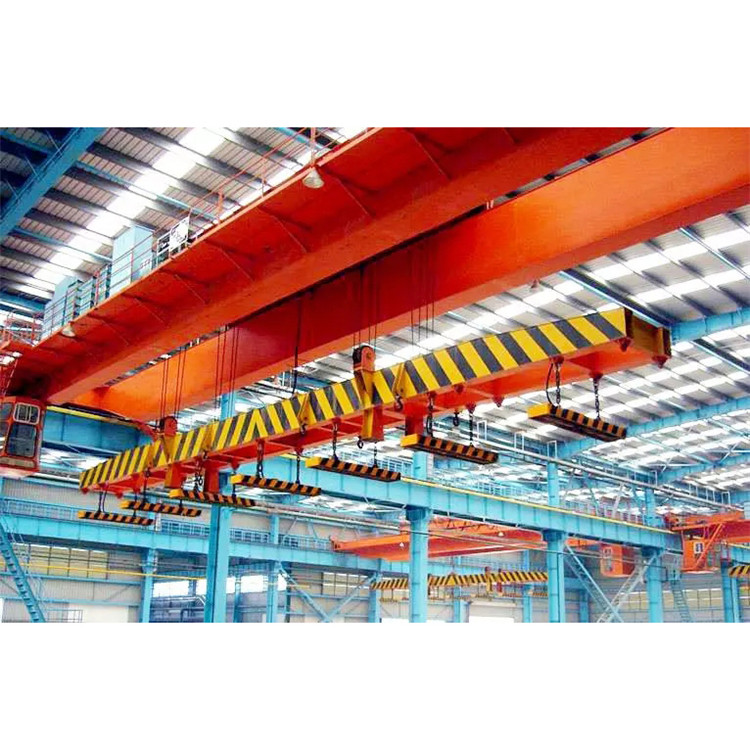

    Overhead Crane with Electromagnetic-Beam

    1.Box-typed girder structure is welded in high strength by robots;
    2. Wheels, wire rope winding drums, gears and couplings are manufactured by CNC with best quality;
    3. Heavy-duty slip ring motor from Wuxi NGP, the best quality in China;
    4. Electric equipment from German Siemens
    5. Independent control system: wireless control or cab control;
    6. Lifting overload protection device;

    7. Polyurethane buffer;
    8. Crane travel limit switch;
    9. Decompression protection;
    10. Emergency shutdown device;
    11. Current overload protector;

    • Bridge Crane with Electromagnetic Hanging Beam
    • Bridge Crane with Electromagnetic Hanging Beam

  • Previous:
  • Next:

  • About KORIGCRANES

    KORIGCRANES ( HENAN WEIHUA KORIG CRANES CO., LTD) located in crane hometown of China (cover more than 2/3 crane market in China), who is a trusted professional industry crane manufacturer and leading exporter. Specialized in design, manufacturing, installation and service of Overhead crane, Gantry crane, Port crane, Electric hoist etc, we have passed ISO 9001:2000, ISO 14001:2004, OHSAS 18001:1999, GB/T 19001-2000, GB/T 28001-2001, CE, SGS, GOST, TUV, BV and so on.

    Product Application

    To meet the demands of the oversea market, we independent research and development European type overhead crane, gantry crane; electrolytic aluminum multi-purpose overhead crane, hydro-power station crane etc. European type crane with light dead weight, compact structure, lower energy consumption etc. Many main performance reach the industry advanced level.
    KORIGCRANES Widely used in machinery, metallurgy, mining, electric power, railway, petroleum, chemical, logistics and other industries. Service for hundreds of large enterprises and national key projects such as China Datang Corporation, China Guodian Corporation, SPIC, Aluminum Corporation Of China(CHALCO), CNPC, Power China, China Coal, Three Gorges Group, China CRRC, Sinochem International, etc.

    Our Market

    Our cranes has been exported cranes to more than 110 countries for example Pakistan, Bangladesh, India, Vietnam, Thailand, Indonesia, Philippines, Malaysia、USA, Germany, France, Australia, Kenya, Ethiopia, Nigeria, Kazakhstan, Uzbekistan, Saudi Arabia、UAE、Bahrain、Brazil, Chile, Argentina, Peru etc and received good feedback from them. Very happy to be friends with each other come from all of the world and hope to establish long-terms good cooperation.

    KORIGCRANES has steel pre-treatment production lines, automatic welding production lines, machining centers, assembly workshops, electrical workshops, and anti-corrosion workshops. Can independently complete the whole process of crane production.

    Q. What’s the information should I provide when inquiry?
    More details or drawings, better.
    A: Lift capacity B: span C: lift height D: power source; other specials you give us will be more appreciated.

    Q. How many operating methods for my selection?
    Standard operating methods:
    A: remote control with push buttons
    B: cabin (space capsule seat) control with joystick. Choose any type as you like.

    Q. Can this type work in hazardous environment?
    A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.

    Q. Can you provide the serious lifting tools?
    A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!

    Q. How can we install the crane?
    A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
