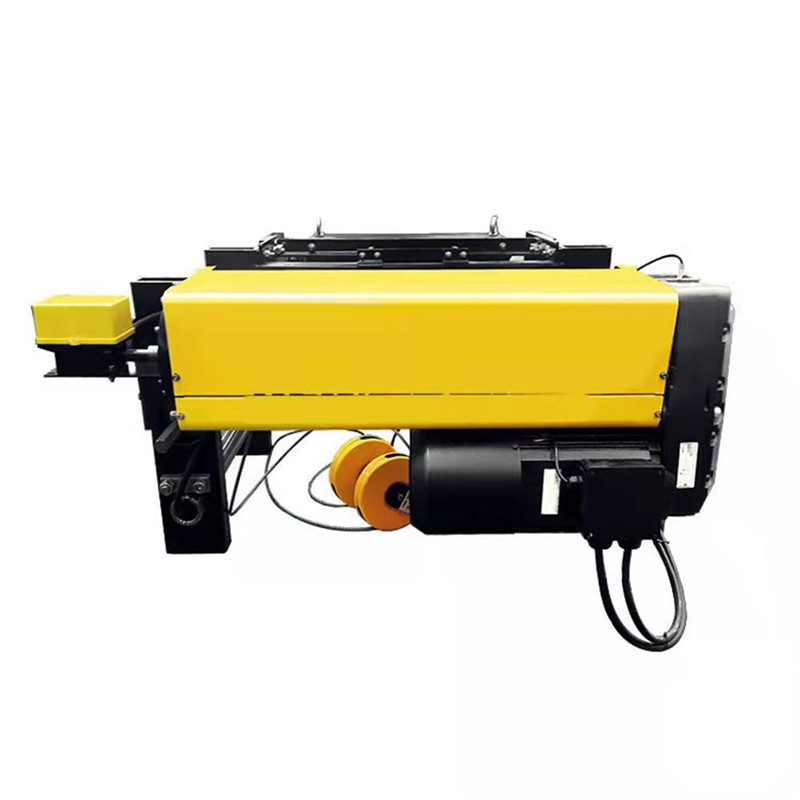

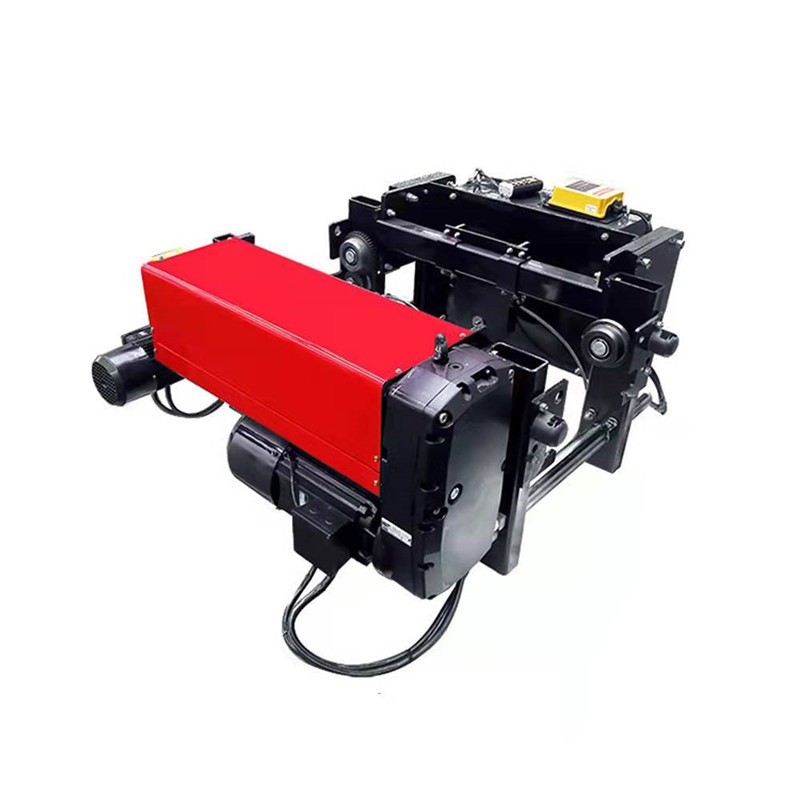

Good quality low headroom double lifting speed travelling wire rope hoist

Short Description:

China top brand 0.25-20ton low headroom double lifting speed travelling wire rope hoist

Low headroom double lifting speed travelling wire rope hoist is widely used in lifting heavy weights or installed on a single beam crane, linear, curve strander beams.

It can also be used to the hoist double beam, gourd gantry crane or cantilever crane

It is a light equipment for lifting,which is welcomed by Industrial and mining enterprises, railways, docks, warehouses.

Capacity:1~32ton

Height:20m

Working duty: M5


  • Brand Name: KORIG
  • Place of Origin: Henan, China
  • Customize Service: Available
  • Certification: CE ISO SGS
  • Min.Order Quantity: 1 set
  • Payment Terms: L/C, T/T, Western Union
  • Delivery Time: 20~30 Workdays
  • Supply Ability: 1000 Set/Month
  • Port of Shipment: Qingdao Port, Tianjin Port, Shanghai Port
  • Packaging Details: Electrical parts are packed in wooden boxes, and steel structural parts are packed in color tarpaulin.
  • Product Detail

    company information

    FAQ

    Product Tags

    overview

    Low headroom double lifting speed travelling wire rope hoist is widely used in lifting heavy weights or installed on a single beam crane, linear, curve strander beams.

    It can also be used to the hoist double beam, gourd gantry crane or cantilever crane

    It is a light equipment for lifting,which is welcomed by Industrial and mining enterprises, railways, docks, warehouses.

    parameter

    Lifting Capacity(t) 3 5 10
    Work Duty M5
    Lifting Speed(m/min) 5/0.8
    Lifting Height(m) 6~24 9~24
    Number of Falls 4/1
    Traveling Speed(m/min) 2~20
    B(mm) 120~350 120~450 250~550
    Hook Upper Limit(mm) 550 650
    Hoist Width(mm) 483 538 526 713 560 590
    Hook Right Limit(mm) 342 382 380
    Hoist Lenghth(mm) 863~1943 798~1668 1010~1610
    Hoist Wheel Gauge(mm) 670~1750 605~1475 790~1390

    Advantage

    Compact structure, light weight, safe and reliable;
    Occupying the smallest space;
    Provide maximum lifting height;
    Wide used and interchangeable of components;
    Lifting capacity strong, maintenance easy;
    Operation easy, lifting stable;
    Safe lifting weight: 1~32 ton.
    It is matched with brennschluss stopper, insure the hoist moving safety, long working life and reliable. And also it have head punch protection device.

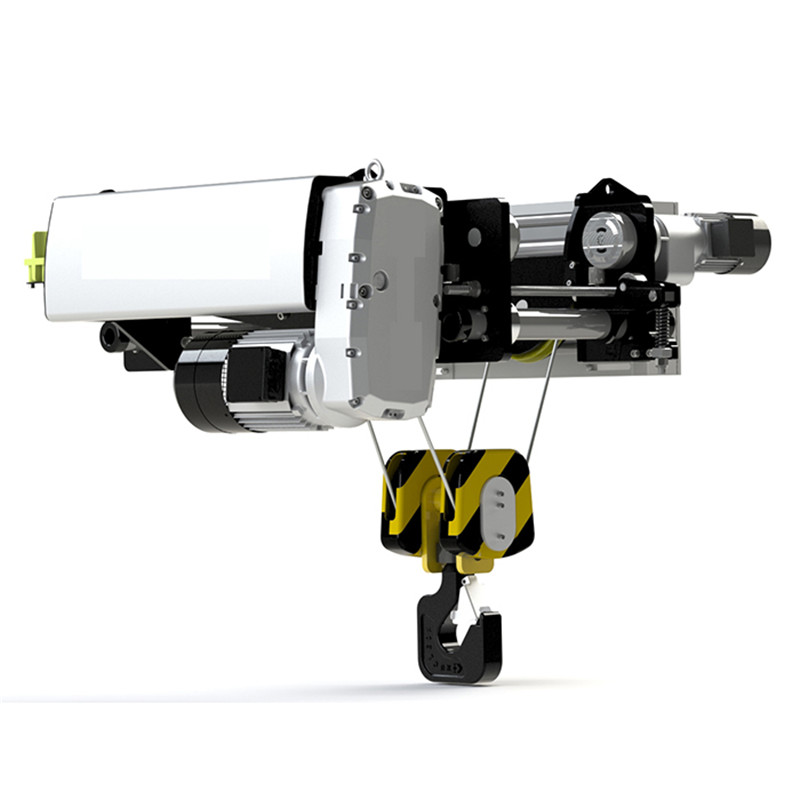

    • China top brand 0.25-20ton low headroom double lifting speed travelling wire rope hoist (2)

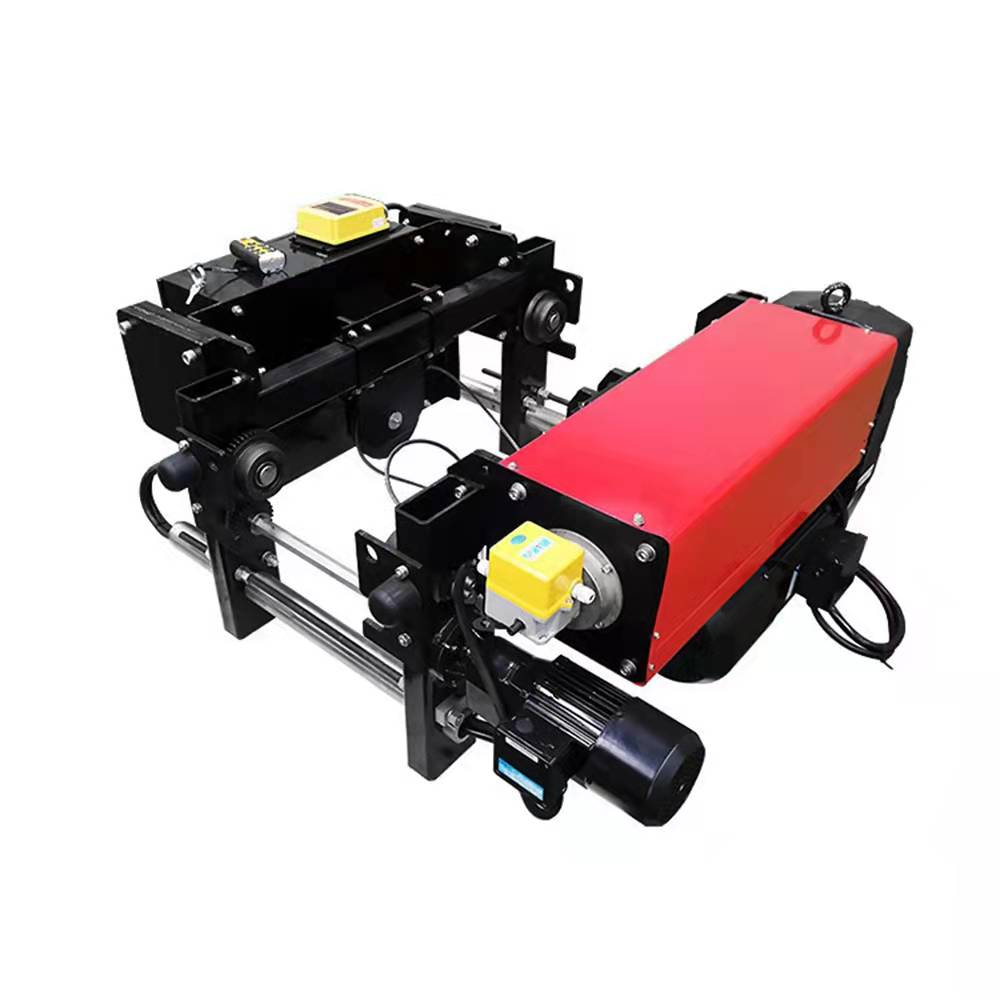

    • e2d72027b8d95e22b4523cb9ef384e3

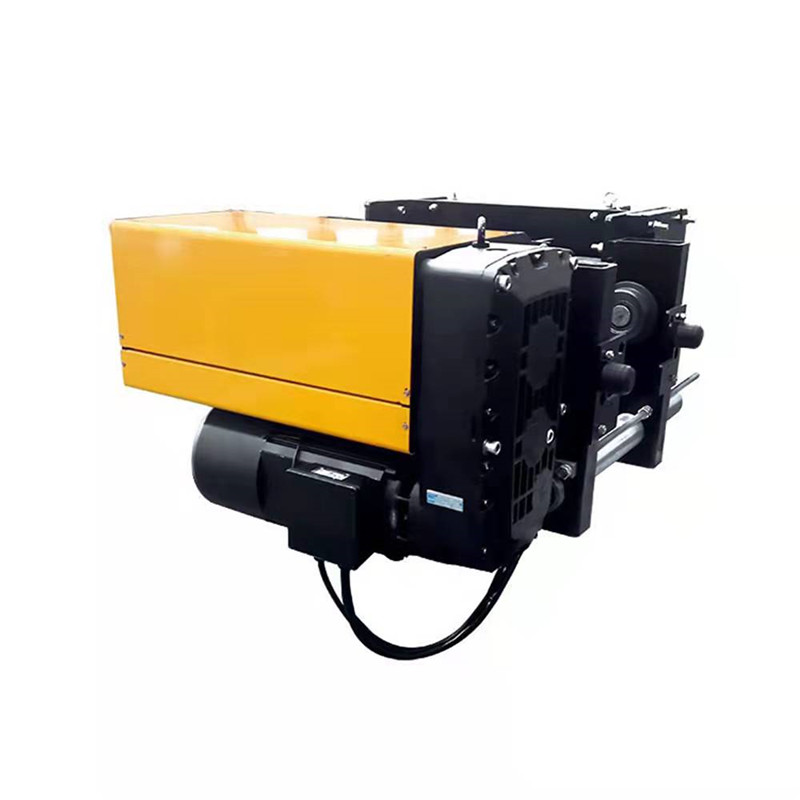

    • China top brand 0.25-20ton low headroom double lifting speed travelling wire rope hoist (10)

  • Previous:
  • Next:

  • About KORIGCRANES

    KORIGCRANES ( HENAN WEIHUA KORIG CRANES CO., LTD) located in crane hometown of China (cover more than 2/3 crane market in China), who is a trusted professional industry crane manufacturer and leading exporter. Specialized in design, manufacturing, installation and service of Overhead crane, Gantry crane, Port crane, Electric hoist etc, we have passed ISO 9001:2000, ISO 14001:2004, OHSAS 18001:1999, GB/T 19001-2000, GB/T 28001-2001, CE, SGS, GOST, TUV, BV and so on.

    Product Application

    To meet the demands of the oversea market, we independent research and development European type overhead crane, gantry crane; electrolytic aluminum multi-purpose overhead crane, hydro-power station crane etc. European type crane with light dead weight, compact structure, lower energy consumption etc. Many main performance reach the industry advanced level.
    KORIGCRANES Widely used in machinery, metallurgy, mining, electric power, railway, petroleum, chemical, logistics and other industries. Service for hundreds of large enterprises and national key projects such as China Datang Corporation, China Guodian Corporation, SPIC, Aluminum Corporation Of China(CHALCO), CNPC, Power China, China Coal, Three Gorges Group, China CRRC, Sinochem International, etc.

    Our Market

    Our cranes has been exported cranes to more than 110 countries for example Pakistan, Bangladesh, India, Vietnam, Thailand, Indonesia, Philippines, Malaysia、USA, Germany, France, Australia, Kenya, Ethiopia, Nigeria, Kazakhstan, Uzbekistan, Saudi Arabia、UAE、Bahrain、Brazil, Chile, Argentina, Peru etc and received good feedback from them. Very happy to be friends with each other come from all of the world and hope to establish long-terms good cooperation.

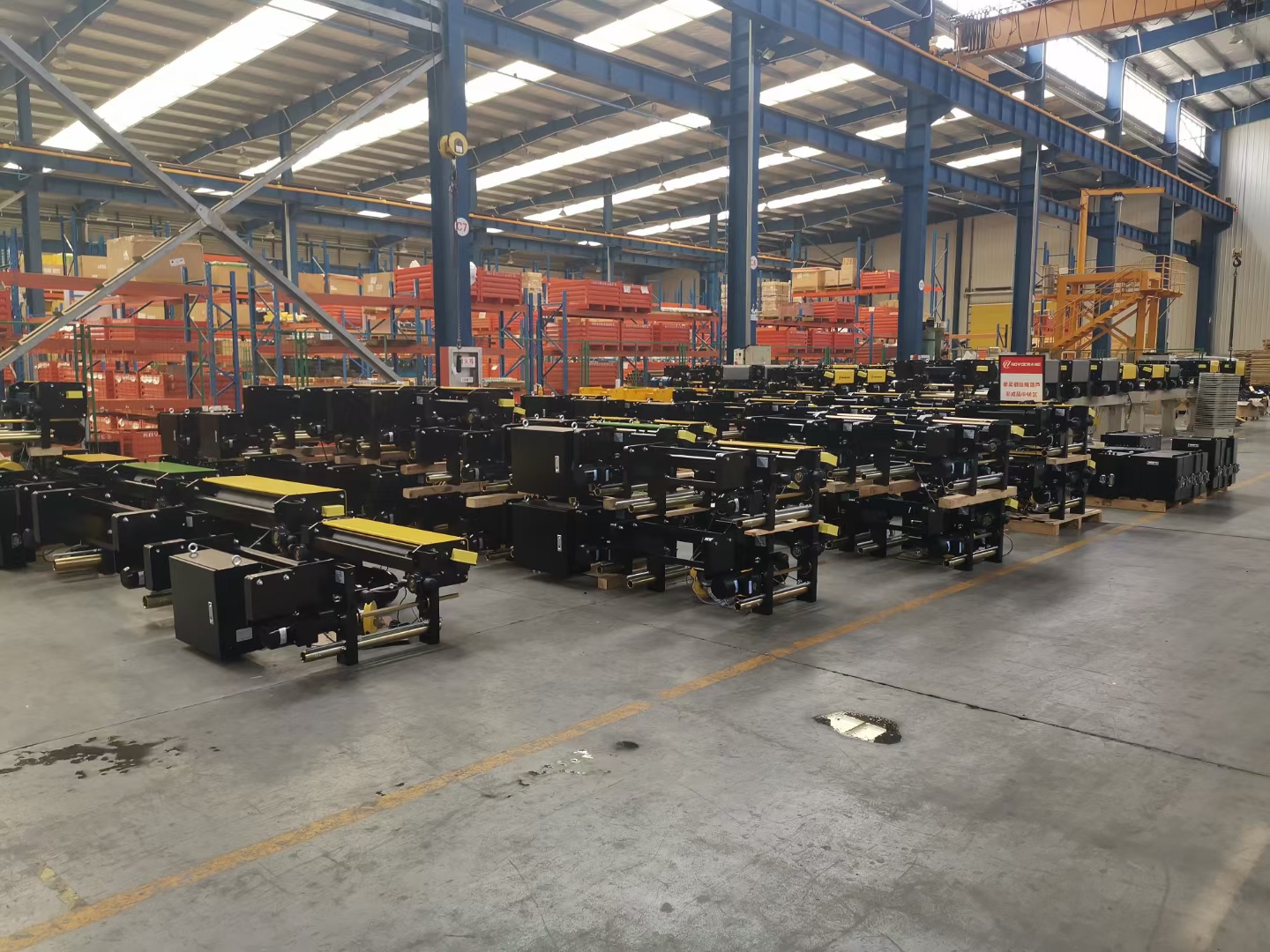

    KORIGCRANES has steel pre-treatment production lines, automatic welding production lines, machining centers, assembly workshops, electrical workshops, and anti-corrosion workshops. Can independently complete the whole process of crane production.

    Q. What’s the information should I provide when inquiry?
    More details or drawings, better.
    A: Lift capacity B: span C: lift height D: power source; other specials you give us will be more appreciated.

    Q. How many operating methods for my selection?
    Standard operating methods:
    A: remote control with push buttons
    B: cabin (space capsule seat) control with joystick. Choose any type as you like.

    Q. Can this type work in hazardous environment?
    A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.

    Q. Can you provide the serious lifting tools?
    A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!

    Q. How can we install the crane?
    A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
