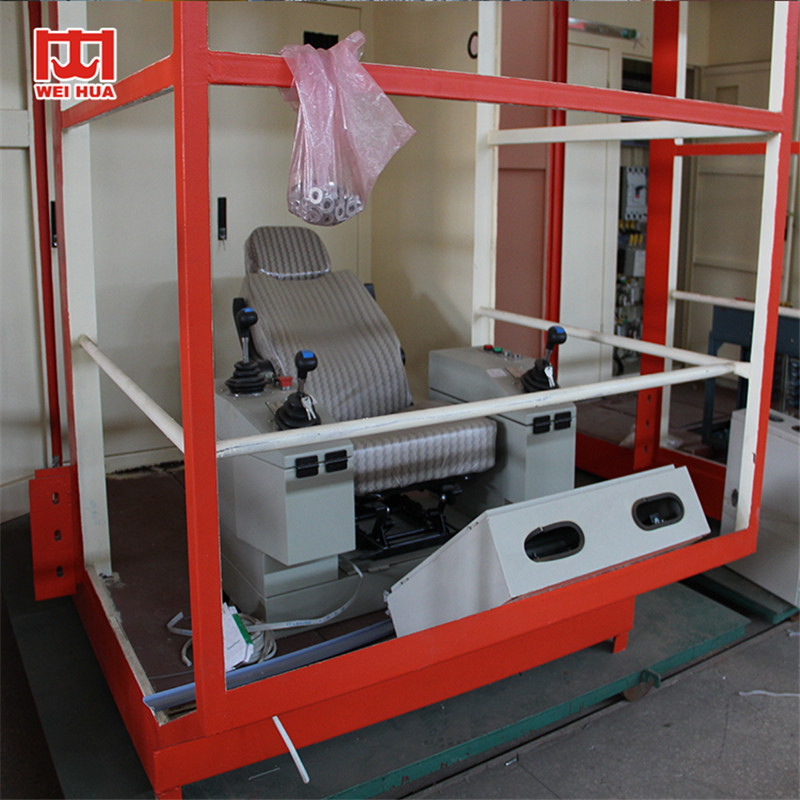

Construction Machine Crane Operator Cabin overhead crane joystick controller
overview

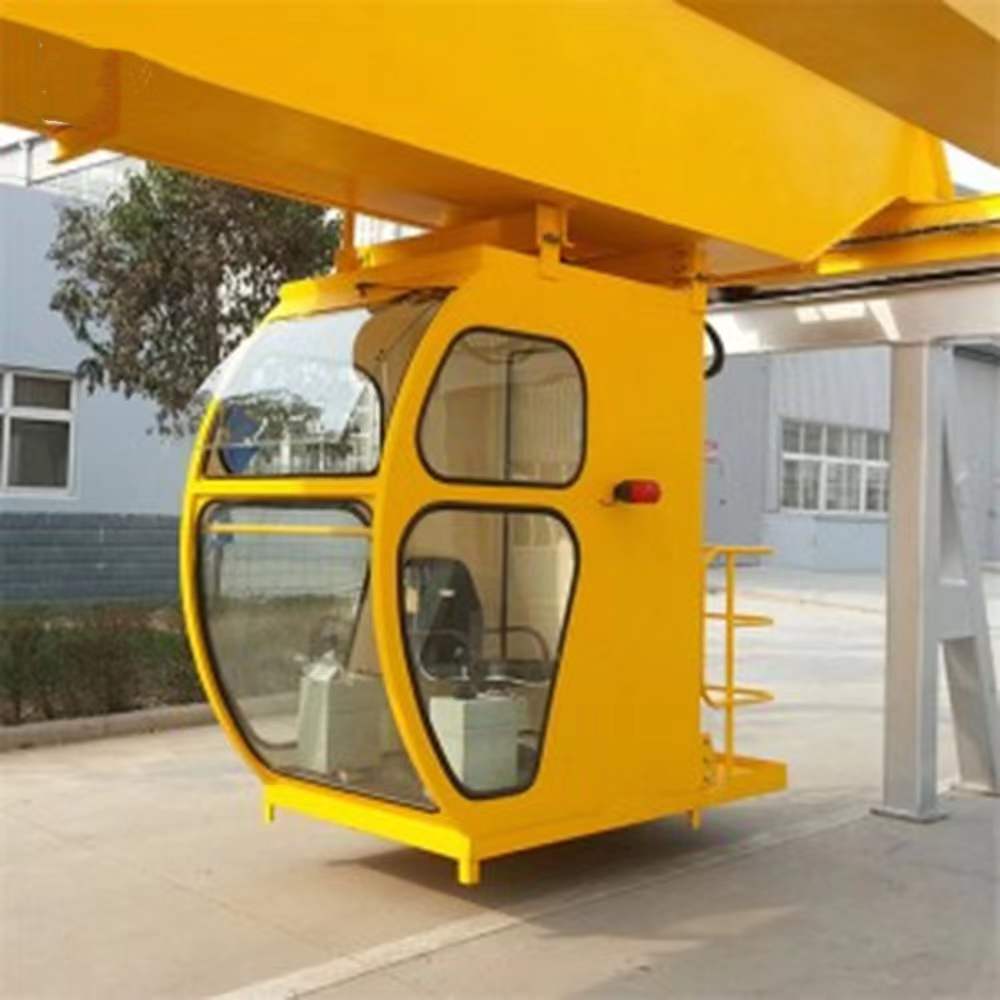

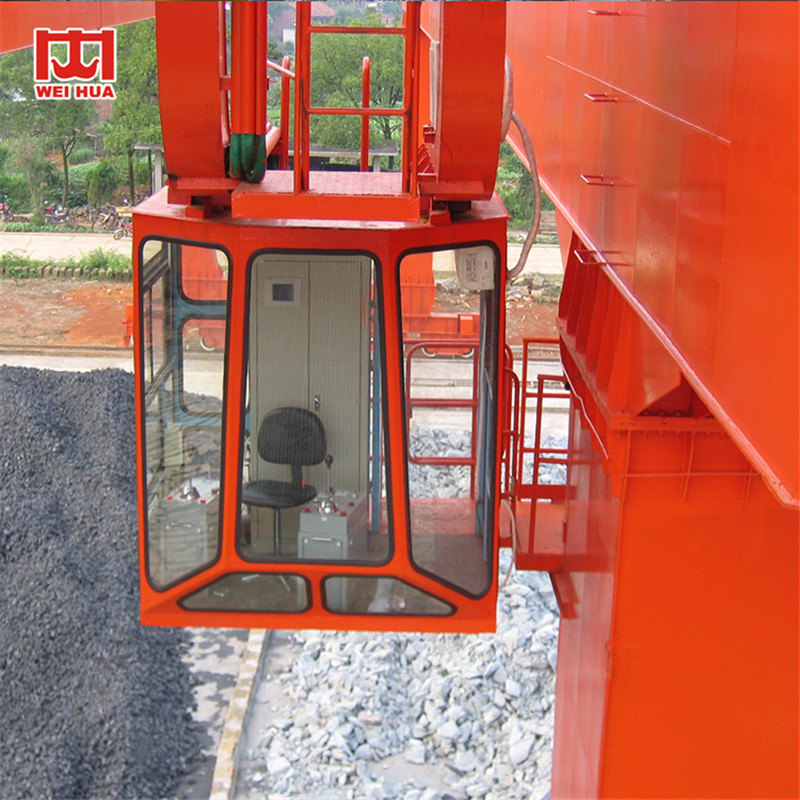

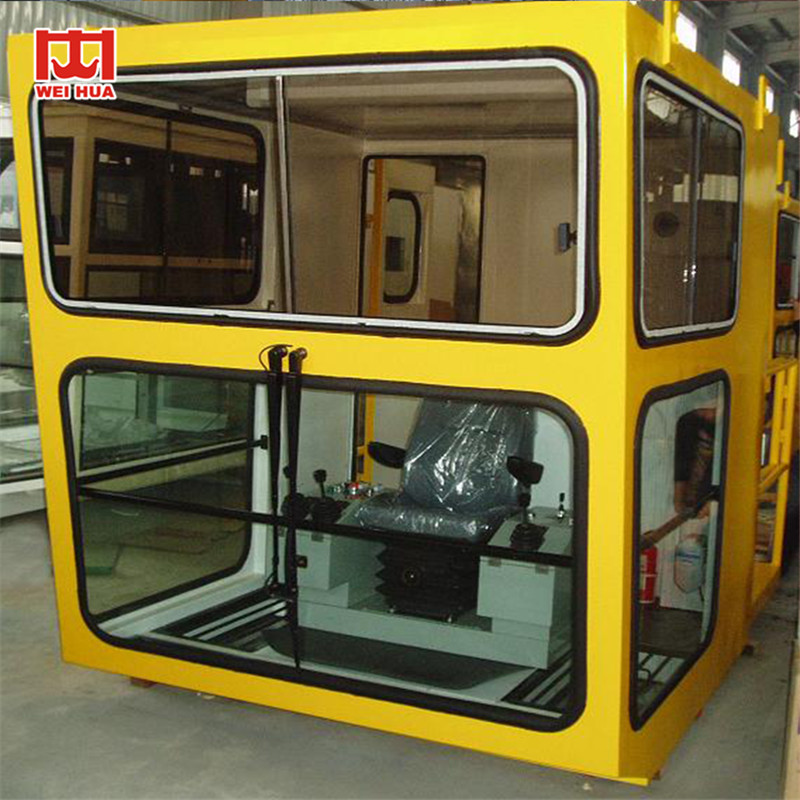

Operation Cabin are developed by us on the basis of the human engineering principle. They have well safety and protection devices, comfortable operating environment, and an uncrowded view. Using the advanced welding and manufacture technics, the appearances of the cabins are flat and clean. All the doors and windows are well sealed and shockproof.
The crane operator cabin is made of the cold rolled steel plates by welding, and the steel plates are processing by the numerically controlled machine tool. The appearance is smooth and the structure is intensity enough.
The windows glasses are 5mm toughened glasses. The transparency is higher than 80%. There is a bottom window in the cabin.
The floor’s walking surface is covered with insulating rubber matting with non-skid walking surface. The floor is 3mm removable type steel plates. And the connector of the control wire has been preventing fraying treated.
parameter
| Mechanism Operation Level | Lifting Mechanism | M5 | ||||||||
| Slewing Mechanism | M4 | |||||||||
| Trolley Traveling Mechanism | M4 | |||||||||
| Mast section dimension | 1830*1830*2800/1830*1830*2500 | |||||||||
| Main chord | ∠125*∠125*12 Thick Manganese Steel | |||||||||
| Slewing Way | Double-gyration | |||||||||
| Rated torque (kn.m) | 800 | |||||||||
| Working range(m) | Maximum Working Range | 60 | ||||||||
| Minimum Working Range | 3 | |||||||||
| Lifting height(m) | Free-stand(m) | With wall-tie-ins(m) | ||||||||
| 45 | 150 | |||||||||
| Standar Mast Section Number | 15/17 | |||||||||
| Max lifting load (t) | 8 | |||||||||
| Lifting Mechanism | Motor type | YZTD200L -4/8/24 | ||||||||
| Multiplying factor | a = 2 | a = 4 | ||||||||
| Lifting capacity/velocityt/(m/min) | 1.5/80 | 3/40 | 3/8.5 | 3/40 | 6/20 | 6/4.2 | ||||
| Power(kw) | 24/24/5.4 | |||||||||
| Trolley Traveling Mechanism | Motor type | YDEJ100 L -4/6 | ||||||||
| Velocity(m/min) | 48/24 | |||||||||
| Power (kw) | 3.3/2.2 | |||||||||
| Slewing Mechanism | Motor type | YZR132M2-6 | ||||||||
| Velocity (m/min) | 0.62 | |||||||||
| Power (kw) | 3.7*.2 | |||||||||
| Climbing Mechanism | Velocity (m/min) | 0.5 | ||||||||
| Power (kw) | 7.5 | |||||||||
| Working pressure (mpa) | 20 | |||||||||
| Total power(kw) | 36.7(exclude climbing mechanism) | |||||||||
| Counterweight | Max working range (m) | 60 | 42 | 11.27 | ||||||
| Weight (t) | 1 | 2 | 8 | |||||||
| Working temperature(ºC) | -20~+40 | |||||||||
Operation Cabin installation
1. Operator cabin install in an exposed outdoor marine environment .It can withstand any anticipated explosion pressure and impact form objects possilbly contained in a blast.
2. The operator cabin is heavy steel construction,fully welded,suitable for outdoor marine application.
3. It include 4 lifting lugs for transporting.
4. Construction and insulation are Non-combustible.
5. Door is fitted with door closer ,panic door lock and windows.
6. Windows are fitted with double safety glass, sealed, double glazed and tined, Front window complete with wiper systems and washers, Bottom windows have hinged protection guarding.
7. Complete with Operator chair, HVAC, Light, switch.
About KORIGCRANES
KORIGCRANES ( HENAN WEIHUA KORIG CRANES CO., LTD) located in crane hometown of China (cover more than 2/3 crane market in China), who is a trusted professional industry crane manufacturer and leading exporter. Specialized in design, manufacturing, installation and service of Overhead crane, Gantry crane, Port crane, Electric hoist etc, we have passed ISO 9001:2000, ISO 14001:2004, OHSAS 18001:1999, GB/T 19001-2000, GB/T 28001-2001, CE, SGS, GOST, TUV, BV and so on.
Product Application
To meet the demands of the oversea market, we independent research and development European type overhead crane, gantry crane; electrolytic aluminum multi-purpose overhead crane, hydro-power station crane etc. European type crane with light dead weight, compact structure, lower energy consumption etc. Many main performance reach the industry advanced level.
KORIGCRANES Widely used in machinery, metallurgy, mining, electric power, railway, petroleum, chemical, logistics and other industries. Service for hundreds of large enterprises and national key projects such as China Datang Corporation, China Guodian Corporation, SPIC, Aluminum Corporation Of China（CHALCO）, CNPC, Power China, China Coal, Three Gorges Group, China CRRC, Sinochem International, etc.
Our Market
Our cranes has been exported cranes to more than 110 countries for example Pakistan, Bangladesh, India, Vietnam, Thailand, Indonesia, Philippines, Malaysia、USA, Germany, France, Australia, Kenya, Ethiopia, Nigeria, Kazakhstan, Uzbekistan, Saudi Arabia、UAE、Bahrain、Brazil, Chile, Argentina, Peru etc and received good feedback from them. Very happy to be friends with each other come from all of the world and hope to establish long-terms good cooperation.
KORIGCRANES has steel pre-treatment production lines, automatic welding production lines, machining centers, assembly workshops, electrical workshops, and anti-corrosion workshops. Can independently complete the whole process of crane production.
Q. What’s the information should I provide when inquiry?
More details or drawings, better.
A: Lift capacity B: span C: lift height D: power source; other specials you give us will be more appreciated.
Q. How many operating methods for my selection?
Standard operating methods:
A: remote control with push buttons

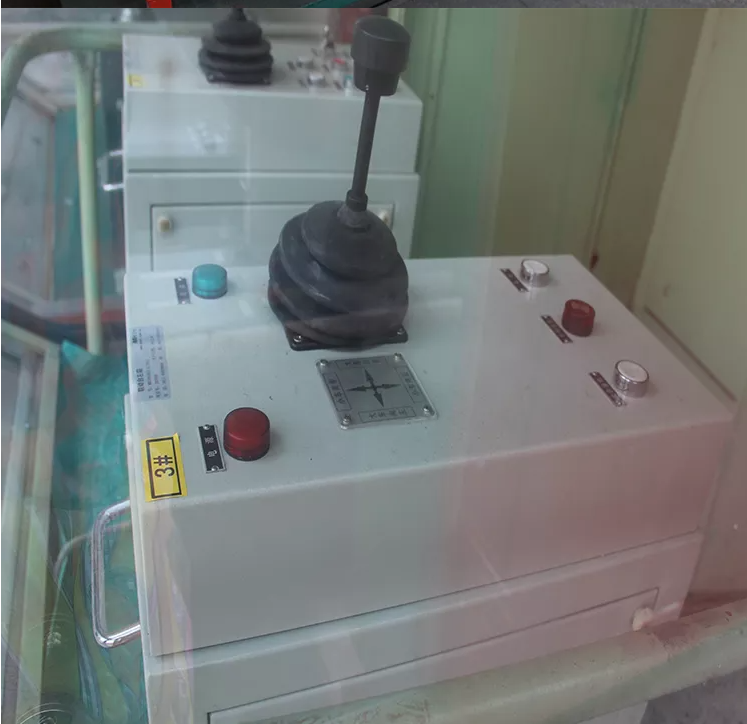

B: cabin (space capsule seat) control with joystick. Choose any type as you like.
