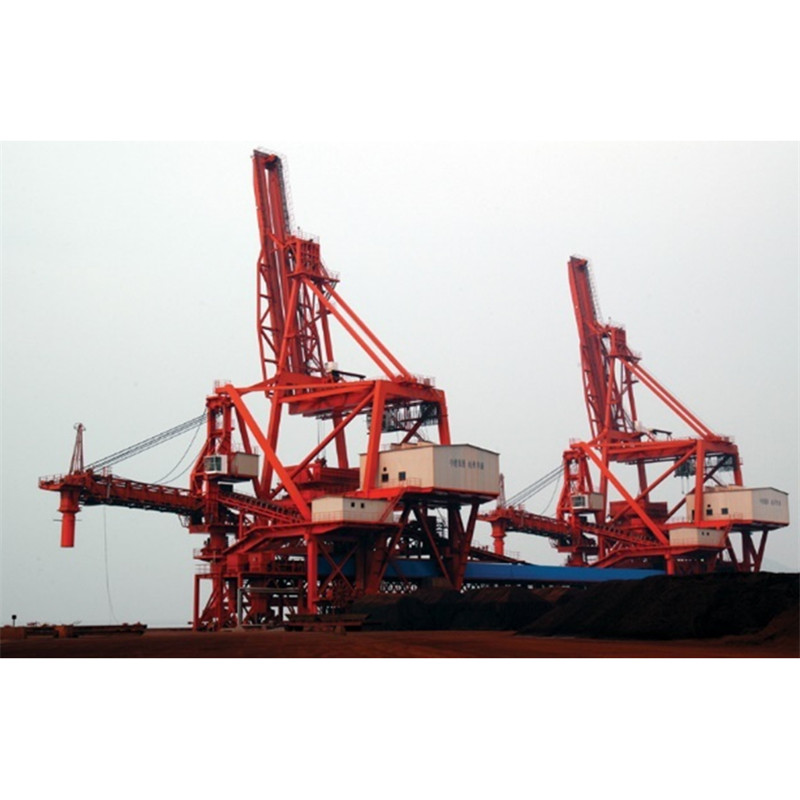

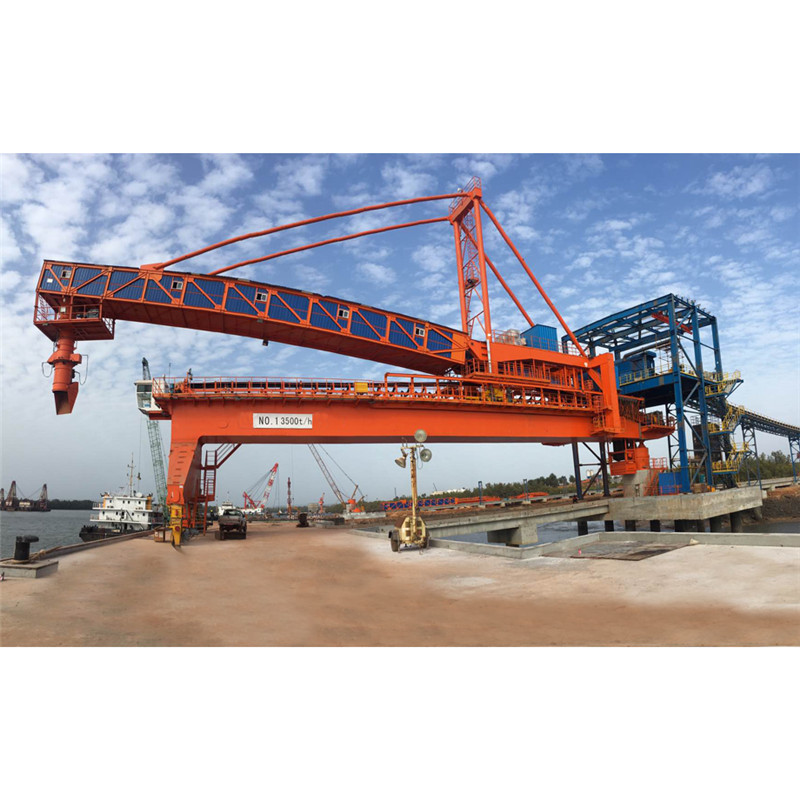

Continuous Ship loader

Short Description:

Continuous ship loader is widely applied in docks to load ships of bulk cargoes such as coal, ore, grain and cement, etc.

Product Name: Continuous Ship loader
Capacity: 600tph~4500tph
Handling Material: Coal,wheat,corn,fertilizer, cement, ore etc.


  • Brand Name: KORIG
  • Place of Origin: Henan, China
  • Customize Service: Available
  • Certification: CE ISO SGS
  • Min.Order Quantity: 1 set
  • Payment Terms: L/C, T/T, Western Union
  • Delivery Time: 20~30 Workdays
  • Supply Ability: 1000 Set/Month
  • Port of Shipment: Qingdao Port, Tianjin Port, Shanghai Port
  • Packaging Details: Electrical parts are packed in wooden boxes, and steel structural parts are packed in color tarpaulin.
  • Product Detail

    company information

    FAQ

    Product Tags

    Description

    Ship loader structure is mainly composed of steel structure, jib belt conveyor, feeder tripper, luffing mechanism, slew mechanism, travel mechanism, spray system, chute, electric system, necessary safety components and accessory devices. Ship loader jib could slew, luffing, prolong and shorten itself. And chute could also prolong and shorten itself in up and down direction.

    Technical Parameter Table

    Rated capacity

    t/h

    300

    1000

    1800

    Max.capacity

    t/h

    360

    1200

    2000

    Bulk cargo

    Coke

    Bulk cement

    Coal

    Ship size

    DWT

    5000

    5000

    5000

    Width of belt conveyor

    mm

    1000

    1400

    1400

    Speed of belt conveyor

    m/s

    2.5

    2.42

    3.5

    Chute extending length

    m

    8.15

    19.5

    19.5

    Chute extending length speed

    m/min

    9.3

    4

    3.6

    Product Features

    1.The capacity of ship loader ranges from 600t/h to 4500t/h, and the capacity of double-function ship loaders ranges from 200t/h to 3000t/h.
    2.The ship loaders is equipped with fully enclosed vacuum cleaning system according to environmental protection requirements.
    3.The ship loaders use wear-resistant chute made of imported materials, with long durability.
    4. The ship loader-unloader is connected to the main structure of unloader through articulation, and walks together.
    5.The ship loader can load various material such as coal, ore, cement etc.

    Painting

    The ship loader shall use the zinc epoxy painting system.
    They paint could guarantee a minimum paint life of minimum 5 years against cracks, rusty, peeling and discolourtion.

    Every surface of metal have surface cleaning according to standard sis st3 or sa2.5. Then they are
    painted with one coat of epoxy zinc rich primer with dry film thickness of 15 microns.
    The primer coat – shall be painted with one coat epoxy zinc rich primer, dry film thickness of 70 microns.
    The intermediate paint shall be painted with one coat epoxy micaceous iron oxide, dry film thickness of 100 microns.The finish coat shall be painted with two coats, poly urethane, the thickness of each coat is 50 microns.The total dry film thickness shall be not less than 285 microns.

    Crane Management System (CMS)

    The crane management system shall be full computerised operation, complete with sensors and transducers which shall be installed permanently on each crane and work in conjunction with the plc. provide with the monitor to monitoring diagnostics of crane, telling the data collection on the crane’s operating system, operated jointly with the device at least including the electrical power supply device, motor controls, operator control, motor, gear reducers and etc., such programme shall be flexible  enough to change or modify by the operator at later stage.
    Having following function.
    1.Condition Monitoring
    2.Fault Diagnosis
    3.Store the record and display system Preventive maintenance

    Outline Drawing

    2000th Ship Loader-Model

    Complete shipping and Overseas Installation Service

    We could assemble and ship the complete set crane in our jetty.We are dedicated to promoting the application of the four-drum traction technology of grab type ship unloader, providing installation services in different forms such as installation of bulk parts at owner’s jetty, or lifting the whole main structure of the equipment onto owner’s jetty, or lifting the whole equipment onto owner’s jetty, or roll-on and roll-off of the whole equipment onto the owner’s jetty, and undertaking the upgrading service of old ship unloaders. We have established a long-term business relationship with clients with regards to spare parts supply, repair, maintenance, overhauling and upgrading service.
    We could provide after-sale service such as overhaul, maintenance, relocation and reinstallation service.


  • Previous:
  • Next:

  • About KORIGCRANES

    KORIGCRANES ( HENAN WEIHUA KORIG CRANES CO., LTD) located in crane hometown of China (cover more than 2/3 crane market in China), who is a trusted professional industry crane manufacturer and leading exporter. Specialized in design, manufacturing, installation and service of Overhead crane, Gantry crane, Port crane, Electric hoist etc, we have passed ISO 9001:2000, ISO 14001:2004, OHSAS 18001:1999, GB/T 19001-2000, GB/T 28001-2001, CE, SGS, GOST, TUV, BV and so on.

    Product Application

    To meet the demands of the oversea market, we independent research and development European type overhead crane, gantry crane; electrolytic aluminum multi-purpose overhead crane, hydro-power station crane etc. European type crane with light dead weight, compact structure, lower energy consumption etc. Many main performance reach the industry advanced level.
    KORIGCRANES Widely used in machinery, metallurgy, mining, electric power, railway, petroleum, chemical, logistics and other industries. Service for hundreds of large enterprises and national key projects such as China Datang Corporation, China Guodian Corporation, SPIC, Aluminum Corporation Of China(CHALCO), CNPC, Power China, China Coal, Three Gorges Group, China CRRC, Sinochem International, etc.

    Our Market

    Our cranes has been exported cranes to more than 110 countries for example Pakistan, Bangladesh, India, Vietnam, Thailand, Indonesia, Philippines, Malaysia、USA, Germany, France, Australia, Kenya, Ethiopia, Nigeria, Kazakhstan, Uzbekistan, Saudi Arabia、UAE、Bahrain、Brazil, Chile, Argentina, Peru etc and received good feedback from them. Very happy to be friends with each other come from all of the world and hope to establish long-terms good cooperation.

    KORIGCRANES has steel pre-treatment production lines, automatic welding production lines, machining centers, assembly workshops, electrical workshops, and anti-corrosion workshops. Can independently complete the whole process of crane production.

    Q. What’s the information should I provide when inquiry?
    More details or drawings, better.
    A: Lift capacity B: span C: lift height D: power source; other specials you give us will be more appreciated.

    Q. How many operating methods for my selection?
    Standard operating methods:
    A: remote control with push buttons
    B: cabin (space capsule seat) control with joystick. Choose any type as you like.

    Q. Can this type work in hazardous environment?
    A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.

    Q. Can you provide the serious lifting tools?
    A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!

    Q. How can we install the crane?
    A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
