Double beam hanging beam vertical with main beam overhead crane

Short Description:

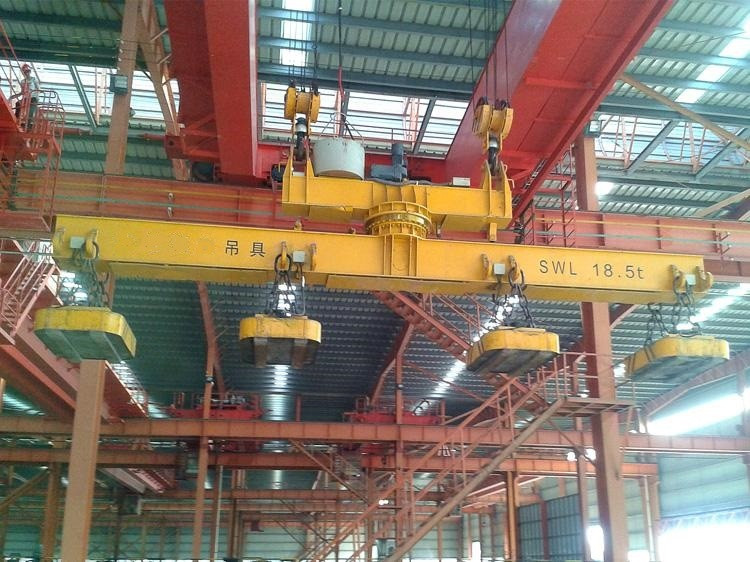

Carrier-beam crane take carrier-beam as spreader, carrier-beam together with hook and removable electromagnetic chuck to adsorb and carry loads. Widely used in steel mills, steel mills finished products storage, shipyard, storage yard, cutting workshop and other indoor or outdoor fixed cross, handling and transporting steel tube, steel billets, steel coils, long container and other materials, especially for lifting long objects. Carrier-beam spreader included rotating, flexible and fixed carrier-beam.


  • Brand Name: KORIG
  • Place of Origin: Henan, China
  • Customize Service: Available
  • Certification: CE ISO SGS
  • Min.Order Quantity: 1 set
  • Payment Terms: L/C, T/T, Western Union
  • Delivery Time: 20~30 Workdays
  • Supply Ability: 1000 Set/Month
  • Port of Shipment: Qingdao Port, Tianjin Port, Shanghai Port
  • Packaging Details: Electrical parts are packed in wooden boxes, and steel structural parts are packed in color tarpaulin.
  • Product Detail

    company information

    FAQ

    Product Tags

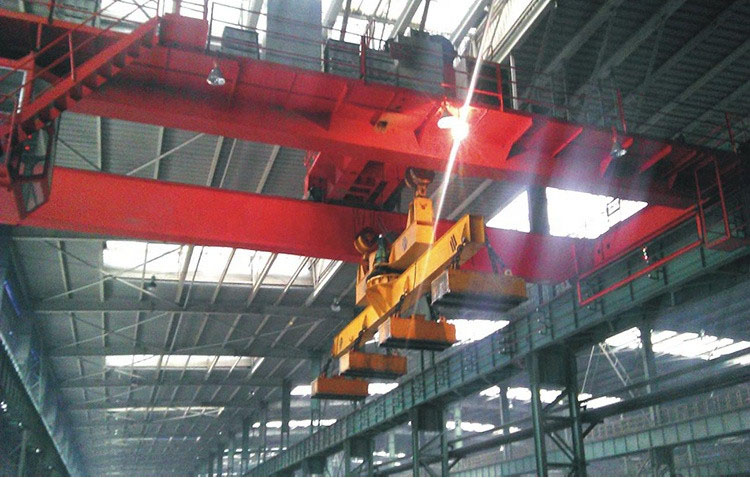

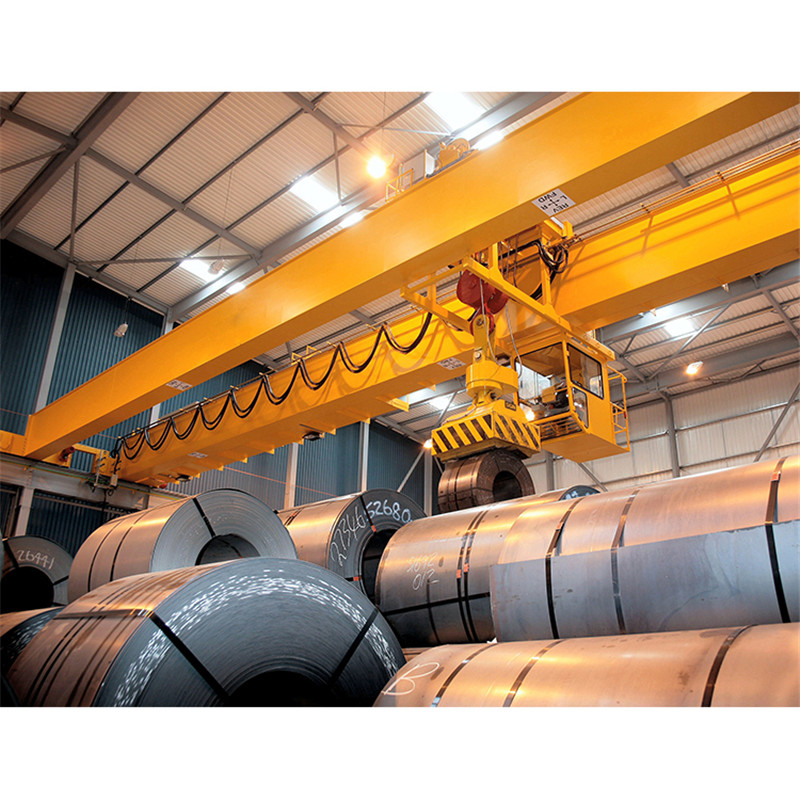

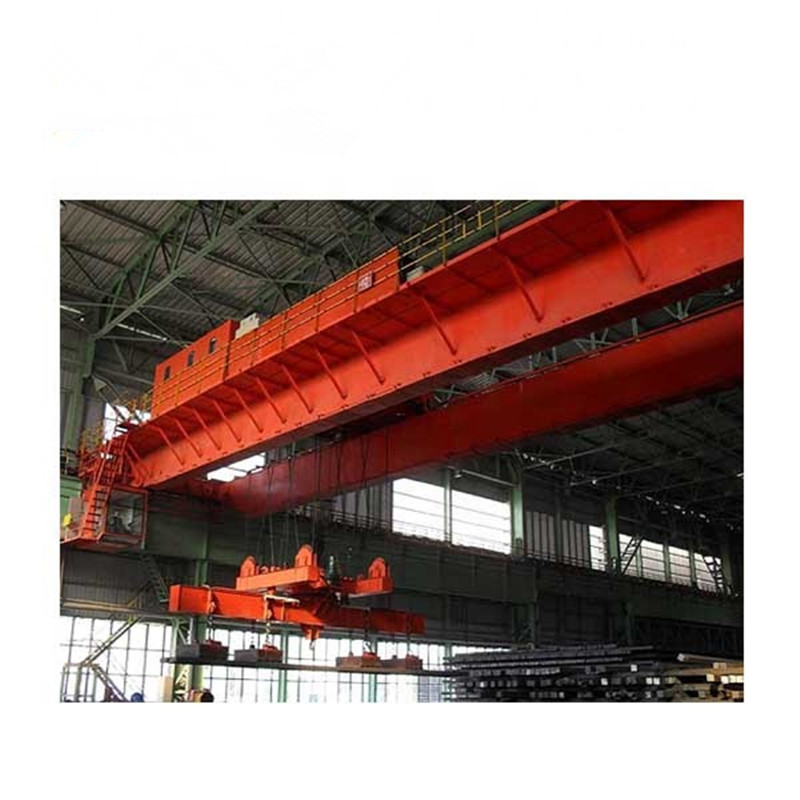

    The crane has slewing carrier-beam, is applicable to the fixed span at indoor outdoors of steel mill, shipyard, port, yard and storage, etc.

    It is used for loading, unloading and carrying steel plate, profile steel, and spool, etc. It is especially applicable to lift material of different specifications and which needs Horizontal rotation.

    The carrier-beam is cross structure, which is reliable and has good safety features and has a certain function of preventing swinging, The lower part of the carrier-beam can bring special lifting appliances, such as magnetic chuck and tongs, etc.

    Carrier-beam crane including three kinds: general carrier-beam crane, upper rotating carrier-beam crane, lower rotating carrier-beam crane. Lower rotating carrier-beam crane included lower rotating telescopic carrier-beam crane. Our company has nearly thirty years of carrier-beam cranes production experience, can also produce special carrier-beam crane, such as overlength carrier-beam crane.

    Double beam hanging beam vertical with main beam overhead crane
    Double beam hanging beam vertical with main beam overhead crane

    technological parameter

    capacity 5t+5t 7.5t+7.5t 10t+10t 16t+16t
    span 10.5-31.5m
    lifting height up to 20m
    speed lifting speed 1m/min /15m/min
    trolley travel speed 4-40m/min
    crane travel speed 10-100m/min
    working class A5-A6
    Double beam hanging beam vertical with main beam overhead crane
    Double beam hanging beam vertical with main beam overhead crane

  • Previous:
  • Next:

  • About KORIGCRANES

    KORIGCRANES ( HENAN WEIHUA KORIG CRANES CO., LTD) located in crane hometown of China (cover more than 2/3 crane market in China), who is a trusted professional industry crane manufacturer and leading exporter. Specialized in design, manufacturing, installation and service of Overhead crane, Gantry crane, Port crane, Electric hoist etc, we have passed ISO 9001:2000, ISO 14001:2004, OHSAS 18001:1999, GB/T 19001-2000, GB/T 28001-2001, CE, SGS, GOST, TUV, BV and so on.

    Product Application

    To meet the demands of the oversea market, we independent research and development European type overhead crane, gantry crane; electrolytic aluminum multi-purpose overhead crane, hydro-power station crane etc. European type crane with light dead weight, compact structure, lower energy consumption etc. Many main performance reach the industry advanced level.
    KORIGCRANES Widely used in machinery, metallurgy, mining, electric power, railway, petroleum, chemical, logistics and other industries. Service for hundreds of large enterprises and national key projects such as China Datang Corporation, China Guodian Corporation, SPIC, Aluminum Corporation Of China(CHALCO), CNPC, Power China, China Coal, Three Gorges Group, China CRRC, Sinochem International, etc.

    Our Market

    Our cranes has been exported cranes to more than 110 countries for example Pakistan, Bangladesh, India, Vietnam, Thailand, Indonesia, Philippines, Malaysia、USA, Germany, France, Australia, Kenya, Ethiopia, Nigeria, Kazakhstan, Uzbekistan, Saudi Arabia、UAE、Bahrain、Brazil, Chile, Argentina, Peru etc and received good feedback from them. Very happy to be friends with each other come from all of the world and hope to establish long-terms good cooperation.

    KORIGCRANES has steel pre-treatment production lines, automatic welding production lines, machining centers, assembly workshops, electrical workshops, and anti-corrosion workshops. Can independently complete the whole process of crane production.

    Q. What’s the information should I provide when inquiry?
    More details or drawings, better.
    A: Lift capacity B: span C: lift height D: power source; other specials you give us will be more appreciated.

    Q. How many operating methods for my selection?
    Standard operating methods:
    A: remote control with push buttons
    B: cabin (space capsule seat) control with joystick. Choose any type as you like.

    Q. Can this type work in hazardous environment?
    A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.

    Q. Can you provide the serious lifting tools?
    A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!

    Q. How can we install the crane?
    A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
