Double Girder Segment Assembly Bridge Erection Launching Gantry Crane

Short Description:

Concrete bridge launcher crane for girder erection is used in the erection of precast beam bridges for span by span method of construction for precast beam girders like T beam, U beam, etc. This self-beam launcher is suitable for bridge construction over river, valley or highway and so on.

Product name: Concrete bridge launcher crane for girder erection

Capacity:100/120/160/200t

Span: ≤55m

Lifting speed:0.8m/min

Trolley speed:4.25m/min


  • Brand Name: KORIG
  • Place of Origin: Henan, China
  • Customize Service: Available
  • Certification: CE ISO SGS
  • Min.Order Quantity: 1 set
  • Payment Terms: L/C, T/T, Western Union
  • Delivery Time: 20~30 Workdays
  • Supply Ability: 1000 Set/Month
  • Port of Shipment: Qingdao Port, Tianjin Port, Shanghai Port
  • Packaging Details: Electrical parts are packed in wooden boxes, and steel structural parts are packed in color tarpaulin.
  • Product Detail

    company information

    FAQ

    Product Tags

    overview

    Concrete bridge launcher crane for girder erection is suitable for the construction of bridge for roads, railways and other bridge erection construction site. Its main function is to lift the prefabricated beams, then transported onto the prefabricated pier. It has big difference from the general cranes. It requests high security.

    The capacity:60-200ton

    The span : 20-50m

    Control Mode: Pendant, Remote Control and Cabin Control.

    Safety feature.
    Winches are equipped with double breaking system. Upon request we provide Triple breaking system. Emergency stop button, Limit switch, sensor are located at designated location. Lighting and spare-parts are part of the items coming with our beam launcher.

    parameter

    applicable skew bridge angle 0-450 0-450 0-450 0-450 0-450
    trolley lifting speed 0.8 0.8 0.8 1.27 0.8
    (m/min)
    trolley longitudinal moving speed 4.25 4.25 4.25 4.25 4.25
    (m/min)
    Crane longitudinal moving speed 4.25 4.25 4.25 4.25 4.25
    (m/min)
    Crane transverse moving speed 2.45 2.45 2.45 2.45 2.45
    (m/min)
    transportation capacity 100X2 80 X2 60X2 50X2 50X2
    (t)
    speed of bridge transport vehicle 8.5 8.5 8.5 8.5 8.5
    (m/min)
    return speed 17 17 17 17 17
    (m/min)

    features

    1: Low center of gravity, convenient and safe.

    2: Convenient installation and wide application range.

    3: Accomplish girders with carrying and erection at the same time.

    4: SWL Lifting weight: 30 40 50 60 70 80 90 100 120 125 130 150 160 180 200 250 260 300 350 400 450 500 550 600 800 900 tons T.

    5: Span: 7.5m,10m,15m,20m,24m,25m,30m,32m,35m,40m,45m,50m,55m,60m.

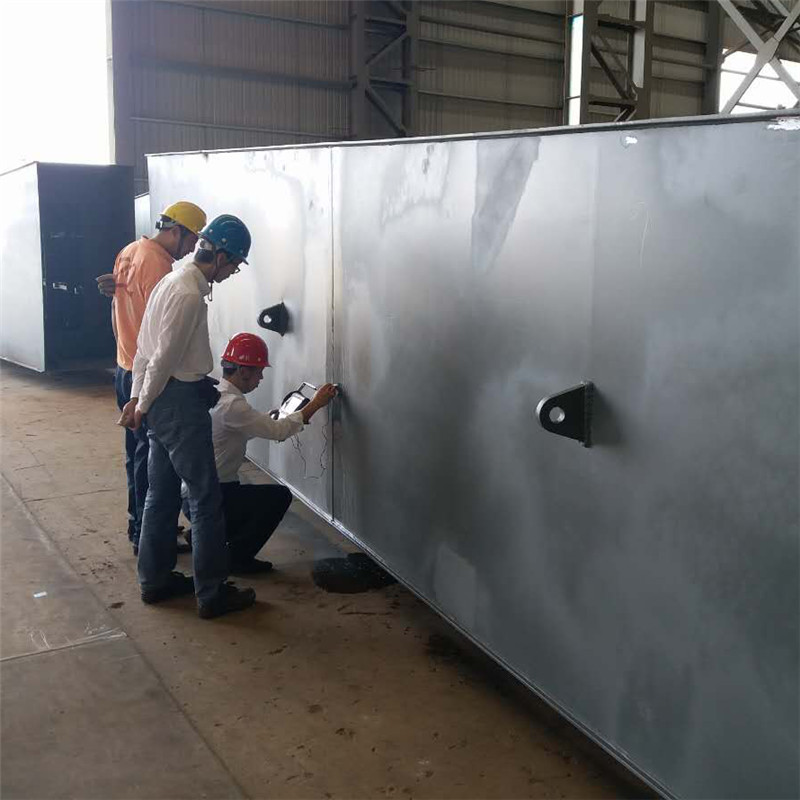

    • Double Girder Segment Assembly Bridge Erection Launching Gantry Crane (4)

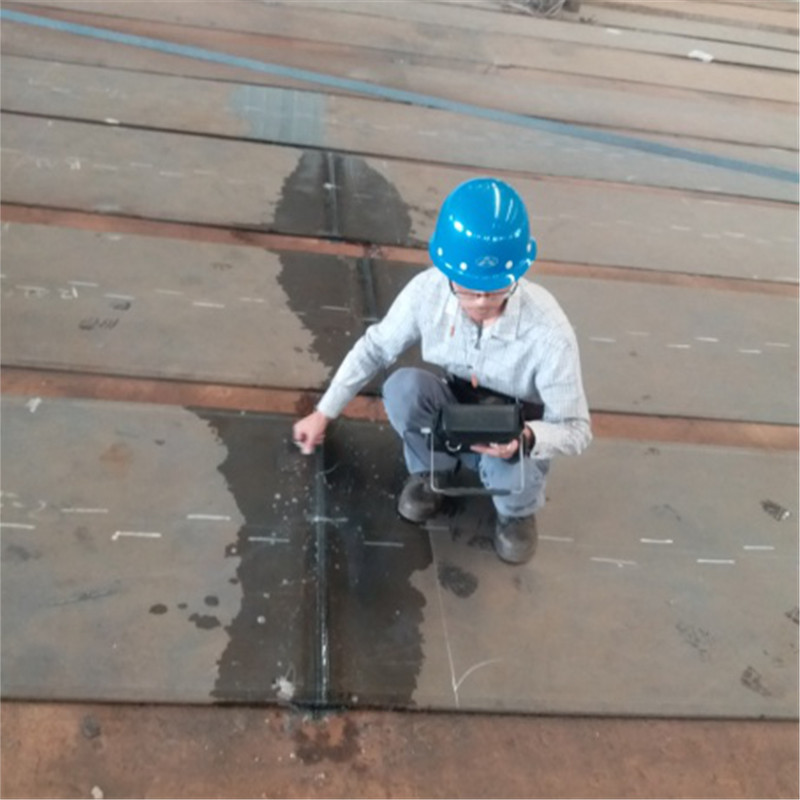

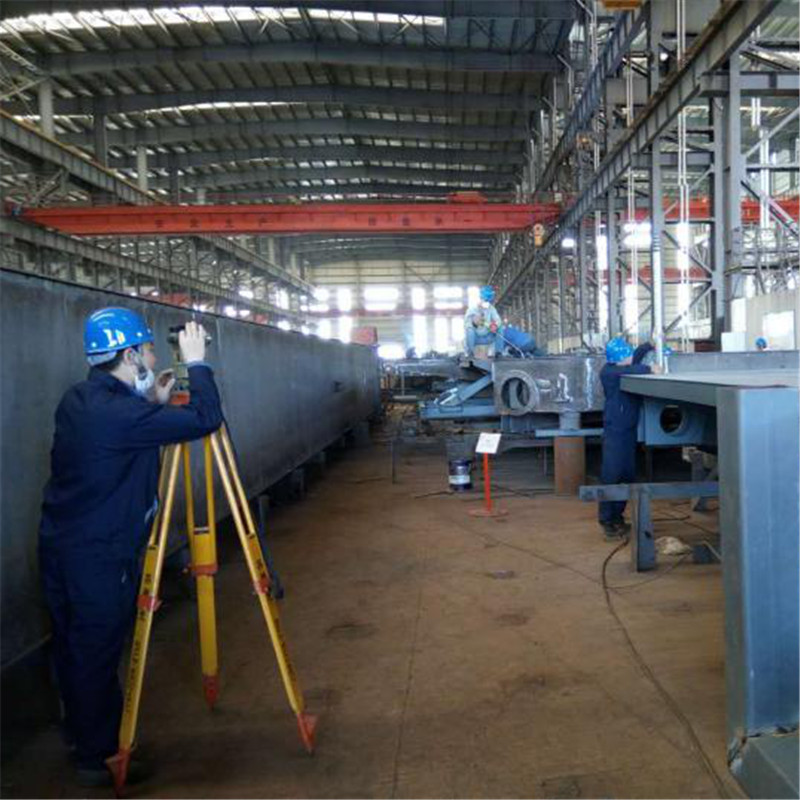

    • Double Girder Segment Assembly Bridge Erection Launching Gantry Crane (2)
