Electro-Hydraulic Fixed Boom Marine Deck Crane

Short Description:

This crane is usually fixed on ship decks or piers for goods loading and unloading.

Product Name: Electro-Hydraulic Fixed Boom Marine Deck Crane

Working Load: 2-30 ton

Working Radius: range 2-24 M

Lifting Height: 35 m

Hoisting Speed: 15-25 M/min.


  • Brand Name: KORIG
  • Place of Origin: Henan, China
  • Customize Service: Available
  • Certification: CE ISO SGS
  • Min.Order Quantity: 1 set
  • Payment Terms: L/C, T/T, Western Union
  • Delivery Time: 20~30 Workdays
  • Supply Ability: 1000 Set/Month
  • Port of Shipment: Qingdao Port, Tianjin Port, Shanghai Port
  • Packaging Details: Electrical parts are packed in wooden boxes, and steel structural parts are packed in color tarpaulin.
  • Product Detail

    company information

    FAQ

    Product Tags

    overview

    Electro-Hydraulic Fixed Boom Marine Deck Cranes are most suitable when the amount of space on deck is ample. These cranes offer a cost-effective alternative to knuckle booms or telescopic booms. Those cranes are fixed where the lift is mostly done by the winch. Cannot be hydraulically extended and retracted and have no knuckle function. Also available been inspected and tested by some international marine classification societies such as ABS(USA), DNV(Norway), BV(France), GL(Germany), LR(UK), NK(Japan), KR(Korea), etc.

    parameters

    Capacity 30 Ton 36Ton
    Hoisting load 30/12/5 t 36/14/5 t
    Hoisting speed 18.5/37/63m/min. 16/32/55m//min.
    Lowering speed 53m/min. 55m/min.
    Luffing speed 41-52 sec. 54-58sec.
    Slewing speed 0.5-0.75rpm. 0.45-0.6rpm.
    Working Max. 22-30 m 26-30m
    radius Min. 4 -5 m 4.5-5m
    Slewing angle 360.endless
    Winding height 35m

    features

    Marine Deck Crane, by electric or electro-hydraulic control, this type of crane is used for loading and unloading cargo on bulk carriers or container ships. With wire rope amplitude or hydraulic cylinder amplitude.

    Marine Deck Crane can rotate 360 degrees and can change amplitude within the length of the boom. Full hydraulic drive, electric motor, hydraulic pump, hydraulic motor, valve block, fuel tank, reel and other components are arranged in a cylindrical rotating barrel, the internal space structure is compact, so that the ship has more deck area can be used.

    Marine Deck Crane has large lifting capacity, easy operation, impact resistance, good braking performance, safety and reliability, high loading and unloading efficiency, and flexible maneuverability.

    There is no tedious preparation work before Marine Deck Crane operation. The hook can be attached with a grab bucket to load and unload bulk goods, which has good adaptability to the goods and is widely used.

    images

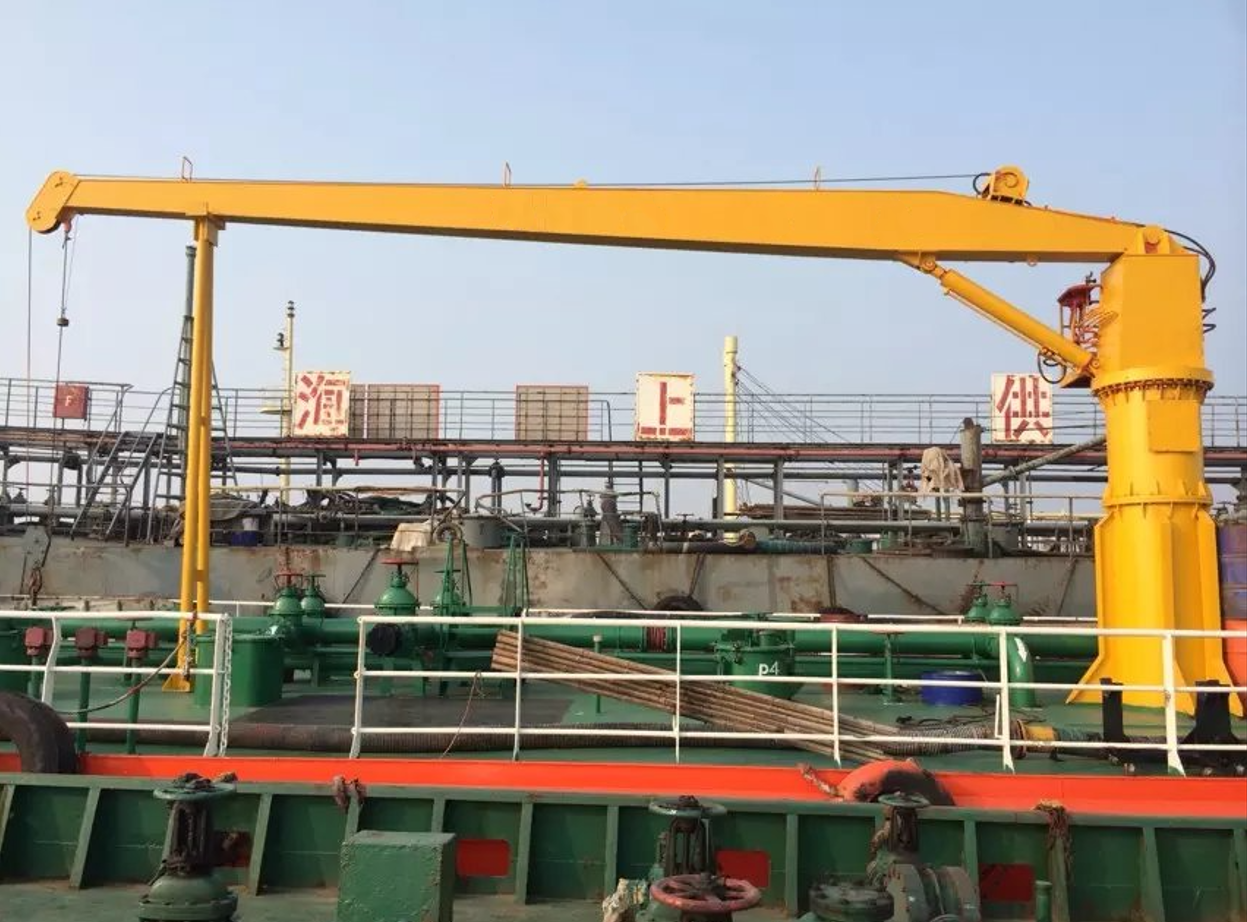

    • marine crane (1)

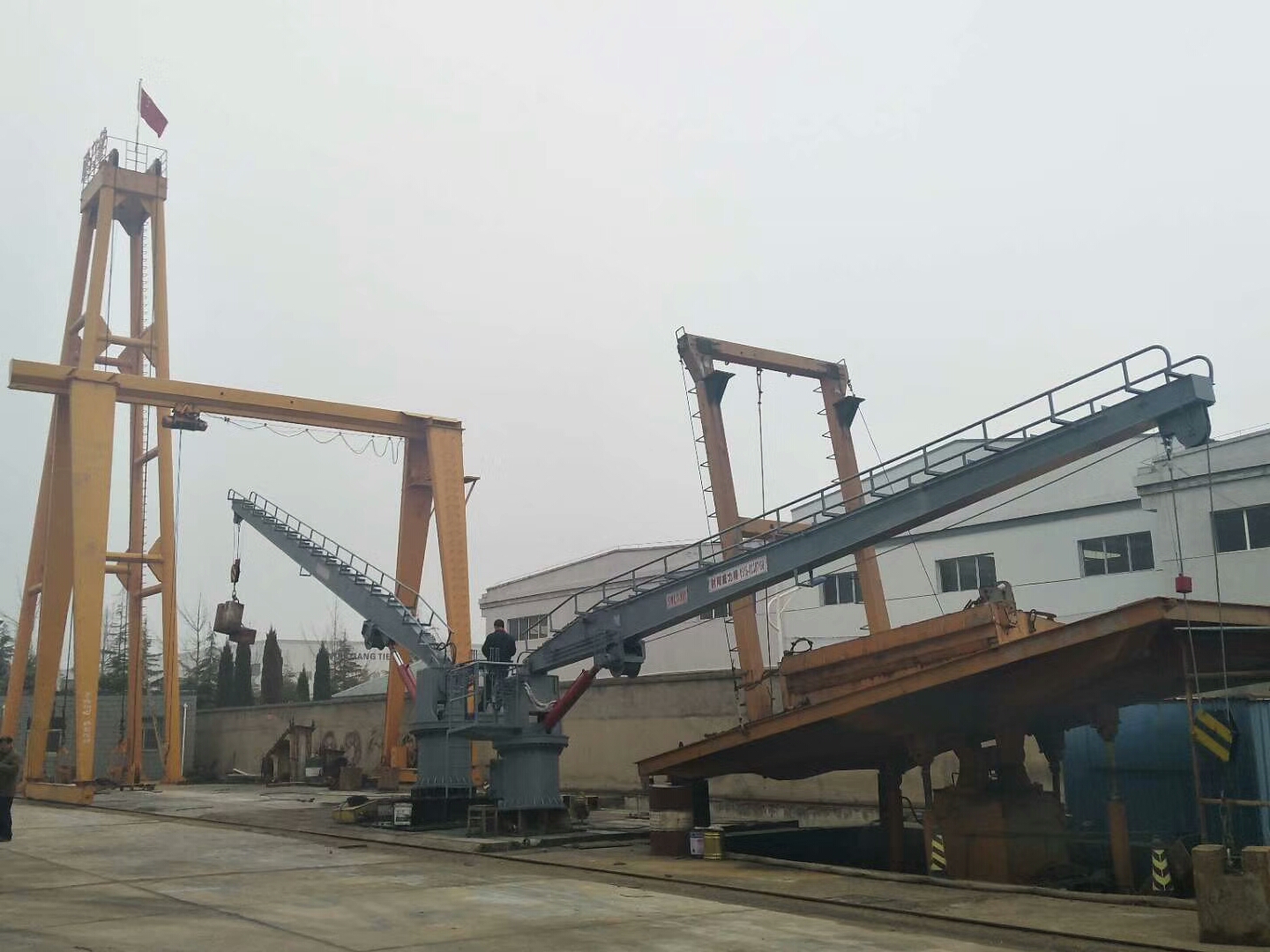

    • marine crane (5)

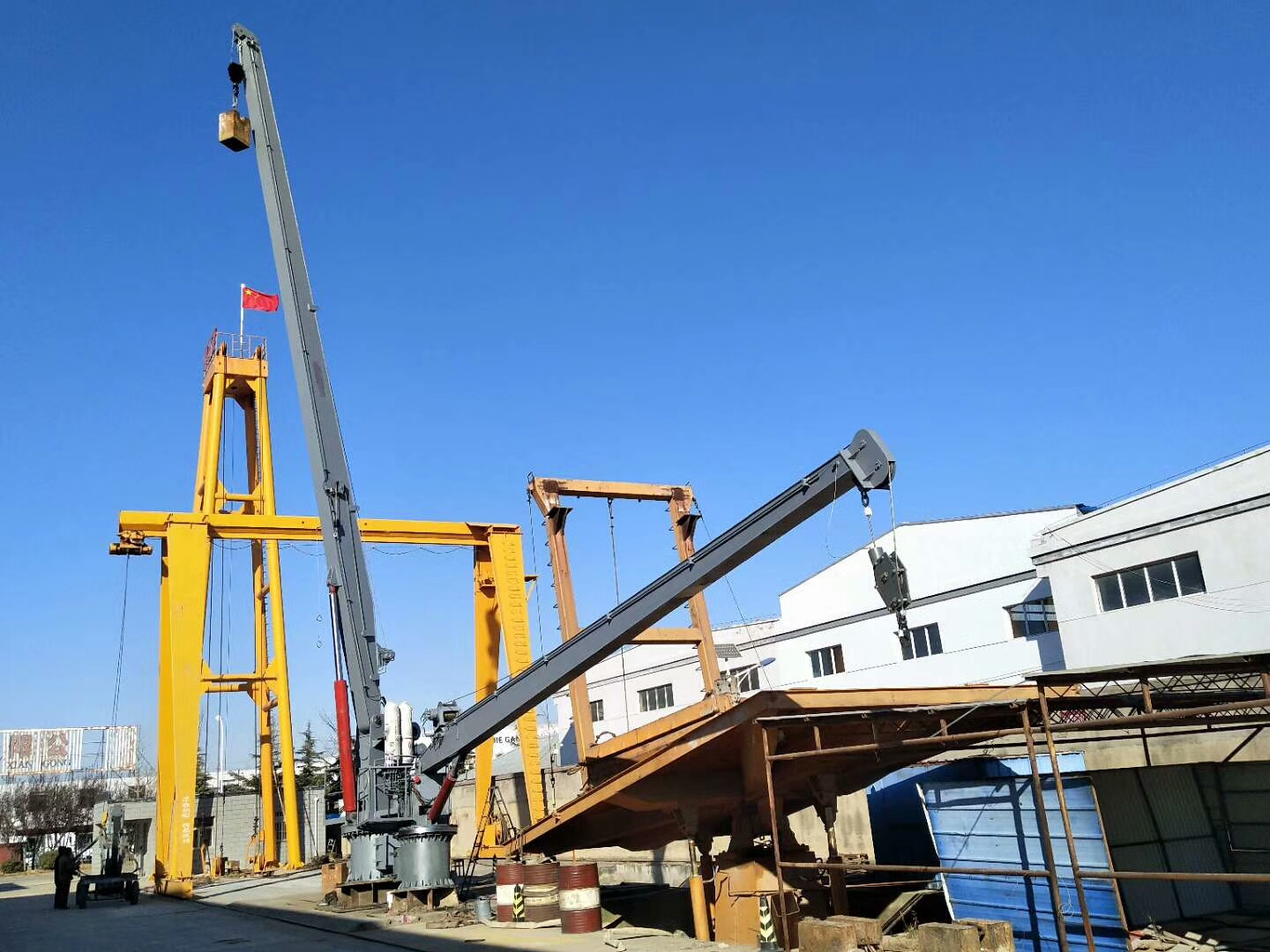

    • marine crane (11)

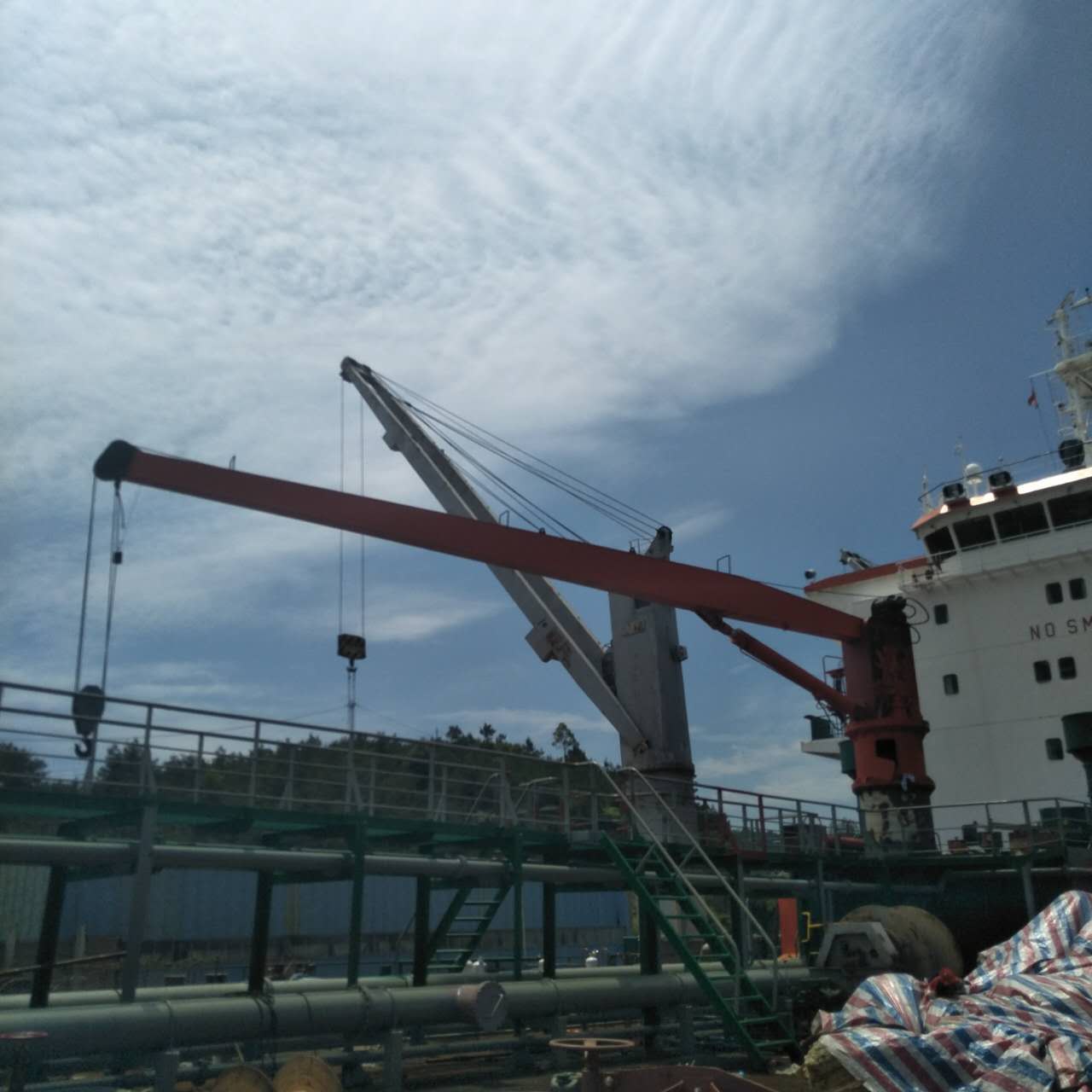

    • marine crane (10)

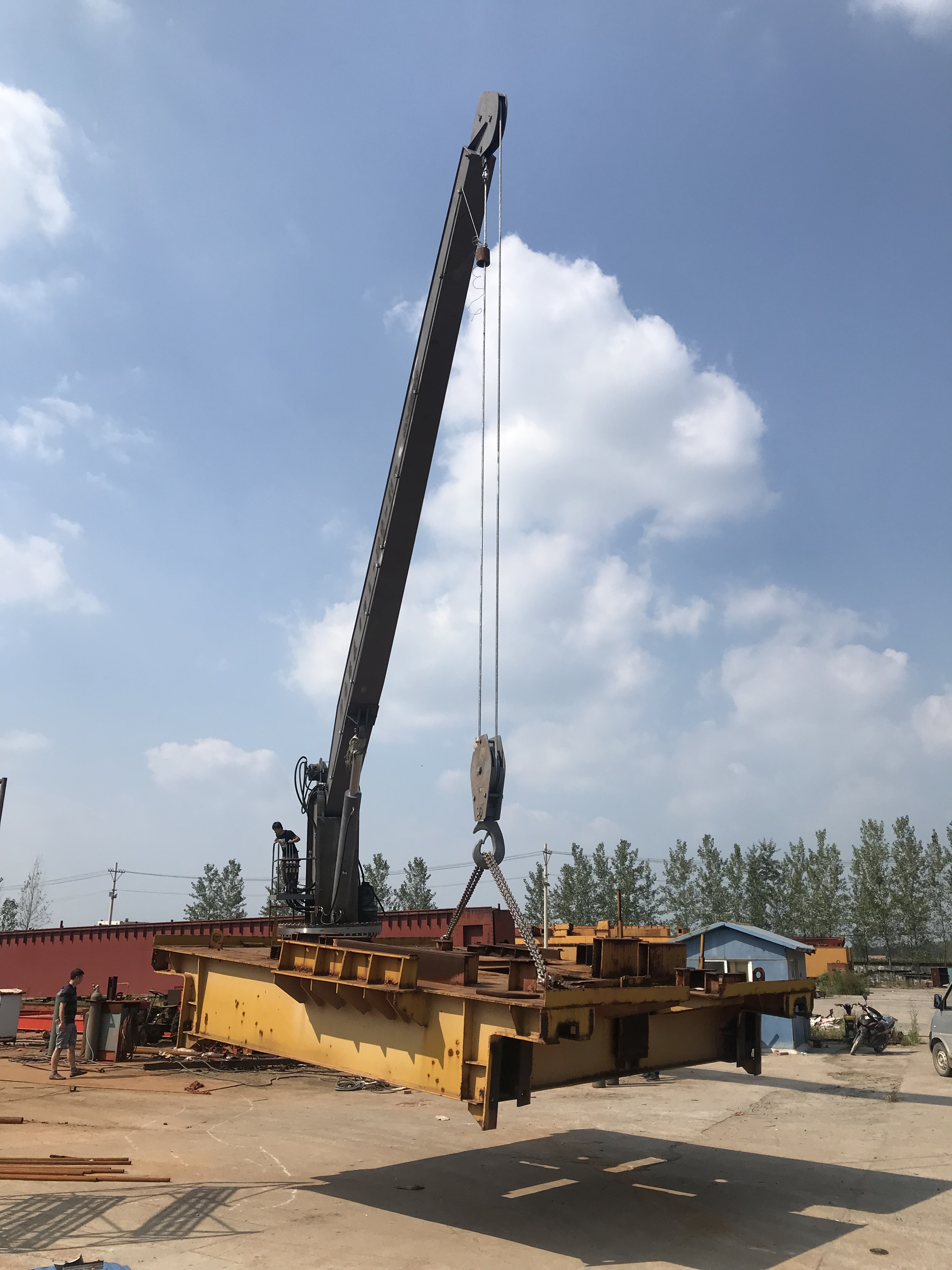

    • marine crane (4)

  • Previous:
  • Next:

  • About KORIGCRANES

    KORIGCRANES ( HENAN WEIHUA KORIG CRANES CO., LTD) located in crane hometown of China (cover more than 2/3 crane market in China), who is a trusted professional industry crane manufacturer and leading exporter. Specialized in design, manufacturing, installation and service of Overhead crane, Gantry crane, Port crane, Electric hoist etc, we have passed ISO 9001:2000, ISO 14001:2004, OHSAS 18001:1999, GB/T 19001-2000, GB/T 28001-2001, CE, SGS, GOST, TUV, BV and so on.

    Product Application

    To meet the demands of the oversea market, we independent research and development European type overhead crane, gantry crane; electrolytic aluminum multi-purpose overhead crane, hydro-power station crane etc. European type crane with light dead weight, compact structure, lower energy consumption etc. Many main performance reach the industry advanced level.
    KORIGCRANES Widely used in machinery, metallurgy, mining, electric power, railway, petroleum, chemical, logistics and other industries. Service for hundreds of large enterprises and national key projects such as China Datang Corporation, China Guodian Corporation, SPIC, Aluminum Corporation Of China(CHALCO), CNPC, Power China, China Coal, Three Gorges Group, China CRRC, Sinochem International, etc.

    Our Market

    Our cranes has been exported cranes to more than 110 countries for example Pakistan, Bangladesh, India, Vietnam, Thailand, Indonesia, Philippines, Malaysia、USA, Germany, France, Australia, Kenya, Ethiopia, Nigeria, Kazakhstan, Uzbekistan, Saudi Arabia、UAE、Bahrain、Brazil, Chile, Argentina, Peru etc and received good feedback from them. Very happy to be friends with each other come from all of the world and hope to establish long-terms good cooperation.

    KORIGCRANES has steel pre-treatment production lines, automatic welding production lines, machining centers, assembly workshops, electrical workshops, and anti-corrosion workshops. Can independently complete the whole process of crane production.

    Q. What’s the information should I provide when inquiry?
    More details or drawings, better.
    A: Lift capacity B: span C: lift height D: power source; other specials you give us will be more appreciated.

    Q. How many operating methods for my selection?
    Standard operating methods:
    A: remote control with push buttons
    B: cabin (space capsule seat) control with joystick. Choose any type as you like.

    Q. Can this type work in hazardous environment?
    A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.

    Q. Can you provide the serious lifting tools?
    A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!

    Q. How can we install the crane?
    A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
