Truss Girder Gantry Crane for Road & Bridge
OVERVIEW

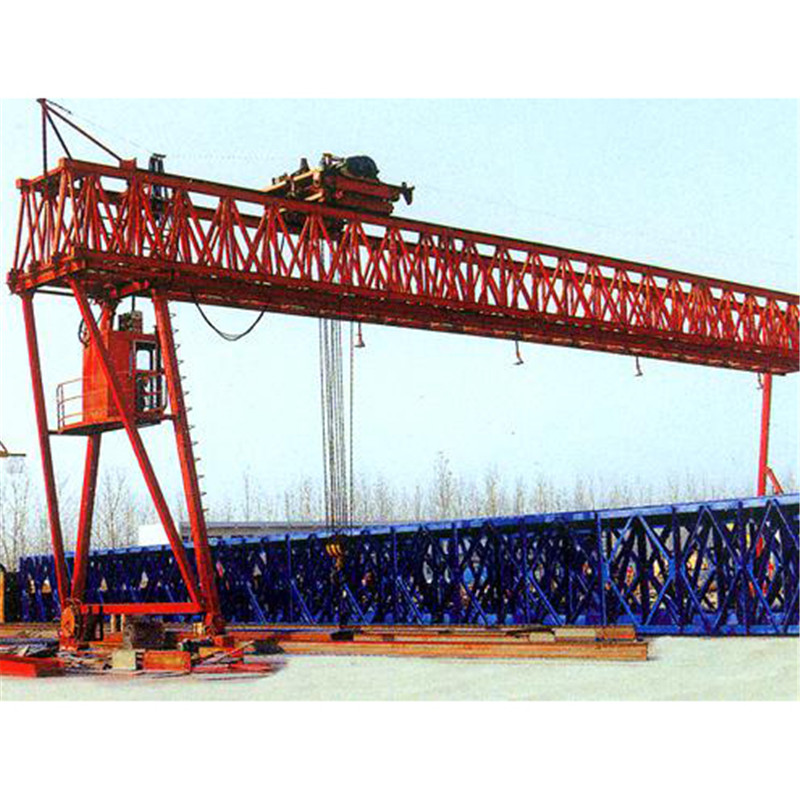

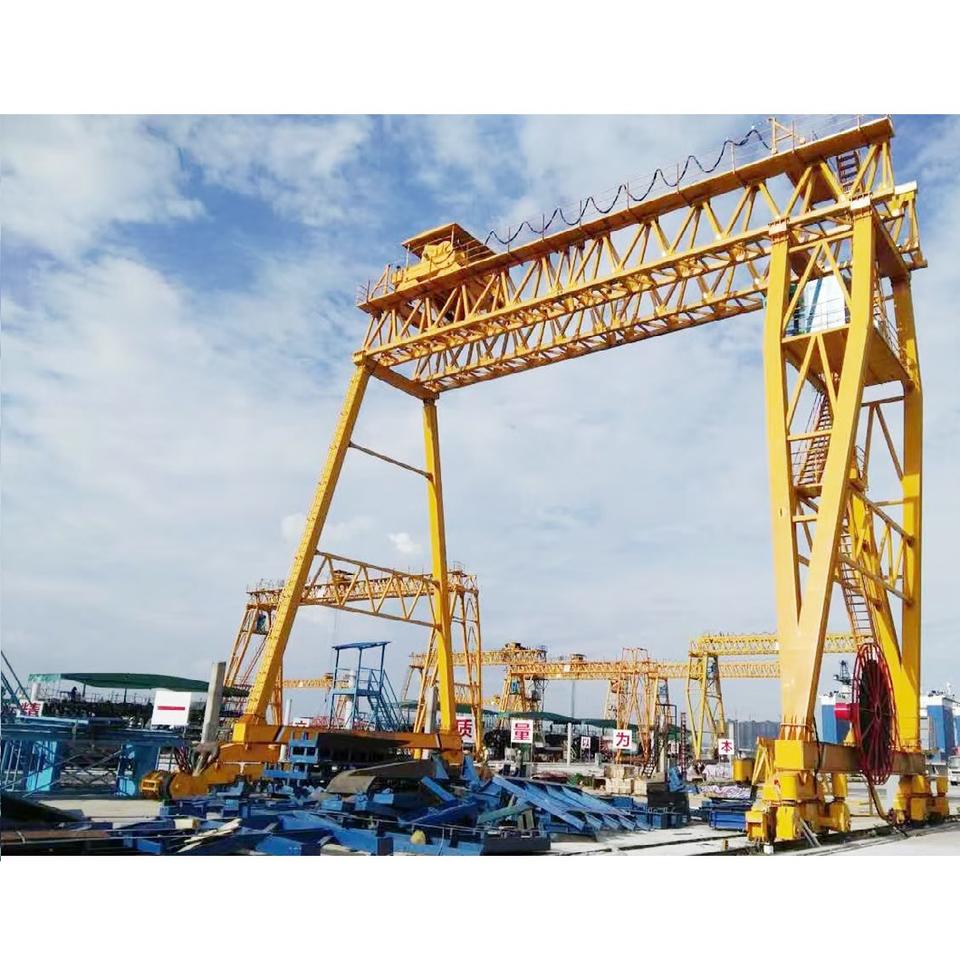

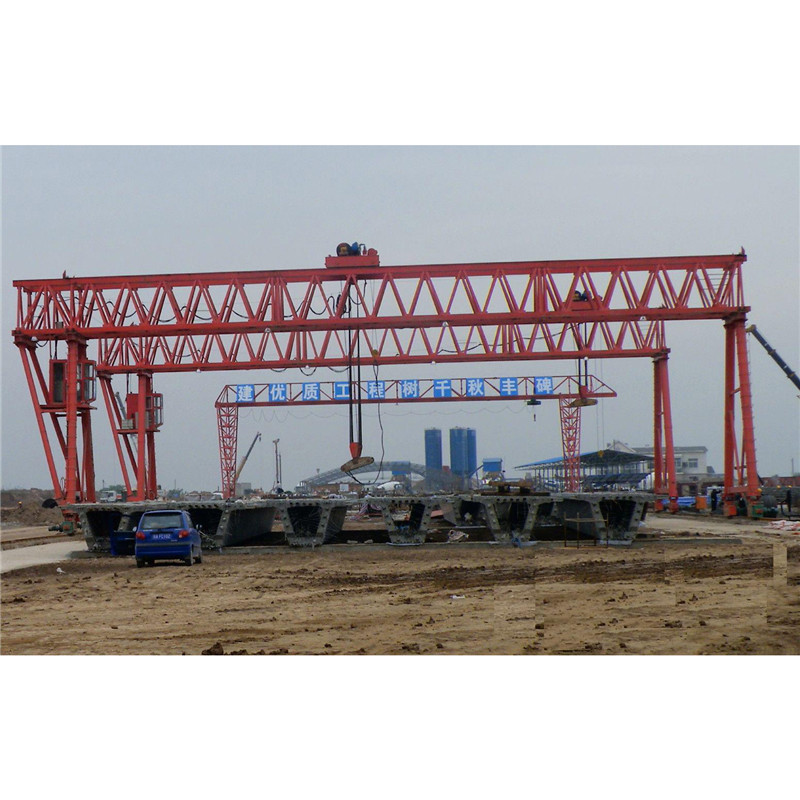

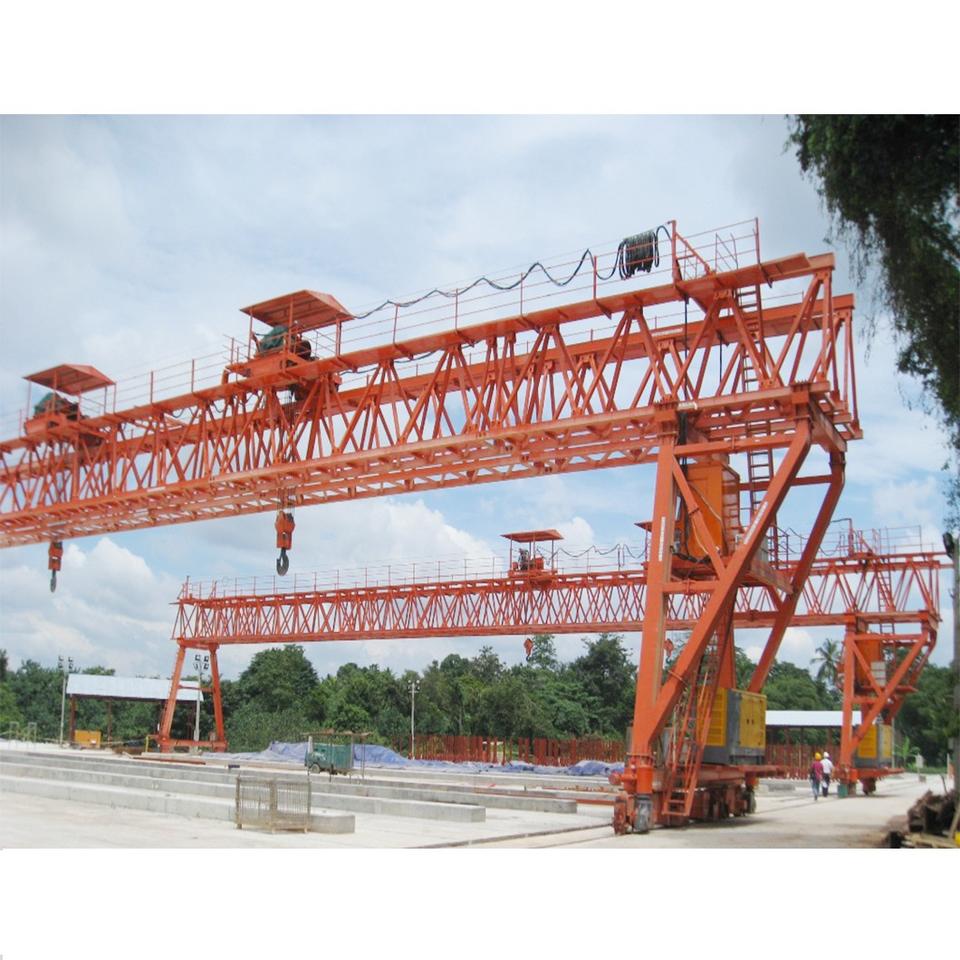

Truss Girder Gantry Crane for Road & Bridge Erection is suitable for general loading and unloading and lifting and handling work in highways, bridges and other construction workshops. It is an important lifting equipment in bridge construction and has the advantages of light structure and strong wind resistance.It is a kind of gantry crane. Its main beam structure has box type, truss and hollow box type. The legs have three types: box type, truss and steel tube. It can be used by two lifting points or two sets. The auxiliary hook is electric hoist, and an I-beam running hoist is welded under the main beam. The secondary hook is an option.
parameter
| Lifting Capacity | T | 40 | 60 | 80 | 100 | |
| Span | m | 18~35m | ||||
| Speed | Main Hook Lifting | m/min | 1 | 0.95 | 0.8 | 0.8 |
| Travelling of Trolley | 10 | 10 | 10 | 10.5 | ||
| Travelling of Crane | 14 | 15 | 15 | 15 | ||
| Operational Model | Cabin; Remote Control | |||||
| Working Duty | A5 | |||||
| Power Supply | Three-phase A.C. 380V, 50Hz | |||||
FEATURES
The product structure includes the main beam(s), the upper end beam, the outrigger, the lower end beam, the walking trolley and the walking railing.
The main beam adopts a triangular truss structure, and a track is arranged on the upper side for the lateral movement of the trolley along the direction of the main beam. The legs are in the form of box or steel.
The hoist is arranged on the trolley, which is compact and light in weight.
The traveling of the cart adopts cycloidal pinwheel reducer, soft start motor, eight-wheel four-drive, and travels smoothly.
About KORIGCRANES
KORIGCRANES ( HENAN WEIHUA KORIG CRANES CO., LTD) located in crane hometown of China (cover more than 2/3 crane market in China), who is a trusted professional industry crane manufacturer and leading exporter. Specialized in design, manufacturing, installation and service of Overhead crane, Gantry crane, Port crane, Electric hoist etc, we have passed ISO 9001:2000, ISO 14001:2004, OHSAS 18001:1999, GB/T 19001-2000, GB/T 28001-2001, CE, SGS, GOST, TUV, BV and so on.
Product Application
To meet the demands of the oversea market, we independent research and development European type overhead crane, gantry crane; electrolytic aluminum multi-purpose overhead crane, hydro-power station crane etc. European type crane with light dead weight, compact structure, lower energy consumption etc. Many main performance reach the industry advanced level.
KORIGCRANES Widely used in machinery, metallurgy, mining, electric power, railway, petroleum, chemical, logistics and other industries. Service for hundreds of large enterprises and national key projects such as China Datang Corporation, China Guodian Corporation, SPIC, Aluminum Corporation Of China（CHALCO）, CNPC, Power China, China Coal, Three Gorges Group, China CRRC, Sinochem International, etc.
Our Market
Our cranes has been exported cranes to more than 110 countries for example Pakistan, Bangladesh, India, Vietnam, Thailand, Indonesia, Philippines, Malaysia、USA, Germany, France, Australia, Kenya, Ethiopia, Nigeria, Kazakhstan, Uzbekistan, Saudi Arabia、UAE、Bahrain、Brazil, Chile, Argentina, Peru etc and received good feedback from them. Very happy to be friends with each other come from all of the world and hope to establish long-terms good cooperation.
KORIGCRANES has steel pre-treatment production lines, automatic welding production lines, machining centers, assembly workshops, electrical workshops, and anti-corrosion workshops. Can independently complete the whole process of crane production.
Q. What’s the information should I provide when inquiry?
More details or drawings, better.
A: Lift capacity B: span C: lift height D: power source; other specials you give us will be more appreciated.
Q. How many operating methods for my selection?
Standard operating methods:
A: remote control with push buttons
B: cabin (space capsule seat) control with joystick. Choose any type as you like.
Q. Can this type work in hazardous environment?
A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q. Can you provide the serious lifting tools?
A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
Q. How can we install the crane?
A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
