European Style Double Girder Overhead Crane with Electric Hoist Trolley

Short Description:

Product Name: European Style Double Girder Overhead Crane with Electric Hoist Trolley

Capacity: ≤80 ton

Span: 7~31.5 m

Lifting Height: ≤24 m

European style double girder overhead crane with electric hoist trolley complies with FEM standard and DIN standard, which is our newly designed low headroom and light wheel load double girder overhead crane. In most cases, European style double girder overhead crane with electric hoist trolley can replace the traditional double girder overhead crane with open winch trolley in crane duty group ISO M5.


  • Brand Name: KORIG
  • Place of Origin: Henan, China
  • Customize Service: Available
  • Certification: CE ISO SGS
  • Min.Order Quantity: 1 set
  • Payment Terms: L/C, T/T, Western Union
  • Delivery Time: 20~30 Workdays
  • Supply Ability: 1000 Set/Month
  • Port of Shipment: Qingdao Port, Tianjin Port, Shanghai Port
  • Packaging Details: Electrical parts are packed in wooden boxes, and steel structural parts are packed in color tarpaulin.
  • Product Detail

    company information

    FAQ

    Product Tags

    OVERVIEW

    FEM and DIN standard double girder overhead crane is designed and manufactured with European standard. The lifting capacity of this FEM/DIN double standard overhead crane can be up to 80 t. The trolley hoist is installed between two main girders. Thus it increases the traveling scope of spreader. This crane is with reliable performance, flexible application range, easy to operate and convenient to maintain.

    parameters

    Lifting Capacity

    T

    5

    10

    16/3.2

    20/5

    32/5

    50/10

    Span

    m

    10.5-31.5

    Speed

    Main Hook Lifting

    A5

    m/min

    11.3

    8.5

    7.9

    7.2

    7.5

    5.9

    A6

    15.6

    13.3

    13

    12.3

    9.5

    7.8

    Aux. Hook Lifting

    16.7

    19.5

    19.5

    10.4

    Traveling of Trolley

    37.2

    43.8

    44.6

    44.6

    42.4

    38.5

    Traveling of Crab

    A5

    89.8/91.8

    90.7/91.9

    /84.7

    84.7/87.6

    84.7/87.6

    87/74.2

    74.6

    A6

    92.7/93.7

    115.6/116

    /112.5

    112.5/101.4

    112.5/101.4

    101.4/101.8

    75/76.6

    Operational Model

    Cabin; remote control; ground handle

    Working Duty

     A5,A6

    Power Supply

    Three-phase A.C. 380V, 50Hz or customized

    FEATURES

    Lightweight and Modular Design:
    1. Overall height is 20%~25% lower than traditional cranes;
    2. Self-weight is lighter by 20%~30%;
    3. Max wheel load reduces 15%~20%;
    4. Smaller limiting size increases working scope;
    5. Light structure reduces the cost of workshops;
    6. Every component designed to be a standard series and interchangeable;
    7. Modularization design is easy for transporting;
    8. Standard modular design makes good quality and fast delivery.

    Lifting : 2-Speed

    Cross Traveling: Stepless (Variable Frequency Drive)

    Longitude Traveling: Stepless (Variable Frequency Drive)

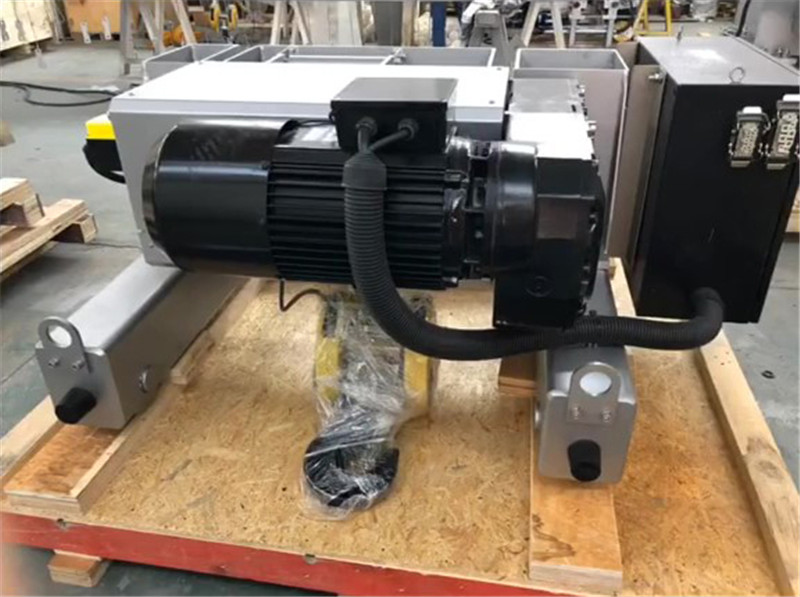

    • European hoist type double girder overhead crane (8)

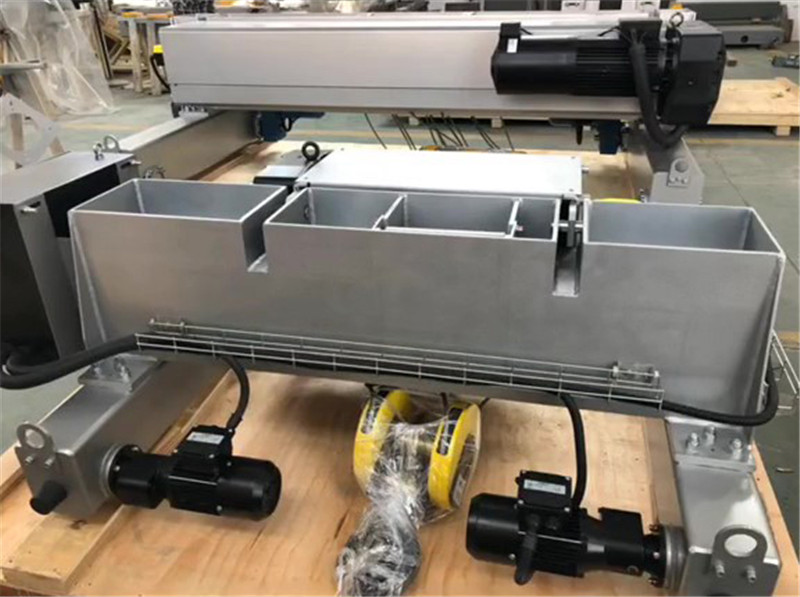

    • European hoist type double girder overhead crane (7)

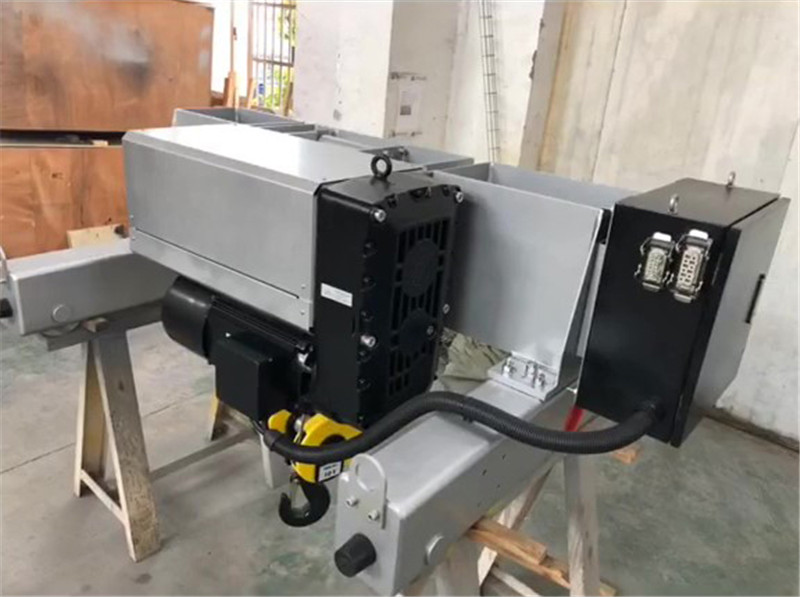

    • European hoist type double girder overhead crane (6)

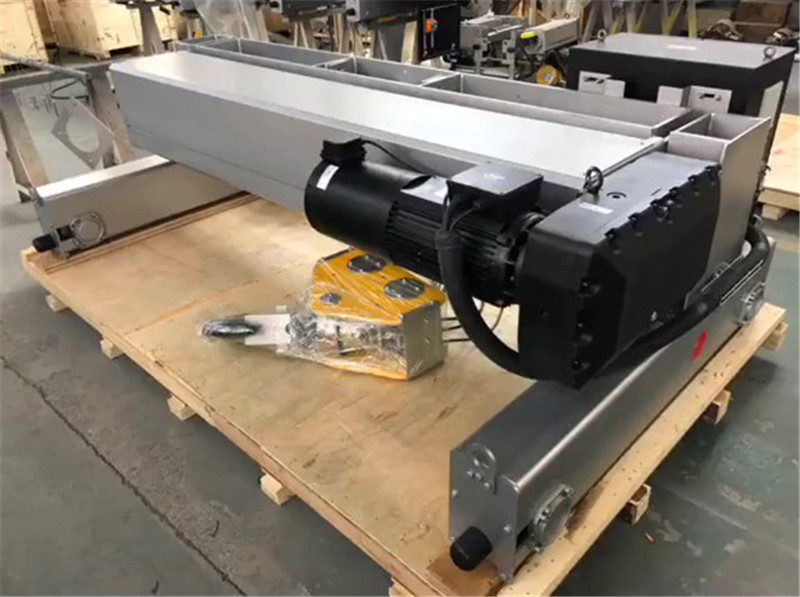

    • European hoist type double girder overhead crane (5)

  • Previous:
  • Next:

  • About KORIGCRANES

    KORIGCRANES ( HENAN WEIHUA KORIG CRANES CO., LTD) located in crane hometown of China (cover more than 2/3 crane market in China), who is a trusted professional industry crane manufacturer and leading exporter. Specialized in design, manufacturing, installation and service of Overhead crane, Gantry crane, Port crane, Electric hoist etc, we have passed ISO 9001:2000, ISO 14001:2004, OHSAS 18001:1999, GB/T 19001-2000, GB/T 28001-2001, CE, SGS, GOST, TUV, BV and so on.

    Product Application

    To meet the demands of the oversea market, we independent research and development European type overhead crane, gantry crane; electrolytic aluminum multi-purpose overhead crane, hydro-power station crane etc. European type crane with light dead weight, compact structure, lower energy consumption etc. Many main performance reach the industry advanced level.
    KORIGCRANES Widely used in machinery, metallurgy, mining, electric power, railway, petroleum, chemical, logistics and other industries. Service for hundreds of large enterprises and national key projects such as China Datang Corporation, China Guodian Corporation, SPIC, Aluminum Corporation Of China(CHALCO), CNPC, Power China, China Coal, Three Gorges Group, China CRRC, Sinochem International, etc.

    Our Market

    Our cranes has been exported cranes to more than 110 countries for example Pakistan, Bangladesh, India, Vietnam, Thailand, Indonesia, Philippines, Malaysia、USA, Germany, France, Australia, Kenya, Ethiopia, Nigeria, Kazakhstan, Uzbekistan, Saudi Arabia、UAE、Bahrain、Brazil, Chile, Argentina, Peru etc and received good feedback from them. Very happy to be friends with each other come from all of the world and hope to establish long-terms good cooperation.

    KORIGCRANES has steel pre-treatment production lines, automatic welding production lines, machining centers, assembly workshops, electrical workshops, and anti-corrosion workshops. Can independently complete the whole process of crane production.

    Q. What’s the information should I provide when inquiry?
    More details or drawings, better.
    A: Lift capacity B: span C: lift height D: power source; other specials you give us will be more appreciated.

    Q. How many operating methods for my selection?
    Standard operating methods:
    A: remote control with push buttons
    B: cabin (space capsule seat) control with joystick. Choose any type as you like.

    Q. Can this type work in hazardous environment?
    A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.

    Q. Can you provide the serious lifting tools?
    A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!

    Q. How can we install the crane?
    A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
