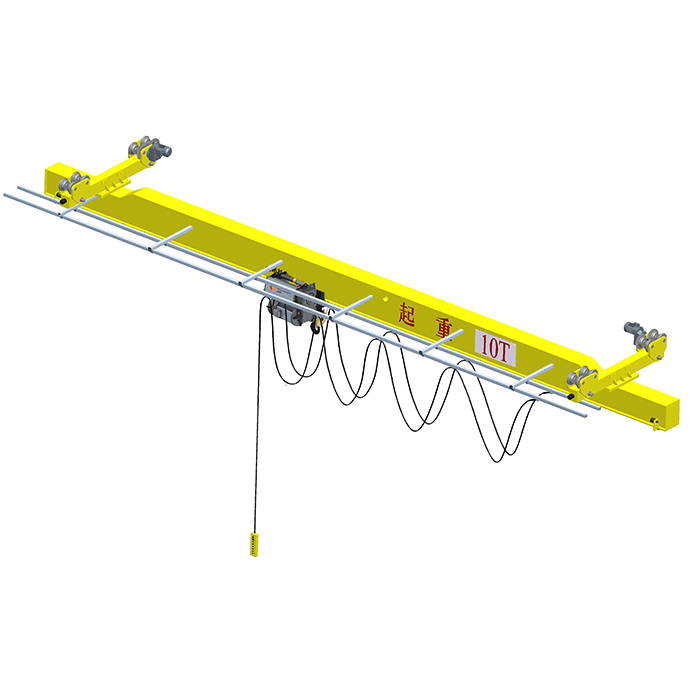

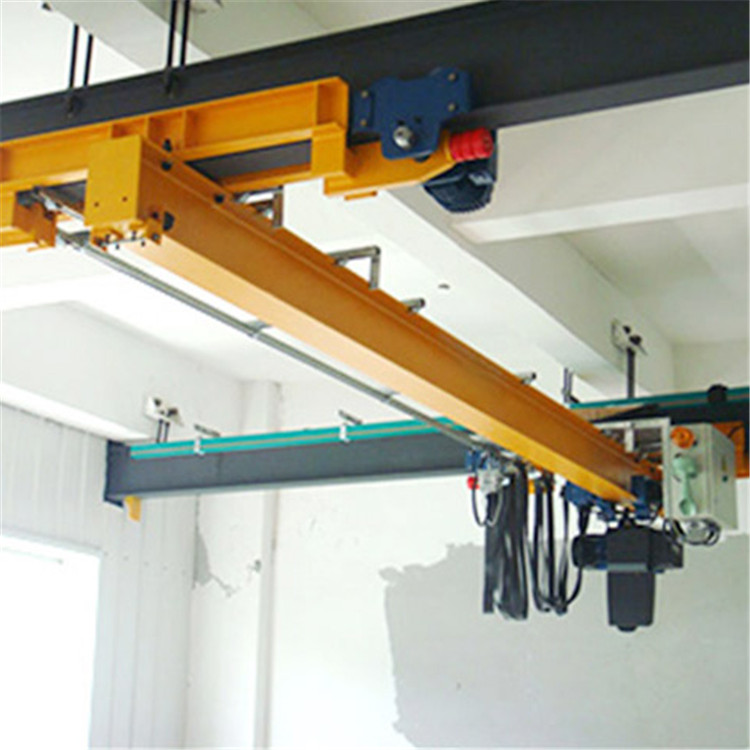

European single girder suspension crane

Short Description:

European type Suspension Crane is a type of overhead travelling bridge crane designed based on the European crane standards and FEM standards,, mounted on the roof of the workplace without bracket, offering larger space for production and lowering cost. The crane trolley is compact and small.

The price range is from $4,000 to $8,000

Capacity: 1-20t

Span:7.5-35m

Lifting height: 6-35m




  • Brand Name: KORIG
  • Place of Origin: Henan, China
  • Customize Service: Available
  • Certification: CE ISO SGS
  • Min.Order Quantity: 1 set
  • Payment Terms: L/C, T/T, Western Union
  • Delivery Time: 20~30 Workdays
  • Supply Ability: 1000 Set/Month
  • Port of Shipment: Qingdao Port, Tianjin Port, Shanghai Port

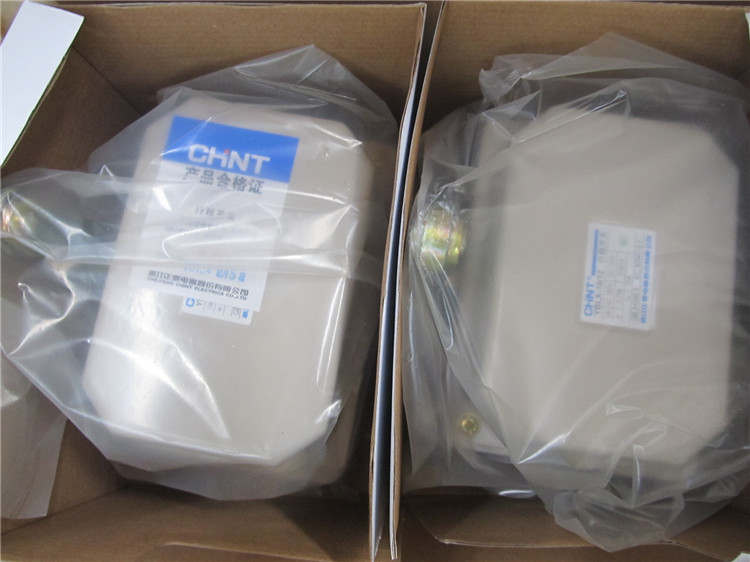

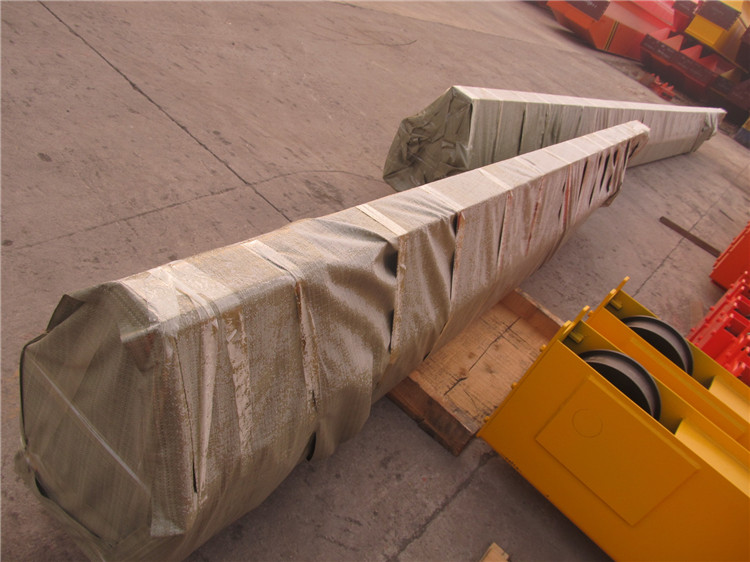

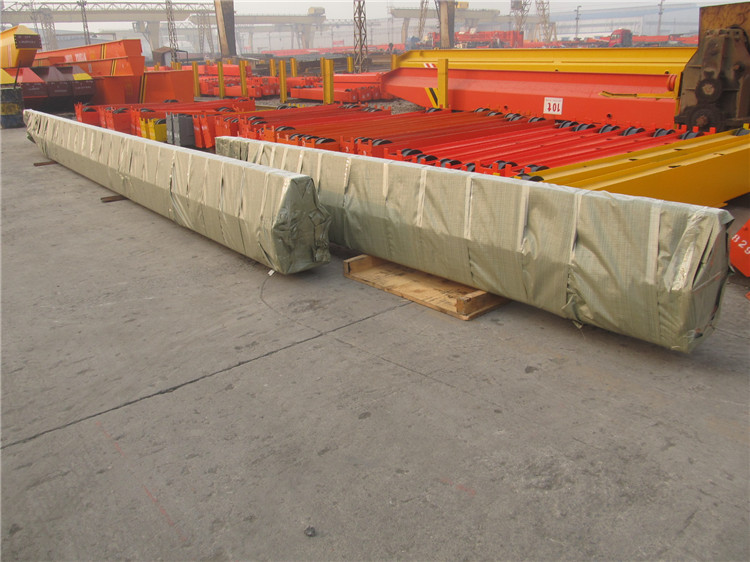

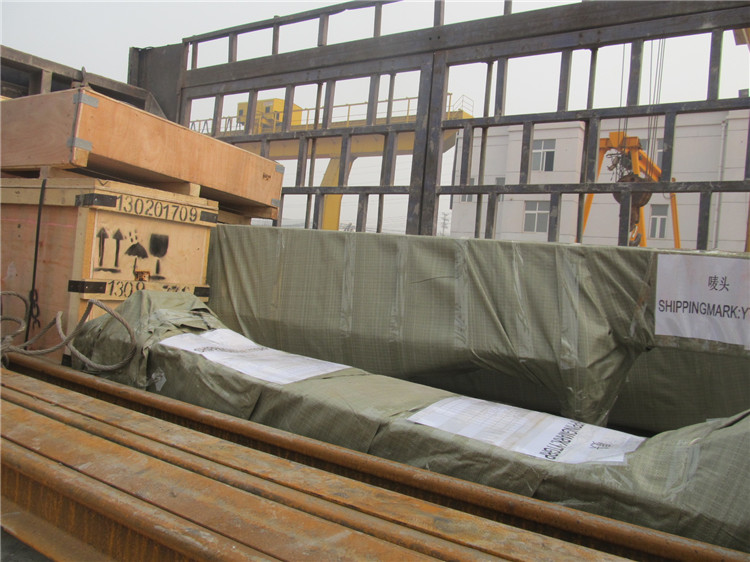

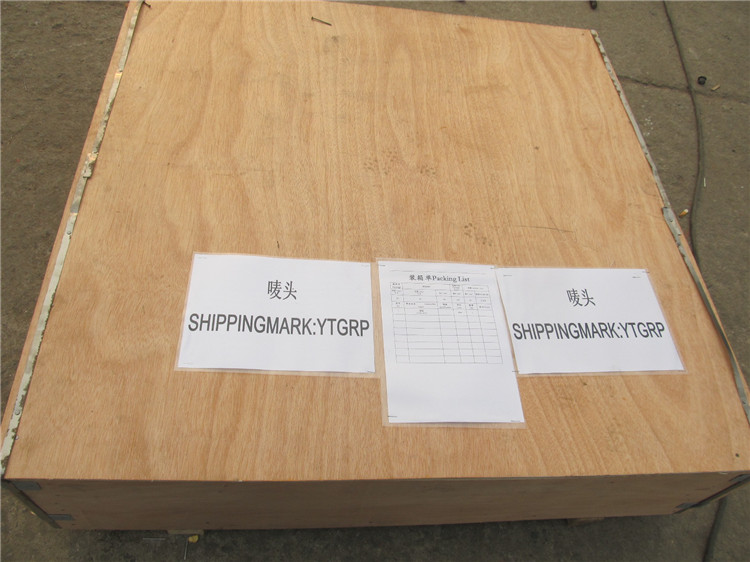

  • Packaging Details: Electrical parts are packed in wooden boxes, and steel structural parts are packed in color tarpaulin.
  • Product Detail

    company information

    FAQ

    Product Tags

    Product detail description

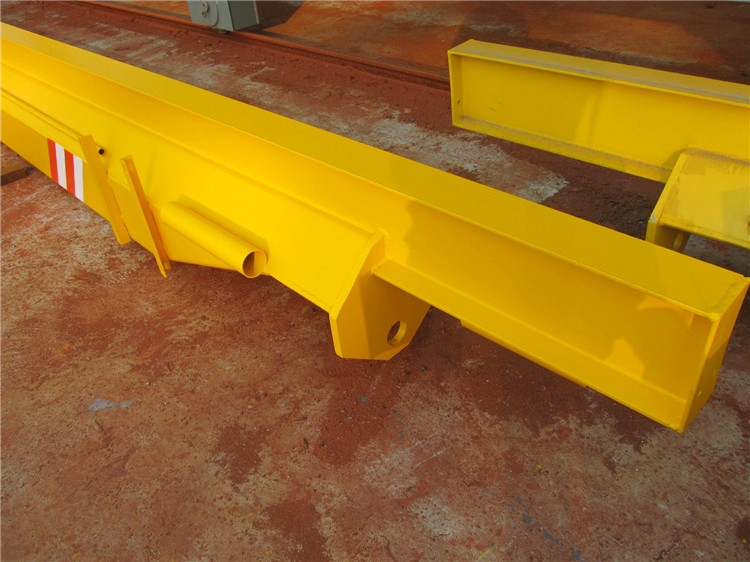

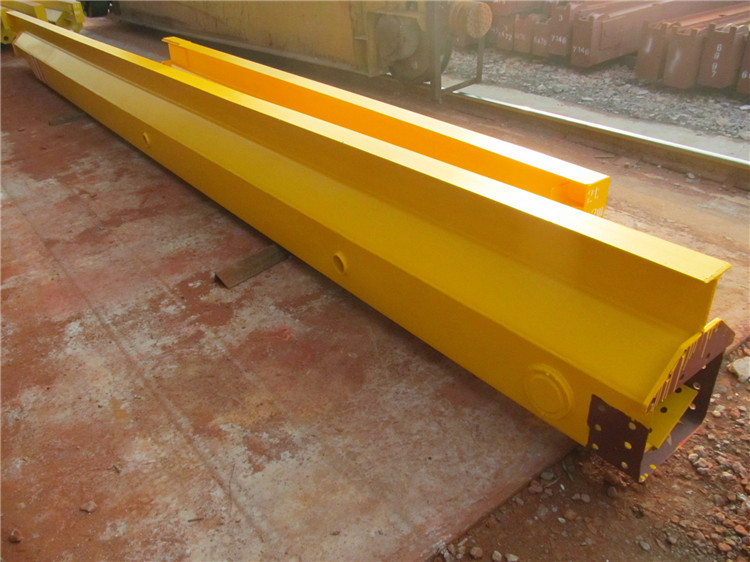

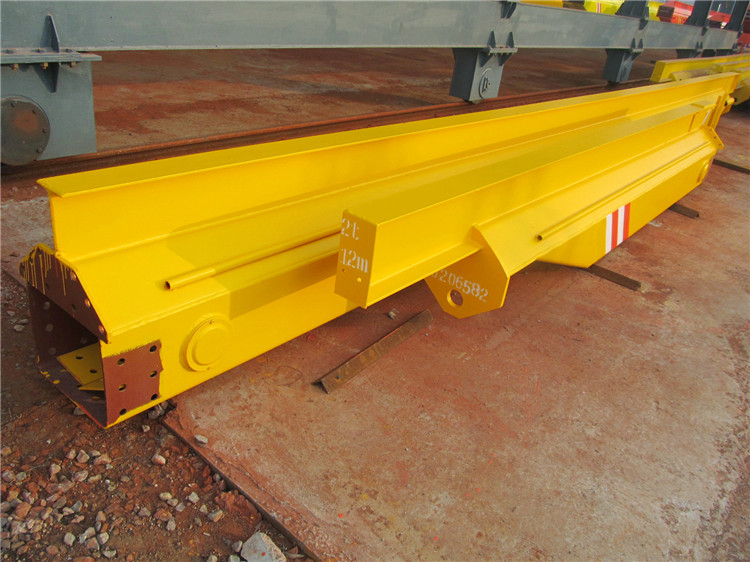

    1. Strong beams: the crane beams are of welded construction, this result in lower dead weight with a high degree of vertical and horizontal rigidity and smaller wheel loads
    2. End carriage: crane traveling system, motor-reducer-wheel driven system, motor used soft start motor which result in very stable starting
    3. Durable performance and high efficiency
    4. Modern cabin control with air conditioner to separate operators from harsh environment
    5. Electrical equipment: electric systems are Siemens brand or Schneider brand
    6. Long service lifespan with a low-maintenance

    specification

    Name / Suspension overhead crane and electric hoist
    Crane capacity t 1~20
    Span m 7.5-22.5
    Lifting height m  6/9/12/24
    Control method / Pendent line control+Remote control
    Power source / 380V 50Hz 3Phase or customized
    Working class / FEM2M‐ISO A5
    Hoisting mechanism
    Hoist type / Low headroom type
    Speed m/min 5/0.8m/min (Double speed)
    Motor type / integral structure of gear motor
    Rope reeving system /   4/1
    Trolley traveling mechanism
    Speed m/min 2‐20m/min ( VFD control )
    Crane traveling mechanism
    Speed m/min 3.2‐32m/min ( VFD control )
    Whole machine
    Protection grade / IP54
    Insulation class / F
    Safety features
    Overload protection device
    Limit switch for crane traveling and lifting
    Polyurethane material buffer
    Voltage-loss protection device
    Voltage lower protection device
    Emergency stop system
    Sound and Light alarm system
    Phases failure protection function
    Power fluctuation Protection system
    Current overload protection system
    Lifting Capacity (t) 1~10
    Span (m) 7.5~31.5
    Lifting Mechanism & Electric Hoist Traveling Mechanism Model of Electric Hoist CD  MD
    Lifting Speed (m/min) 8(0.8/8) 7(0.7/7)
    Lifting Height (m) 6  9  12
    Hoist Traveling Speed (m/min) 20 30
    Hoist Traveling Motor Cone squirrel cage model
    Crane Traveling Mechanism Crane Traveling Speed (m/min) 20 30
    Speed Ratio 58.95 29.42
    Motor Model Cone squirrel cage model
    Power 0.8*2 1.5*2
    Rotation Speed (r/min) 1500
    Work Duty (ISO/FEM) M4/2m
    Working System Intermedium JC=25%
    Power Supply 3 Phase 380V 50Hz Customizable
    Wheel Diameter (mm) 270
    Width of Rail (mm) 37~70

    Safety features

    Overload protection: if the materials or electric current overstep the capacity, the crane will give a sharp warning for protection itself
    Emergency brake: if there’s emergency situation, it could stop the crane to protect operator and goods
    Control method: room control or remote control to avoid any injure to the operation staff
    Main lifting motor: with thermal protection and currency protection
    Rubber buffers

    Outstanding advantage

    1.First class quality with competitive price
    2.Compact design, optimal use of the work areas
    3.Reasonable structure, favorable performance
    4.Control the load easily and position the load exactly
    5.Smooth starting and stopping
    6.Superior safety and reliability
    7.Low noise, commodious cabin and good view
    8.Minimum & easy maintenance, excellent exchange ability for parts and components
    9.Saves electricity specifications
    10.”One-stop shop” for your crane and hoist needs

    European single girder suspension crane03
    European single girder suspension crane02
    European single girder suspension crane01
    • European single girder suspension crane01
    • European single girder suspension crane03
    • European single girder suspension crane04
    • European single girder suspension crane06
    • European single girder suspension crane07
    • European single girder suspension crane08

  • Previous:
  • Next:

  • About KORIGCRANES

    KORIGCRANES ( HENAN WEIHUA KORIG CRANES CO., LTD) located in crane hometown of China (cover more than 2/3 crane market in China), who is a trusted professional industry crane manufacturer and leading exporter. Specialized in design, manufacturing, installation and service of Overhead crane, Gantry crane, Port crane, Electric hoist etc, we have passed ISO 9001:2000, ISO 14001:2004, OHSAS 18001:1999, GB/T 19001-2000, GB/T 28001-2001, CE, SGS, GOST, TUV, BV and so on.

    Product Application

    To meet the demands of the oversea market, we independent research and development European type overhead crane, gantry crane; electrolytic aluminum multi-purpose overhead crane, hydro-power station crane etc. European type crane with light dead weight, compact structure, lower energy consumption etc. Many main performance reach the industry advanced level.
    KORIGCRANES Widely used in machinery, metallurgy, mining, electric power, railway, petroleum, chemical, logistics and other industries. Service for hundreds of large enterprises and national key projects such as China Datang Corporation, China Guodian Corporation, SPIC, Aluminum Corporation Of China(CHALCO), CNPC, Power China, China Coal, Three Gorges Group, China CRRC, Sinochem International, etc.

    Our Market

    Our cranes has been exported cranes to more than 110 countries for example Pakistan, Bangladesh, India, Vietnam, Thailand, Indonesia, Philippines, Malaysia、USA, Germany, France, Australia, Kenya, Ethiopia, Nigeria, Kazakhstan, Uzbekistan, Saudi Arabia、UAE、Bahrain、Brazil, Chile, Argentina, Peru etc and received good feedback from them. Very happy to be friends with each other come from all of the world and hope to establish long-terms good cooperation.

    KORIGCRANES has steel pre-treatment production lines, automatic welding production lines, machining centers, assembly workshops, electrical workshops, and anti-corrosion workshops. Can independently complete the whole process of crane production.

    Q. What’s the information should I provide when inquiry?
    More details or drawings, better.
    A: Lift capacity B: span C: lift height D: power source; other specials you give us will be more appreciated.

    Q. How many operating methods for my selection?
    Standard operating methods:
    A: remote control with push buttons
    B: cabin (space capsule seat) control with joystick. Choose any type as you like.

    Q. Can this type work in hazardous environment?
    A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.

    Q. Can you provide the serious lifting tools?
    A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!

    Q. How can we install the crane?
    A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
