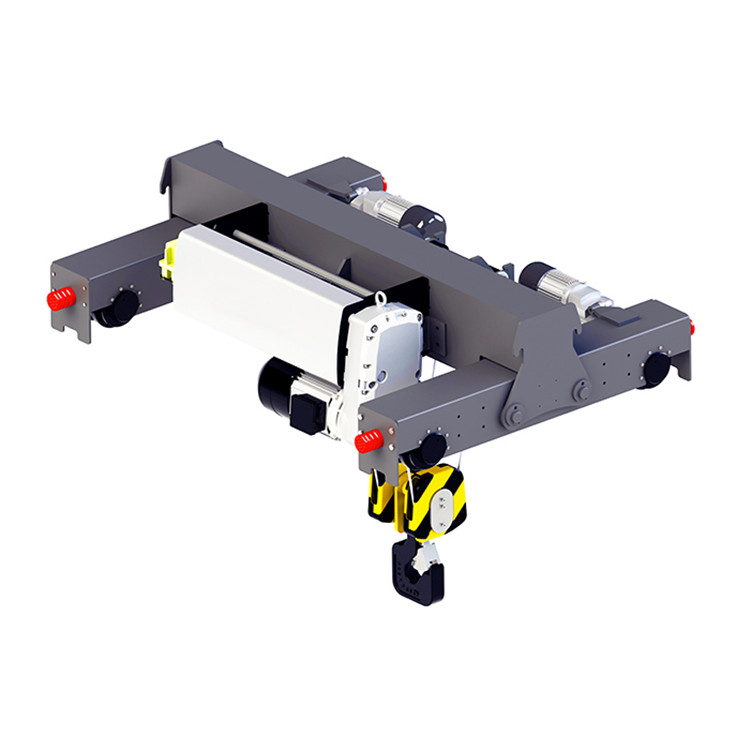

European Standard 2 ton 5t 10t 20t 35 ton Motorized Electrical Monorail Wire Rope Hoist for overhead Crane

Short Description:

European type electric wirerope hoist

Europe style wire rope electric hoist for CE certificate. The integrated and compact design of hoisting motor, reducer, reel and limit switch saves space for the user. Modular design increases the reliability.

The price range is from $4,00 to $2000

Capacity: 1-20t

Lifting height: 6-24m


  • Brand Name: KORIG
  • Place of Origin: Henan, China
  • Customize Service: Available
  • Certification: CE ISO SGS
  • Min.Order Quantity: 1 set
  • Payment Terms: L/C, T/T, Western Union
  • Delivery Time: 20~30 Workdays
  • Supply Ability: 1000 Set/Month
  • Port of Shipment: Qingdao Port, Tianjin Port, Shanghai Port

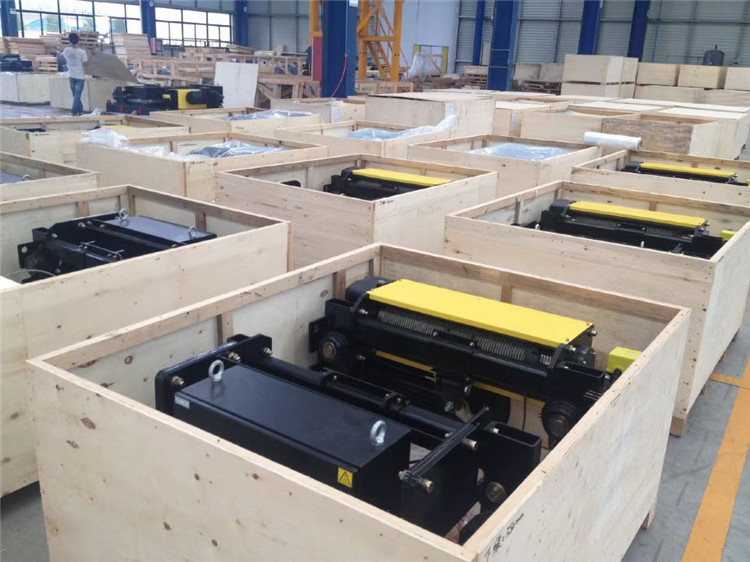

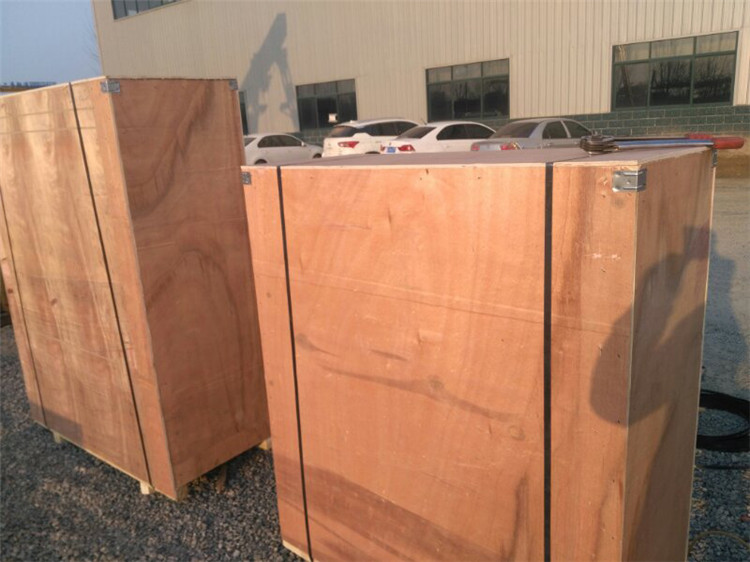

  • Packaging Details: Electrical parts are packed in wooden boxes, and steel structural parts are packed in color tarpaulin.
  • Product Detail

    company information

    FAQ

    Product Tags

    Feature

    1. High working effiency; Excellent Performance, safe and Reliable
    2. Smooth movement & comfortable operation;
    3. Convenient maintenance & aesthetic painting;
    4. Compact structure, light deadweight, light wheel load and reliable performance;
    5. Efficient Transmission and power Source
    6. customized: design and manufacture according to your request.

    Ligting motor

    1. Low energy consumption, low noise and environmentally friendly design
    2. Non-wear design, long service life
    3.The continuous power supply rate reaches 60%, which meets the needs of high-frequency lifting
    4. The brake does not contain asbestos, and the service life can reach 1 million times.
    5. The brake has a high protection level and meets the requirements of harsh environments.

    European Standard 2 ton 5t 10t 20t 35 ton Motorized Electrical Monorail Wire Rope Hoist for overhead Crane (2)
    European Standard 2 ton 5t 10t 20t 35 ton Motorized Electrical Monorail Wire Rope Hoist for overhead Crane (1)

    Trolley motor

    1.Three-in-one high-performance motor, reducer and brake.
    2.Variable frequency control, stable operation, low impact force, meet various speed requirements.
    3. The brake disc does not contain asbestos, and the normal service life can reach 1 million times.
    4. Wear-free design, maintenance-free and long service life.

    Electric control box

    1. Reasonable design, convenient maintenance and reduced running cost Professional quality electrical components, safe and reliable.
    2.Various safety protection devices to ensure equipment safety Protection class IP55.
    3. Clear identification for easy trouble shooting.

    European Standard 2 ton 5t 10t 20t 35 ton Motorized Electrical Monorail Wire Rope Hoist for overhead Crane (4)
    European Standard 2 ton 5t 10t 20t 35 ton Motorized Electrical Monorail Wire Rope Hoist for overhead Crane (3)

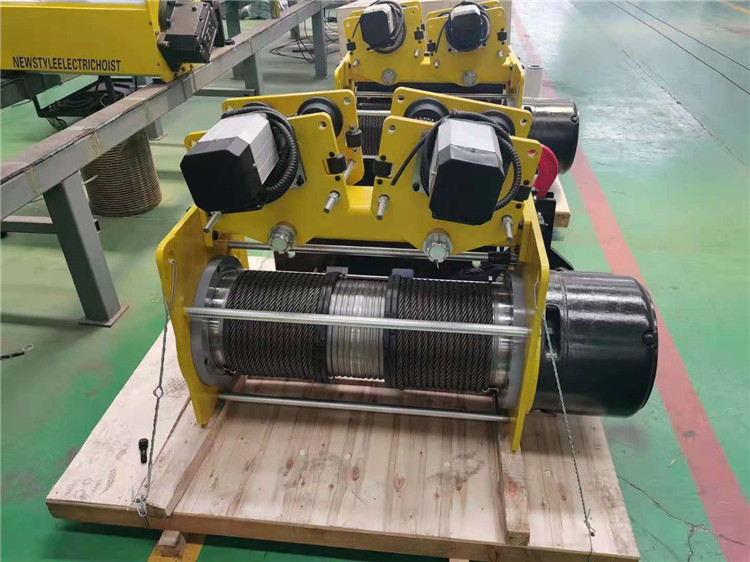

    Reel

    1. The seamless steel pipe made of Q345 is used as the raw material. After layer-by-layer processing, advanced processing methods
    ensure the concentricity of the roll.
    2. Rope groove depth meets FEM standards. High-strength pressure plate bolts tighten the end of the wire rope to ensure lifting safety.
    Lifting height limiter:
    1. Freely adjustable screw-type lifting height limiter with high accuracy, wide adjustment range, safe and reliable.
    2.Multi-contact configuration can effectively realize fast and slow switching and stopping function when rising and falling.

    Capacity Working duty Lifting height Lifting speed Rope reeving Traveling speed Wheel load weight
    1.6 M6 6,  9,  12 1.6/10  2/1 2~20 6.1,  6.2,  6.3 300,  335,  370
    2.5 M6 6,  9,  12 0.8/5.0  4/1 2~20 9.1,  9.2,  9.3 315,  350,  385
    3.2 M5 6,  9,  12 0.8/5.0  4/1 2~20 11.5,  11.6,  11.7 335,  370,  405
    6.3 M5 6,  9,  12 0.8/5.0  4/1 2~20 22,  22.1,  22.2 400,  450,  500
    8 M6 6,  9,  12 0.8/5.0  4/1 2~20 28,  28.1,  28.2 580,  610,  640
    10 M5 6,  9,  12 0.8/5.0  4/1 2~20 34.7,  34.8,  34.9 580,  610,  640
    10 M6 6,  9,  12 0.66/4.0  4/1 2~20 34.7,  34.8,  34.9 650,  690,  730
    12.5 M5 6,  9,  12 0.66/4.0  4/1 2~20 43.3,  43.4,  43.5 660,  700,  740
    3.2 M5 6,  9,  12 0.8/5.0  4/1 2~20 11.9 510,  525,  540
    6.3 M5 6,  9,  12 0.8/5.0  4/1 2~20 20.9 632,  652,  672
    10 M5 6,  9,  12 0.8/5.0  4/1 2~20 30 871,  896,  921
    12.5 M5 6,  9,  12 0.66/4.0  4/1 2~20 40.5 890,  915,  940
    16 M5 6,  9,  12 0.66/4.0  4/1 2~20 59.4,  59.7,  60.0 1314,  1348,  1381
    20 M5 6,  9,  12 0.5/3.4  4/1 2~20 59.5 1718,  1766,  1814
    • European Standard 2 ton 5t 10t 20t 35 ton Motorized Electrical Monorail Wire Rope Hoist for overhead Crane
    • European Standard 2 ton 5t 10t 20t 35 ton Motorized Electrical Monorail Wire Rope Hoist for overhead Crane
    • European Standard 2 ton 5t 10t 20t 35 ton Motorized Electrical Monorail Wire Rope Hoist for overhead Crane

  • Previous:
  • Next:

  • About KORIGCRANES

    KORIGCRANES ( HENAN WEIHUA KORIG CRANES CO., LTD) located in crane hometown of China (cover more than 2/3 crane market in China), who is a trusted professional industry crane manufacturer and leading exporter. Specialized in design, manufacturing, installation and service of Overhead crane, Gantry crane, Port crane, Electric hoist etc, we have passed ISO 9001:2000, ISO 14001:2004, OHSAS 18001:1999, GB/T 19001-2000, GB/T 28001-2001, CE, SGS, GOST, TUV, BV and so on.

    Product Application

    To meet the demands of the oversea market, we independent research and development European type overhead crane, gantry crane; electrolytic aluminum multi-purpose overhead crane, hydro-power station crane etc. European type crane with light dead weight, compact structure, lower energy consumption etc. Many main performance reach the industry advanced level.
    KORIGCRANES Widely used in machinery, metallurgy, mining, electric power, railway, petroleum, chemical, logistics and other industries. Service for hundreds of large enterprises and national key projects such as China Datang Corporation, China Guodian Corporation, SPIC, Aluminum Corporation Of China(CHALCO), CNPC, Power China, China Coal, Three Gorges Group, China CRRC, Sinochem International, etc.

    Our Market

    Our cranes has been exported cranes to more than 110 countries for example Pakistan, Bangladesh, India, Vietnam, Thailand, Indonesia, Philippines, Malaysia、USA, Germany, France, Australia, Kenya, Ethiopia, Nigeria, Kazakhstan, Uzbekistan, Saudi Arabia、UAE、Bahrain、Brazil, Chile, Argentina, Peru etc and received good feedback from them. Very happy to be friends with each other come from all of the world and hope to establish long-terms good cooperation.

    KORIGCRANES has steel pre-treatment production lines, automatic welding production lines, machining centers, assembly workshops, electrical workshops, and anti-corrosion workshops. Can independently complete the whole process of crane production.

    Q. What’s the information should I provide when inquiry?
    More details or drawings, better.
    A: Lift capacity B: span C: lift height D: power source; other specials you give us will be more appreciated.

    Q. How many operating methods for my selection?
    Standard operating methods:
    A: remote control with push buttons
    B: cabin (space capsule seat) control with joystick. Choose any type as you like.

    Q. Can this type work in hazardous environment?
    A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.

    Q. Can you provide the serious lifting tools?
    A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!

    Q. How can we install the crane?
    A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
