European Style Double Girder Overhead Crane with Open Winch Trolley

Short Description:

Product Name: European Style Double Girder Overhead Crane with Open Winch Trolley

Capacity: 5~800 t

Span: 10.5~31.5 m

Lifting Height: 6 m, 9 m, 12 m, 18 m, 24 m, 30 m

European style double girder overhead crane with open winch trolley complies with FEM standrad, ISO standard, DIN standard. This crane is optimized according to the European crane design conception: low headroom structure, modular, energy efficient, compact structure.

Brand Name: KORIG

Place of Origin: Henan, China

Customize Service: Available

Certification: CE ISO SGS

Min.Order Quantity: 1 set

Payment Terms: L/C, T/T, Western Union

Delivery Time: 20~30 Workdays

Supply Ability: 1000 Set/Month

Port of Shipment: Qingdao Port, Tianjin Port, Shanghai Port

Packaging Details: Electrical parts are packed in wooden boxes, and steel structural parts are packed in color tarpaulin.

Send email to us

Product Detail

FAQ

Product Tags

OVERVIEW

European Style Double Girder Overhead Crane have features of design concepts, small dimension, light dead weight, Compared with traditional cranes, the limiting distance is minimum from hook to wall, and headroom is the lowest, which makes cranes work more close to the front, and lifting height more higher that increases effective working space of workplace.
New workshops can be designed more smaller and have more functions because the dead weight is light, and the wheel pressure is small. Smaller size workplace means saving a huge amount of money from initial construction investment, long-term heating, air conditioning and other maintenance free.

PARAMETERS

Lifting Capacity	Main Lifting (t)	5	10	16	20	400
Lifting Capacity	Auxiliary Lifting (t)	-	-	5	5	50
Span (m)		10.5~31.5
Lifting Height (m)		18
Speed (Stepless)	Main Lifting (m/min)	0.8~8.4	0.8~8	0.75~7.5	0.6~6	0.2~2
	Auxiliary Lifting (m/min)	-	-	0.84~8.4	0.84~8.4	0.4~4
	Trolley Traveling (m/min)	2.5~25	2.5~25	3~30	3~30	2.5~25
	Crane Traveling (m/min)	5.2~52	5.2~52	5.4~54	5.1~51	3~30
Speed Operation Mode		Inverter
Work Duty		A5 A6 A7 A8
Power Supply		3 Phase 380V 50Hz Customizable

FEATURES

European design concept, light dead weight, small wheel load, and short size;
Its lifting mechanism, trolley traveling mechanism and crane traveling mechanism are equipped with inverters(variable frequency drive);
Reliable performance, light deadweight and low wheel load.

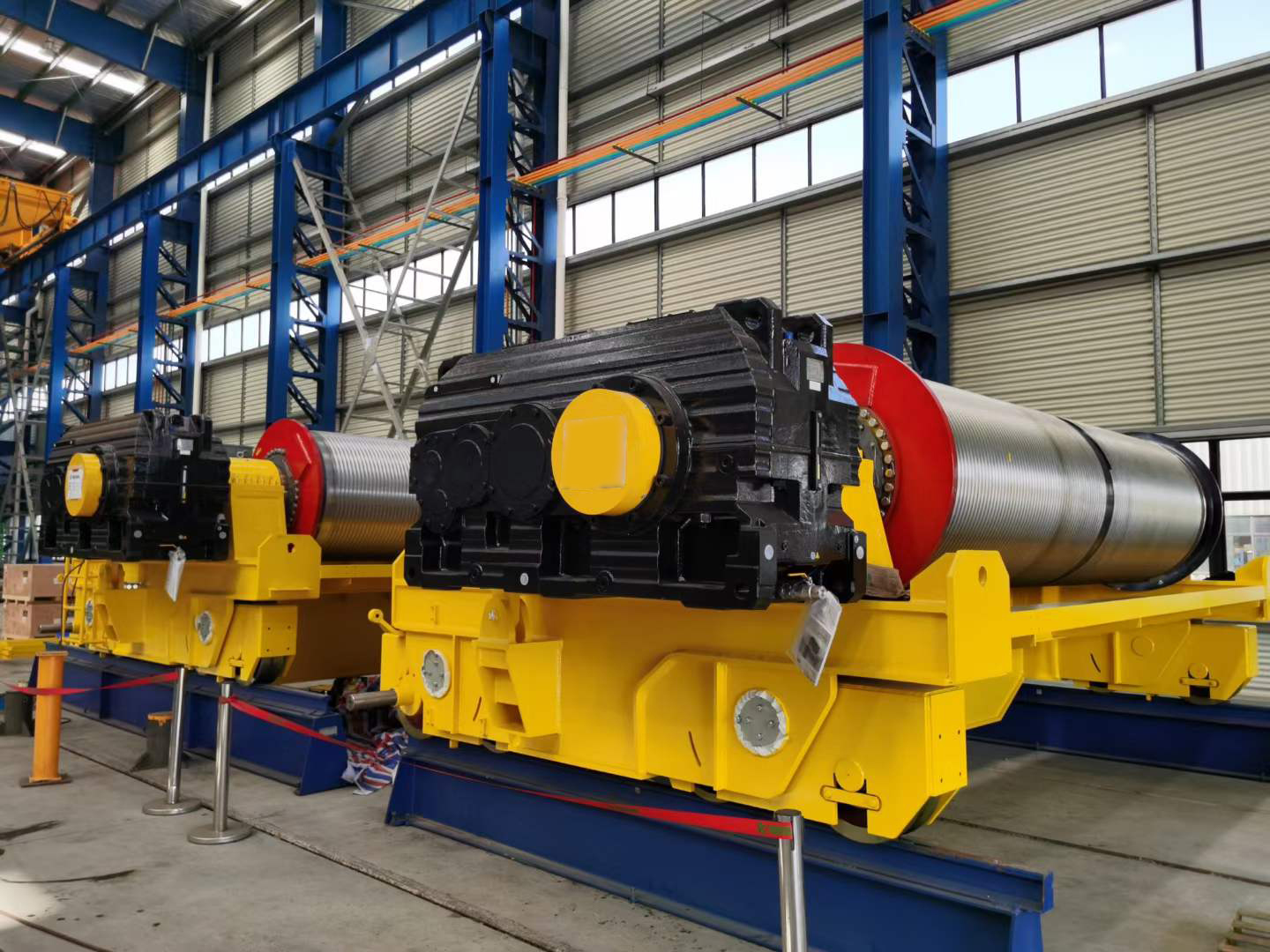

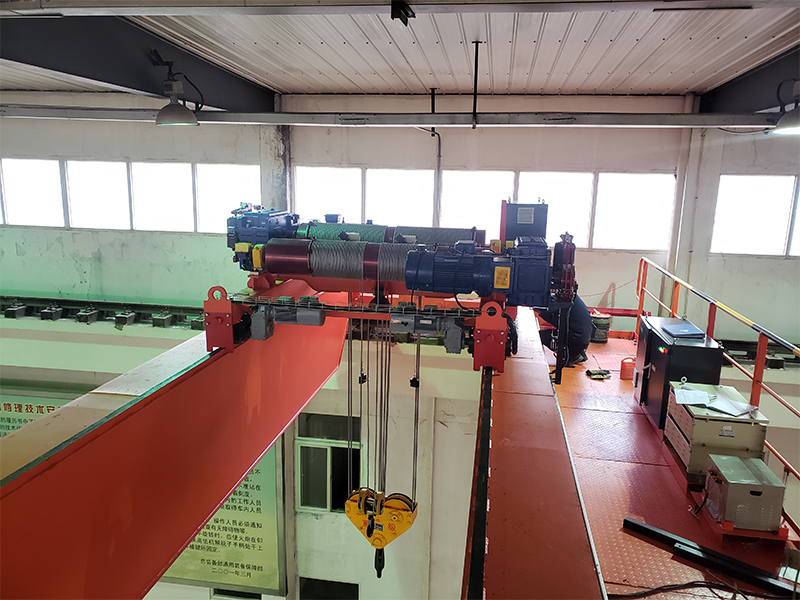

Small size and light weight trolley adopts compact structure, hard tooth surface reducer, rolling pulley and welded drum;
Large hook operation range and high production efficiency;
65Mn forged wheels with high wear-resistant and long service life;
Optional function: anti-sway function, vertical lifting function, remote control function, automatic and semi-automatic control function.

Previous: Truss Girder Gantry Crane for Road & Bridge

Next: Electro-Hydraulic Fixed Boom Marine Deck Crane

About KORIGCRANES

KORIGCRANES ( HENAN WEIHUA KORIG CRANES CO., LTD) located in crane hometown of China (cover more than 2/3 crane market in China), who is a trusted professional industry crane manufacturer and leading exporter. Specialized in design, manufacturing, installation and service of Overhead crane, Gantry crane, Port crane, Electric hoist etc, we have passed ISO 9001:2000, ISO 14001:2004, OHSAS 18001:1999, GB/T 19001-2000, GB/T 28001-2001, CE, SGS, GOST, TUV, BV and so on.

Product Application

To meet the demands of the oversea market, we independent research and development European type overhead crane, gantry crane; electrolytic aluminum multi-purpose overhead crane, hydro-power station crane etc. European type crane with light dead weight, compact structure, lower energy consumption etc. Many main performance reach the industry advanced level.
KORIGCRANES Widely used in machinery, metallurgy, mining, electric power, railway, petroleum, chemical, logistics and other industries. Service for hundreds of large enterprises and national key projects such as China Datang Corporation, China Guodian Corporation, SPIC, Aluminum Corporation Of China（CHALCO）, CNPC, Power China, China Coal, Three Gorges Group, China CRRC, Sinochem International, etc.

Our Market

Our cranes has been exported cranes to more than 110 countries for example Pakistan, Bangladesh, India, Vietnam, Thailand, Indonesia, Philippines, Malaysia、USA, Germany, France, Australia, Kenya, Ethiopia, Nigeria, Kazakhstan, Uzbekistan, Saudi Arabia、UAE、Bahrain、Brazil, Chile, Argentina, Peru etc and received good feedback from them. Very happy to be friends with each other come from all of the world and hope to establish long-terms good cooperation.

KORIGCRANES has steel pre-treatment production lines, automatic welding production lines, machining centers, assembly workshops, electrical workshops, and anti-corrosion workshops. Can independently complete the whole process of crane production.

Q. What’s the information should I provide when inquiry?
More details or drawings, better.
A: Lift capacity B: span C: lift height D: power source; other specials you give us will be more appreciated.

Q. How many operating methods for my selection?
Standard operating methods:
A: remote control with push buttons
B: cabin (space capsule seat) control with joystick. Choose any type as you like.

Q. Can this type work in hazardous environment?
A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.

Q. Can you provide the serious lifting tools?
A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!

Q. How can we install the crane?
A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
