Model: ZDS

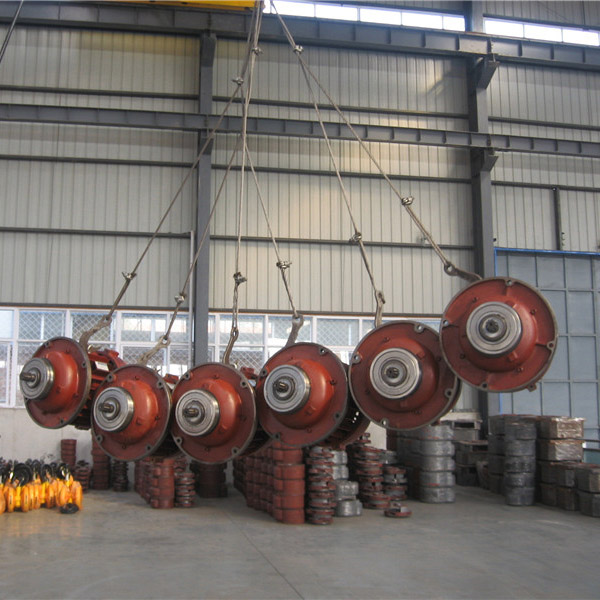

ZDS series motors have two speeds, fast and slow. In addition to matching with electric hoists, they are also suitable for machine tools and lifting and transportation machinery that require two speeds. This series of dual-motor unit is a compound motor with two conical rotor brake motors ZDM1 and ZD1, which are connected through an intermediate slow drive device to achieve two speeds. Power: 0.5T-16T, protection grade IP44

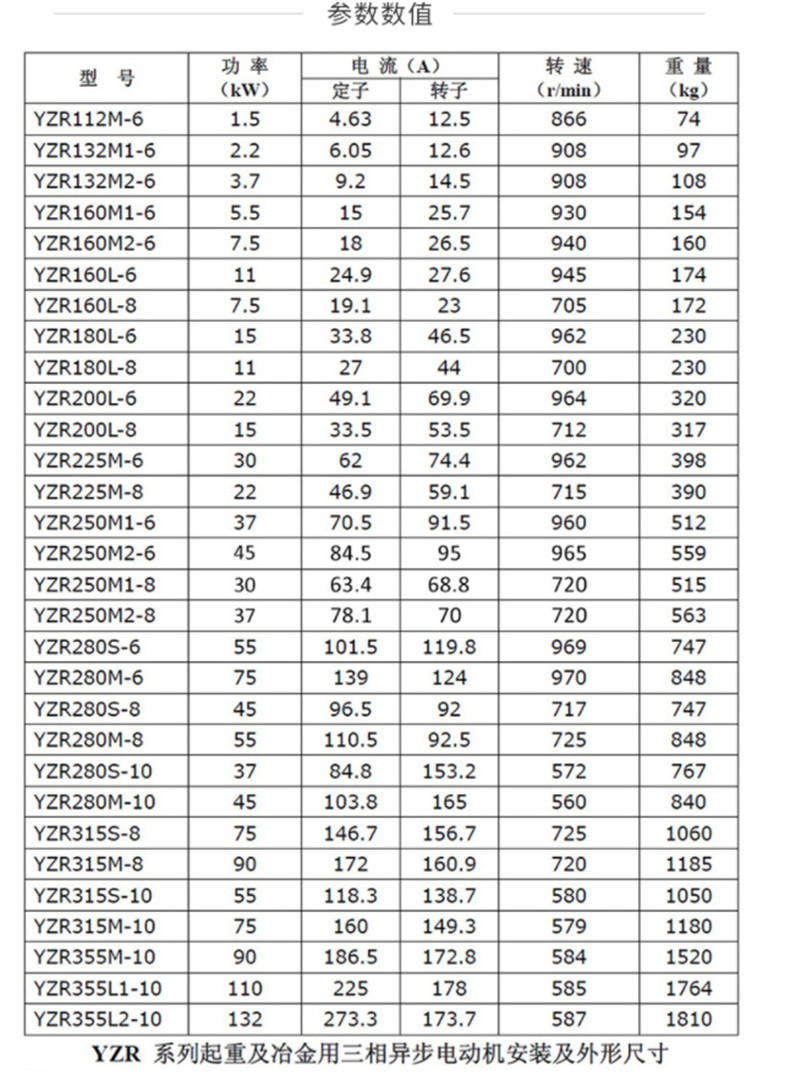

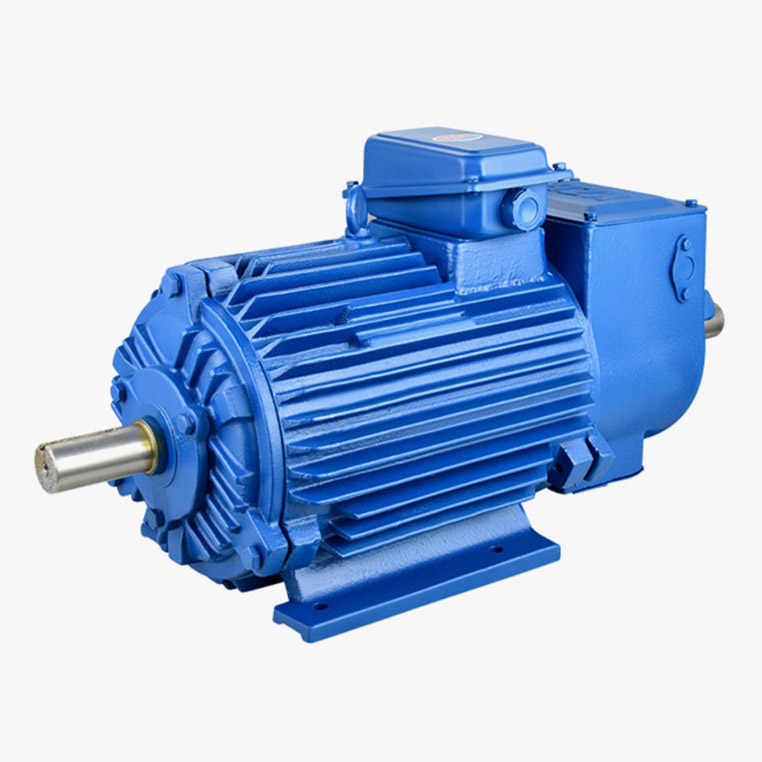

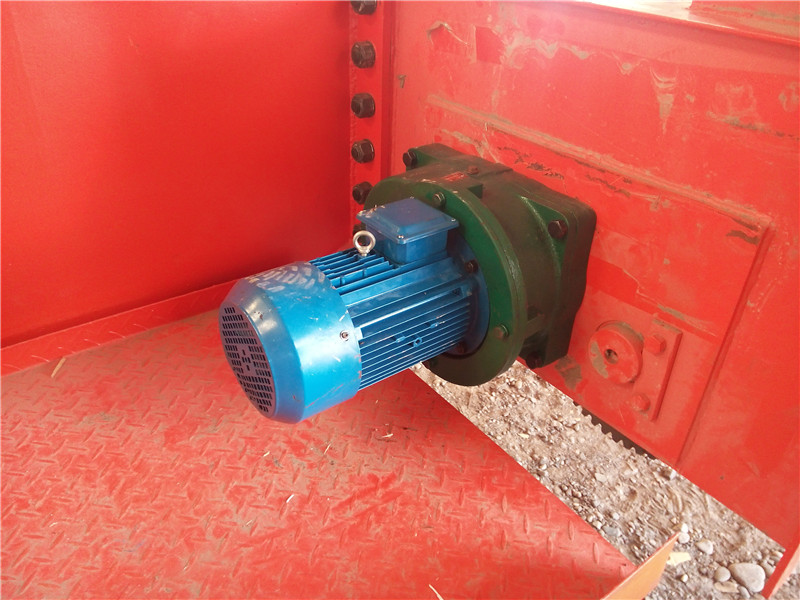

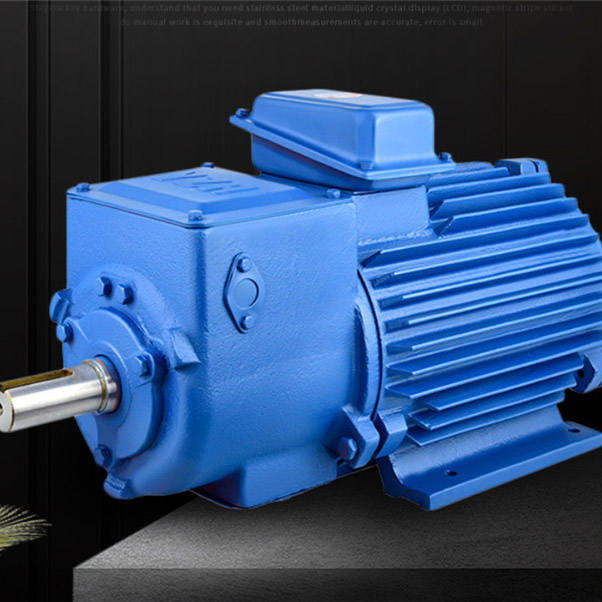

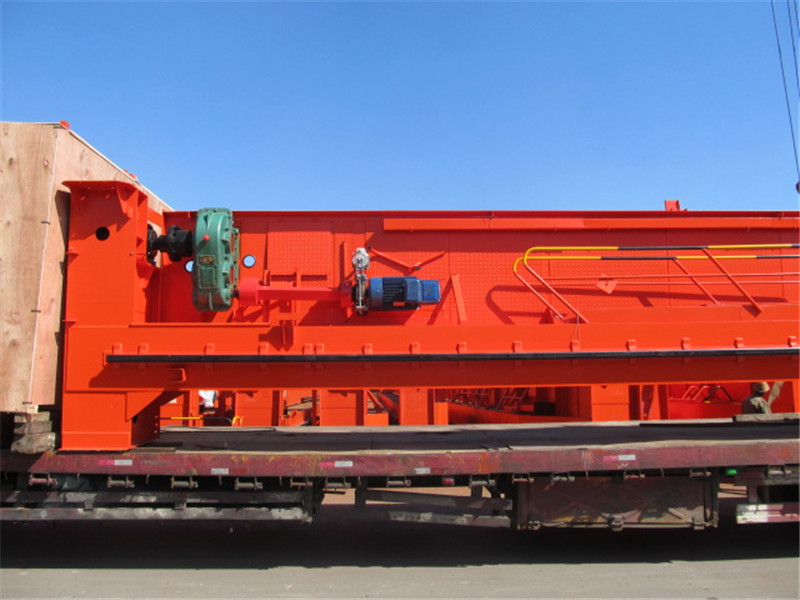

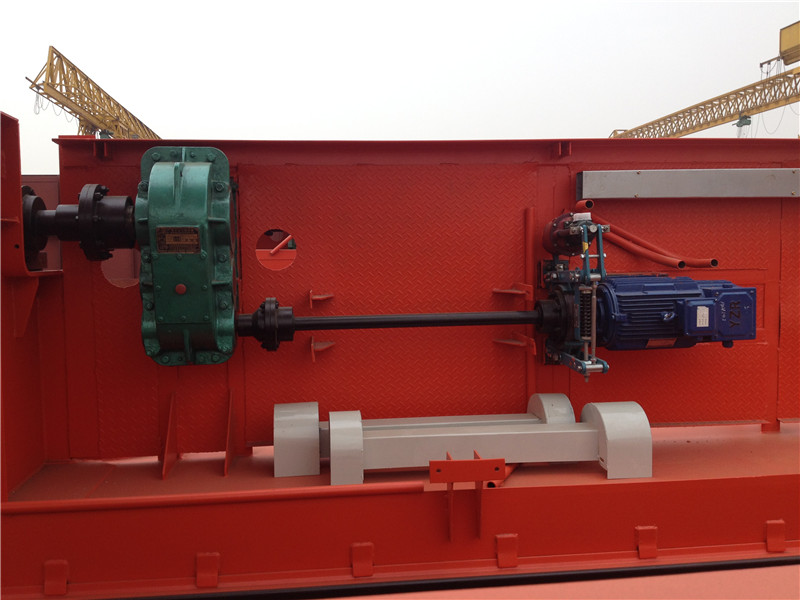

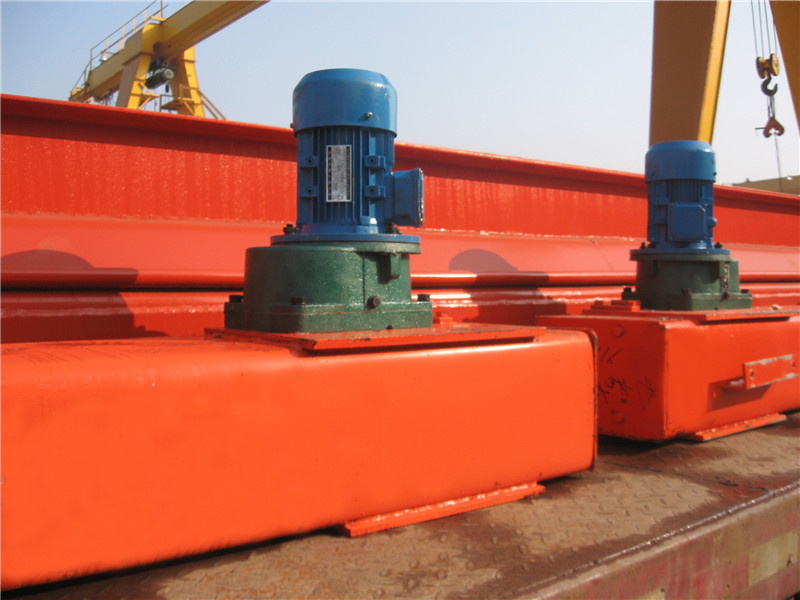

YZR, YZ series crane and metallurgical motors have the characteristics of large overload capacity and high mechanical strength, and are especially suitable for driving various types of crane and metallurgical machinery or
YZR series hoisting and metallurgical motors are wound rotor motors, and YZ series hoisting and metallurgical motors are cage motors.
2. The motor can operate normally under the following conditions.
(1) The ambient temperature is less than 40℃ (for general environment) or 60℃ (for metallurgical environment);
(2) The altitude is less than 1000m;
(3) Frequent mechanical vibration and shock;
(4) Frequent starting, braking (electrical or mechanical) and reverse rotation.
3. The fixed frequency of the motor is 50Hz, and the rated voltage is 380V.
4. Connection: Y-connection is used for stator windings with a power of 132KW and below, and the rest is "△" connection. For Y-connection motors, additional lead points can be added.

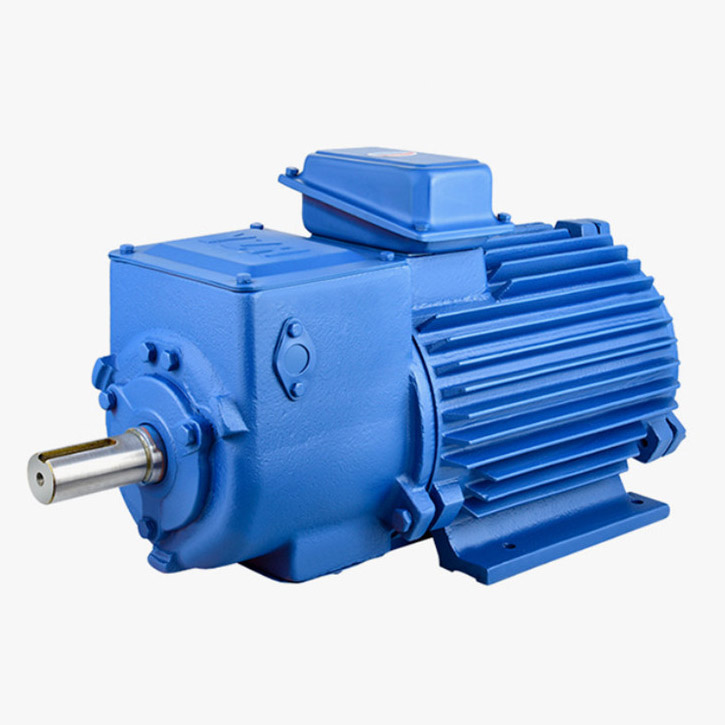

1. Capacitor junction box, simple, stable and convenient to use

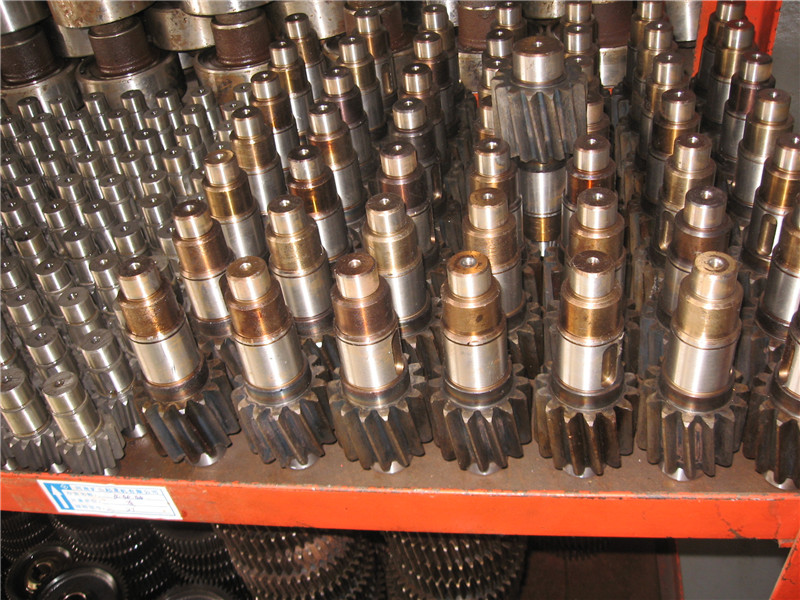

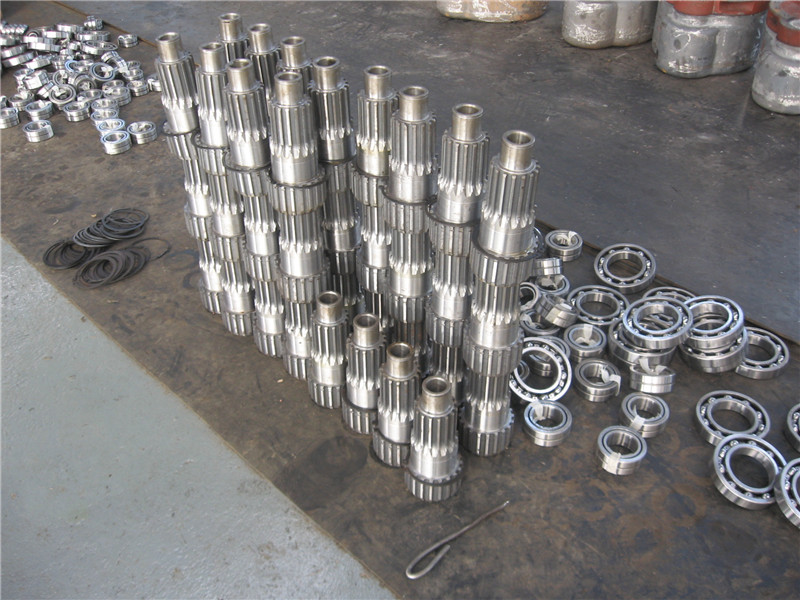

2. High-quality hardness shaft, carefully selected materials, not easy to wear
3. The cooling air hood to ensure the stable operation of the motor
4. The metal collar on the top can be roped to facilitate the transportation and movement of the motor
5. Thickened base material, stable operation
6.All copper coils, excellent cold-rolled steel coils, large slots, good tensile strength
7.One-time forming rotor
8.Fine bearings, excellent noise reduction performance, long service life
9.Cold rolled steel sheet, ductility resistance, good pressure and wear resistance
<
Model | Power(Kw) | Shaft extension spline | ||||||||||||||
A | B | C | D | E | F | G | H | I | J | K | L | M | AD | |||
ZDYI12-4 | ||||||||||||||||
ZDMI12-4 | 0.4 | 4D-15d9x12x4c11 | 25 | 22 | 15 | Φ110 | Φ75 | Φ153 | Φ7 | Φ90 | 273 | M5 | 116 | |||
ZDI21-4 | 24 | 61 | 71 | Φ110 | Φ220 | Φ177 | Φ215 | Φ9 | Φ194 | 63 | 74 | 324 | M5 | 110 | ||
6D-20d9x16x4c11 | ||||||||||||||||
ZDYI21-4 | 28 | 24 | 20 | Φ140 | Φ100 | Φ215 | Φ9 | Φ120 | 332 | |||||||
0.8 | ||||||||||||||||
ZDYII21-4 | 6D-25d9x22x6c11 | 34 | 30 | 14 | Φ220 | Φ180 | Φ215 | Φ11 | Φ200 | 332 | ||||||
ZDMI21-4 | 6D-20d9x16x4c11 | 28 | 24 | 20 | Φ140 | Φ100 | Φ215 | Φ9 | Φ120 | 332 | 160 | |||||
ZDI22-4 | 6D-20d9x16x4c1 | 24 | 61 | 71 | Φ110 | Φ235 | Φ179 | Φ228 | Φ13.5 | Φ205 | 63 | 74 | 362 | M5 | 114 | |
ZDYII22-4 | 34 | 30 | 14 | Φ220 | Φ180 | Φ228 | Φ11 | Φ200 | 371 | |||||||
1.5 | ||||||||||||||||
6D-25d9x22x6c11 | ||||||||||||||||
ZDMI22-4 | 34 | 30 | 14 | Φ140 | Φ100 | Φ228 | Φ11 | Φ120 | 371 | 160 | ||||||
ZDMI23-4 | 2.2 | 6D-25d9x22x6c11 | 34 | 30 | 14 | Φ140 | Φ100 | Φ228 | Φ11 | Φ120 | 371 | |||||
ZDI31-4 | 30 | 81 | 107 | Φ120 | Φ290 | Φ220 | Φ286 | Φ13.5 | Φ260 | 63 | 74 | 425 | M5 | 143 | ||
3 | 6D-28d9x23x6c11 | |||||||||||||||
ZDMI31-4 | 39 | 30 | 17 | Φ220 | Φ180 | Φ286 | Φ15 | Φ200 | 425 | 181 | ||||||
ZDI32-4 | 4.5 | 6D-28d9x23x6c11 | 30 | 77 | 98 | Φ120 | Φ320 | Φ223 | Φ300 | Φ13.5 | Φ286 | 63 | 74 | 438 | M5 | 150 |
ZDI41-4 | 7.5 | 10D-35d9x28x4c11 | 35 | 97 | 120 | Φ160 | Φ380 | Φ260 | Φ343 | Φ17.5 | Φ340 | 63 | 74 | 510 | M5 | 170 |
ZDI51-4 | 13 | 10D-40d9x32x5c11 | 38 | 137 | 172 | Φ200 | Φ455 | Φ300 | Φ440 | Φ17.5 | Φ415 | 120 | 85 | 634 | M6 | 210 |
ZDI52-4 | 18.5 | 10D-45d9x36x5c11 | 55 | 157 | 187 | Φ200 | Φ455 | Φ300 | Φ440 | Φ17.5 | Φ415 | 120 | 85 | 711 | M6 | 245 |
Φ530 | Φ450 | Φ490 | ||||||||||||||
ZDX62-4 | 24 | 10D-52d9x42x6c11 | 55 | 173 | 198 | Φ200 | Φ550 | Φ460 | Φ520 | Φ17.5 | Φ500 | 80 | 118 | 740 | M6 | 240 |
