Factory supplier double drum winch exported to worldwide
overview

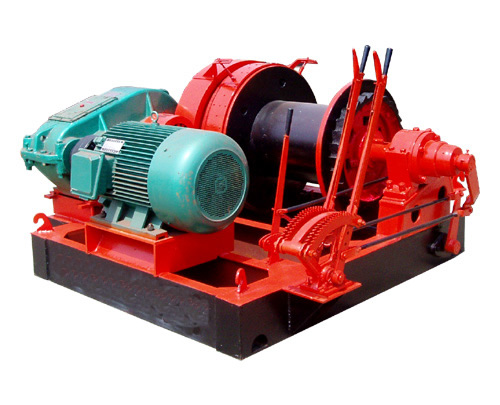

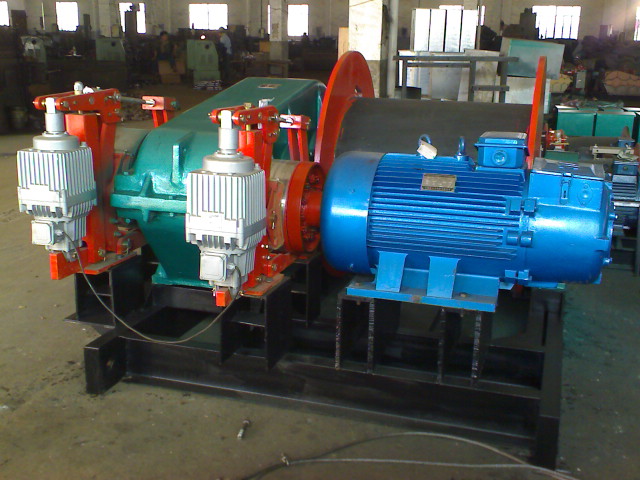

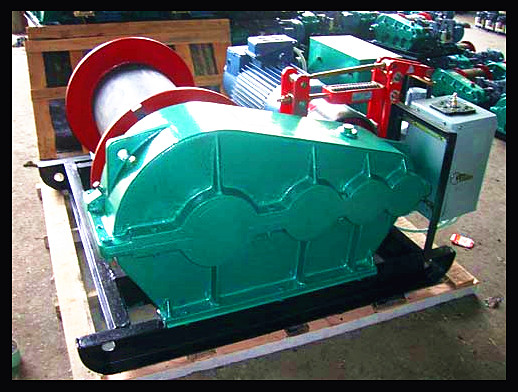

Electric Winch is drum winding wire rope or chain ascension or traction weight of small-sized lifting equipment.
Winch can be vertical, horizontal or inclined pulling heavy objects.Divided into manual winch and electric hoist winch.Now is given priority to with electric winch, Can be used alone,also can be made in lifting, such as road construction and mine machinery components, because of simple operation, large amount of rope and displacement easily and widely used.
Mainly used in construction, water conservancy, forestry, mining, port, etc material lift or drag.
parameter
| Model | Pull Capacity(KN) | Speed ofrope(m/min) | RopeCapacity(m) | Rope Diameter(mm) | Motor | Power(kw) | Dimension(mm) | Weight(kg) |
| JM1 | 10 | 15 | 80 | ∅9 | Y112M-6 | 2.2 | 740*690*490 | 270 |
| JM1.6 | 16 | 16 | 115 | ∅12.5 | Y132M-6 | 5.5 | 940*900*570 | 500 |
| JM2 | 20 | 16 | 100 | ∅13 | Y160M-6 | 7.5 | 940*900*570 | 550 |
| JM3.2 | 32 | 9.5 | 150 | ∅15.5 | YZR160M-6 | 7.5 | 1430*1160*910 | 1100 |
| JM5 | 50 | 9.5 | 190 | ∅21.5 | YZR160L-6 | 11 | 1620*1260*948 | 1800 |
| JM8 | 80 | 8 | 250 | ∅26 | YZR180L-5 | 15 | 2180*1460*850 | 2900 |
| JM10 | 100 | 8 | 200 | ∅30 | YZR200L-6 | 22 | 2280*1500*950 | 3800 |
| JM12.5 | 125 | 10 | 300 | ∅34 | YZR225M-6 | 30 | 2880*2200*1550 | 5000 |
| JM16 | 160 | 10 | 500 | ∅37 | YZR250M-8 | 37 | 3750*2400*1850 | 8800 |
| JM20 | 200 | 10 | 600 | ∅43 | YZR280M-8 | 45 | 3950*2560*1950 | 9900 |
| JM25 | 250 | 9 | 700 | ∅48 | YZR280M-8 | 55 | 4350*2800*2030 | 13500 |
| JM32 | 320 | 9 | 700 | ∅52 | YZR315S-8 | 75 | 4500*2850*2100 | 20000 |
| JM50 | 500 | 8 | 800 | ∅60 | YZR315M-8 | 90 | 4930*3050*2250 | 38000 |
| JM65 | 650 | 10 | 2400 | ∅64 | LA8315-8AB | 160 | 5900*4680*3200 | 54000 |
Main Features
1. High versatility, compact structure and small size
2. Light weight, heavy lifting, easy to use and transfer
3. As hoisting equipment, it is used for mine hoisting, well drilling and hanging (lifting) well drilling equipment, that is, lifting ore, waste (gangue) rock, lifting personnel, lowering materials, tools and equipment, etc. along the wellbore
4. As transportation equipment, it is used for underground transportation of ore (mining cart), rake ore (slag) in the stope, or filling and removing uprights.
About KORIGCRANES
KORIGCRANES ( HENAN WEIHUA KORIG CRANES CO., LTD) located in crane hometown of China (cover more than 2/3 crane market in China), who is a trusted professional industry crane manufacturer and leading exporter. Specialized in design, manufacturing, installation and service of Overhead crane, Gantry crane, Port crane, Electric hoist etc, we have passed ISO 9001:2000, ISO 14001:2004, OHSAS 18001:1999, GB/T 19001-2000, GB/T 28001-2001, CE, SGS, GOST, TUV, BV and so on.
Product Application
To meet the demands of the oversea market, we independent research and development European type overhead crane, gantry crane; electrolytic aluminum multi-purpose overhead crane, hydro-power station crane etc. European type crane with light dead weight, compact structure, lower energy consumption etc. Many main performance reach the industry advanced level.
KORIGCRANES Widely used in machinery, metallurgy, mining, electric power, railway, petroleum, chemical, logistics and other industries. Service for hundreds of large enterprises and national key projects such as China Datang Corporation, China Guodian Corporation, SPIC, Aluminum Corporation Of China（CHALCO）, CNPC, Power China, China Coal, Three Gorges Group, China CRRC, Sinochem International, etc.
Our Market
Our cranes has been exported cranes to more than 110 countries for example Pakistan, Bangladesh, India, Vietnam, Thailand, Indonesia, Philippines, Malaysia、USA, Germany, France, Australia, Kenya, Ethiopia, Nigeria, Kazakhstan, Uzbekistan, Saudi Arabia、UAE、Bahrain、Brazil, Chile, Argentina, Peru etc and received good feedback from them. Very happy to be friends with each other come from all of the world and hope to establish long-terms good cooperation.

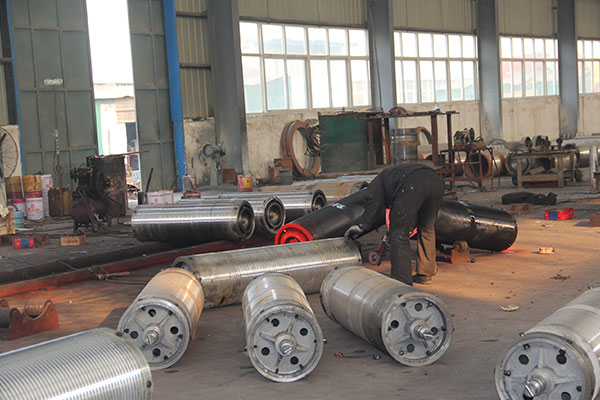

KORIGCRANES has steel pre-treatment production lines, automatic welding production lines, machining centers, assembly workshops, electrical workshops, and anti-corrosion workshops. Can independently complete the whole process of crane production.
Q. What’s the information should I provide when inquiry?
More details or drawings, better.
A: Lift capacity B: span C: lift height D: power source; other specials you give us will be more appreciated.
Q. How many operating methods for my selection?
Standard operating methods:
A: remote control with push buttons
B: cabin (space capsule seat) control with joystick. Choose any type as you like.
Q. Can this type work in hazardous environment?
A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q. Can you provide the serious lifting tools?
A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
Q. How can we install the crane?
A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
