Forged mobile crane rail steel wheel

Short Description:

Crane Wheels are the most important parts in traveling unit and also are the most vulnerable parts due to the strong impact and wear between wheel and rail. Flange wear, flange breakage and fatigue pitting are the frequently encountered problems. When the crane wheels are broken, the repair and replacement are complex and very time-consuming. To ensure the high quality of the crane wheels assembly, every step in design, material, heat treatment and processing technology is properly and precisely executed in VOHOBOO.

Product name:Forged mobile crane rail steel wheel

Size:250mm~900mm

Material:Carbon Steel


  • Brand Name: KORIG
  • Place of Origin: Henan, China
  • Customize Service: Available
  • Certification: CE ISO SGS
  • Min.Order Quantity: 1 set
  • Payment Terms: L/C, T/T, Western Union
  • Delivery Time: 20~30 Workdays
  • Supply Ability: 1000 Set/Month
  • Port of Shipment: Qingdao Port, Tianjin Port, Shanghai Port
  • Packaging Details: Electrical parts are packed in wooden boxes, and steel structural parts are packed in color tarpaulin.
  • Product Detail

    company information

    FAQ

    Product Tags

    overview

    According to the different forming process, there are two typical types: casting wheels and forging wheels.

    Due to different material, heat treatment, we just can’t make a brief contrast between them. Because of different design of crane, the overhead crane wheels are often very different. So the custom designed wheel and OEM is accepted, in fact, is the most common case in export. Meanwhile, our engineers are always ready to make recommendations when these wheel need to be integrated into complete wheel assemblies or in a very specific application.

    Main Features

    1.Material: The casting wheel material generally is 50SiMn, ZD45,ZG55. The forging wheel material generally is DG65Mn and  42CrMo.

    2.Treatment: The heat treatment is quenching or hardening and tempering.

    3.Size: Special designs are available, Making according to clients demand.Precise measurement and surface finishes are available.

    4.Inspection: Inhouse and the third party.Inspection:all items are checked and tested thoroughly during every working procedure and after the product is finally manufactured to ensure that best quality product goes out in the market.

    Parameter

    No. name dimension(mm)
    D(h9) D1 B1 B A h h1(h11) b1(H9) d(s6) l L
    1 φ250 driving 250 280 90 70 180 180 80 30 45 82 237
    2 φ250 driven 250 280 90 70 180 180 80 30
    3 φ350 driving 350 380 100 81 200 225 105 50 65 105 320
    4 φ350 driven 350 380 100 81 200 225 105 50
    5 φ400 driving 400 440 120 100 240 260 120 50 80 130 365
    6 φ400 driven 400 440 120 100 240 260 120 50
    7 φ500 driving 500 540 130 110 270 300 140 50 80 130 365
    8 φ500 driven 500 540 130 110 270 300 140 50
    9 φ300 driving 300 330 100 81 190 210 95 40 60 105 310
    10 φ300 driven 300 330 100 81 190 210 95 40

    Feature and advantage

    Manufactured from fine gain, fully killed, vacuum degassed forged medium carbon steel

    Heat treated using our in house processes to provide a uniform contour hardness in the tread and inner flange wear surfaces, while maintaining a ductile core to resist shock loads

    Resistant to flange fracture or wear

    Designed to resist pitting and spalling

    Reduce maintenance cost of your wheels and wheel assemblies

    Improve the life of your rail

    Provide an additional 40% load carrying capability over rim toughened wheels

    Delivery in 3 weeks, less when required

    Application places

    1,extensively used in factories, workshops, warehouses and many other occasions to hoist materials directly,

    2,installed on the straight or curve I-steel beam of Single-girder Cranes to lift goods.

    3,It can also be used together with Electric Hoist Double-beam, gantry crane and slewing cranes to hoist different items and so on. It has so many appllication usages just for its advantages,

    such as: tight structure, convenient operation, light weight, wide common use and so on.

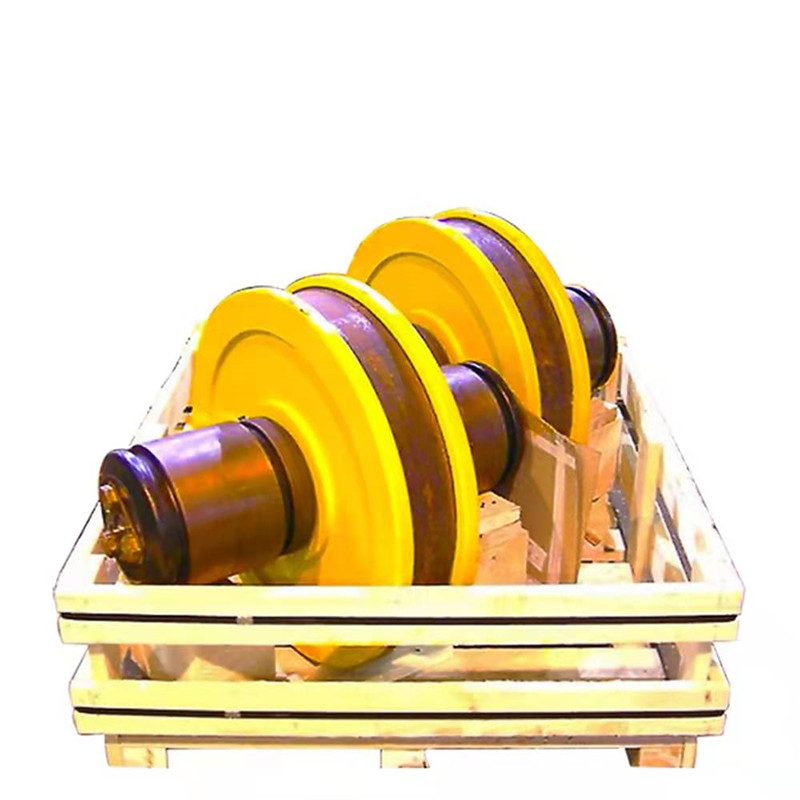

    • Forged mobile crane rail steel wheel (4)

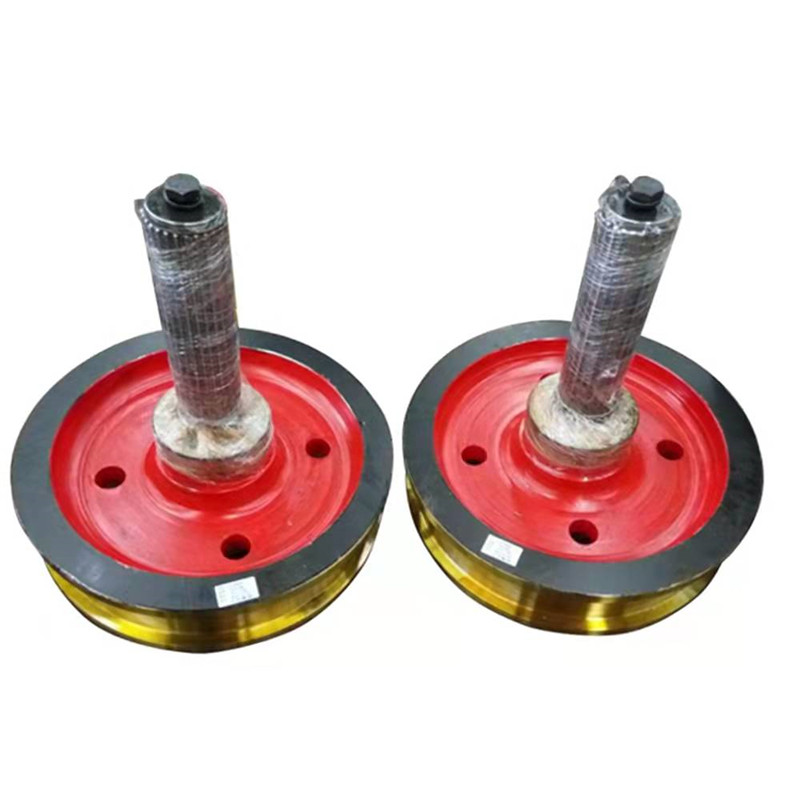

    • Forged mobile crane rail steel wheel (1)

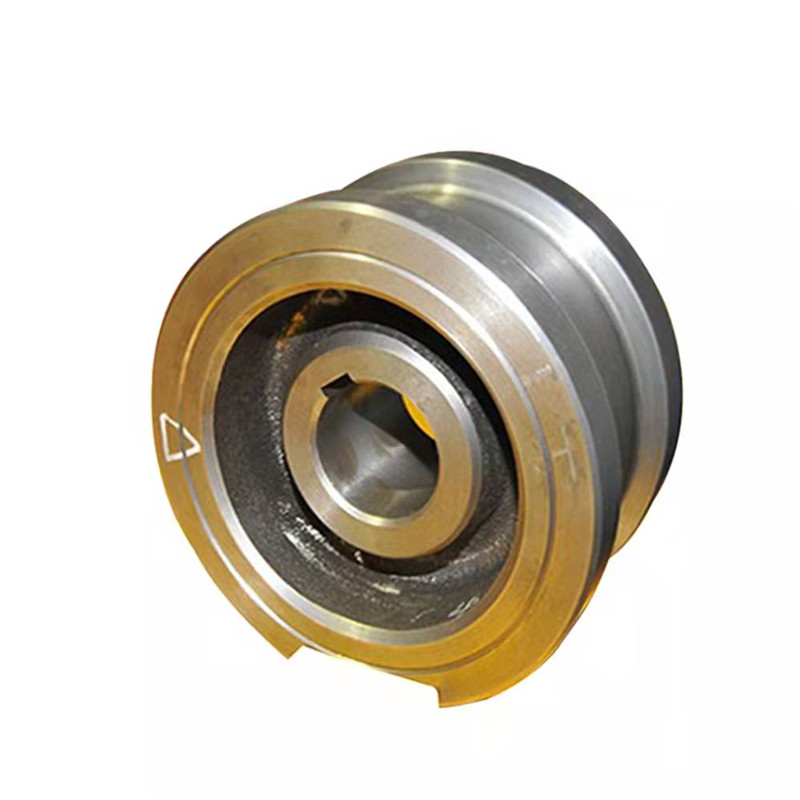

    • Forged mobile crane rail steel wheel (5)
