Girder machine

Short Description:

The gantry crane for railway construction is specially designed for the concrete span beam/bridge moving and transport for railway construction. Users can use 2 cranes 500t (450t) or 1 crane 1000t (900t) with 2 lifting points to handle railway beam.


  • Brand Name: KORIG
  • Place of Origin: Henan, China
  • Customize Service: Available
  • Certification: CE ISO SGS
  • Min.Order Quantity: 1 set
  • Payment Terms: L/C, T/T, Western Union
  • Delivery Time: 20~30 Workdays
  • Supply Ability: 1000 Set/Month
  • Port of Shipment: Qingdao Port, Tianjin Port, Shanghai Port
  • Packaging Details: Electrical parts are packed in wooden boxes, and steel structural parts are packed in color tarpaulin.
  • Product Detail

    company information

    FAQ

    Product Tags

    overview

    1.With a special spreader is mainly used for loading and unloading of large bridges and transitions.
    2.The crane can achieve 90 degree rotation suitable for multi-span use.
    3.Lifting adopts four points lifting and three-points balance, to ensure that wire rope in balance force.
    4.Trolley using hydraulic push rod device can achieve a variety of lifting of the bridge, while saving costs.

    Data Sheet of Gantry Crane for Beam Hoisting

    Lifting Capacity Single t 450 (without spreader)
    Double t 450+450
    Span m 38
    Lifting Height m 30
    Tracks Center Distance m 1,500
    Speed Hoisting m/min 0.05 ~ 0.5 ~ 1 (no load)
    Trolley 0.2 ~ 2 ~ 4 (no load)
    Crane 0.5 ~ 5 ~ 10 (no load)
    Electric Hoist Model CD1 16-30D
    Lifting Capacity t 16
    Lifting Speed m/min 3.5
    Traveling Speed 20
    Lifting Height m 28.5
    Work Duty A3
    Steel Track Recommended P50, P60
    Max. Wheel Load KN 360
    Work Duty A5
    Total Weight t 410
    Total Power KW 175
    Power Source 3P, AC, 50Hz, 380V

    Data Sheet of Gantry Crane for Beam Moving

    Lifting Capacity t 900 (without spreader)
    Span m 38.5
    Lifting Height m 12
    Tracks Center Distance m 1,200
    Speed Hoisting m/min 0.05 ~ 0.5 ~ 1 (no load)
    Trolley Hydraulic push rod
    Crane 1 ~ 10 ~ 12 (no load)
    Electric Hoist Model WH164 20t-12D
    Lifting Capacity t 20
    Lifting Speed m/min 3.3
    Traveling Speed 14
    Lifting Height m 12
    Work Duty A3
    No Load Steering 90°
    Wheel Base m 16
    Concrete Beam m 20, 24, 32
    Steel Track Recommended P50, P60
    Max. Wheel Load KN 225
    Work Duty A3
    Total Weight t 505
    Total Power KW 259
    Power Source 300KW

    Specification

    1.  Load capacity: 20 t to 900 t
    2.  Span:   6 m – 50 m
    3.  Max.Lifting Height: 18m
    4.  Structurte:  Box / truss structure type
    6.  Character:  Single girder/Double griders
    7.  Power Supply :   Diesel generating set /380v-50hz,3Phase A.C
    8.  Grade ability: 1%-2%
    9.  Control mode: Remote/Cabin control
    10  Running mode:Straight/across/diagonal
    11. Image Design:  Classic design (Ruby red, ruby blue, white)

    Features of Gantry Crane for Railway Construction:

    1.    Rubber tire type and rail-mounted type;
    2.    Hydraulic driven of walking, steering and lifting;
    3.    Walk straight, oblique and rampage;
    4.    Good adaptability, high working efficiency, small space occupied;
    5.    Special spreader mainly used for lifting and transporting large concrete beam/bridge;
    6.    2 cranes, 2 trolleys with max lifting height 30m;
    7.    The max wheel load is 22t when lifting 900t stuff;
    8.    90° shift for rail type crane to achieve horizontal or vertical walking;
    9.    4 points for lifting and 3 points for balance to ensure even stress of the steel wire rope ;
    10.  Accurate positioning for stuff lifting down;
    11.  Hydraulic push for trolley to realize various lifting and save the cost;
    12.  For the 4 hoists, it can be single use or combine use of 2 or 4 hoists while the hardware and software are interlocked for operation safety.

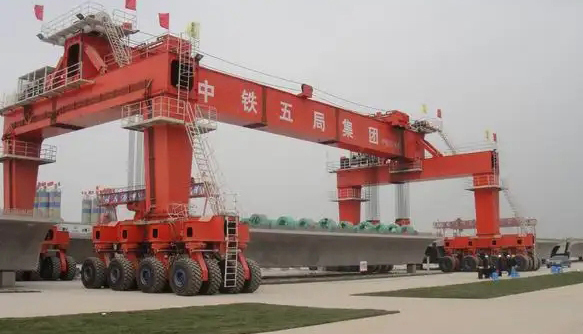

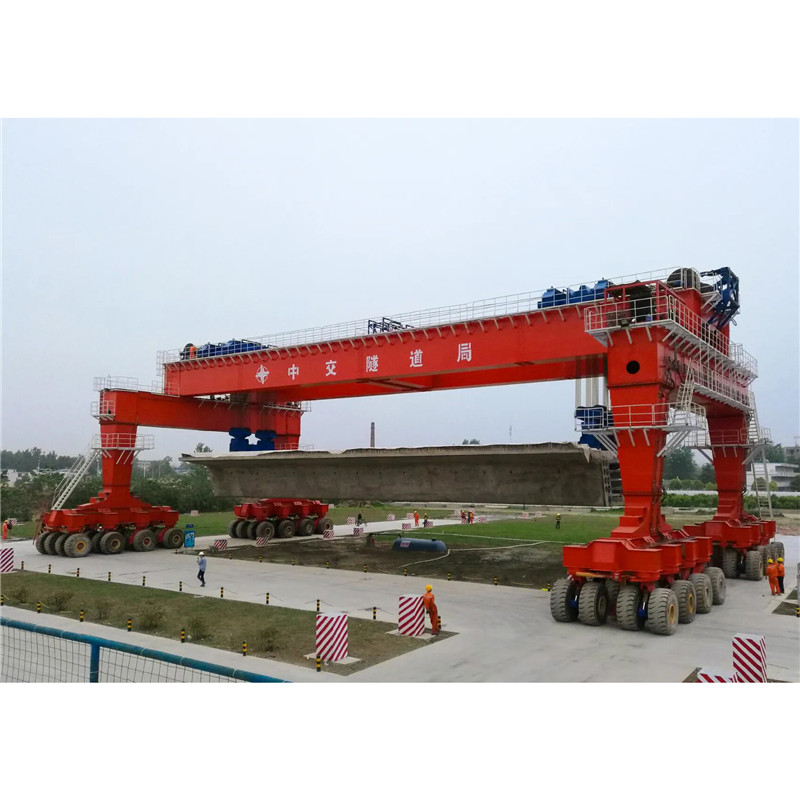

    • Girder machine (1)

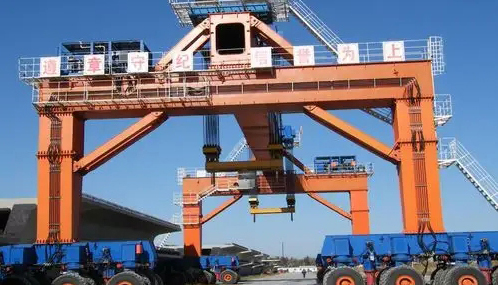

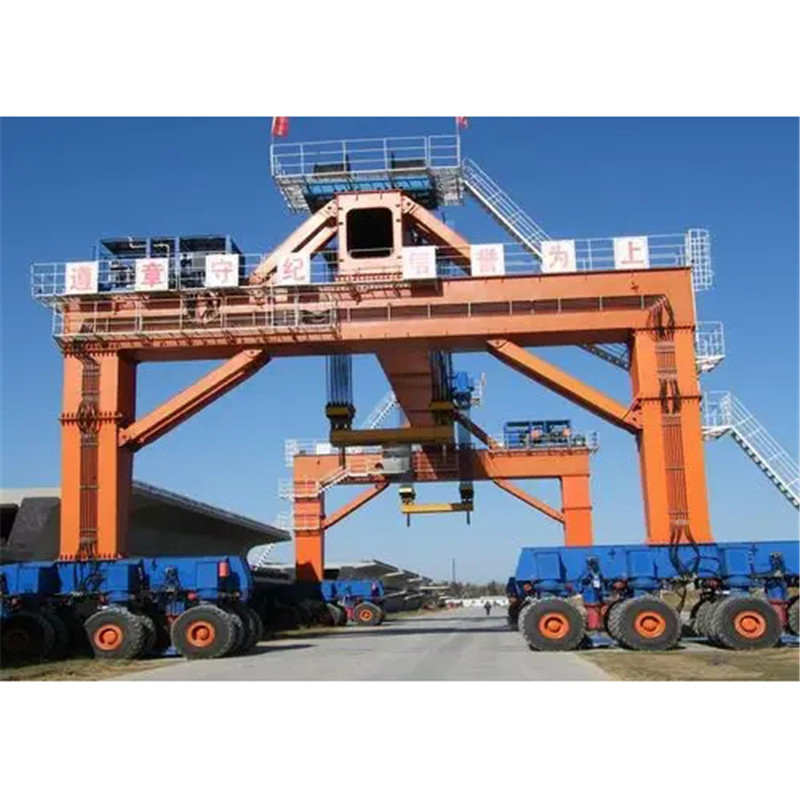

    • Girder machine (2)

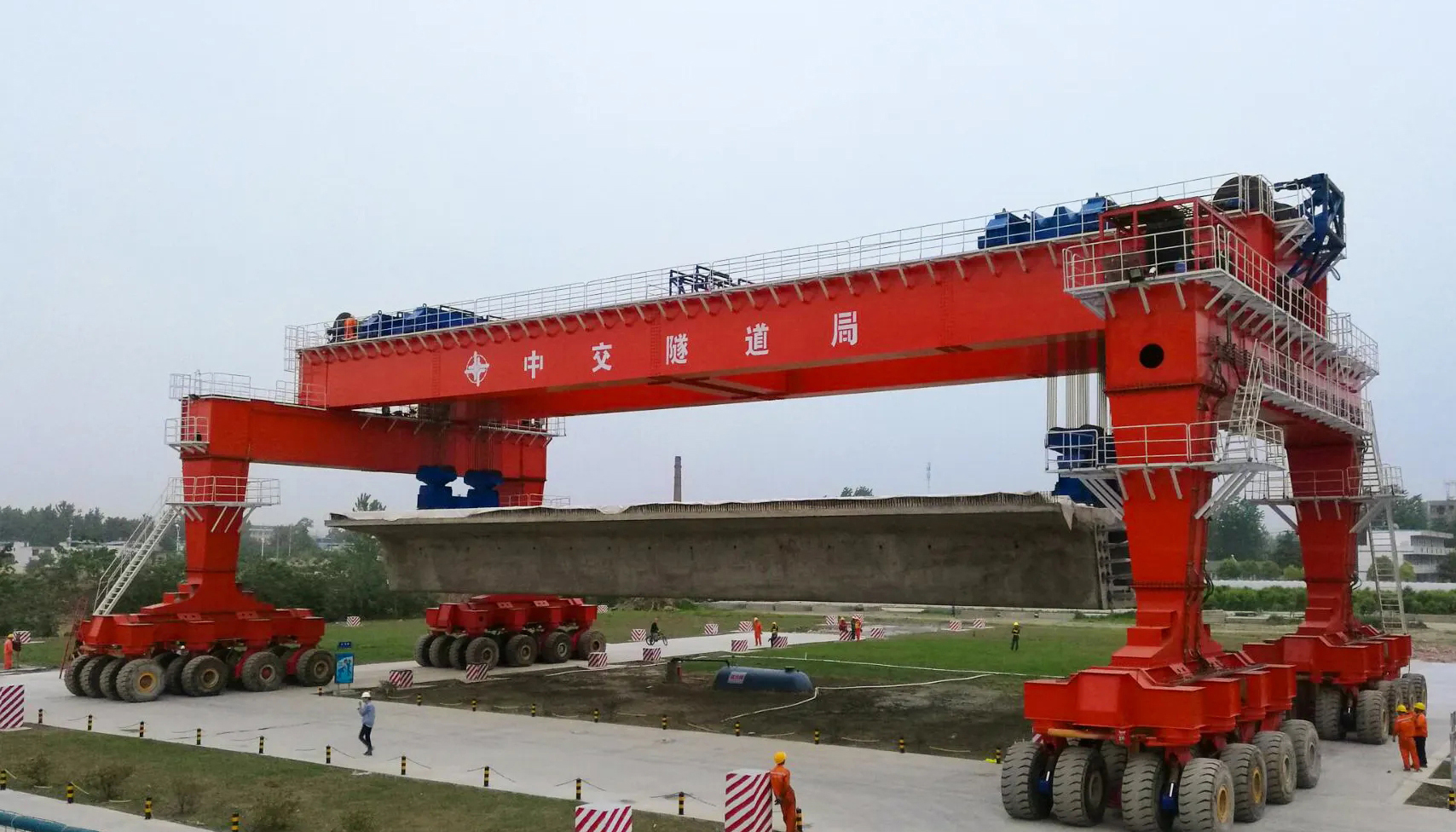

    • Girder machine (3)
