Heavy Duty Anode Carbon Blocks Traveling Overhead Crane For Polar Carbon Blocks
overview

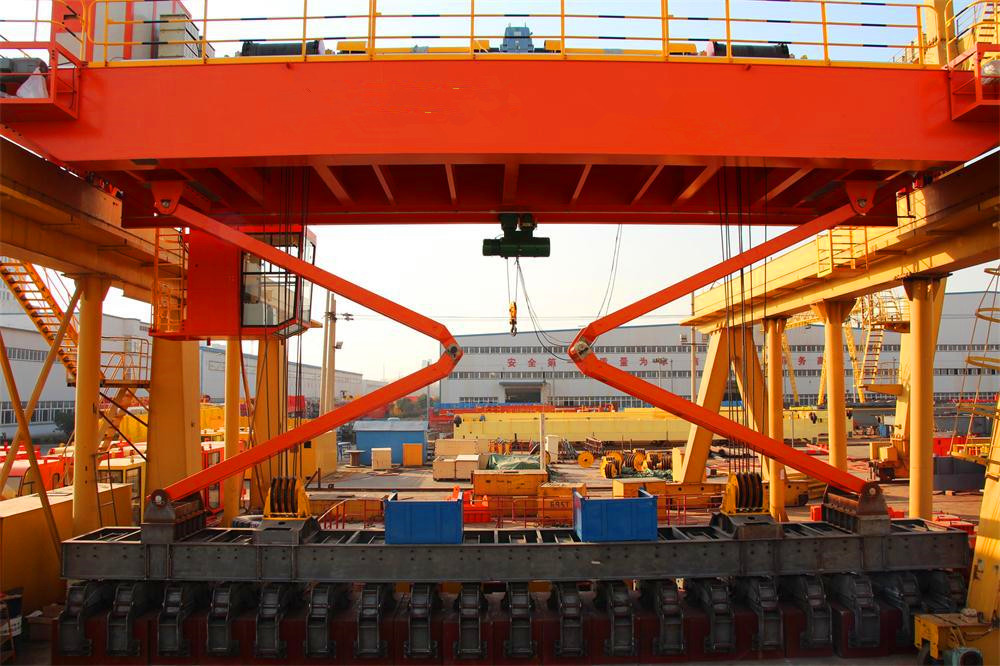

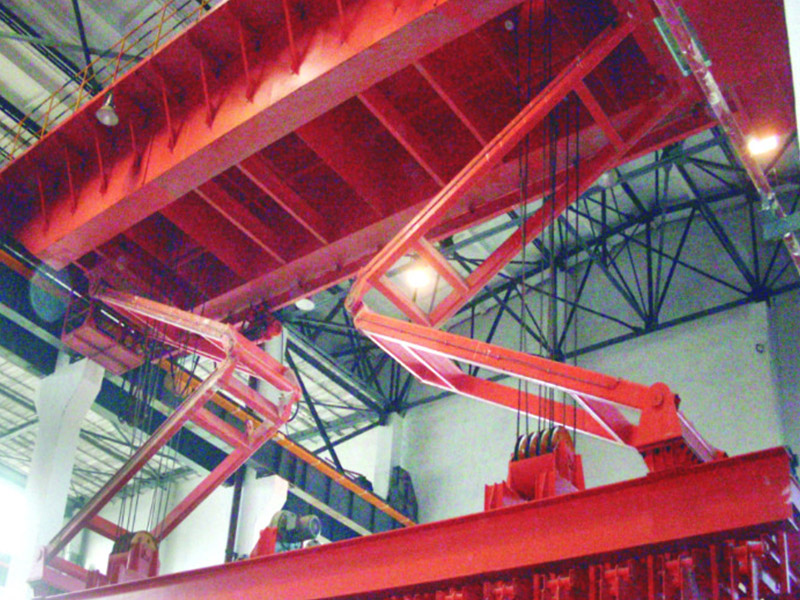

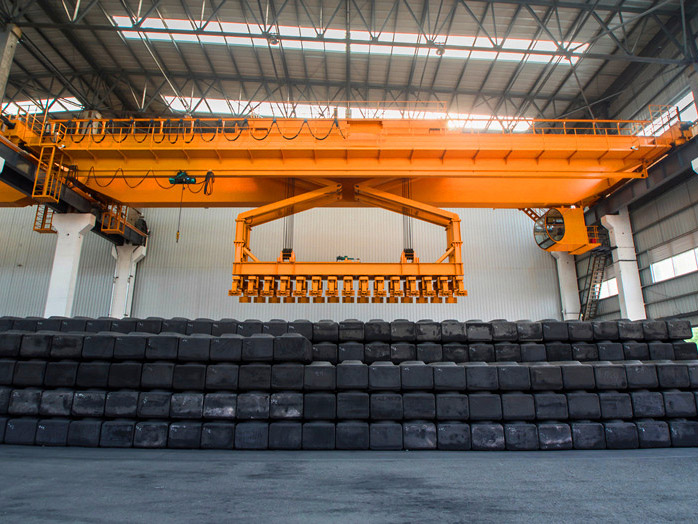

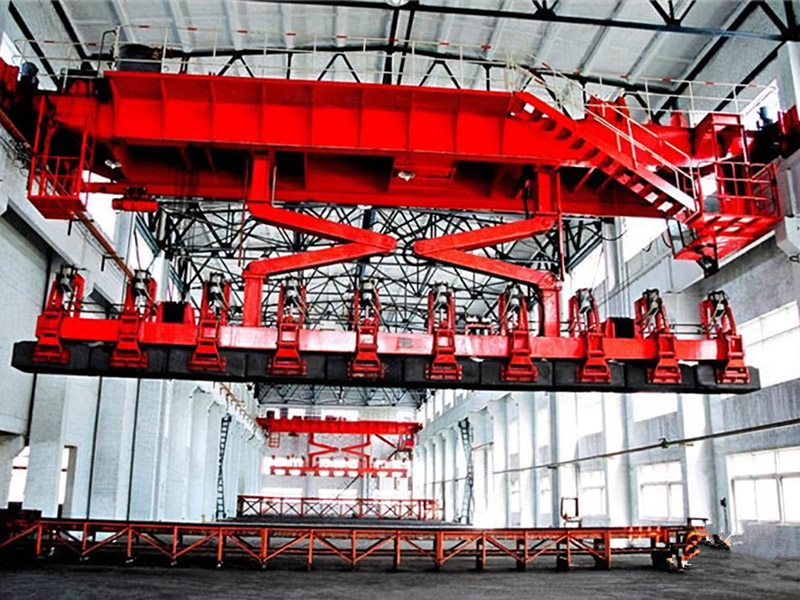

Polar carbon block stacking crane is a special transfer equipment for the carbon block warehouse of the carbon plant, which is mainly composed of bridge, large vehicle operation mechanism, lifting mechanism, guide device, clamp device, control system, electric hoist and other parts. It is used to grasp and transport raw and cooked charcoal blocks in the anode carbon block library, and other sporadic lifting. Its own fixture grabs 19 or 21 longitudinally arranged anode carbon blocks for round-trip stacking or loading, and can also realize the removal of waste blocks and the insertion of qualified blocks, which can be stacked in 9 layers.
The crane has two working devices: one is a fixture device consisting of 21 mechanical fixtures, which can simultaneously grasp and stack 21 ones arranged in the direction of width group of carbon blocks. The other set is a 5T electric hoist hanging from the lower I-beam of the bridge, which can be moved along the I-beam and whose hook can be used for zero in the workshop
Star lifting and lifting of individual carbon blocks with the help of single-block fixtures. All the movements of the crane can be completed in the operating room.
The crane system adopts dual drive, the whole machine adopts frequency conversion plus PLC control, all the movements of the crane are operated in the control room, and the air conditioning device with adjustable heating and cold is equipped in the control room.
Technical form
| Span(m) | 16.5 | 19.5 | |
| Number of charcoal blocks(pcs) | 19,21 | 19,21 | |
| Capacity(t) | 19-27 | 19-27 | |
| Working class | A7.A8 | A7.A8 | |
| Clamping lifting speed(m/min) | 2.5-6 | 2.5-6 | |
| Long travel speed(m/min) | 6-60 | 6-60 | |
| Max.wheel load | 265 | 285 | |
| Power (kw) | 128 | 128 | |
| Rail recommended | QU100 | QU100 | |
| Control way | Cabin control with AC | Cabin control with AC | |
| ELectric hoist | Lifting capacity(t) | 5 | 5 |
| Lifting speed(m/min） | 8 | 8 | |
| Traveling speed(m/min) | 20 | 20 | |
| Debug the situation | Long travel | VFD | VFD |
| Lifting system | VFD | VFD | |
| clamp | Gravity type | Gravity type | |
images
About KORIGCRANES
KORIGCRANES ( HENAN WEIHUA KORIG CRANES CO., LTD) located in crane hometown of China (cover more than 2/3 crane market in China), who is a trusted professional industry crane manufacturer and leading exporter. Specialized in design, manufacturing, installation and service of Overhead crane, Gantry crane, Port crane, Electric hoist etc, we have passed ISO 9001:2000, ISO 14001:2004, OHSAS 18001:1999, GB/T 19001-2000, GB/T 28001-2001, CE, SGS, GOST, TUV, BV and so on.
Product Application
To meet the demands of the oversea market, we independent research and development European type overhead crane, gantry crane; electrolytic aluminum multi-purpose overhead crane, hydro-power station crane etc. European type crane with light dead weight, compact structure, lower energy consumption etc. Many main performance reach the industry advanced level.
KORIGCRANES Widely used in machinery, metallurgy, mining, electric power, railway, petroleum, chemical, logistics and other industries. Service for hundreds of large enterprises and national key projects such as China Datang Corporation, China Guodian Corporation, SPIC, Aluminum Corporation Of China（CHALCO）, CNPC, Power China, China Coal, Three Gorges Group, China CRRC, Sinochem International, etc.
Our Market
Our cranes has been exported cranes to more than 110 countries for example Pakistan, Bangladesh, India, Vietnam, Thailand, Indonesia, Philippines, Malaysia、USA, Germany, France, Australia, Kenya, Ethiopia, Nigeria, Kazakhstan, Uzbekistan, Saudi Arabia、UAE、Bahrain、Brazil, Chile, Argentina, Peru etc and received good feedback from them. Very happy to be friends with each other come from all of the world and hope to establish long-terms good cooperation.
KORIGCRANES has steel pre-treatment production lines, automatic welding production lines, machining centers, assembly workshops, electrical workshops, and anti-corrosion workshops. Can independently complete the whole process of crane production.
Q. What’s the information should I provide when inquiry?
More details or drawings, better.
A: Lift capacity B: span C: lift height D: power source; other specials you give us will be more appreciated.
Q. How many operating methods for my selection?
Standard operating methods:
A: remote control with push buttons
B: cabin (space capsule seat) control with joystick. Choose any type as you like.
Q. Can this type work in hazardous environment?
A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q. Can you provide the serious lifting tools?
A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
Q. How can we install the crane?
A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
