High quality overhead crane 1ton to 20 ton end carriages

Short Description:

Overhead crane end carriages with motor be composed by Wheels, motors, buffers, collector base, girder joint plate and bolts, etc.European-style end beam adopts rectangular control, CNC boring and milling integrated customized machine tool, a one-time completion of opening, boring, drilling. F series reducer, hollow shaft drive, high working level, wide speed adjustment range, widely popular.


  • Brand Name: KORIG
  • Place of Origin: Henan, China
  • Customize Service: Available
  • Certification: CE ISO SGS
  • Min.Order Quantity: 1 set
  • Payment Terms: L/C, T/T, Western Union
  • Delivery Time: 20~30 Workdays
  • Supply Ability: 1000 Set/Month
  • Port of Shipment: Qingdao Port, Tianjin Port, Shanghai Port
  • Packaging Details: Electrical parts are packed in wooden boxes, and steel structural parts are packed in color tarpaulin.
  • Product Detail

    company information

    FAQ

    Product Tags

    Product Application

    1. END Carriage have compact dimensions, light weight, good stability, triple motor-driven, high mechanical efficiency, installation, use, easy maintenance, low cost, generally as the first choice of customers.

    2. END Carriage use rectangular tube modular manufacturing, buffer motor drive, with forged wheels. Use one custom CNC boring and milling machine.Completing opening, boring, milling surface drilling in one time.

    3. END Carriage with two main beam webs, rigid connection with the main beam. When calibration crane, placed on the main beam webs, after adjustment good crane span, the main beam can be completed securely connecting plate welding. Main beam can be calibrated separately with end carriage transport, installation, just the main beam webs and end beams are bolted to complete the installation.

    4. Every END Carriage run institutions have two wheels mounted at both ends of end carriage. One of only Active Wheel, including gear, used in conjunction with a motor output gear. The other was driven wheels.

    PARAMETER

    Model Crane Square tube Specification Wheel Specification Motor Motor
    UL90-15 1.6t-7.5m 150*150*6 U90*60 FA27-0.25KW FA27-0.37KW
    UL90-20 1.6t-11.5m
    UL90-25 1.6t-16.5m
    UL90-30 1.6t-22.5m
    UL12515 3.2t-7.5m 150*200*8 U125*60 FA27-0.37KW FA27-0.55KW
    UL125-20 3.2t-11.5m
    UL125-25 3.2t-16.5m
    UL125-30 3.2t-22.5m
    UL125-35 3.2t-28.5m
    UL160-15 6.3t-7.5m 150*250*8 U160*70 FA37-0.55KW FA37-0.75KW
    UL160-20 6.3t-11.5m
    UL160-25 6.3t-16.5m
    UL160-30 6.3t-22.5m
    UL160-35 6.3t-28.5m
    UL160-20 12.5t-11.5m 200*260*8 U200*70 FA47-0.75KW FA47-1.1KW
    UL200-25 12.5t-16.5m
    UL200-30 12.5t-22.5m FA47-1.1KW
    UL200-35 12.5t-28.5m
    UL250-20 16/20t-11.5m 200*300*8 U250*80 FA57-1.1KW FA57-1.5KW
    UL250-25 16/20t-16.5m
    UL250-30 16/20t-22.5m FA57-1.5KW
    UL250-35 16/20t-28.5m

    FEATURES

    Reasonable structure

    The European-style double-girder bridge crane has a reasonable structure, stable operation, can bear the weight of a large amount of materials, and has a high service life and stability. At the same time, its bridge frame and lifting mechanism are made of steel, which has high strength, rigidity and stability. It can meet the lifting needs of materials with different weights.

    stable job

    The European-style double-girder bridge crane has high working stability, which can realize the stable operation of the lifting mechanism and improve the efficiency of material handling. The electric hoist and wire rope used in it have high safety and stability, which ensures the safety of the crane running.

    long lasting

    European-style double-girder bridge crane has simple structure, convenient operation, and relatively easy maintenance. At the same time, its bridge frame and lifting mechanism are made of steel, which has high corrosion resistance and service life, and can meet the use requirements in different environments.

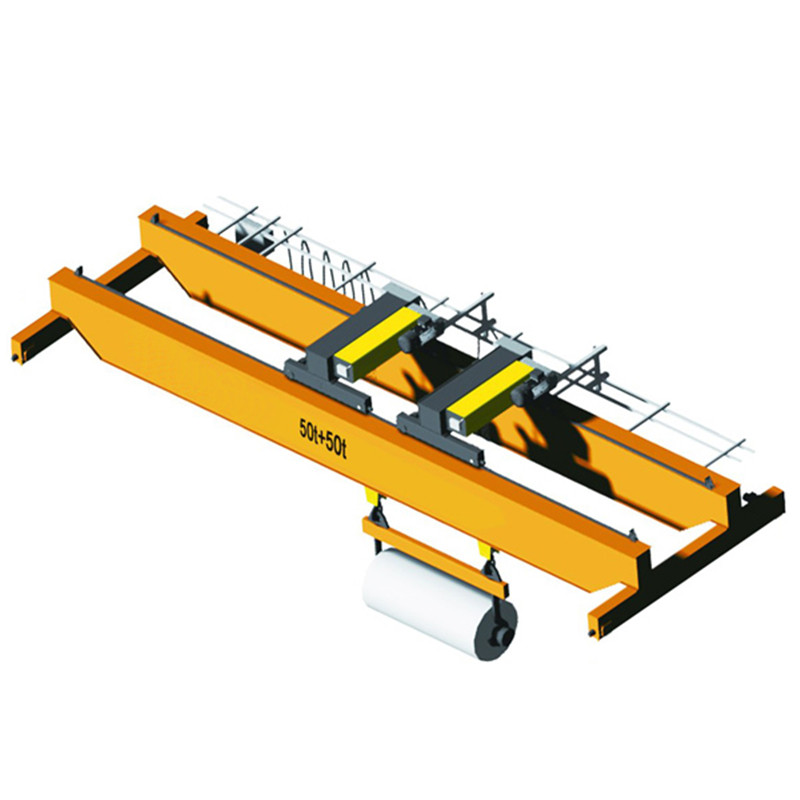

    • High quality overhead crane 1t to 20t end carriages (3)

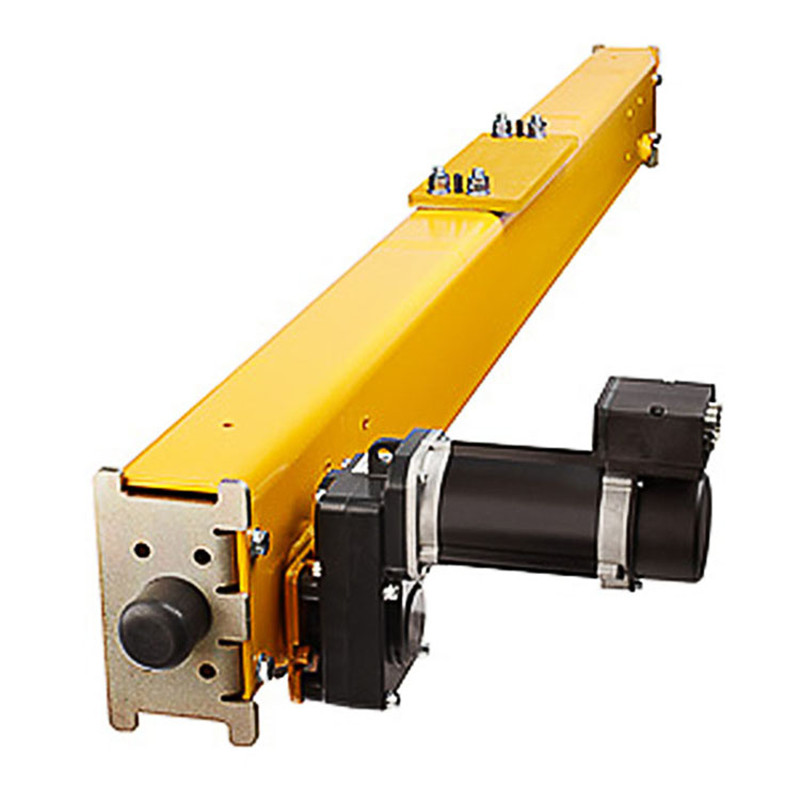

    • High quality overhead crane 1t to 20t end carriages (2)

  • Previous:
  • Next:

  • About KORIGCRANES

    KORIGCRANES ( HENAN WEIHUA KORIG CRANES CO., LTD) located in crane hometown of China (cover more than 2/3 crane market in China), who is a trusted professional industry crane manufacturer and leading exporter. Specialized in design, manufacturing, installation and service of Overhead crane, Gantry crane, Port crane, Electric hoist etc, we have passed ISO 9001:2000, ISO 14001:2004, OHSAS 18001:1999, GB/T 19001-2000, GB/T 28001-2001, CE, SGS, GOST, TUV, BV and so on.

    Product Application

    To meet the demands of the oversea market, we independent research and development European type overhead crane, gantry crane; electrolytic aluminum multi-purpose overhead crane, hydro-power station crane etc. European type crane with light dead weight, compact structure, lower energy consumption etc. Many main performance reach the industry advanced level.
    KORIGCRANES Widely used in machinery, metallurgy, mining, electric power, railway, petroleum, chemical, logistics and other industries. Service for hundreds of large enterprises and national key projects such as China Datang Corporation, China Guodian Corporation, SPIC, Aluminum Corporation Of China(CHALCO), CNPC, Power China, China Coal, Three Gorges Group, China CRRC, Sinochem International, etc.

    Our Market

    Our cranes has been exported cranes to more than 110 countries for example Pakistan, Bangladesh, India, Vietnam, Thailand, Indonesia, Philippines, Malaysia、USA, Germany, France, Australia, Kenya, Ethiopia, Nigeria, Kazakhstan, Uzbekistan, Saudi Arabia、UAE、Bahrain、Brazil, Chile, Argentina, Peru etc and received good feedback from them. Very happy to be friends with each other come from all of the world and hope to establish long-terms good cooperation.

    KORIGCRANES has steel pre-treatment production lines, automatic welding production lines, machining centers, assembly workshops, electrical workshops, and anti-corrosion workshops. Can independently complete the whole process of crane production.

    Q. What’s the information should I provide when inquiry?
    More details or drawings, better.
    A: Lift capacity B: span C: lift height D: power source; other specials you give us will be more appreciated.

    Q. How many operating methods for my selection?
    Standard operating methods:
    A: remote control with push buttons
    B: cabin (space capsule seat) control with joystick. Choose any type as you like.

    Q. Can this type work in hazardous environment?
    A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.

    Q. Can you provide the serious lifting tools?
    A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!

    Q. How can we install the crane?
    A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
