L-Shaped Single Girder Gantry Crane (Hoist Type)

Short Description:

L-shaped electric hoist single girder gantry crane is a mid-light type gantry crane, normally equipped with an electric hoist, with the obvious features of  “L” shape legs, which makes the crane more convenient for handling cargo with long length, such as, steel pipe, etc. The lifting capacity of the electric hoist single girder gantry crane is 5 to 16 ton and its work duty is A4.

Capacity: 5~20 t

Span: 12~24 m

Lifting Height: 6 m, 9 m, 12 m




  • Brand Name: KORIG
  • Place of Origin: Henan, China
  • Customize Service: Available
  • Certification: CE ISO SGS
  • Min.Order Quantity: 1 set
  • Payment Terms: L/C, T/T, Western Union
  • Delivery Time: 20~30 Workdays
  • Supply Ability: 1000 Set/Month
  • Port of Shipment: Qingdao Port, Tianjin Port, Shanghai Port
  • Packaging Details: Electrical parts are packed in wooden boxes, and steel structural parts are packed in color tarpaulin.
  • Product Detail

    company information

    FAQ

    Product Tags

    OVERVIEW

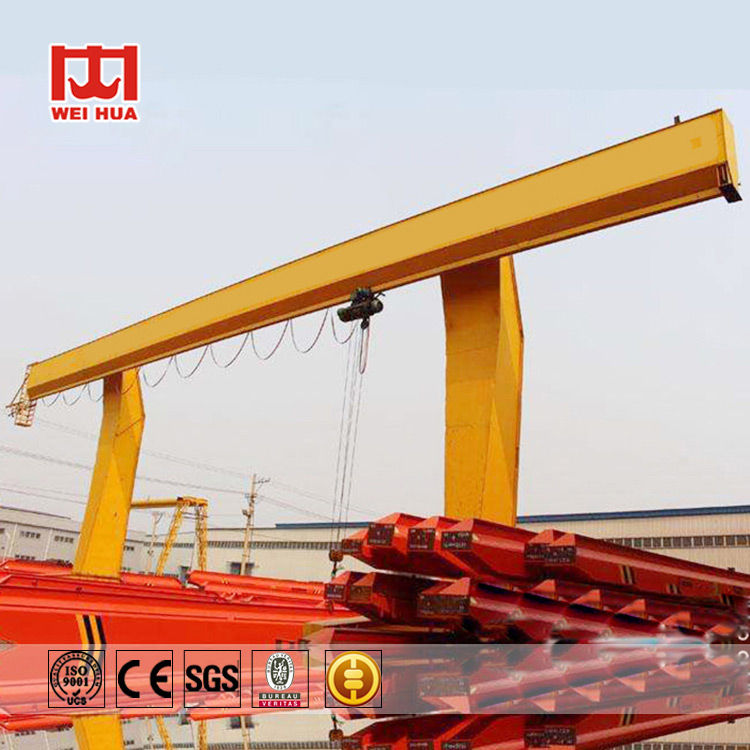

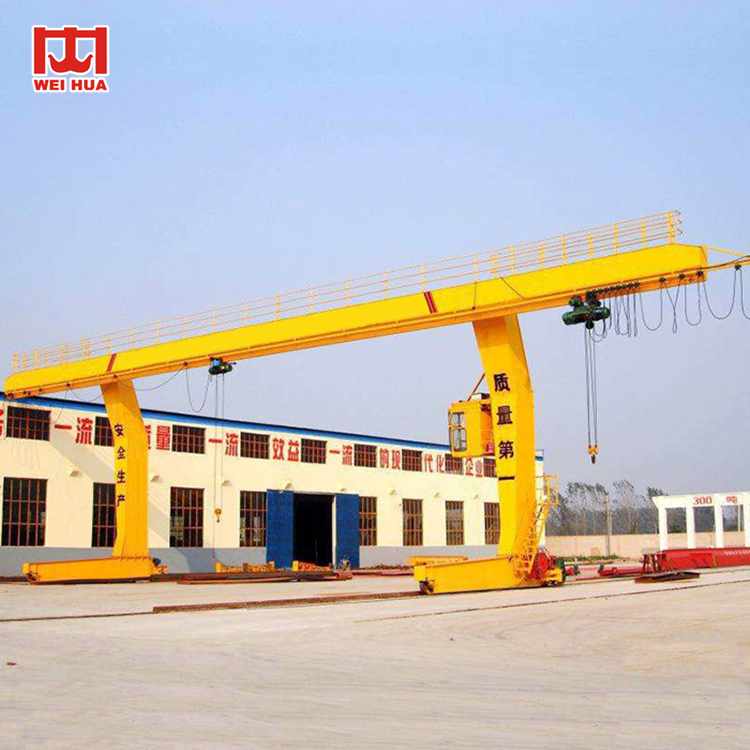

    L-shaped electric hoist single girder gantry crane is a mid-light type gantry crane, normally equipped with an electric hoist, with the obvious features of  “L” shape legs, which makes the crane more convenient for handling cargo with long length, such as, steel pipe, etc. The lifting capacity of the electric hoist single girder gantry crane is 5 to 16 ton and its work duty is A4.

    Components of Electric Hoist Single Girder Gantry Crane
    L-shaped electric hoist single girder gantry crane is mainly consisted of bridge, L shape support legs, crane travelling system, electric hoist, and electric system, etc.
    L-shaped electric hoist single girder gantry crane is the optimal choice for outdoor material handling for the applications where no supporting building or steel work is available or the supporting building is not suitable for supporting overhead crane.
    They are widely used in cement plant, construction, electronics industries, warehouses, railway, food, papermaking, engineering industry, etc. However, it is prohibited to be used in dangerous environments, such as, high temperature, flammable, explosive, corrosion and other environment, etc.

    parameter

    Lifting Capacity t 5 10 16 20
    Span m 12 16 20 24 12 16 20 24 30 12 16 20 24 30 12 16 20 24 30
    Lifting Height m 6 9 6 9 6 9 6 9 6 9 6 9 6 9 6 9 6 9 6 9 6 9 6 9 6 9 6 9 6 9 6 9 6 9 6 9 6 9
    Travelling
    Machanism
    Travelling
    Speed
    By Hand Controller m
    /min
    20
    In Cabin 20/30 20/30 20/30 20/30
    Motor By Hand Controller YSE802-4/0.8*2 YSE90L-4/1.5*2 YSE90L-4/1.5*2 YZR132M2-6/4*2 YZR160M1-6/6.3*2 YZR160M1-6/6.3*2 YZR160M2-6/8.5*2
    In Cabin ZDR100-4/1.5*2 ZDR112L-4/2.1*2 ZDR112L1-4/2.1*2 YZR132M2-6/4*2
    Gear Box LD-Drived ZSC600 ZSC600
    Wheel Diameter mm Φ270 Φ400 Φ600 Φ500 Φ600 Φ600
    Lifting
    Machanism
    Type CD1,MD1 CD1 HC
    Lifting Speed m
    /min
    8,8/0.8 7, 7/0.7 3.5
    Travelling Speed 20
    Motor Lifting ZD141-4/7.5  ZDS10.8/7.5 ZD151-4/13  ZDS11.5/13 ZD151-4/13 ZD152-4/18.5
    Travelling ZDY21-4/0.8 ZDY121-4/0.8*2 ZDY121-4/0.8*2 ZDY121-4/0.8*4
    Working Duty A3
    Steel Track Recommended P24 P38 P43
    Power Supply 3Phase,AC 380V 50Hz 3Phase,AC 380V 50Hz 3Phase,AC 380V 50Hz 3Phase,AC 380V 50Hz

    FEATURES

    Novel structure, special design
    Advanced technology, attractive appearance
    High working efficiency and safety
    High quality and cost effective price
    High adaptability and wide application
    L shape leg design saves more space for cargoes
    Convenient for handling cargo with long length
    Flexible legs can be transferred to another site

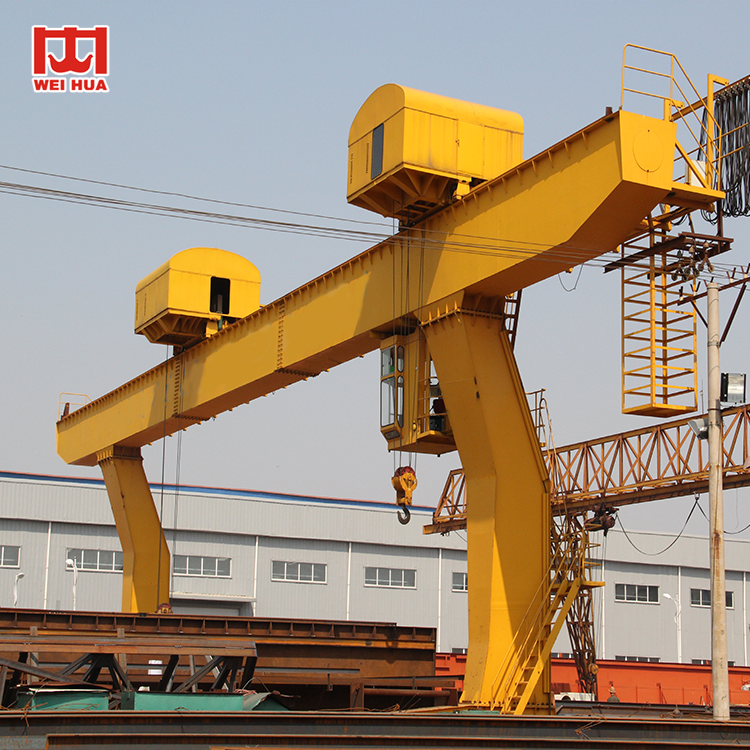

    • photobank

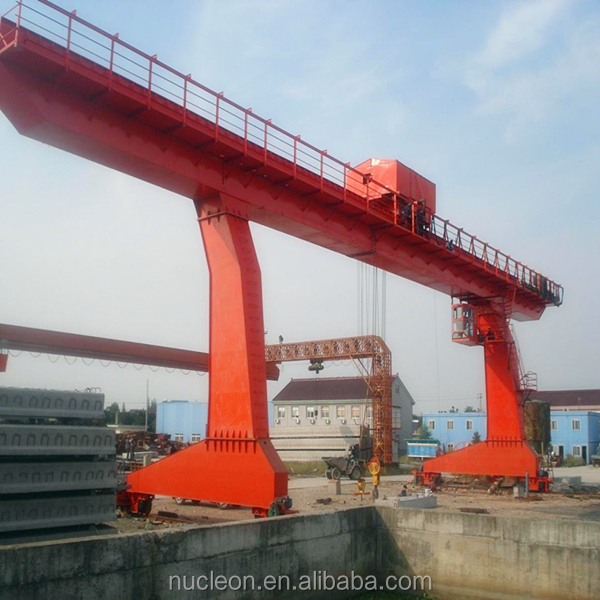

    • photobank (4)

  • Previous:
  • Next:

  • About KORIGCRANES

    KORIGCRANES ( HENAN WEIHUA KORIG CRANES CO., LTD) located in crane hometown of China (cover more than 2/3 crane market in China), who is a trusted professional industry crane manufacturer and leading exporter. Specialized in design, manufacturing, installation and service of Overhead crane, Gantry crane, Port crane, Electric hoist etc, we have passed ISO 9001:2000, ISO 14001:2004, OHSAS 18001:1999, GB/T 19001-2000, GB/T 28001-2001, CE, SGS, GOST, TUV, BV and so on.

    Product Application

    To meet the demands of the oversea market, we independent research and development European type overhead crane, gantry crane; electrolytic aluminum multi-purpose overhead crane, hydro-power station crane etc. European type crane with light dead weight, compact structure, lower energy consumption etc. Many main performance reach the industry advanced level.
    KORIGCRANES Widely used in machinery, metallurgy, mining, electric power, railway, petroleum, chemical, logistics and other industries. Service for hundreds of large enterprises and national key projects such as China Datang Corporation, China Guodian Corporation, SPIC, Aluminum Corporation Of China(CHALCO), CNPC, Power China, China Coal, Three Gorges Group, China CRRC, Sinochem International, etc.

    Our Market

    Our cranes has been exported cranes to more than 110 countries for example Pakistan, Bangladesh, India, Vietnam, Thailand, Indonesia, Philippines, Malaysia、USA, Germany, France, Australia, Kenya, Ethiopia, Nigeria, Kazakhstan, Uzbekistan, Saudi Arabia、UAE、Bahrain、Brazil, Chile, Argentina, Peru etc and received good feedback from them. Very happy to be friends with each other come from all of the world and hope to establish long-terms good cooperation.

    KORIGCRANES has steel pre-treatment production lines, automatic welding production lines, machining centers, assembly workshops, electrical workshops, and anti-corrosion workshops. Can independently complete the whole process of crane production.

    Q. What’s the information should I provide when inquiry?
    More details or drawings, better.
    A: Lift capacity B: span C: lift height D: power source; other specials you give us will be more appreciated.

    Q. How many operating methods for my selection?
    Standard operating methods:
    A: remote control with push buttons
    B: cabin (space capsule seat) control with joystick. Choose any type as you like.

    Q. Can this type work in hazardous environment?
    A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.

    Q. Can you provide the serious lifting tools?
    A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!

    Q. How can we install the crane?
    A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
