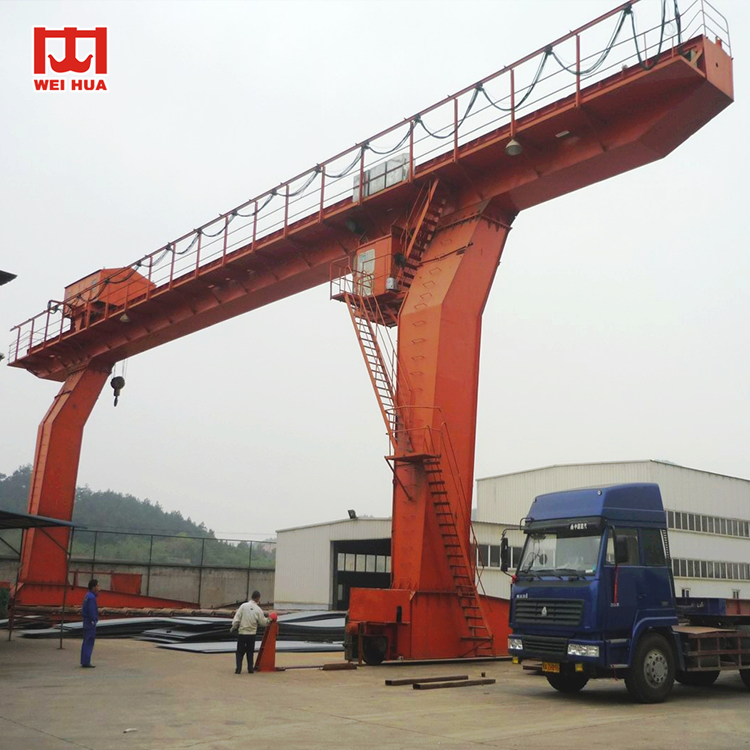

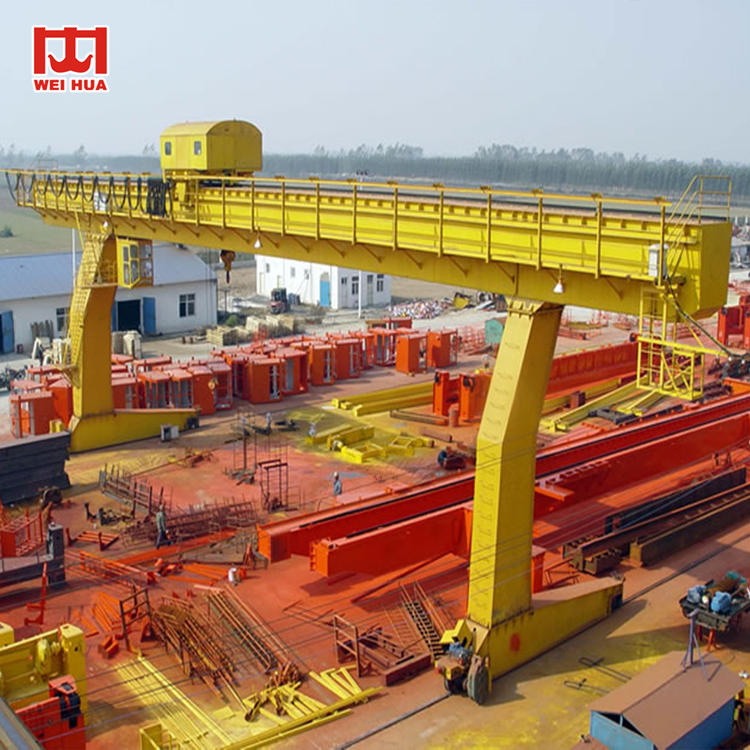

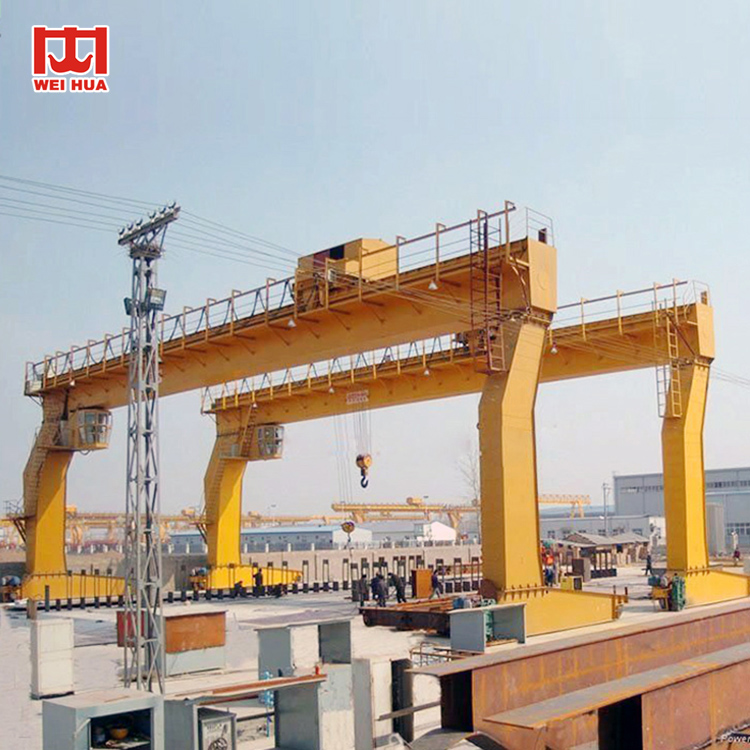

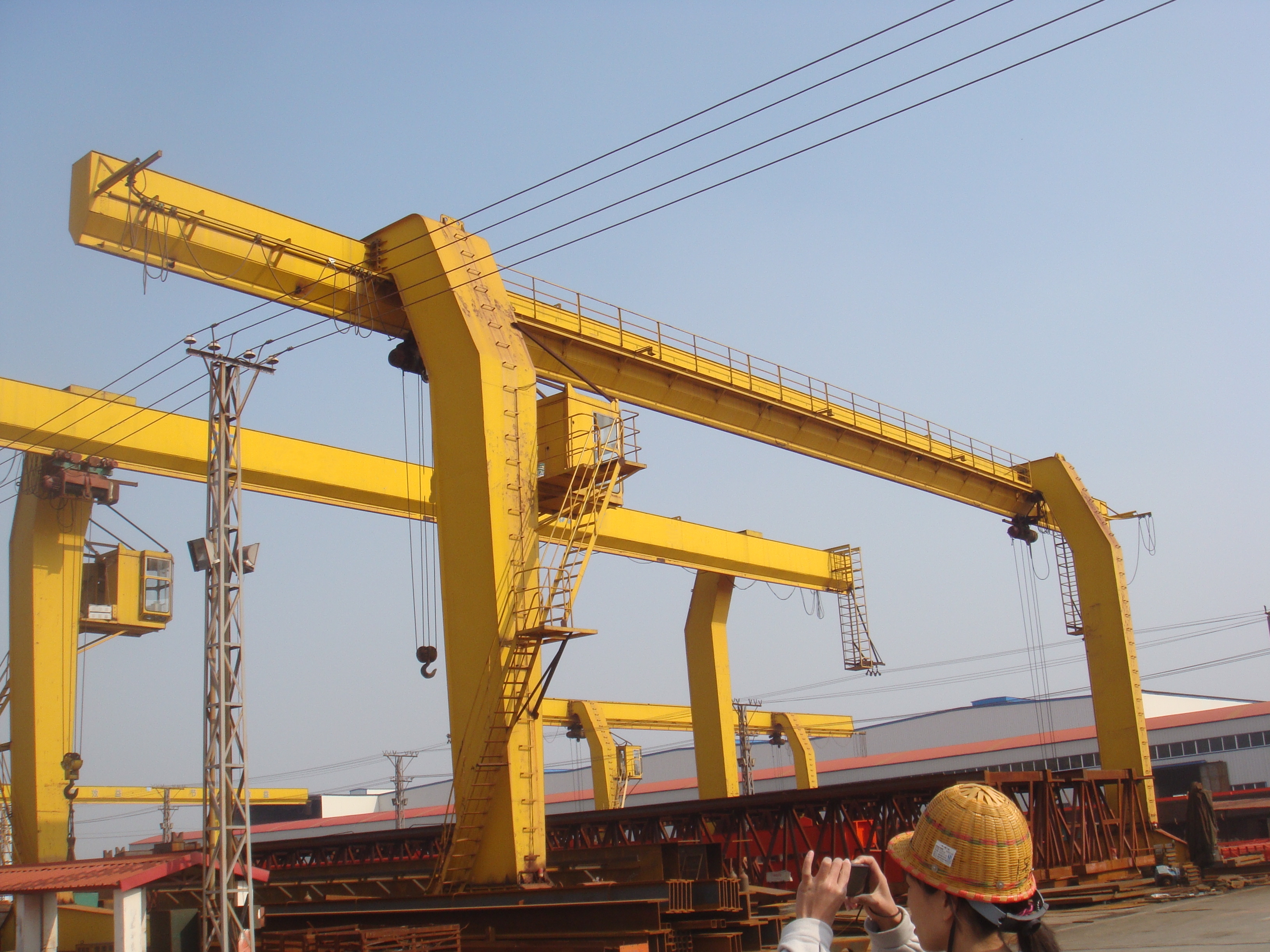

L Type Strong Crab gantry crane (Trolley type)
Product description
1. L single main beam hook hoist gantry/door crane is mainly composed of gantry, crane crab, and trolley traveling mechanism, cab and electric control system.
2. The gantry is of a box-shape structure. The crab adopts vertical reaction wheel when the lifting load is below 20t, and horizontal reaction wheel when above 20t to run at the girder side.
3. The girder is of single-girder bias track and the leg is L-shaped, so that the lifting space is large and the spanning ability is strong, making it easy to covey articles from the span to under the jib.
4.The closed cab is employed for operation, where there are adjustable seat, insulating mat on the floor, toughened glass for the window, fire extinguisher, electric fan and auxiliary equipment such as air conditioner, acoustic alarm and interphone which can be furnished as required by users.
Design characteristic
This kind of 5 Ton Portable Single Girder Mobile Gantry Crane Price beam design is just like a letter “L”, it could pass the big volume items, and this is a development of normal single beam 5 Ton Portable Single Girder Mobile Gantry Crane Price.
The lifting mechanism have TWO MODEL:
1) L Type Strong Crab Trolley Single Girder Mobile Gantry Crane
2) L Type hoist Single Girder Mobile Gantry Crane
specification
| Lifting Cap | T | 5 | 10 | 16/3.2 | 20/5.0 | 32/5.0 | 50/10.0 | ||
| Span | M | 15-35 | |||||||
| Lifting Height | Main Hook | M | 10; 18 | 12; 18 | 12; 18 | 12; 18 | 12; 18 | 15; 18 | |
| Aux Hook | 10.5; 11.5 | 10; 11 | 10.85; 11.85 | 12 | |||||
| Working System | A5 | ||||||||
| Speed | Hoisting | Main Hook | m/min | 12.5 | 9.82 | 9.7 | 9.3 | 7.6 | 7.8 |
| Aux Hook | 22.3 | 19.8 | 19.8 | 12.3 | |||||
| Crane Travelling | 39.5 | 40.4 | 39.7 | 39.7 | 38.6 | 38.5 | |||
| Trolley Travelling | 46-40 | 39.5; 40 | 46; 39.5; 40 | 39.5; 40 | 49; 54 | 56 | |||
| Trolley Weight | T | 2.95 | 4.25 | 8.31 | 9.07 | 12.8; 13; 13.1 | 22.1 | ||
| Total Weight | Sliding Line | T | 31.2-50.5 | 40-60.8 | 47.6-71 | 52.5-78.9 | 70.9-99.8 | 121.5 | |
| Electric Cable | 32.4-51.7 | 41.2-62 | 48.8-72.3 | 53.7-80.1 | 72.1-106 | 123 | |||
| Max Wheel Load | KN | 176-228 | 217-286 | 292-375 | 333-423 | 225-284 | 330 | ||
| Steel Rail recommended | P43 | ||||||||
| Power Source | 220-690V 50HZ 3 Phase | ||||||||
Features of L type Single Girder Gantry Crane
1. Box type girder, L type legs with weld structure, Increasing he work space, and convenient for installation and maintenance;
2. Trolley power supply adopts profiled rails, safety slide line and the cable conductive device system;
3. Components standardization, seriation and generalization;
4. Crane power supply can be from cable reel (left and right) and sliding line( left and right);
5. Good operation vision of cab, equipped the internal linkage control console, flexible and comfortable operation, install of fan, heater, cooler, air-conditions and intercom according to the customers’ requirements;
6. Customized according to the users’ needs of working environment, types of power source and the other technical requirements. Also design and manufacture span according to users’ requireme
About KORIGCRANES
KORIGCRANES ( HENAN WEIHUA KORIG CRANES CO., LTD) located in crane hometown of China (cover more than 2/3 crane market in China), who is a trusted professional industry crane manufacturer and leading exporter. Specialized in design, manufacturing, installation and service of Overhead crane, Gantry crane, Port crane, Electric hoist etc, we have passed ISO 9001:2000, ISO 14001:2004, OHSAS 18001:1999, GB/T 19001-2000, GB/T 28001-2001, CE, SGS, GOST, TUV, BV and so on.
Product Application
To meet the demands of the oversea market, we independent research and development European type overhead crane, gantry crane; electrolytic aluminum multi-purpose overhead crane, hydro-power station crane etc. European type crane with light dead weight, compact structure, lower energy consumption etc. Many main performance reach the industry advanced level.
KORIGCRANES Widely used in machinery, metallurgy, mining, electric power, railway, petroleum, chemical, logistics and other industries. Service for hundreds of large enterprises and national key projects such as China Datang Corporation, China Guodian Corporation, SPIC, Aluminum Corporation Of China（CHALCO）, CNPC, Power China, China Coal, Three Gorges Group, China CRRC, Sinochem International, etc.
Our Market
Our cranes has been exported cranes to more than 110 countries for example Pakistan, Bangladesh, India, Vietnam, Thailand, Indonesia, Philippines, Malaysia、USA, Germany, France, Australia, Kenya, Ethiopia, Nigeria, Kazakhstan, Uzbekistan, Saudi Arabia、UAE、Bahrain、Brazil, Chile, Argentina, Peru etc and received good feedback from them. Very happy to be friends with each other come from all of the world and hope to establish long-terms good cooperation.
KORIGCRANES has steel pre-treatment production lines, automatic welding production lines, machining centers, assembly workshops, electrical workshops, and anti-corrosion workshops. Can independently complete the whole process of crane production.
Q. What’s the information should I provide when inquiry?
More details or drawings, better.
A: Lift capacity B: span C: lift height D: power source; other specials you give us will be more appreciated.
Q. How many operating methods for my selection?
Standard operating methods:
A: remote control with push buttons
B: cabin (space capsule seat) control with joystick. Choose any type as you like.
Q. Can this type work in hazardous environment?
A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q. Can you provide the serious lifting tools?
A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
Q. How can we install the crane?
A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
