LDC Type Single Girder Overhead Crane
OVERVIEW

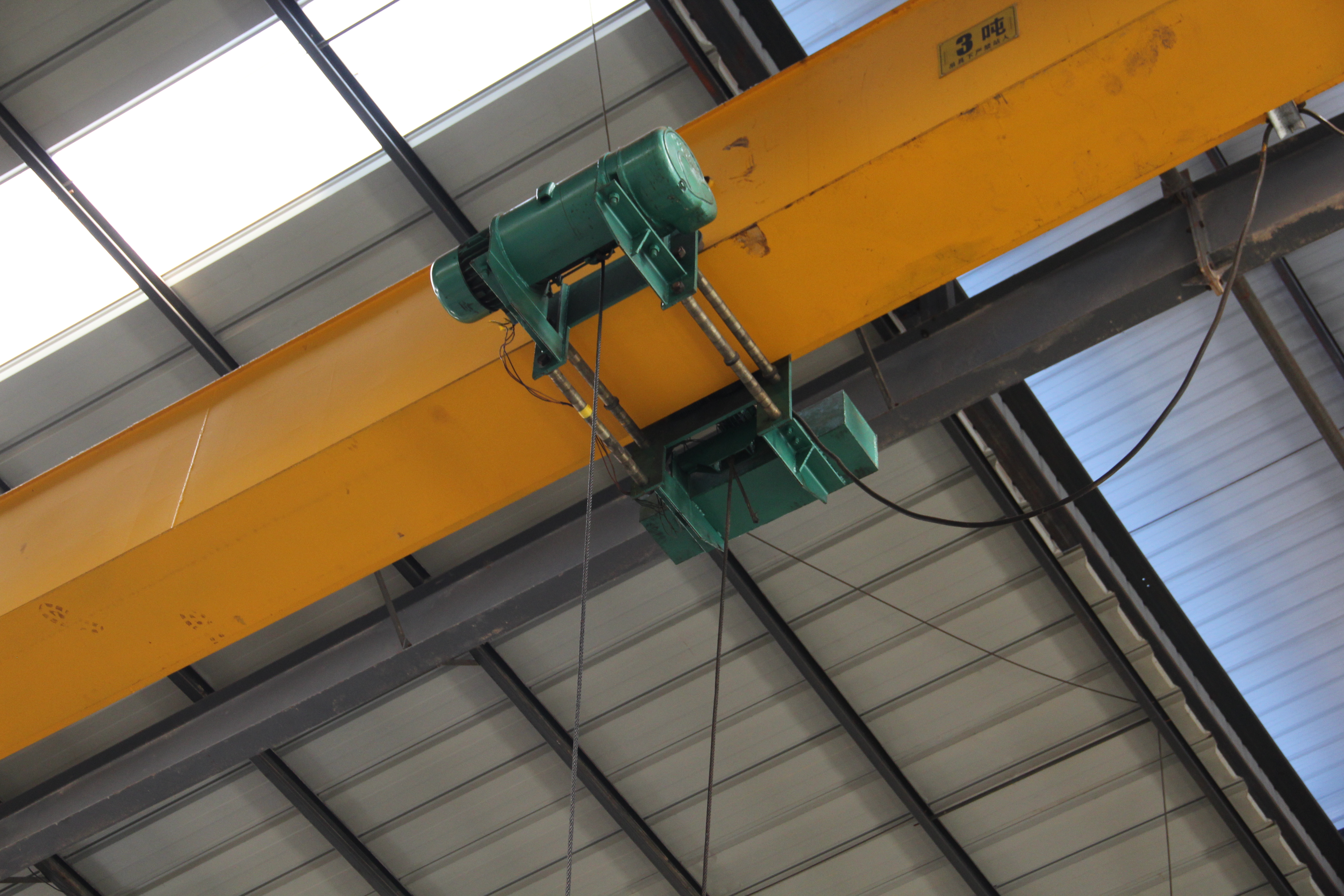

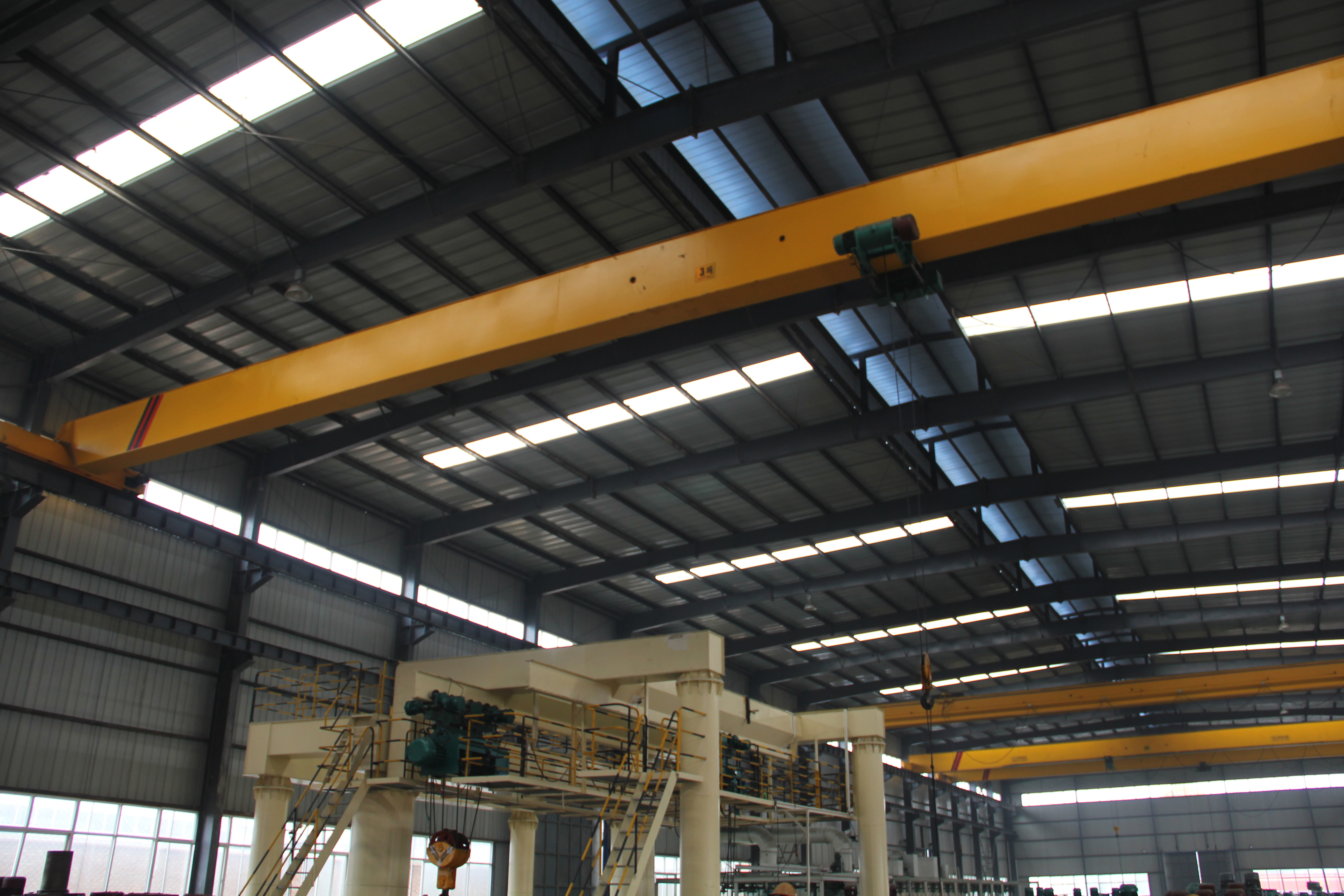

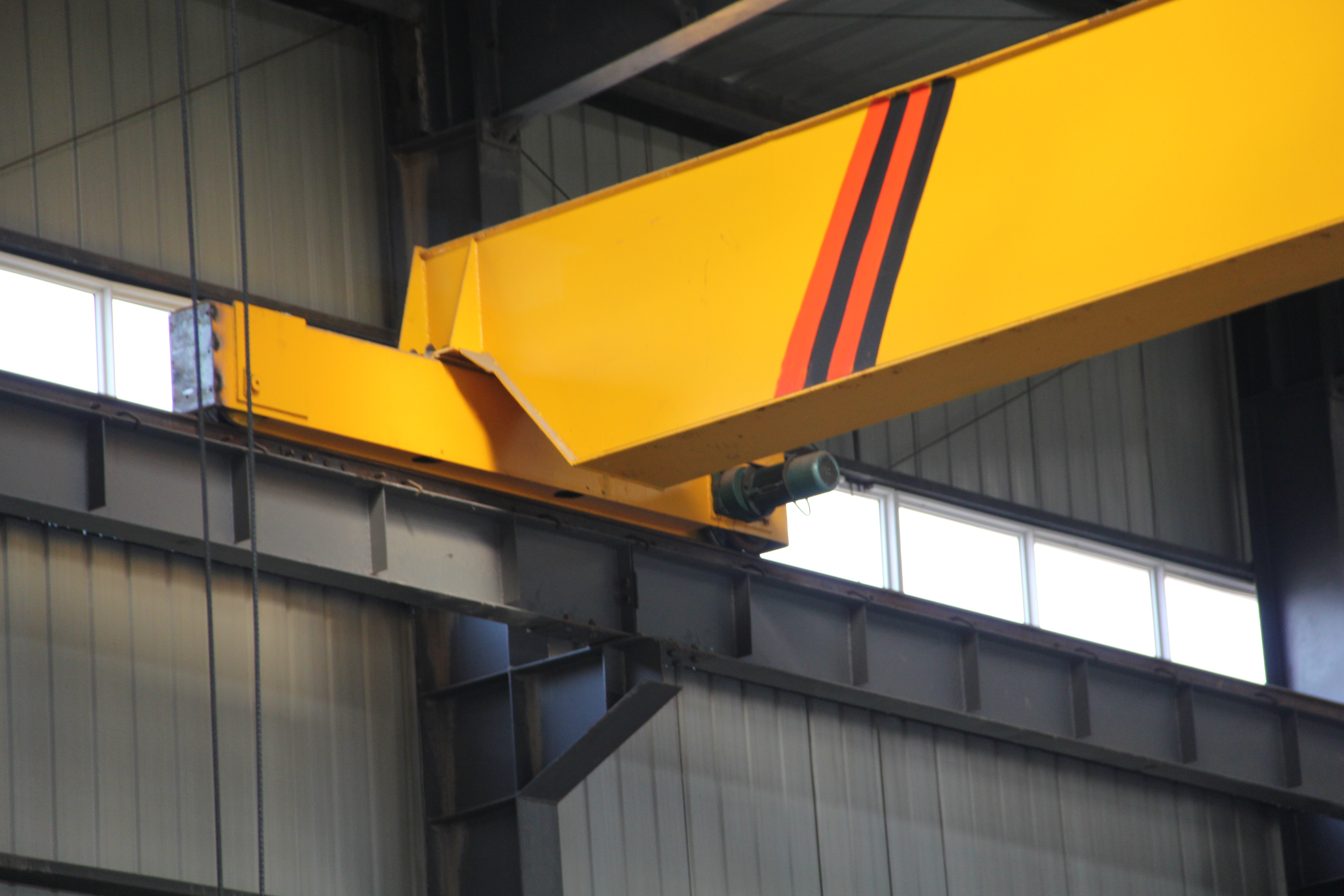

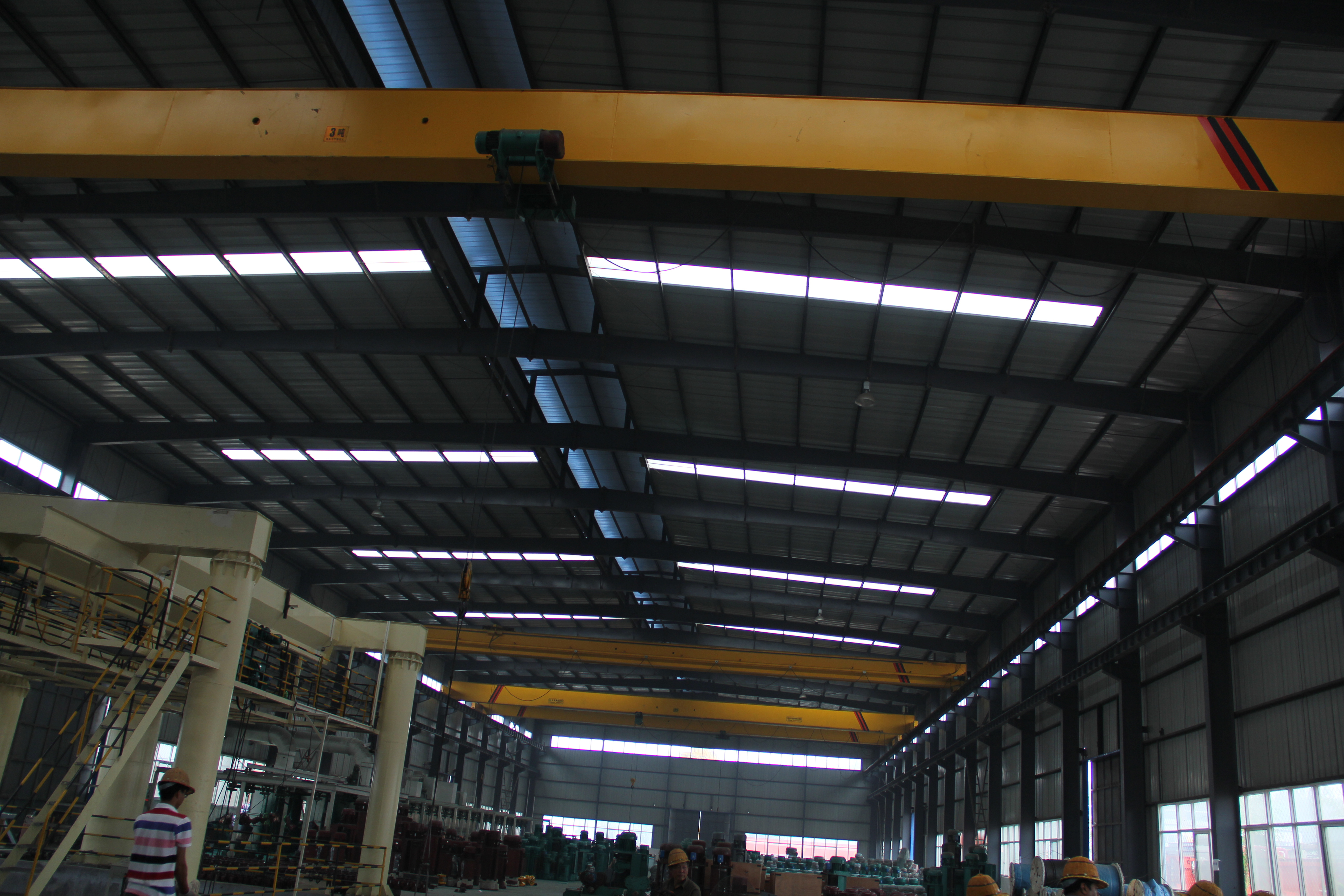

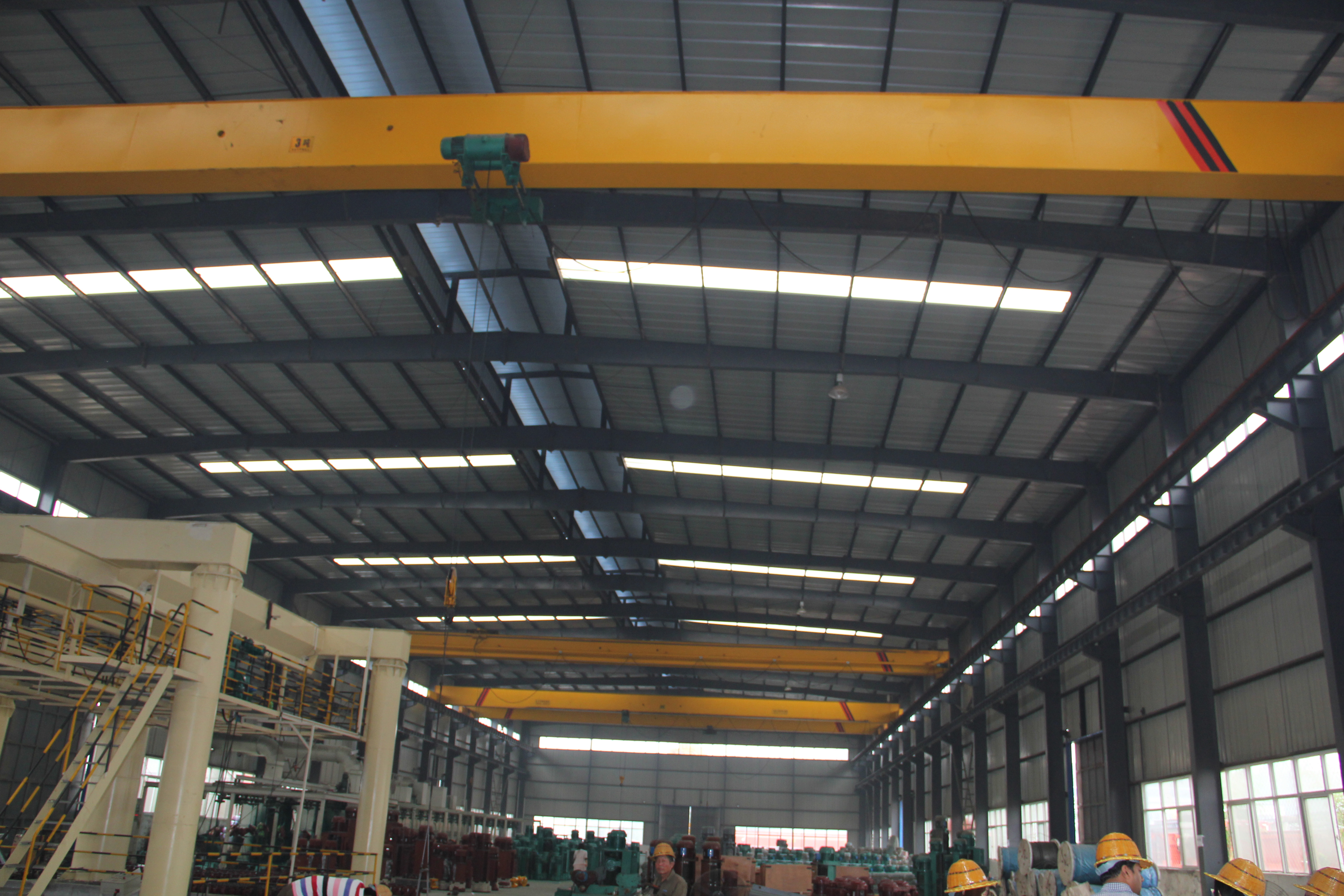

LDC type low headroom single girder overhead crane belongs to low hearoom light duty lifting equipment, its electric hoist is low headroom type, so can increase space of hook and reduce the cost, with the advantages of smooth traveling, compact structure, strong rigidity, delicate operation, low noise, safety and reliablity and beautiful exterior. It is widely used in the situation that clearance height of workshop is low and the operating ambient temperature -25~+40℃.
LDC type single girder overhead crane is designed and produced according to GB/T 3811-2008, JB/T 1306-2008 standard and used with model CD1, MD1. it is a light duty crane with rated load of 3~10 tons, The span is 7.5m~31.5m. The work duty of LDC type low headroom single girder overhead crane is A3-A4 and the lifting height is 6~20m. The main operating method is ground control(ground control, remote control, ground control + remote control). We can provide non-standard customized products according to customer requirements
FEATURES
Used for low height plant and factory, reduce the cost of plant and crane system.
Increase the lifting height of hook and hoist, save space for the working place
Operating easily and high efficient work
Light duty singlegirder overhead crane, small but much useful
| Lifting Capacity (t) | 1t 2t 3t 5t 10t 16t 20t | |||||||
| Span (m) | 7.5~31.5 | |||||||
| Lifting Mechanism & Electric Hoist Traveling Mechanism | Model of Electric Hoist | MD | CD | |||||
| Lifting Speed (m/min) | 0.8/8 | 0.7/7 | 0.35/3.5 | 8 | 7 | 3.5 | ||
| Lifting Height (m) | 6 9 12 18 24 30 | |||||||
| Hoist Traveling Speed (m/min) | 20 30 |
30 | ||||||
| Hoist Traveling Motor | Cone squirrel cage model | |||||||
| Crane Traveling Mechanism | Crane Traveling Speed (m/min) | 20 30 | 45 (Cabin) 60 (Cabin) | |||||
| Speed Ratio | 58.95 29.42 | 26.51 19.44 | ||||||
| Motor | Model | Cone squirrel cage model | ||||||
| Power | 0.8*2 1.5*2 2.2*2 | 1.5*2 2.1*2 | ||||||
| Rotation Speed (r/min) | 1380 | 1350 | ||||||
| Work Duty (ISO/FEM) | M4/1Am | |||||||
| Working System | Intermedium JC=25% | |||||||
| Power Supply | 3 Phase 380V 50Hz Customizable | |||||||
| Wheel Diameter (mm) | 270 | |||||||
| Width of Rail (mm) | 37~70 | |||||||
About KORIGCRANES
KORIGCRANES ( HENAN WEIHUA KORIG CRANES CO., LTD) located in crane hometown of China (cover more than 2/3 crane market in China), who is a trusted professional industry crane manufacturer and leading exporter. Specialized in design, manufacturing, installation and service of Overhead crane, Gantry crane, Port crane, Electric hoist etc, we have passed ISO 9001:2000, ISO 14001:2004, OHSAS 18001:1999, GB/T 19001-2000, GB/T 28001-2001, CE, SGS, GOST, TUV, BV and so on.
Product Application
To meet the demands of the oversea market, we independent research and development European type overhead crane, gantry crane; electrolytic aluminum multi-purpose overhead crane, hydro-power station crane etc. European type crane with light dead weight, compact structure, lower energy consumption etc. Many main performance reach the industry advanced level.
KORIGCRANES Widely used in machinery, metallurgy, mining, electric power, railway, petroleum, chemical, logistics and other industries. Service for hundreds of large enterprises and national key projects such as China Datang Corporation, China Guodian Corporation, SPIC, Aluminum Corporation Of China（CHALCO）, CNPC, Power China, China Coal, Three Gorges Group, China CRRC, Sinochem International, etc.
Our Market
Our cranes has been exported cranes to more than 110 countries for example Pakistan, Bangladesh, India, Vietnam, Thailand, Indonesia, Philippines, Malaysia、USA, Germany, France, Australia, Kenya, Ethiopia, Nigeria, Kazakhstan, Uzbekistan, Saudi Arabia、UAE、Bahrain、Brazil, Chile, Argentina, Peru etc and received good feedback from them. Very happy to be friends with each other come from all of the world and hope to establish long-terms good cooperation.
KORIGCRANES has steel pre-treatment production lines, automatic welding production lines, machining centers, assembly workshops, electrical workshops, and anti-corrosion workshops. Can independently complete the whole process of crane production.
Q. What’s the information should I provide when inquiry?
More details or drawings, better.
A: Lift capacity B: span C: lift height D: power source; other specials you give us will be more appreciated.
Q. How many operating methods for my selection?
Standard operating methods:
A: remote control with push buttons
B: cabin (space capsule seat) control with joystick. Choose any type as you like.
Q. Can this type work in hazardous environment?
A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q. Can you provide the serious lifting tools?
A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
Q. How can we install the crane?
A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
