LH Double Girder Overhead Crane

Short Description:

This kind of hoist overhead crane is characterized by compact size, low building clearance height, light self weight and low purchase cost, working level of A3, and working environment temperature of – 20°C ~ 40°C. The operation mode includes ground wired handle, ground wireless remote control, cab operation and the combination of two operation modes.

Product name: LH electric hoist double girder overhead crane

Capacity: 5-32t

Span:7.5-25.5m

Lifting height: 6-24m


  • Brand Name: KORIG
  • Place of Origin: Henan, China
  • Customize Service: Available
  • Certification: CE ISO SGS
  • Min.Order Quantity: 1 set
  • Payment Terms: L/C, T/T, Western Union
  • Delivery Time: 20~30 Workdays
  • Supply Ability: 1000 Set/Month
  • Port of Shipment: Qingdao Port, Tianjin Port, Shanghai Port
  • Packaging Details: Electrical parts are packed in wooden boxes, and steel structural parts are packed in color tarpaulin.
  • Product Detail

    company information

    FAQ

    Product Tags

    overview

    Our double-girder overhead travelling cranes offer exceptional load capacity for a low deadweight. Every crane and every crane component give you the certainty of quality, efficiency and reliability at the high level. Their outstanding crane geometry also provides for extremely good travel characteristics, which minimizes wear on the end carriages and crane runway. The load hook can be raised between the two crane girders, which allows large lifting heights to be achieved.

    Double Girder Overhead Crane (cap. 5t-800t) commonly used for manufacturing or maintenance applications. Application: workshop, warehouse, power plant, manufacturing production line, assembly production line, metallurgy plant, paper making, steel plant, garbage treatment plant, etc. So this Overhead Crane has different slings for different industries. The commonly seen sling is with hook, grab bucket, clamps. We also provide special slings such as magnet, container spreader, and special processing slings for special industry.

    SPECIFICATION

    Lifting capacity ton 5 10 16/3.2  20/5  32/5  50/10
    Workingclass  A5/2M
    (ISO/FEM)
    Span m     10.5~31.5
    Lifting height m  16  16  16/18  16/18  16/18 16/18
    Lifting speed Main hook m/min  9.3  8.5  7.9  7.2  7.5  5.9
    Aux. hook m/min  10.3  12.6  12.6  8.5
    Travelling speed Trolley m/min  37.2  43.8 44.6 44.6  42.4  38.5
    Crane m/min  70  70  75 75  75  75
    Weight Trolley kg  2126  3424  6227  6856 10877  15540
    Crane kg  12700~31400  14300~34400  19100~39400  19900~41500  26960~52700  35350~64955
    Max. wheel pressure KN  125  160  205 231 327  450
    Steel rail recommended  P43  P43  P43/QU70  P43/QU70 QU70  QU80
    Power supply 3AC 220V~480V 50/60Hz

    features

    1, Multiple operation modes are available for selection, cabin, pendant and wireless remote control
    2, Strong environmental applicability
    3, Various functions, can use a variety of spreader, such as hook, grab bucket,electromagnet, clamp,etc
    4, High strength structure, good stability
    5, A variety of speed regulation mode, smooth operation
    6, Fast speed, high efficiency

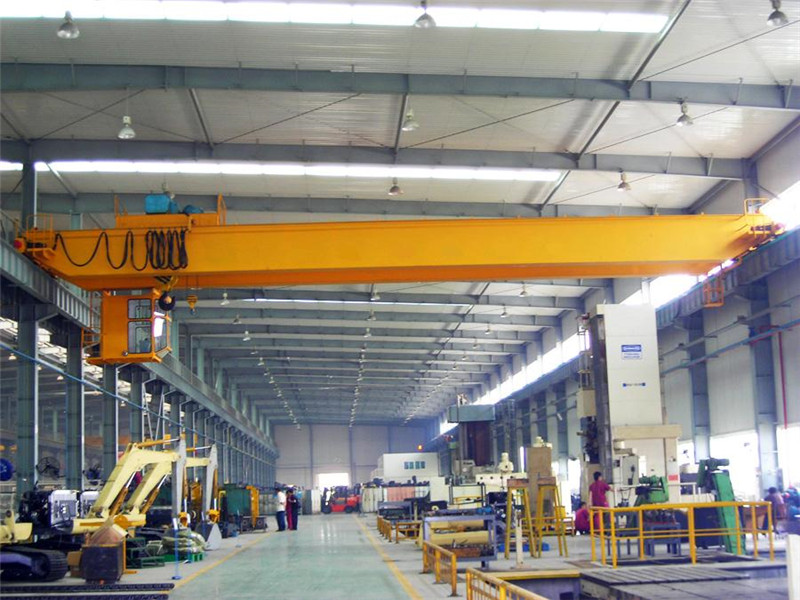

    • LH Double Girder Overhead Crane05

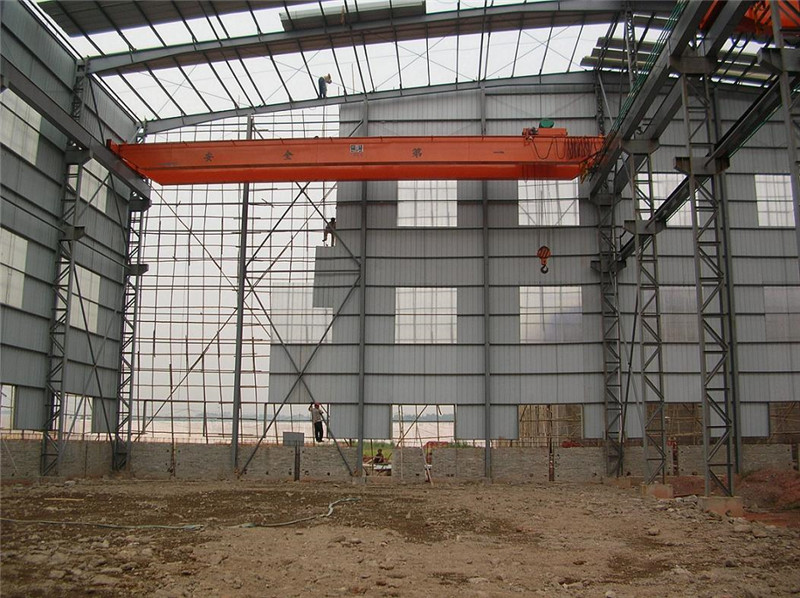

    • LH Double Girder Overhead Crane06

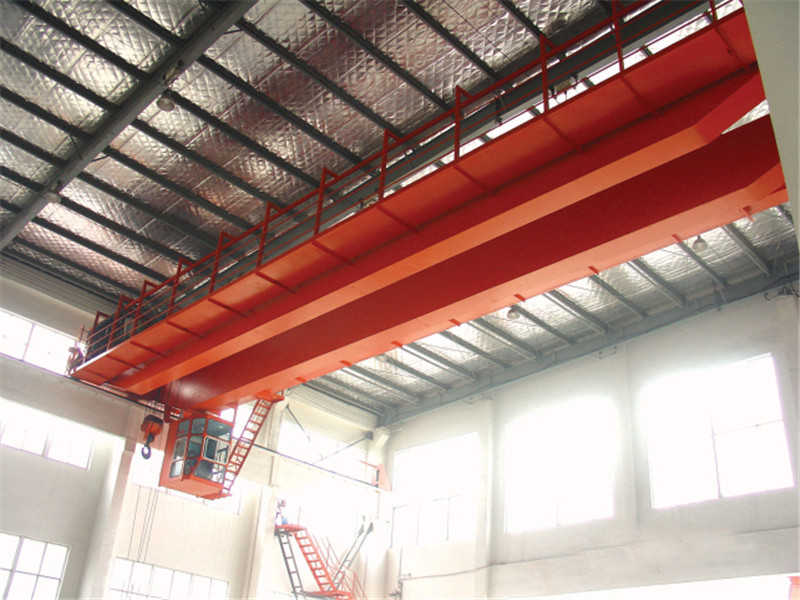

    • LH Double Girder Overhead Crane01

  • Previous:
  • Next:

  • About KORIGCRANES

    KORIGCRANES ( HENAN WEIHUA KORIG CRANES CO., LTD) located in crane hometown of China (cover more than 2/3 crane market in China), who is a trusted professional industry crane manufacturer and leading exporter. Specialized in design, manufacturing, installation and service of Overhead crane, Gantry crane, Port crane, Electric hoist etc, we have passed ISO 9001:2000, ISO 14001:2004, OHSAS 18001:1999, GB/T 19001-2000, GB/T 28001-2001, CE, SGS, GOST, TUV, BV and so on.

    Product Application

    To meet the demands of the oversea market, we independent research and development European type overhead crane, gantry crane; electrolytic aluminum multi-purpose overhead crane, hydro-power station crane etc. European type crane with light dead weight, compact structure, lower energy consumption etc. Many main performance reach the industry advanced level.
    KORIGCRANES Widely used in machinery, metallurgy, mining, electric power, railway, petroleum, chemical, logistics and other industries. Service for hundreds of large enterprises and national key projects such as China Datang Corporation, China Guodian Corporation, SPIC, Aluminum Corporation Of China(CHALCO), CNPC, Power China, China Coal, Three Gorges Group, China CRRC, Sinochem International, etc.

    Our Market

    Our cranes has been exported cranes to more than 110 countries for example Pakistan, Bangladesh, India, Vietnam, Thailand, Indonesia, Philippines, Malaysia、USA, Germany, France, Australia, Kenya, Ethiopia, Nigeria, Kazakhstan, Uzbekistan, Saudi Arabia、UAE、Bahrain、Brazil, Chile, Argentina, Peru etc and received good feedback from them. Very happy to be friends with each other come from all of the world and hope to establish long-terms good cooperation.

    KORIGCRANES has steel pre-treatment production lines, automatic welding production lines, machining centers, assembly workshops, electrical workshops, and anti-corrosion workshops. Can independently complete the whole process of crane production.

    Q. What’s the information should I provide when inquiry?
    More details or drawings, better.
    A: Lift capacity B: span C: lift height D: power source; other specials you give us will be more appreciated.

    Q. How many operating methods for my selection?
    Standard operating methods:
    A: remote control with push buttons
    B: cabin (space capsule seat) control with joystick. Choose any type as you like.

    Q. Can this type work in hazardous environment?
    A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.

    Q. Can you provide the serious lifting tools?
    A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!

    Q. How can we install the crane?
    A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
