Lifting Electromagnet

Short Description:

Lifting electromagnet is suitable for overhead crane, gantry crane, jib crane, and the like.

Name: Lifting Electromagnet

Capacity: up to 39 t


  • Brand Name: KORIG
  • Place of Origin: Henan, China
  • Customize Service: Available
  • Certification: CE ISO SGS
  • Min.Order Quantity: 1 set
  • Payment Terms: L/C, T/T, Western Union
  • Delivery Time: 20~30 Workdays
  • Supply Ability: 1000 Set/Month
  • Port of Shipment: Qingdao Port, Tianjin Port, Shanghai Port
  • Packaging Details: Electrical parts are packed in wooden boxes, and steel structural parts are packed in color tarpaulin.
  • Product Detail

    company information

    FAQ

    Product Tags

    Overview

    Lifting electromagnetic chuck, also known as lifting electromagnet, electromagnetic jack, is mainly used for lifting and transporting magnetic conductive materials such as steel in metallurgy, mining, machinery, transportation and other industries. It is also used as an electromagnetic manipulator to hold magnetic materials such as steel, and is suitable for handling cast iron ingots, steel balls and various scrap steels. The excitation mode can be adopted: constant voltage mode, strong excitation mode and over-excitation mode.

    Parameter

    Model Cold Power (KW) Current A (Cold/Hot) Overall Dimensions(mm) Weight (kg) Lifting Capacity(kg)
    A C F E G Steel Ball Cast Iron Ingot Chips
    KMW5-50L/1 2.6 11.8/7.7 500 700 160 90 25 220 1200 220/130 80/65
    KMW5-60L/1 3.0 13.6/8.9 600 750 160 90 25 340 2000 290/170 95/80
    KMW5-70L/1 3.3 15/9.8 700 800 160 90 30 490 2500 380/200 120/100
    KMW5-80L/1 4.0 18/12 800 800 160 90 30 620 3000 480/250 150/130
    KMW5-90L/1 5.9 26.8/17.5 900 1090 200 125 40 800 4500 600/400 250/200
    KMW5-110L/1 7.7 35/22.8 1100 1140 220 150 45 1350 6500 1000/800 450/400
    KMW5-120L/1 10 45.5/29.5 1200 1100 220 150 45 1700 7500 1300/1000 650/500
    KMW5-130L/1 12 54.5/35.5 1300 1240 250 175 50 2010 8500 1400/1100 700/600
    KMW5-150L/1 15.6 70.9/46.1 1500 1250 350 210 60 2830 11000 1900/1500 1100/900
    KMW5-165L/1 16.5 75/48.8 1650 1590 370 230 75 3200 12500 2300/1800 1300/1100
    KMW5-180L/1 22.5 102.3/66.5 1800 1490 370 230 75 4230 14500 2750/1100 1600/1350
    KMW5-210L/1 28.4 129/84 2100 1860 400 250 80 7000 21000 3500/2800 2200/1850
    KMW5-240L/1 33.9 154/100 2400 2020 450 280 90 9000 26000 4800/3800 2850/2250
    KMW5-260L/1 35.6 162/105 2600 2100 450 280 90 10100 30000 6100/4900 3600/3850
    KMW5-280L/1 39 178/116 2800 2700 500 300 100 12450 34000 7100/5700 4450/3400
    KMW5-300L/1 41.6 189/123 3000 2300 500 300 100 14980 39000 8350/6700 5250/4100

    Features

    1. It adopts fully sealed structure and has good moisture-proof performance; the non-magnetic protection plate adopts rolled manganese plate, which has good weldability, good magnetic isolation performance, wear resistance and impact resistance.

    2. Through the digestion of foreign advanced technology, through improvement and innovation, and through computer optimization design, the product structure is reasonable, light weight, large suction and low energy consumption.

    3. The excitation coil has been treated with special technology, which improves the electrical and mechanical properties of the coil, and the heat resistance level of the insulating material reaches the C level, and the service life is long.

    4. The rated duration of the common electromagnet is increased from 50% to 60%, which improves the use efficiency of the electromagnet.

    5. The ultra-high type electromagnet adopts unique measures of heat insulation and heat radiation prevention, and the temperature of the absorbed material is increased from 600 ℃ in the past to 700 ℃, which expands the applicable temperature of the electromagnet.

    6. Provide electromagnetic cabinets, cable reels and other auxiliary equipment, and the complete set has good performance.

    7. Easy to install, operate and maintain.

    images

    • (2)

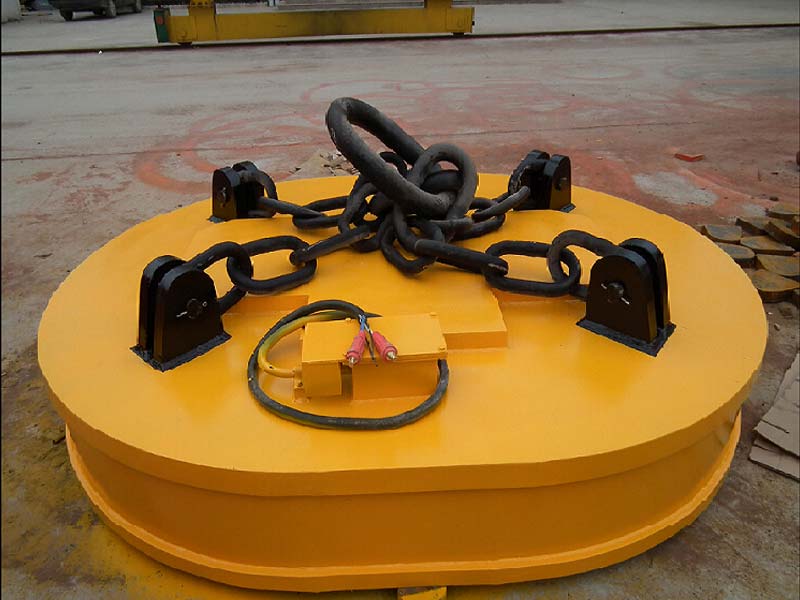

    • 5

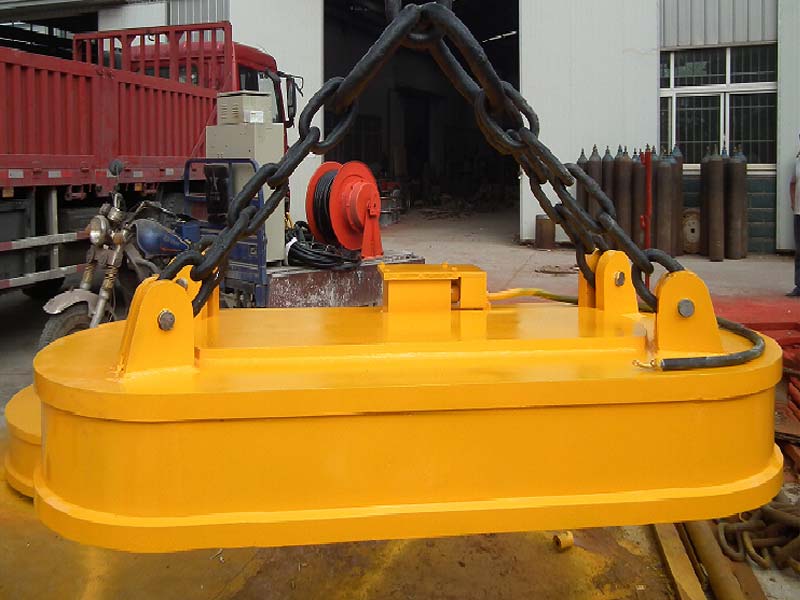

    • 4
    • Lifting Electromagnet (3)

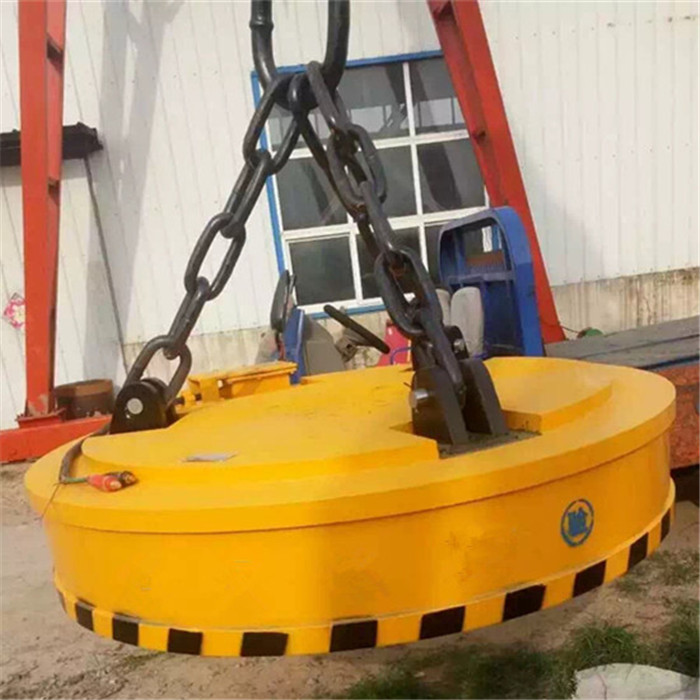

    • Lifting Electromagnet (1)
