LX Single Girder Suspension Crane

Short Description:

The single girder suspension crane is designed according to international standards. It is a kind of light duty material handling equipment, with single girder running on the suspension track, and usually equipped with CD1 and/or MD1 type electric hoist.

The price range is from $4,000 to $8,000

Capacity:1-20t

Span:7.5-35m

Lifting height: 6-35m


  • Brand Name: KORIG
  • Place of Origin: Henan, China
  • Customize Service: Available
  • Certification: CE ISO SGS
  • Min.Order Quantity: 1 set
  • Payment Terms: L/C, T/T, Western Union
  • Delivery Time: 20~30 Workdays
  • Supply Ability: 1000 Set/Month
  • Port of Shipment: Qingdao Port, Tianjin Port, Shanghai Port
  • Packaging Details: Electrical parts are packed in wooden boxes, and steel structural parts are packed in color tarpaulin.
  • Product Detail

    company information

    FAQ

    Product Tags

    Advantages of single girder suspension crane

    1.The suspension crane has high safety and reliability
    2.The suspension crane has tight structure and good rigidity
    3.The operation of the suspension crane if flexible and maintenance is low.
    4.During the operation of suspension crane, the noise is low and no pollution is produced.
    5.Types of suspension cranes are available which are widely used.
    6.The suspension cranes have the features of smoothing moving, effectively braking and long service life.
    7.The quality of the suspension crane is high while the price of the suspension crane is cost-effective

    Specifications of single girder suspension crane

    Item
    Unit
    Result
    Lifting capacity
    ton
    0.5-5ton
    lifting height
    H(m)
    6- 30m
    Span
    m
    3-16m
    lifting speed
    m/min
    8 8/0.8
    travelling speed
    m/min
    20/30
    working speed
    m/min
    20/30
    Working grade
    /
    A3-A5
    Working environment temperture
    °C
    -25~40
    power source
    /
    three-phase 380V 50HZ
    Control mode
    /
    cabin control/remote control

    Basic structure of single girder suspension crane

    The single girder suspension crane is consisted of main girder, cross beam, electric hoist, electric parts, lifting mechanic devices, etc.

    LX Single Girder Suspension Crane Drawing

    LX Single Girder Suspension Crane (6)

    Application of single girder suspension crane

    The light duty suspension crane is usually used in the working environment with no combustible, explosive or corrosive substance or media, such as, machinery assembly, warehouse, caves, etc.

    Main features of single girder suspension crane

    1.One type of main girder of the suspension crane is consisted of I-beam and channel, used for lifting small tonnage loads and the other type is consisted of U shaped steel and I- beam, used for large tonnage loads.
    2.All the electric hoist and the suspension crane movements are independent and can be run simultaneously.
    3.Electric hoist mobile power supply is constituted by flat cables or special cables.
    4.The electric hoist can be selected according to your requirements.
    5.Ground control method of suspension crane: pendant and remote control.

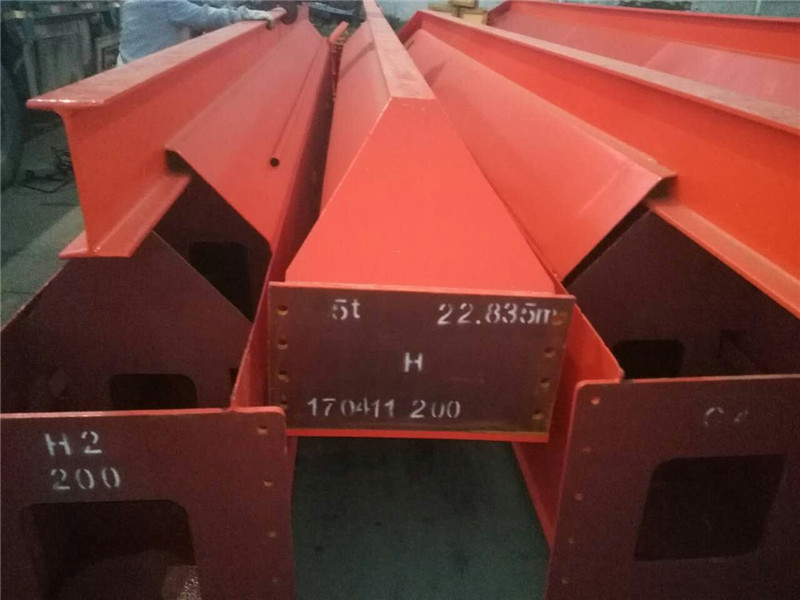

    • LX Single Girder Suspension Crane (6)

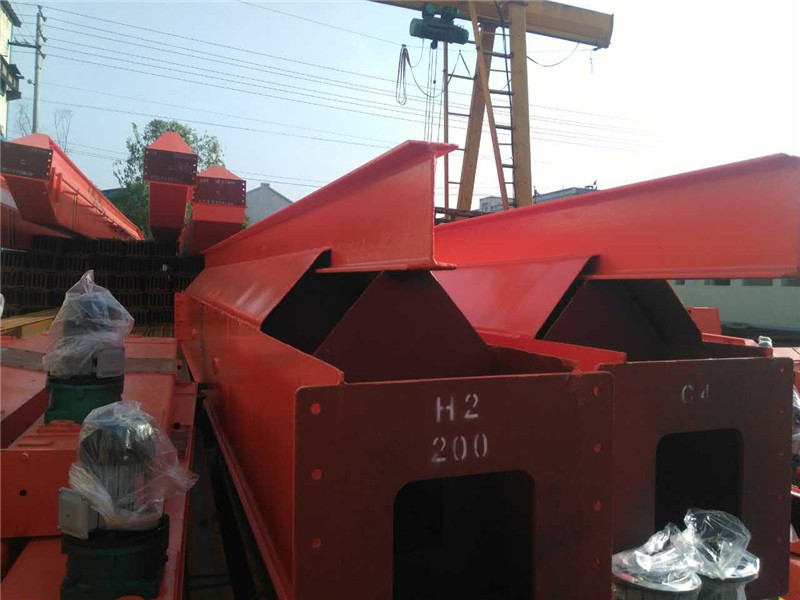

    • LX Single Girder Suspension Crane (5)

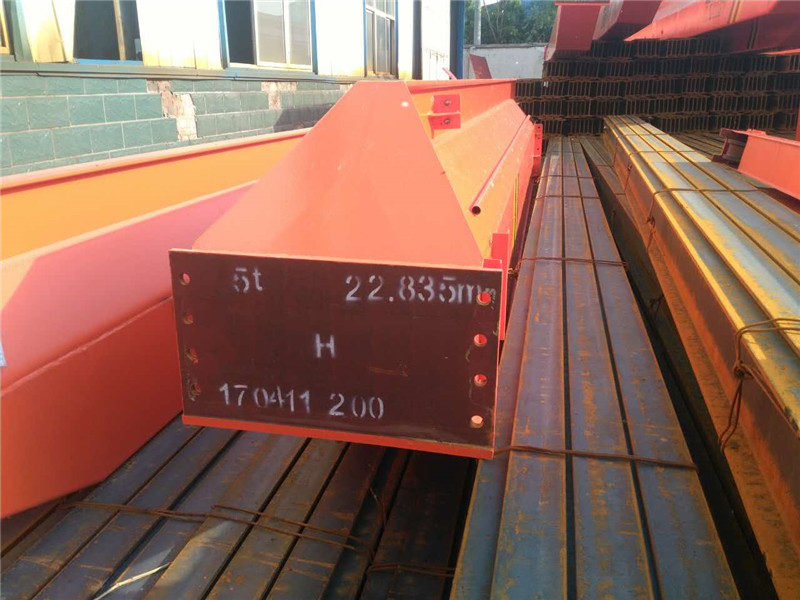

    • LX Single Girder Suspension Crane (4)

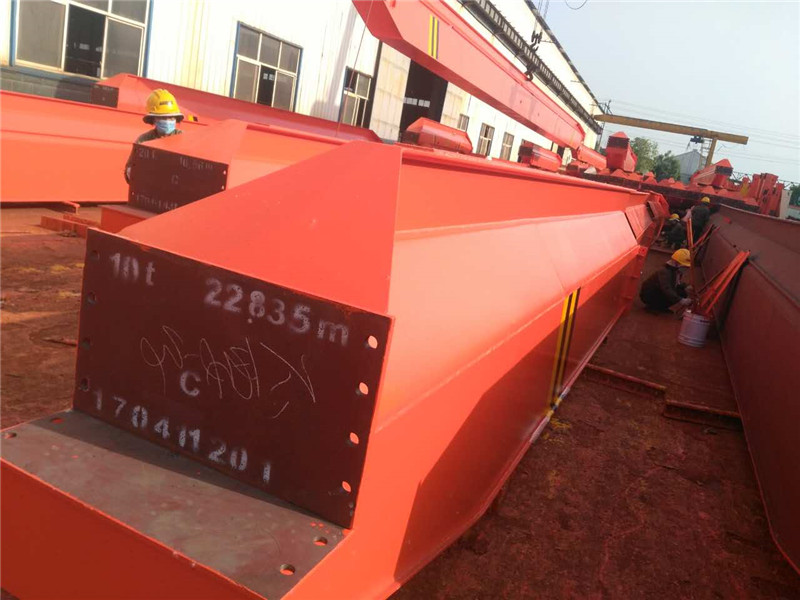

    • LX Single Girder Suspension Crane (3)

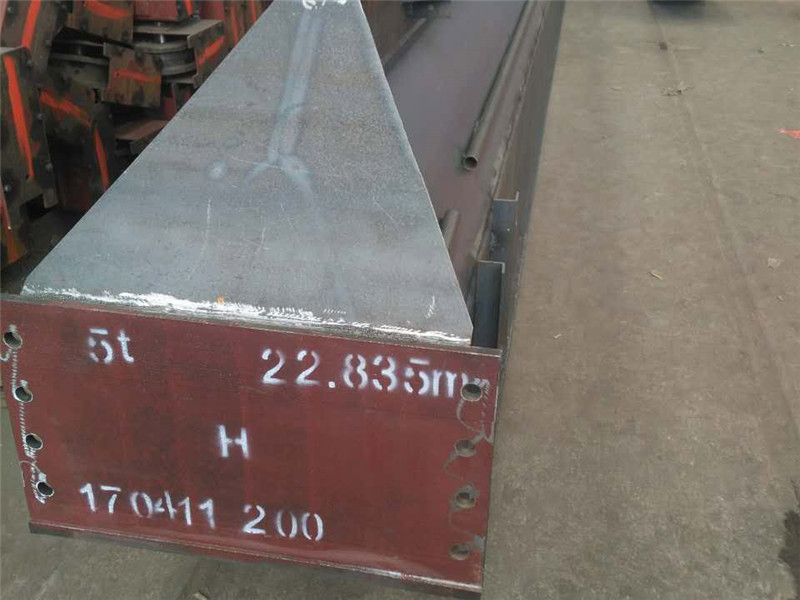

    • LX Single Girder Suspension Crane (2)

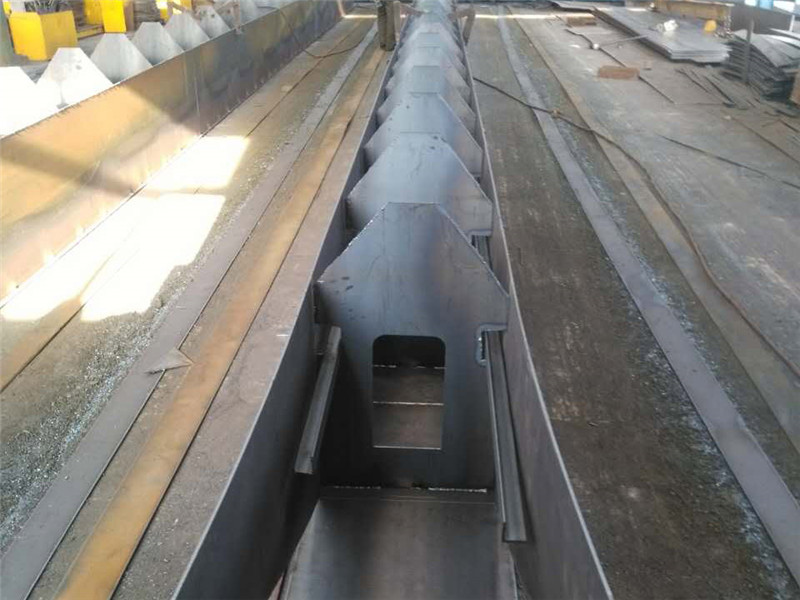

    • LX Single Girder Suspension Crane (1)

  • Previous:
  • Next:

  • About KORIGCRANES

    KORIGCRANES ( HENAN WEIHUA KORIG CRANES CO., LTD) located in crane hometown of China (cover more than 2/3 crane market in China), who is a trusted professional industry crane manufacturer and leading exporter. Specialized in design, manufacturing, installation and service of Overhead crane, Gantry crane, Port crane, Electric hoist etc, we have passed ISO 9001:2000, ISO 14001:2004, OHSAS 18001:1999, GB/T 19001-2000, GB/T 28001-2001, CE, SGS, GOST, TUV, BV and so on.

    Product Application

    To meet the demands of the oversea market, we independent research and development European type overhead crane, gantry crane; electrolytic aluminum multi-purpose overhead crane, hydro-power station crane etc. European type crane with light dead weight, compact structure, lower energy consumption etc. Many main performance reach the industry advanced level.
    KORIGCRANES Widely used in machinery, metallurgy, mining, electric power, railway, petroleum, chemical, logistics and other industries. Service for hundreds of large enterprises and national key projects such as China Datang Corporation, China Guodian Corporation, SPIC, Aluminum Corporation Of China(CHALCO), CNPC, Power China, China Coal, Three Gorges Group, China CRRC, Sinochem International, etc.

    Our Market

    Our cranes has been exported cranes to more than 110 countries for example Pakistan, Bangladesh, India, Vietnam, Thailand, Indonesia, Philippines, Malaysia、USA, Germany, France, Australia, Kenya, Ethiopia, Nigeria, Kazakhstan, Uzbekistan, Saudi Arabia、UAE、Bahrain、Brazil, Chile, Argentina, Peru etc and received good feedback from them. Very happy to be friends with each other come from all of the world and hope to establish long-terms good cooperation.

    KORIGCRANES has steel pre-treatment production lines, automatic welding production lines, machining centers, assembly workshops, electrical workshops, and anti-corrosion workshops. Can independently complete the whole process of crane production.

    Q. What’s the information should I provide when inquiry?
    More details or drawings, better.
    A: Lift capacity B: span C: lift height D: power source; other specials you give us will be more appreciated.

    Q. How many operating methods for my selection?
    Standard operating methods:
    A: remote control with push buttons
    B: cabin (space capsule seat) control with joystick. Choose any type as you like.

    Q. Can this type work in hazardous environment?
    A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.

    Q. Can you provide the serious lifting tools?
    A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!

    Q. How can we install the crane?
    A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
