Mini Small Rolling Mill Production Line for Deformed Steel Bar, Special-Shaped Bars, Wires, Channel Steel, Angle steel, Flat Bars, Steel Plates

Short Description:

● Rolling direction: H series

● Capacity: 0.5T-5tph

● Rolling speed: 1.5~5m/s

● Size of billet: 30*30-90*90

● Dimensions of steel bars: 6-32mm


  • Brand Name: KORIG
  • Place of Origin: Henan, China
  • Customize Service: Available
  • Certification: CE ISO SGS
  • Min.Order Quantity: 1 set
  • Payment Terms: L/C, T/T, Western Union
  • Delivery Time: 20~30 Workdays
  • Supply Ability: 1000 Set/Month
  • Port of Shipment: Qingdao Port, Tianjin Port, Shanghai Port
  • Packaging Details: Electrical parts are packed in wooden boxes, and steel structural parts are packed in color tarpaulin.
  • Product Detail

    company information

    FAQ

    Product Tags

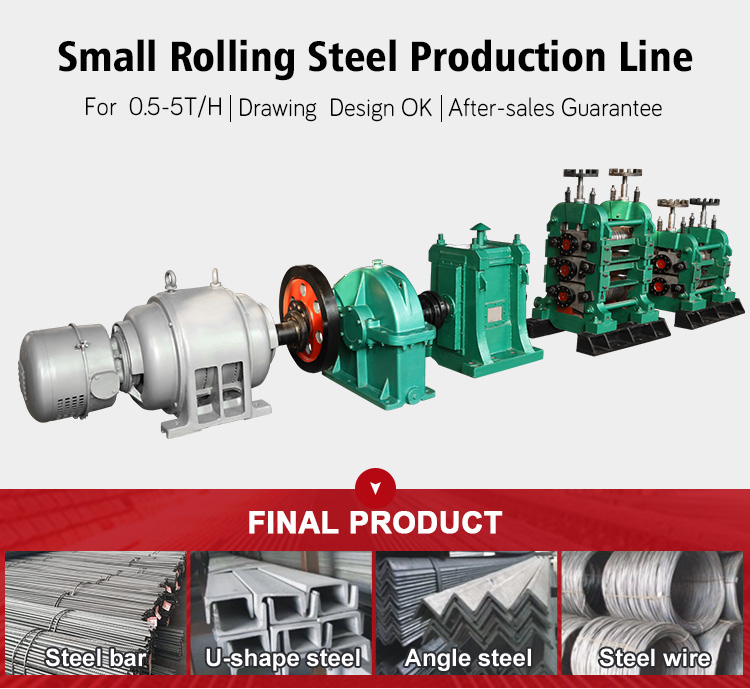

    Description of Mimi Small Rolling Mill Production Line

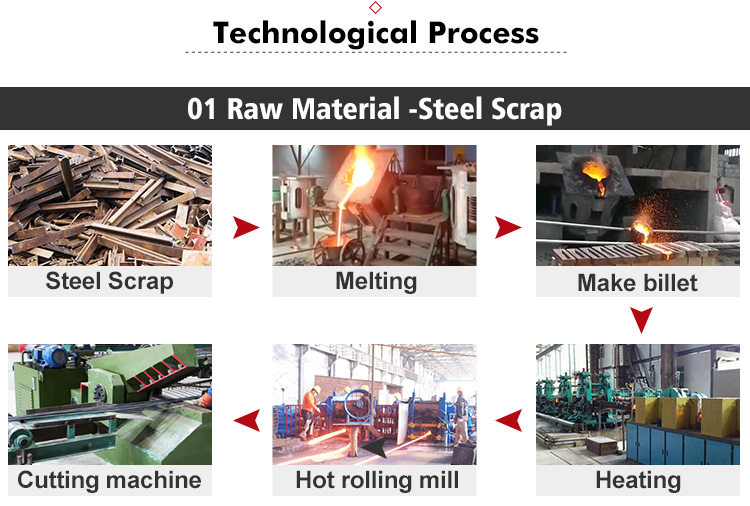

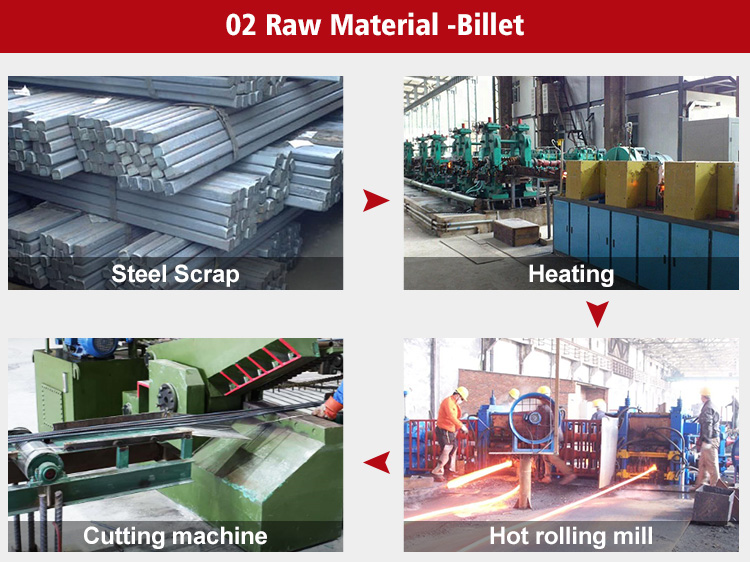

    Rolling Mill Production Line is mainly used in iron and steel plants to produce deformed steel bar, special-shaped bars, wires, channel steel, angle steel, flat bars, steel plates and other products. The raw material is steel scrap or billet (40~100mm), the production capacity range is suitable for 0.5- 5tph, and the diameter of the steel bar of the finishing product is 8-32mm.

    Technical specifications table

    Model Power(KW) Rolling speed(m/s) Capacity(T)/Shift Rolling capacity(T) Feed section(mm) Weight(T) Rolling specification Remarks
    H200-2 90 1.5 1~3 20 30×30 6.8 <φ20 Rebar, flat bar, square steel
    H220-2 95 1.5~2 2~4 25 40×40 14.3 <φ34 Rebar, flat bar, angle steel
    H250-3 180 1.8~2.5 3~6 30 50×50 27.5 <φ34<40×10<40×40 Rebar, flat bar, angle steel
    H250-4 315/240 2.5~4 5~10/4~8 30 60×60 31 <φ34<100×10<40# Rebar, flat bar, angle steel
    H250-5 500 2.5~5 8~15 30 50x5060x60 3038 6.5 wire rod Wire, coiled bar
    H280-5 630 2~2.5 10~20 50 70×70 40 <φ34<100×10<φ50 Rebar, flat bar, angle steel
    H300-5 680 2~2.5 15~30 50 90×90 43.6 <φ34<150×10<φ60# Rebar, flat bar, angle steel
    H350-5 800 2~2.5 30~50 50 90×90 88 <φ34<150×10<φ60# Rebar, flat bar, angle steel

    Features of Mimi Small Rolling Mill Production Line

    1. H serious horizontal rolling mill has compact structure, very easy for daily maintenance, very low investment costs, has very good advantage for production of deformed steel rebar, angle steel bar, flat bar with capacity less than 100tpd.

    2. H Series rolling mill can reserve a lot of space in equipment upgrade, For example, if you have enough space, you can increase the continuous rolling mill capacity directly. All original investment equipment can be continue to use together, does not need to be dismantled.

    2. The horizontal rolling mill can increase the tail plate for automatic operation, which can effectively reduce the amount of personnel cost.

    3. For example for the 60*60 billet,It takes 16 step passes for rolling 8mm steel rebar. If it is a horizontal four rack mills, Passing the first mill 7times. Passing the second mill 5 times. After passing the third rolling mill and the fourth rolling mill, it becomes a finished product.

    4. The biggest advantage of the H series mill is its flexibility. Choose a reasonable deformation sequence and passing times according to different finished product sizes.

    5. The electrical control system is simple and reliable. There is only one set of power motors for a set of equipment. There is only one control system. The structure is simple and convenient for later maintenance and replacement of parts.

    6. Rolling coiled bar needs to increase the laying machine at the end of the rolling mill, Rolling angle steel needs to increase the straightening machine at the end of the rolling mill.

    Our Service

    * Provide convenient combined overall solution including factory steel structure building, overhead cranes for steel mills, Mimi Small Rolling Production Line and related equipment.

    * Provide turnkey project including design, manufacturing, transportation, installation, commissioning and testing service.

    * Provide factory building design, overall equipment layout, rolling mill process design, electrical circuit layout and other services.

    * Provide guaranteed after-sale service.

    images

    0.1

    0

    5

    1

    2

    3.1

    3.2

    3.3
