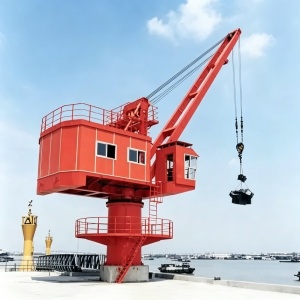

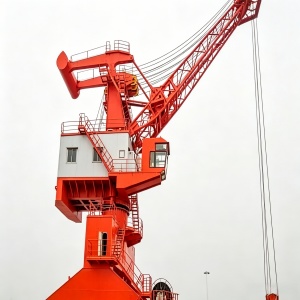

MQ Four Link Portal Jib Crane
Description

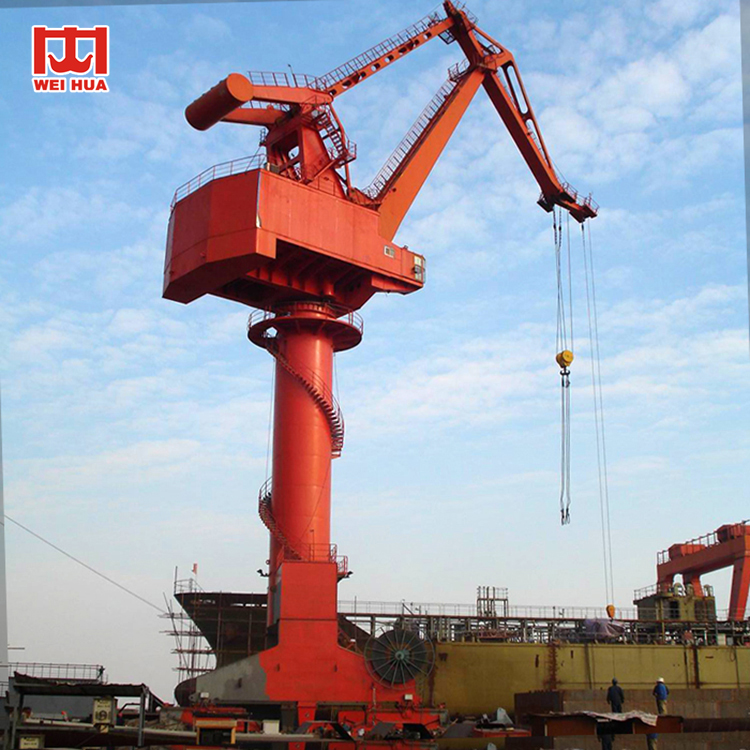

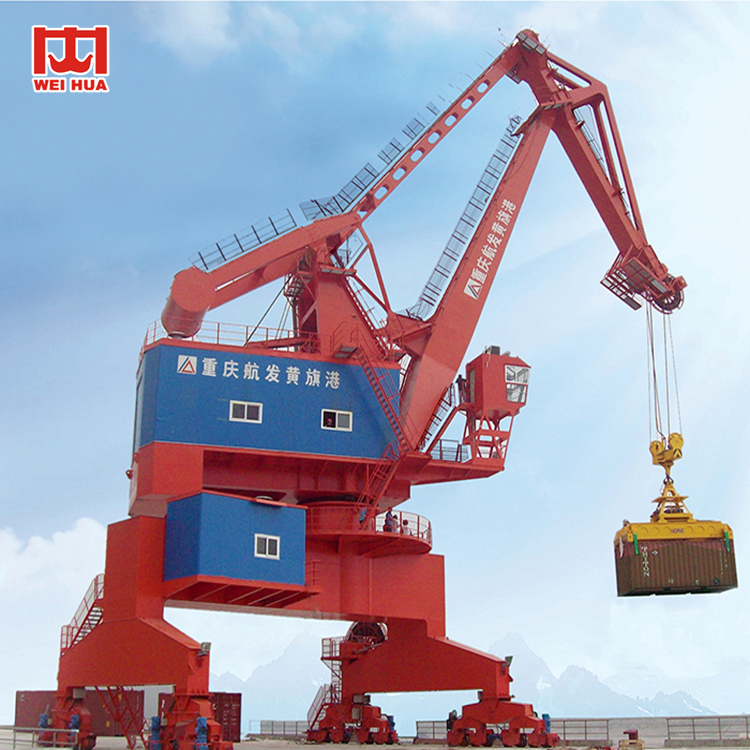

MQ Four Link Portal Jib Crane is mainly used for loading and unloading of general cargo or bulk cargo in port, jetty, river terminal. It consists of lifting mechanism, luffing mechanism,slewing mechanism,gantry traveling mechanism;Lifting mechanism, luffing mechanism and slewing mechanism could work independently or work together. It can carry load luffing and make horizontal displacement. The crane can rotate 360°free with the combined action of lifting and luffing, and it runs smoothly. This model adopts two types luffing method:Rack and pinion luffing and Wire rope luffing (compensation for multiple pulley blocks).
Technical Parameter Table
| Parameter Model |
Unit |
MQ1625 |
MQ2530 |
MQ4035 |
MQ6040 |
|
|
Capacity |
Ton |
16 |
25 |
40 |
60 |
|
|
Working radius |
M |
8.5-25 |
9.5-30 |
12-35 |
12-40 |
|
|
Lifting height above rail |
M |
20 |
22 |
28 |
45 |
|
|
Lifting height below rail |
M |
12 |
-15 |
-18 |
-5 |
|
|
Speed |
Lifting speed |
m/min |
50 |
50 |
30 |
15 |
|
Luffing speed |
m/min |
50 |
50 |
45 |
15 |
|
|
Slewing speed |
r/min |
1.5 |
1.5 |
1.5 |
0.3 |
|
|
Traveling speed |
m/min |
25 |
25 |
30 |
30 |
|
|
End slewing radius |
M |
7.6 |
8 |
8.5 |
10.5 |
|
|
Gauge× Base |
M |
10.5×10.5 |
10.5×10.5 |
10.5×10.5 |
12×13 |
|
|
Max.wheel load |
KN |
240 |
250 |
350 |
280 |
|
|
Power source |
380V 50HZ 3Ph |
6KV,3Ph |
10KV,3Ph
|
|||
Features of Portal Jib Crane
1. Sling spreader can be grab,hook and spreader, good adaptability, wide application;
2. All mechanism are interlock to ensure operation safety;
3. 360° slewing, wide working scope;
4. PLC control, AC frequency speed control, stable and reliable running;
5. Remote control in control room and automatic operation are available according to the requirement;
6. Adequate protection devices, communication and lighting system.
7.Crane Monitoring Management system (CMS) to monitor each mechanism working condition and fault diagnose;

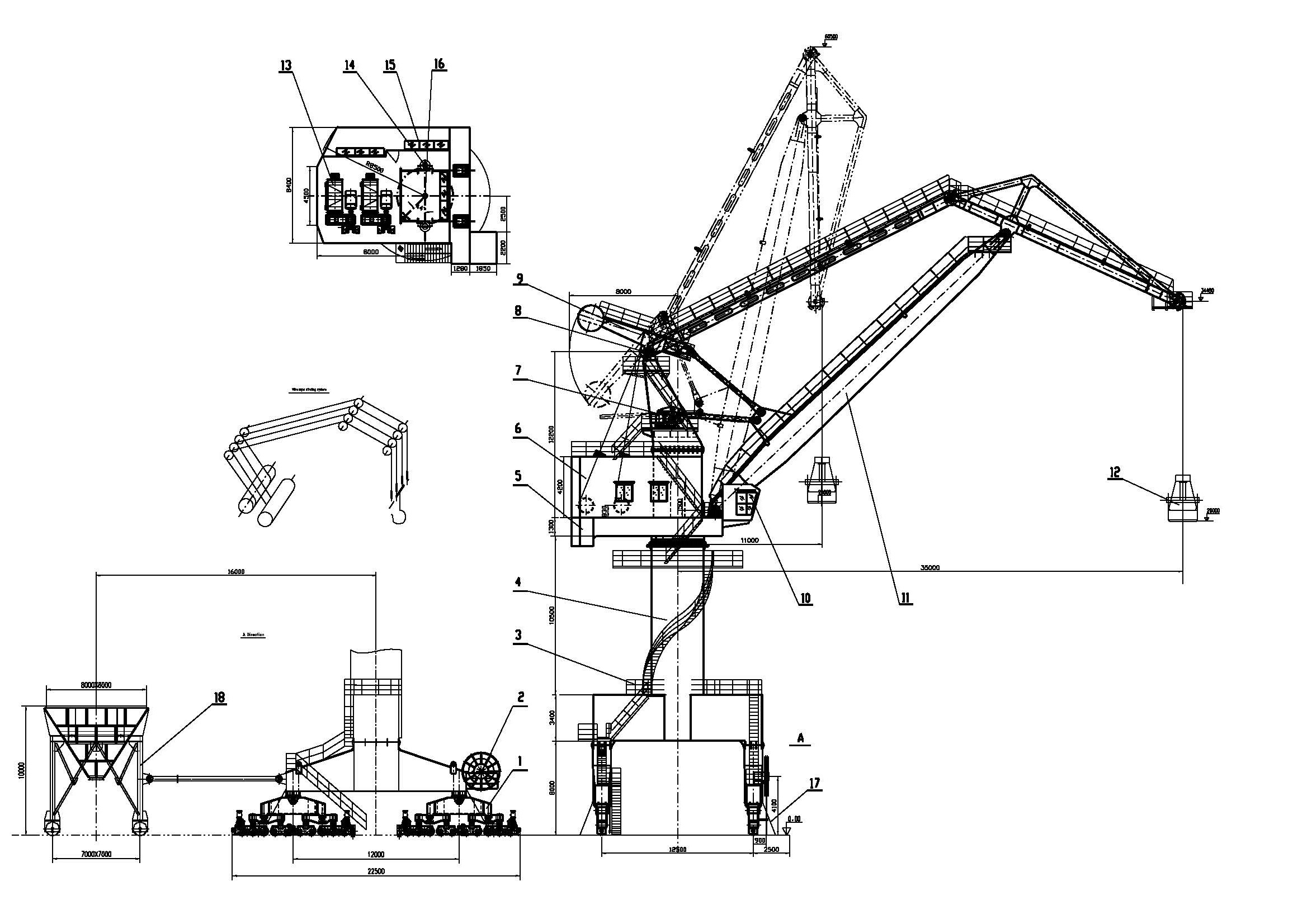

Outline Drawing
