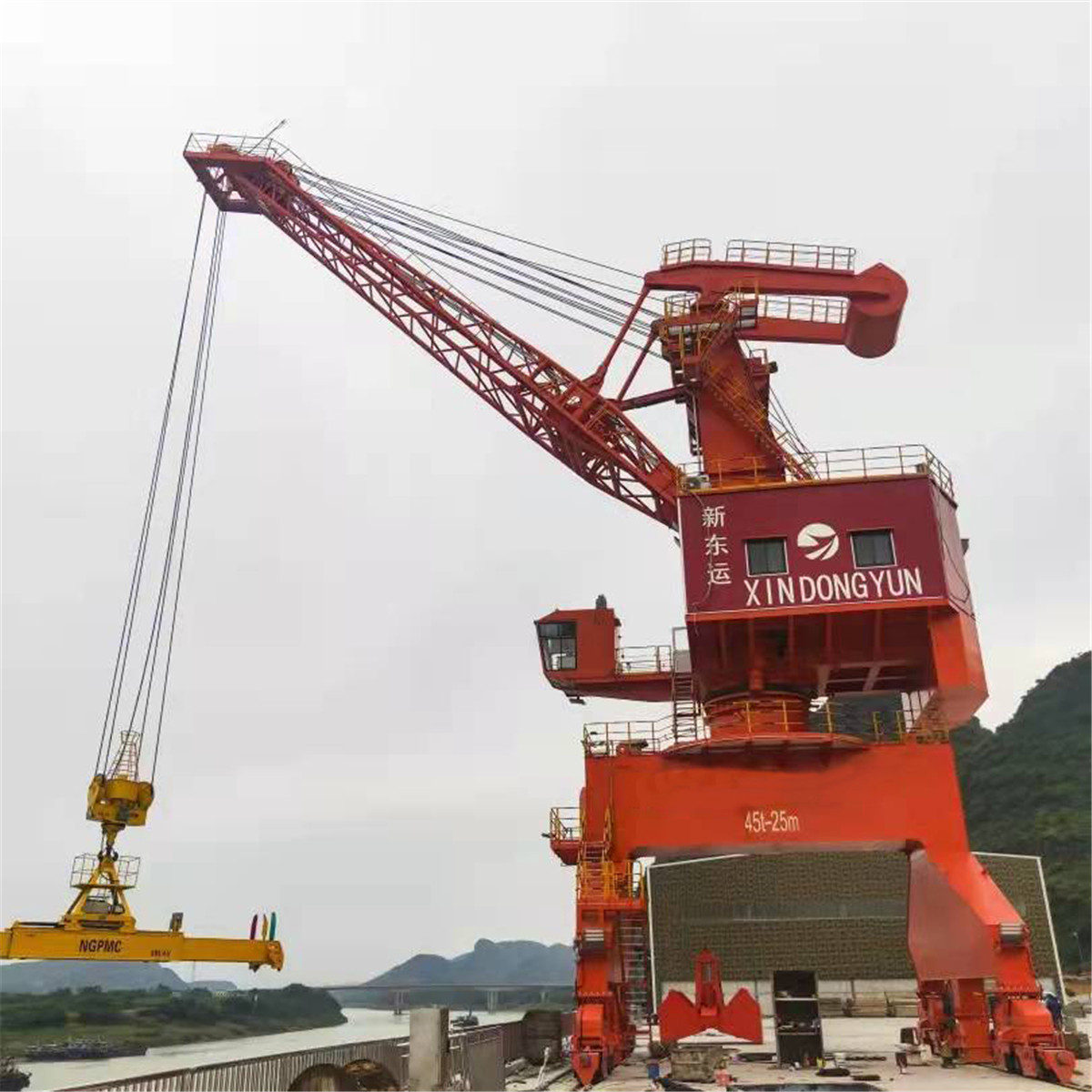

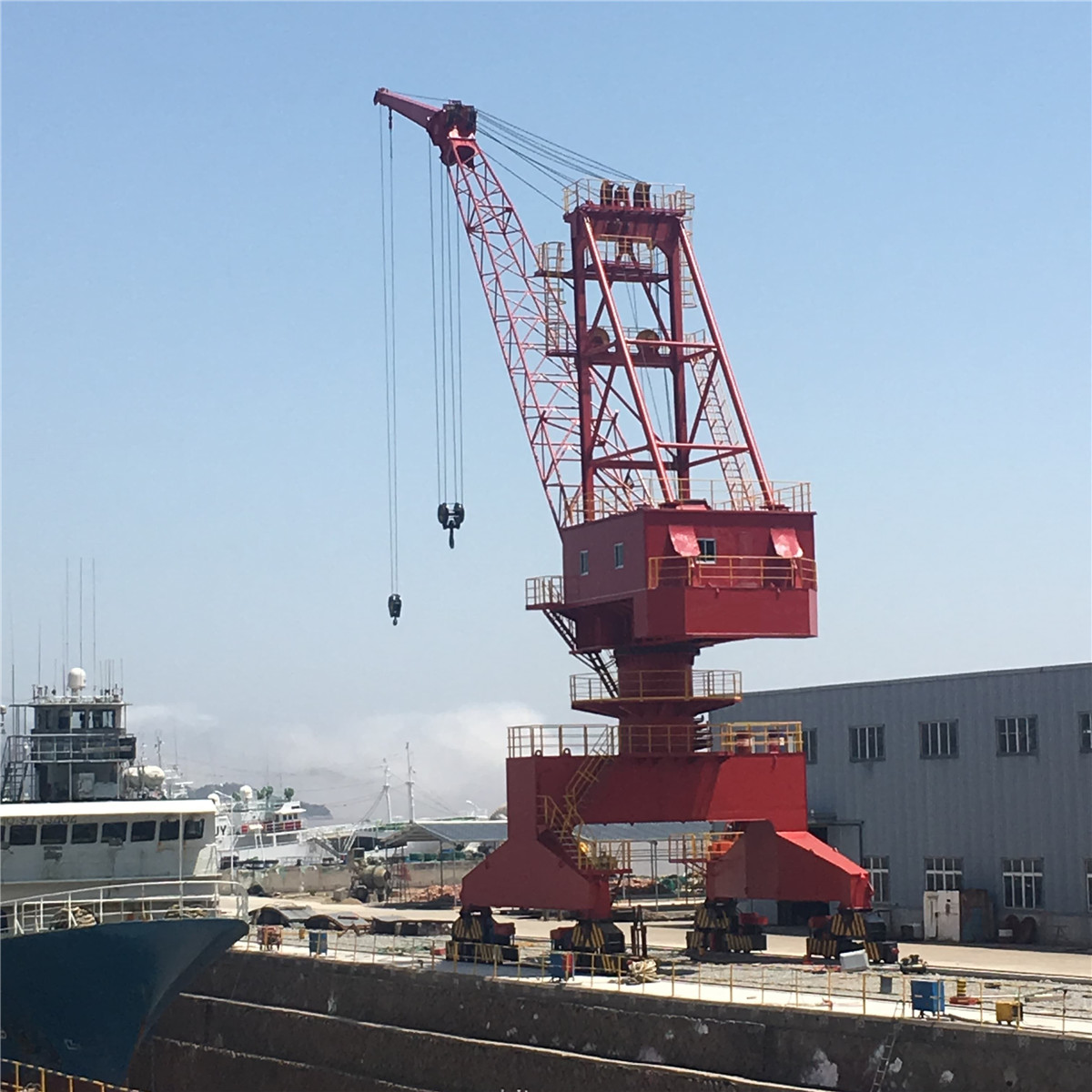

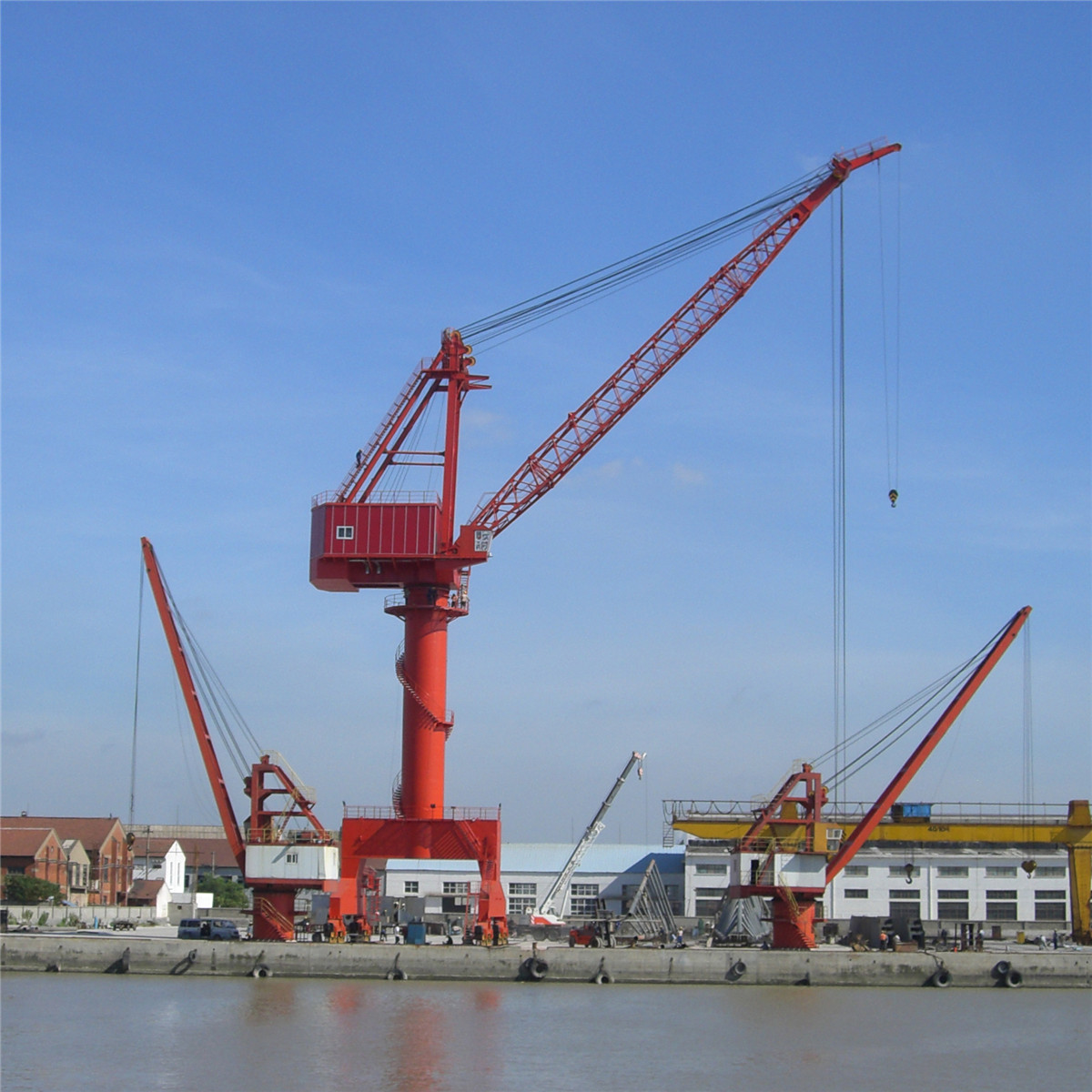

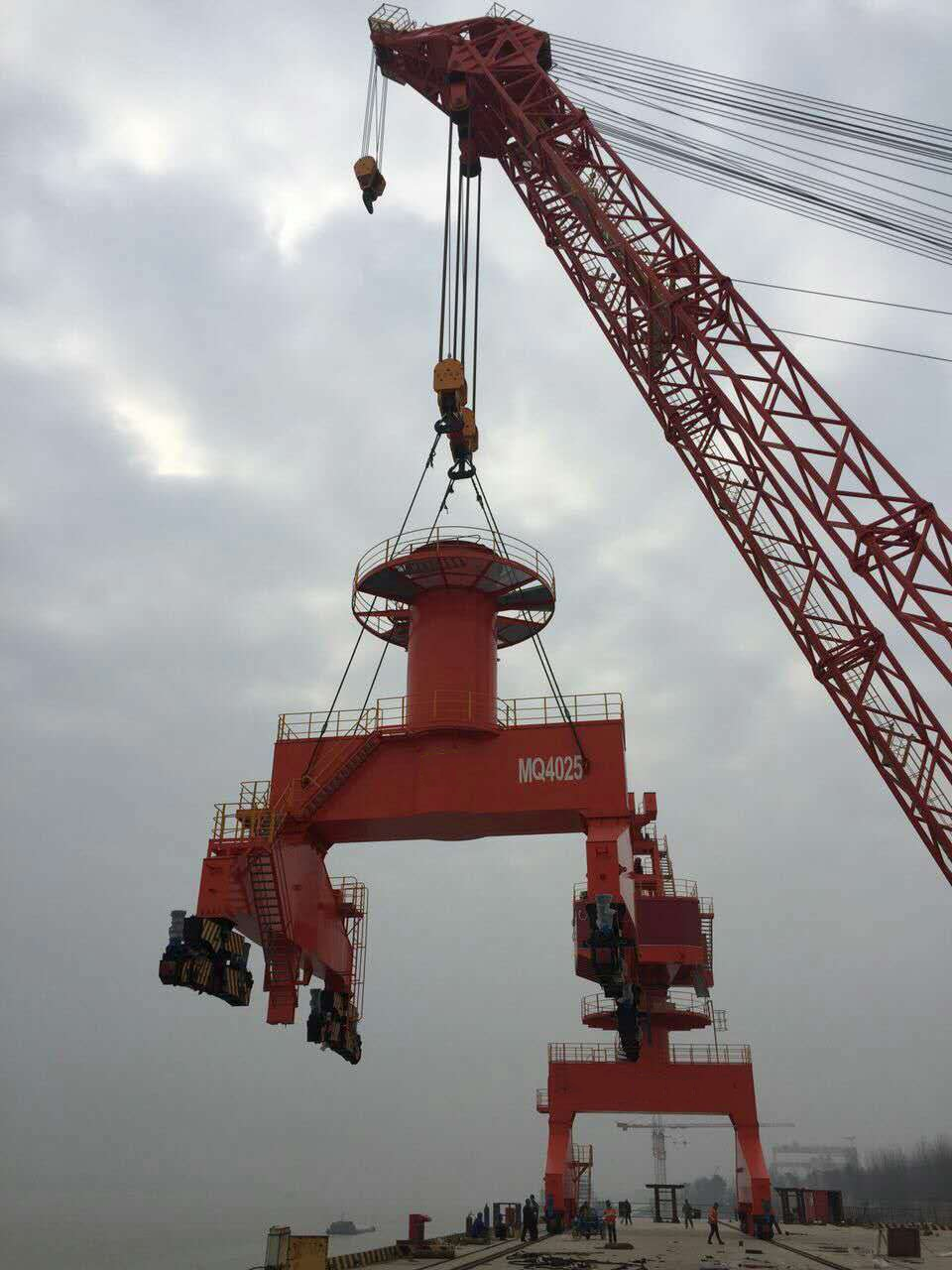

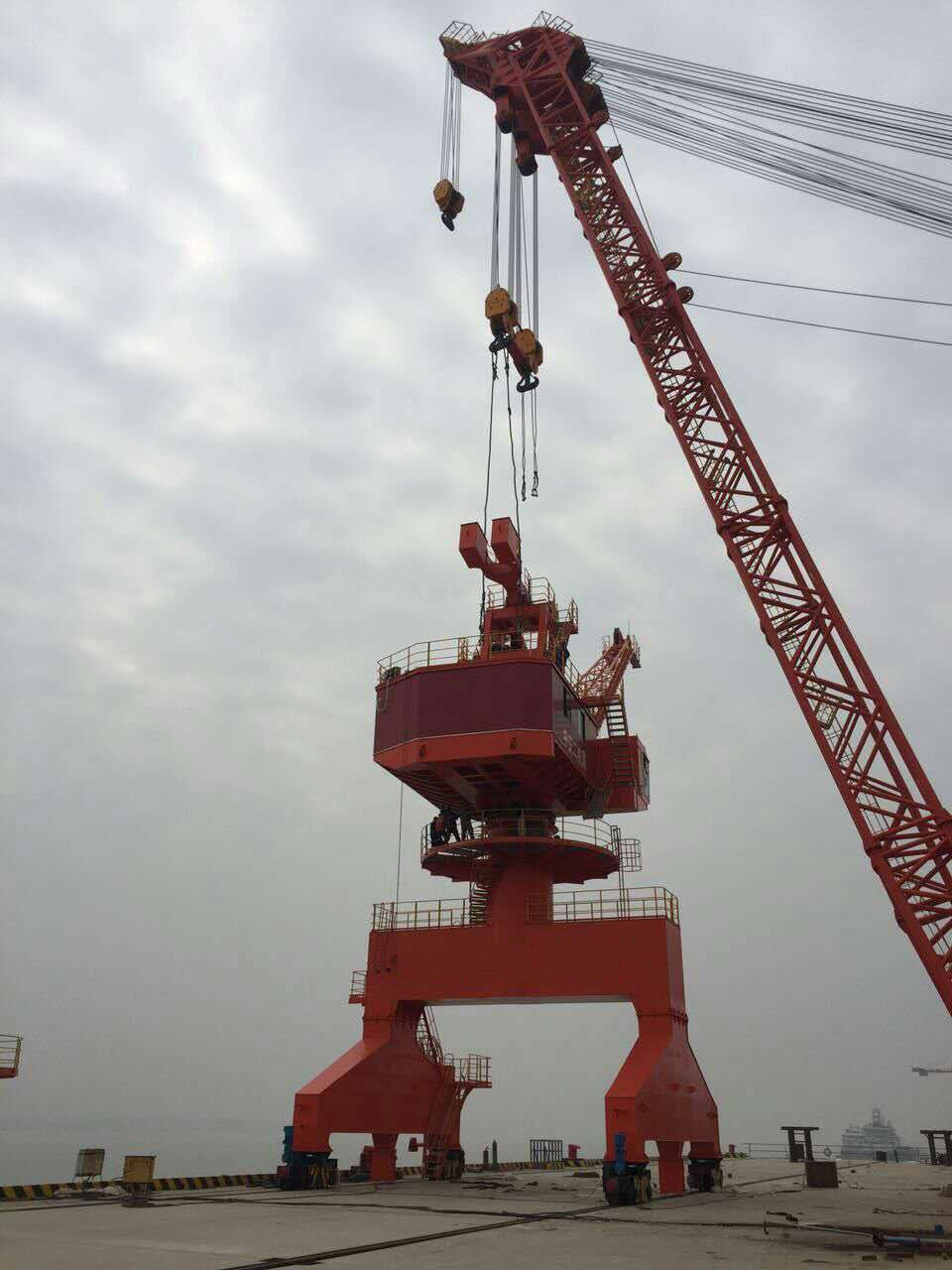

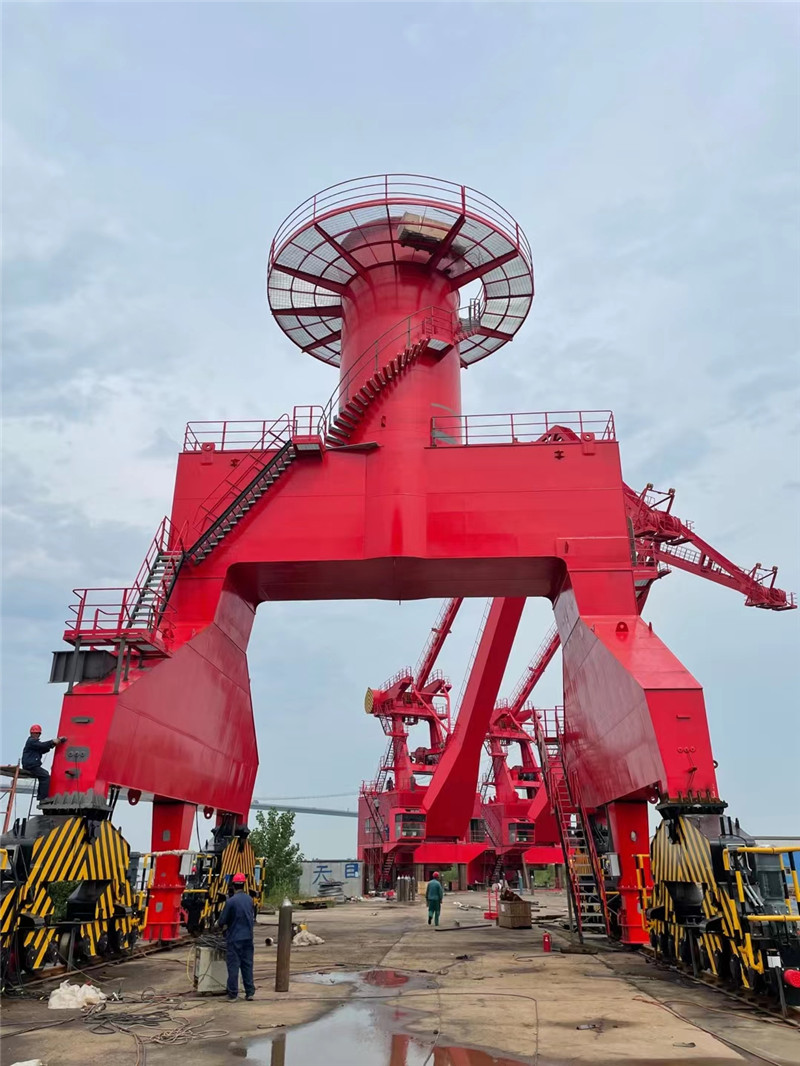

MQ Single Boom Portal Jib Crane
Description
Single boom portal jib crane, also called “Level luffing portal crane” is mainly used for loading and unloading of general cargo or bulk cargo in port, jetty, river terminal, or ship building in shipyard. Its boom is single-boom type.This model adopts two types luffing method:Rack and pinion luffing and Wire rope luffing (compensation for multiple pulley blocks). It can carry load luffing and make horizontal displacement. The crane can rotate 360°free with the combined action of lifting and luffing, and it runs smoothly.
The crane could use hook and grab, two purpose. Hook for general cargo load/unloading and grab is used for bulk cargo handling such as Wheat, corn, fertilizer, salt,sand, iron ore etc.The work efficiency is high.
Technical Parameter Table
| Parameter Model |
Unit |
MQ530 |
MQ1033 |
MQ1633 |
MQ4030 |
MQ6030 |
MQ8040 |
|
|
Capacity |
Ton |
5 |
10 |
16 |
40 |
60 |
80 |
|
|
Working duty |
A |
A6 |
A6 |
A6 |
A6 |
A6 |
A6 |
|
|
Working radius |
M |
8.5-30 |
9-33 |
9-33 |
11-30 |
10-30 |
11-40 |
|
|
Lifting height above rail |
M |
25 |
25 |
25 |
25 |
30 |
40 |
|
|
Lifting height below rail |
M |
-15 |
-15 |
-15 |
-15 |
0 |
-15 |
|
|
Speed |
Lifting speed |
m/min |
50 |
50 |
50 |
20 |
12 |
8 |
|
Luffing speed |
m/min |
50 |
50 |
50 |
24 |
15 |
15 |
|
|
Slewing speed |
r/min |
1.7 |
1.5 |
1.5 |
1.0 |
0.4 |
0.3 |
|
|
Traveling speed |
m/min |
25 |
25 |
25 |
25 |
25 |
25 |
|
|
End slewing radius |
M |
7.50 |
7.68 |
7.60 |
7.80 |
7.8 |
10.5 |
|
|
Gauge× Base |
M |
10.5×10.5 |
10.5×10.5 |
10.5×10.5 |
10.5×10.5 |
12×13 |
12×13 |
|
|
Max.wheel load |
KN |
185 |
225 |
250 |
250 |
250 |
280 |
|
|
Wheel Qty. |
PCS |
12 |
20 |
20 |
32 |
32 |
40 |
|
|
Power source |
380V 50HZ 3Ph |
6KV,3Ph |
10KV,3Ph |
10KV,3Ph |
||||
Features of Portal Jib Crane
1. Sling spreader can be grab and hook, good adaptability, wide application;
2. All mechanism are interlock to ensure operation safety;
3. 360° slewing, wide working scope;
4. PLC control, AC frequency speed control, stable and reliable running;
5. Remote control in control room and automatic operation are available according to the requirement;
6. Adequate protection devices, communication and lighting system.
7.Crane Monitoring Management system (CMS) to monitor each mechanism working condition and fault diagnose

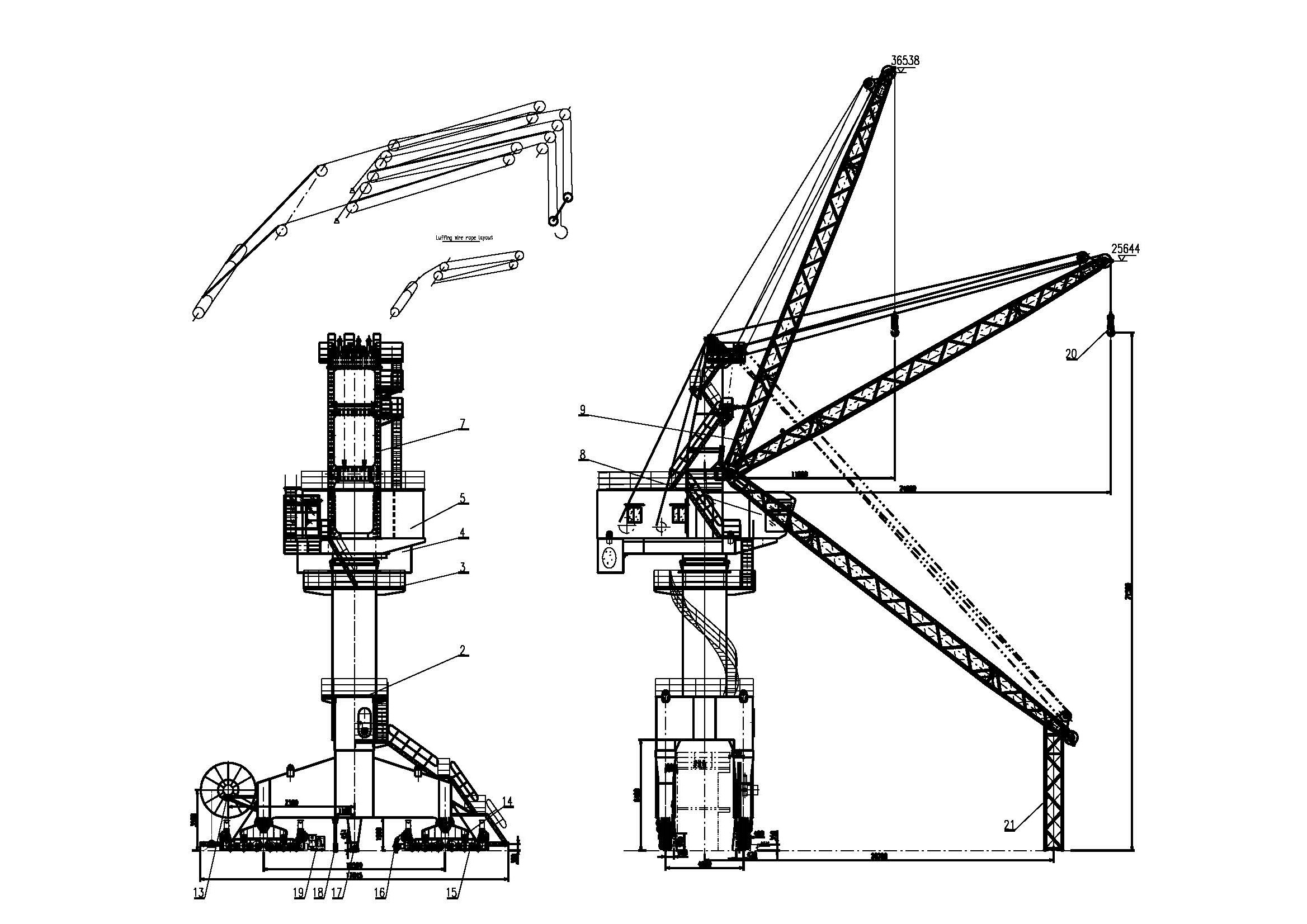

Outline drawing
Outline drawing
