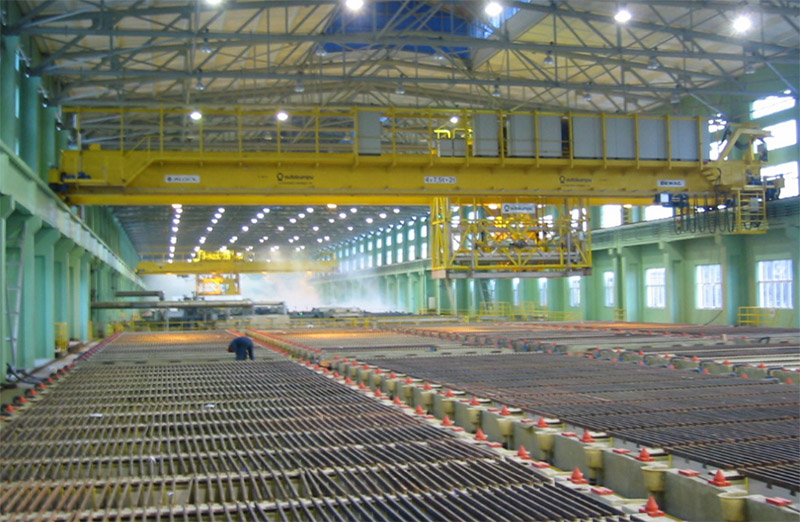

Multifunctional Copper Electrolysis Overhead Crane For Metallurgical Plant
Component

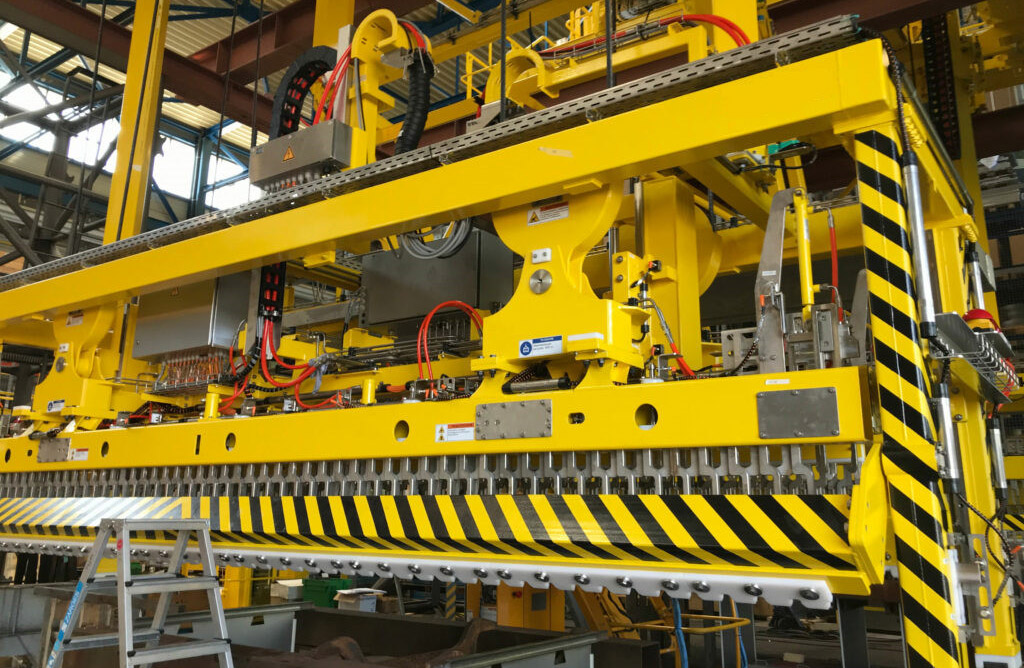

The electrolytic copper crane is mainly composed of electrical control mechanism, crane and trolley travelling mechanism and crane girders. The trolley mechanism consists of a hoisting mechanism, a trolley travelling mechanism, a trolley frame, an outer frame, a mobile cab, a liquid receiving tray mechanism, and a spreader. The spreader is composed of a fixed guide frame, a movable guide frame, a cathodic and anode hanging bag, and an arrangement comb.
The crane hoisting, trolley travelling and crane travelling speed are all variable frequency drive, the whole crane is controlled by Siemens 1500 series PLC, the PLC and inverter is controlled by PROFINET communication. There is a touch screen in the driver’s cabin, which can display the whole crane status information and fault information. The crane and trolley are positioned by laser ranging, with a positioning accuracy of ±10mm.
Our electrolytic copper crane has good performance and reliable operation, and is well received by users.
parameter
|
Loading capacity
|
5 ~ 500 ton
|
||
|
Lifting height
|
3 ~ 30 m or customized
|
||
|
Lifting speed
|
Vary with lifting capacity, or customized.
|
||
|
Span
|
10.5~31.5 m/min
|
||
|
Lifting mechanism
|
Wire rope hoist or electric chain hoist
|
||
|
Working class
|
A5~ A8
|
||
|
Working temperature
|
-20 ~ 40 ℃
|
||
|
Power supply
|
AC-3 Phase-220//230380/400/415/440 V-50/60 Hz
|
||
|
Control voltage
|
DC -36 / 48 V
|
||
|
Motor protection class
|
IP54 IP55 IP65
|
||
|
Control way
|
Cabin, wireless remote, pendant push button
|
||
|
Buffer,current overload protection,overload device,power failure protection Safety device
|
Buffer,current overload protection,overload device,power failure
protection
|
||
|
Application area
|
Factory,workshop,warehouse,power station,logstic,etc.
|
Main Features of Multifunctional Crane for Electrolytic Copper
1. Strengthen Design, Improving Accuracy
2. Strengthen design of the main beam, greatly improving the mechanical performance and load-bearing capacity.
3. The main lifting mechanism realizes synchronous lifting and is equipped with anti-chaotic rope and anti-wear devices, which can be widely used in multi-lifting point lifting equipment.
4. Automatic positioning to improve the positioning accuracy of crane and trolley and the positioning accuracy of spreaders.
5. Highly Intelligent, Safe Operation
6. The automation application program can carry out remote network control of the whole crane, realize the operation monitoring of the whole machine and provide fault indications and solutions, and the product operation realizes a high degree of intelligence.
7. It has emergency manual control system, which will continue to operate the crane to complete the process safely and stably in case of communication errors.
8. Electrical insulation ensures the safe use and maintenance of cranes and spreaders on high-current electrolyzers.
9. Various Controls, Automatic Operation
10. There are three control modes: cab operation, remote control operation, and ground station operation, ensuring that the lifting status can be controlled at any time, and the lifting operation can be carried out easily, and it realizes the automatic flow operation of the workshop.

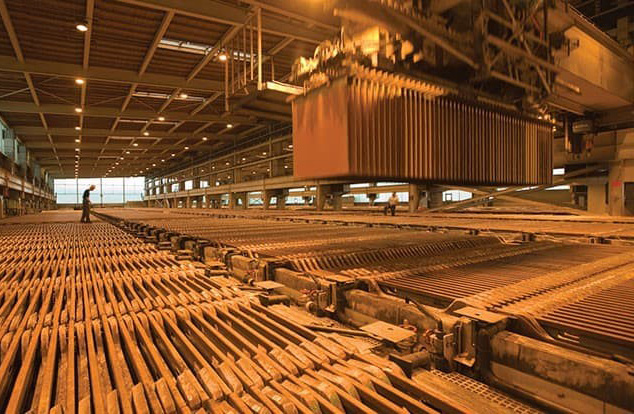

The main workflow of copper electrolysis cranes
1. Take the anode plate from the preparation rack and load it into the electrolytic cell.
2. Take the cathode plate from the preparation rack and load it into the electrolytic cell.
3. After the electrolysis is completed, the cathode copper is taken out, and the acid solution is collected by the acid tray.

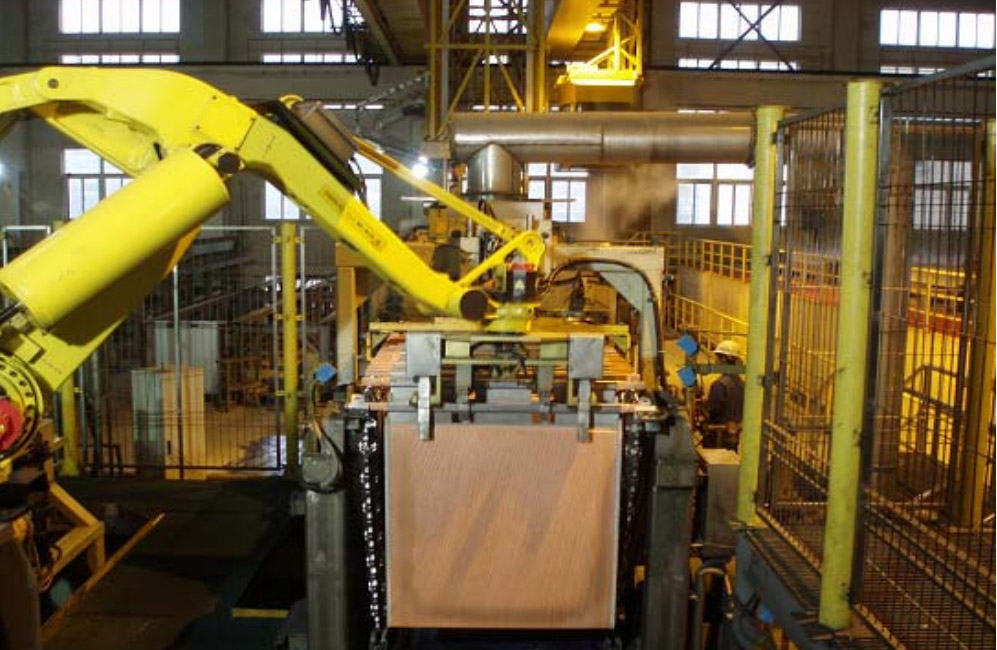

4. Retract the acid tray and place the cathode copper into the washing unit.
5. Remove the anode residue and collect the acid solution by the acid tray.
6. The drip tray is withdrawn and the anode stump is placed in the washing unit.
