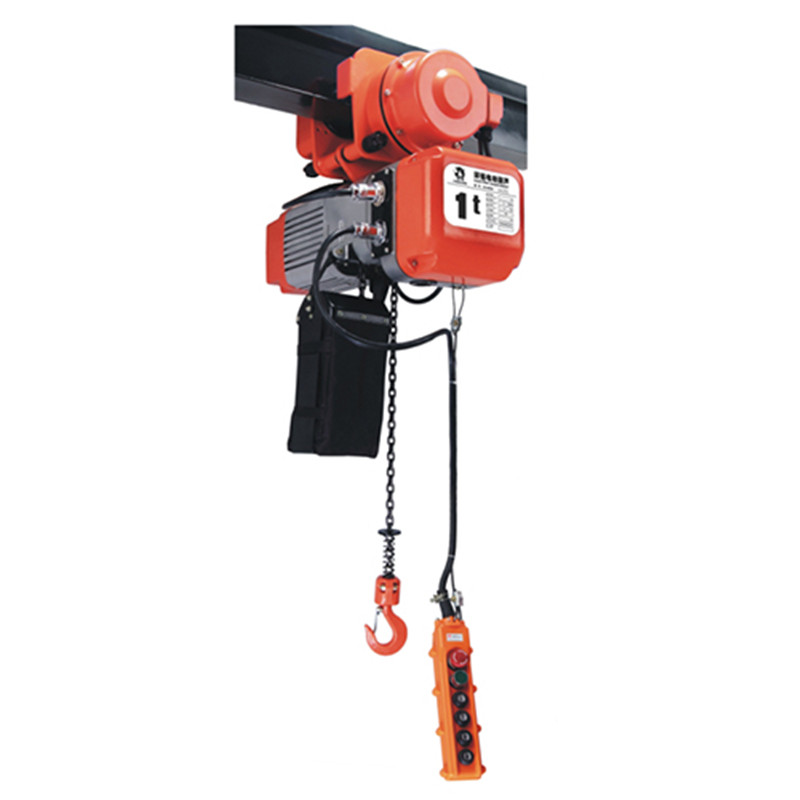

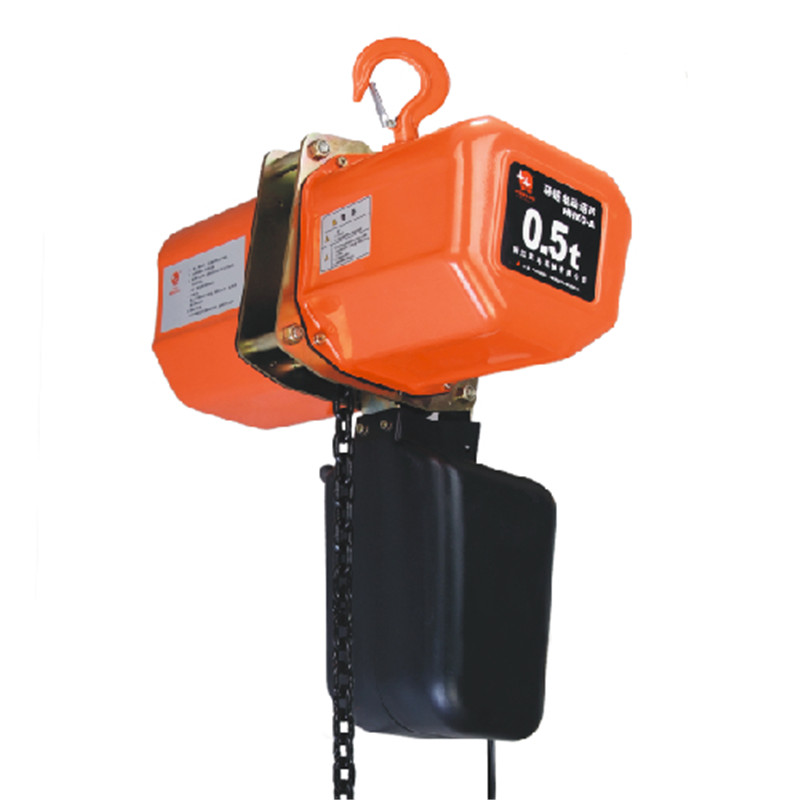

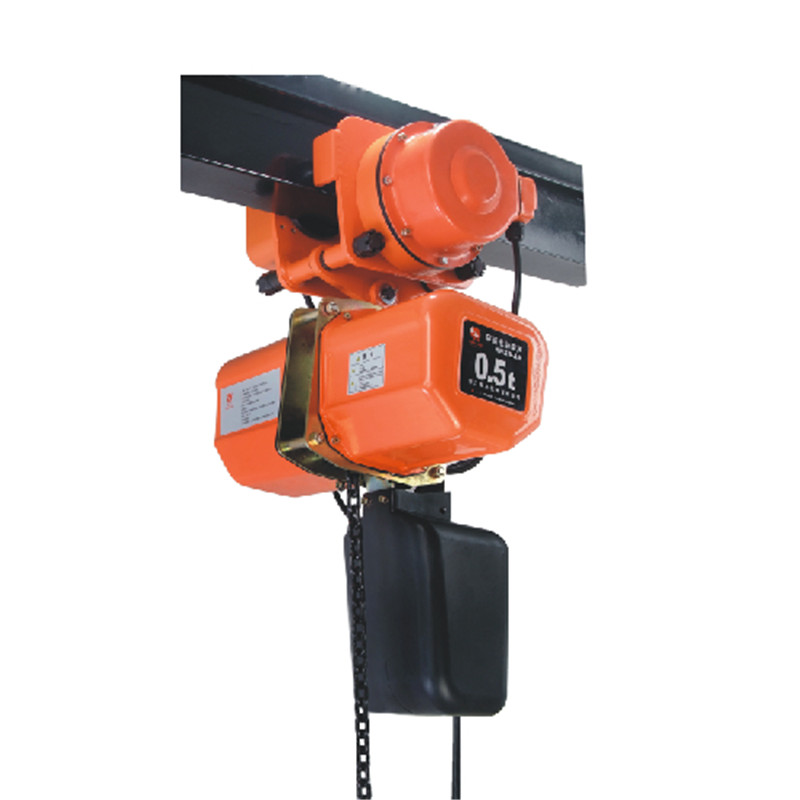

New Design Factory Sale Electric Chain Hoist
overview
Chain electric hoist is a kind of small-sized lifting equipment. It consists of motor, drvie mechanism and the sprocket. All chain electric hosits are produced based on international standard. The average Lifting weight of chain electric hoists is between 0.1 to 100 tons with lifting height is from 3 to 120 meters. Its characteristics: the performance of advanced structure, small volume, light weight, light weight, reliable performance, convenient operation, wide applicability. Chain electric hoist is mainly used in the workshop, warehouse, wind power, logistics, port, construction and other industries, used for lifting or loading and unloading of goods. It can also be convenient to lift heavy goods or repair big machines.
parameter
| Capacity (t) | Lifting Speed | Motor Rating | Lifting Height | Fall | Work Duty FEM/ISO |
| (m/min) | (kw) | (m) | |||
| 0.25 | 2.0/8.0 | 0.09/0.36 | 3~8 | 1/1 | M5 |
| 0.32 | 2.0/8.0 | 0.18/0.75 | 1/1 | M5 | |
| 0.5 | 2.0/8.0 | 0.18/0.75 | 1/1 | M5 | |
| 0.63 | 2.5/10 | 0.45/1.90 | 1/1 | M5 | |
| 1 | 2.5/10 | 0.45/1.90 | 1/1 | M5 | |
| 1.5 | 1.25/5.0 | 0.75/3.0 | 1/1 | M5 | |
| 2 | 1.25/5.0 | 0.45/1.90 | 1/1 | M5 | |
| 2.5 | 1.25/5.0 | 1.2/4.8 | 1/1 | M5 | |
| 3 | 1.25/5.0 | 0.75/3.0 | 1/1 | M5 | |
| 5 | 1.25/5.0 | 1.2/4.8 | 1/1 | M5 |
features
High security
–Mechanical overload limiter, elastic torque limiter, limit switches and friction clutch combined into a comprehensive security system to ensure the operator and product safety.
High reliability wire rope Electric Chain block Hoist
–Design Operating temperature -20 ℃ ~ + 60 ℃, can operate normally under high temperature , high load , and other harsh conditions . wire rope Electric Chain block Hoist wire rope Electric Chain block Hoist
High efficiency wire rope Electric Chain block Hoist
–Maximum lifting weight can reach 5t, maximum lifting height up to 12m, which can be more widely used.
Modular design wire rope Electric Chain block Hoist
–Aluminum casing, through finite element analysis to optimize the design, form a standard modular series, small size, light weight, high strength, easy to assembly, sealing well. wire rope Electric Chain block Hoist
Humanization design wire rope Electric Chain block Hoist
–Sprocket uses plug-in connectors for quick replacement of the entire sprocket without disassembling the motor or gear parts, thus greatly reducing downtime and easy for maintenance.
Maintenance free
–First electric plug braking then rely on brake to make the brake more quickly and smoothly, and also greatly reduces brake wear. Due to the small wear, there’s no need to adjust the brake and improves the life and reliability; maintenance-free for 10 years.
About KORIGCRANES
KORIGCRANES ( HENAN WEIHUA KORIG CRANES CO., LTD) located in crane hometown of China (cover more than 2/3 crane market in China), who is a trusted professional industry crane manufacturer and leading exporter. Specialized in design, manufacturing, installation and service of Overhead crane, Gantry crane, Port crane, Electric hoist etc, we have passed ISO 9001:2000, ISO 14001:2004, OHSAS 18001:1999, GB/T 19001-2000, GB/T 28001-2001, CE, SGS, GOST, TUV, BV and so on.
Product Application
To meet the demands of the oversea market, we independent research and development European type overhead crane, gantry crane; electrolytic aluminum multi-purpose overhead crane, hydro-power station crane etc. European type crane with light dead weight, compact structure, lower energy consumption etc. Many main performance reach the industry advanced level.
KORIGCRANES Widely used in machinery, metallurgy, mining, electric power, railway, petroleum, chemical, logistics and other industries. Service for hundreds of large enterprises and national key projects such as China Datang Corporation, China Guodian Corporation, SPIC, Aluminum Corporation Of China（CHALCO）, CNPC, Power China, China Coal, Three Gorges Group, China CRRC, Sinochem International, etc.
Our Market
Our cranes has been exported cranes to more than 110 countries for example Pakistan, Bangladesh, India, Vietnam, Thailand, Indonesia, Philippines, Malaysia、USA, Germany, France, Australia, Kenya, Ethiopia, Nigeria, Kazakhstan, Uzbekistan, Saudi Arabia、UAE、Bahrain、Brazil, Chile, Argentina, Peru etc and received good feedback from them. Very happy to be friends with each other come from all of the world and hope to establish long-terms good cooperation.
KORIGCRANES has steel pre-treatment production lines, automatic welding production lines, machining centers, assembly workshops, electrical workshops, and anti-corrosion workshops. Can independently complete the whole process of crane production.
Q. What’s the information should I provide when inquiry?
More details or drawings, better.
A: Lift capacity B: span C: lift height D: power source; other specials you give us will be more appreciated.
Q. How many operating methods for my selection?
Standard operating methods:
A: remote control with push buttons
B: cabin (space capsule seat) control with joystick. Choose any type as you like.
Q. Can this type work in hazardous environment?
A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q. Can you provide the serious lifting tools?
A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
Q. How can we install the crane?
A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
