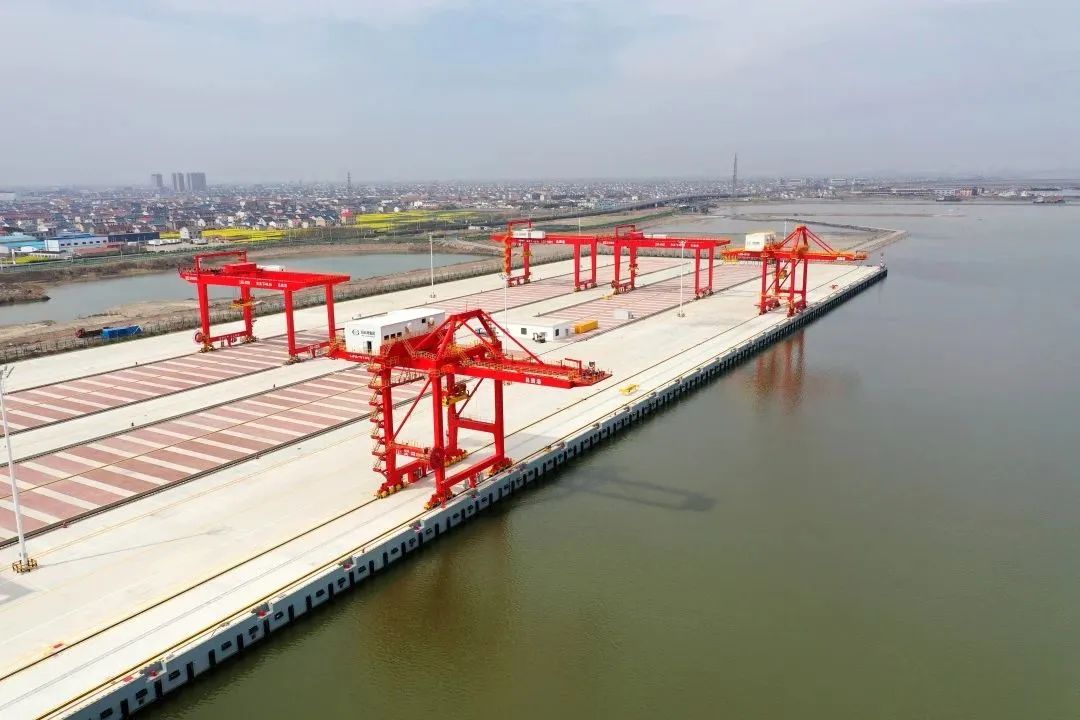

Lusi Port Area, a new outlet to the sea of Tongzhou Bay in Nantong, Jiangsu Province, is a major landmark project to build a new gateway to the opening up of “The Belt and Road”, a new hub of river-sea combined transport in the Yangtze River Economic Belt, and a new model of high-quality development along the Jiangsu coast. It is the first fully intelligent and unmanned container terminal in Jiangsu Province.
By virtue of high-quality port machinery products and crane management intelligent services, Weihua independently researched and developed multiple series of port machinery products to serve the front wharf and back yard container loading of Lusi Port, with the core strength to help the new outlet of Tongzhou Bay, Shanghai Yangshan Port and Ningbo Zhoushan Port group to form a new pattern of “one body and two wings” of the Yangtze River Delta port group. To create new and important growth poles for the coastal development of Jiangsu.

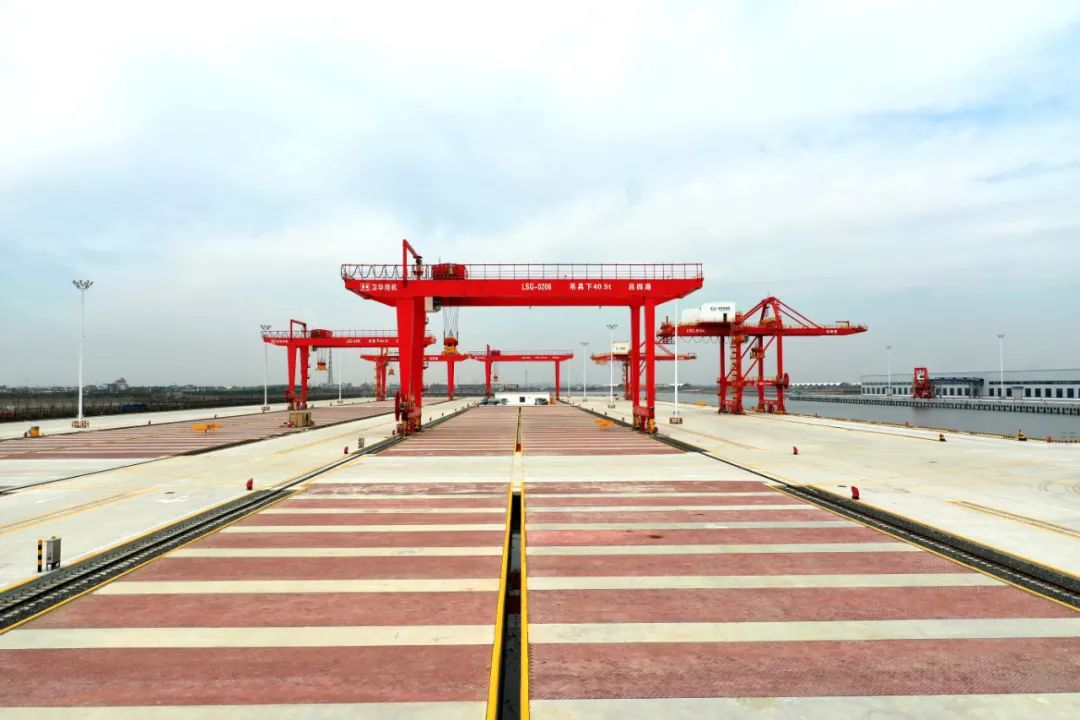

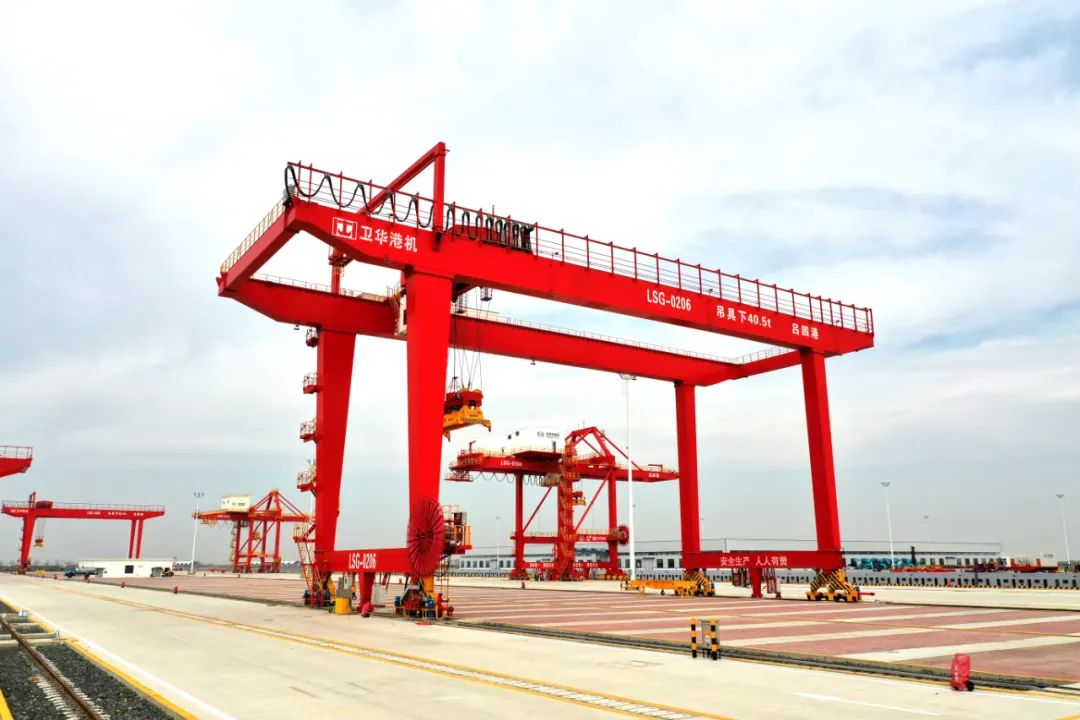

Rail Tyre Gantry Crane:
The main products include lifting mechanism, trolley operation, trolley operation, etc., which is used to undertake the container loading, unloading and transferring work at the back of the operation area of Lusi Port.
1. The low-speed braking system of the whole machine adopts a new type of hydraulic station brake with backpack, which has ultra-high safety factor and maintenance-free characteristics;
2. The flexible bidirectional anti-roll system is adopted for the hoisting and winding of the wire rope, which significantly reduces the swaying amount and improves the working efficiency and safety;
3. the main mechanism adopts frequency conversion speed regulation system, and has a perfect safety protection device, with high working efficiency, safety and reliability;
4. From transformers to motors, products with higher energy efficiency are selected. At the same time, vector control frequency converter system can convert excess energy into power grid, saving more than 15% of energy than ordinary crane products;
5. the driver’s cab, electrical room can monitor the crane operation data in real time, with operation information query, weighing data query, fault record query, fault history record retrieval and other functions.

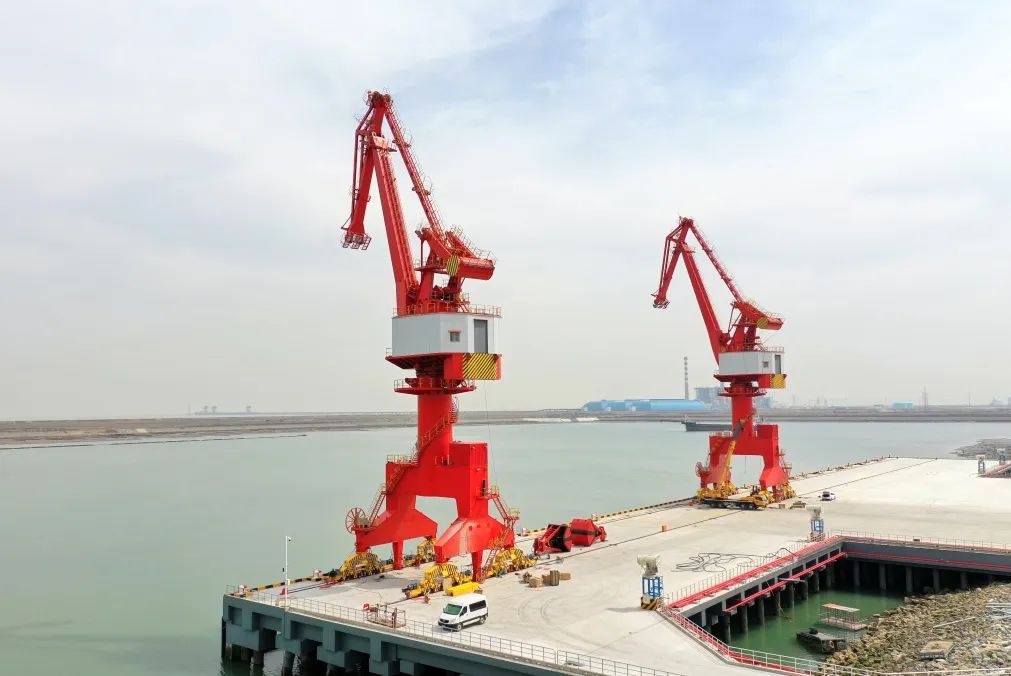

Four Link Portal Crane:
This product is a multi-purpose gantry crane with four-link combined boom structure. It is installed in the special track of Lusi Port wharf and is used for the unloading of bulk materials such as ore and coal of bulk cargo ships and the loading and unloading of general cargo at the wharf.
1, the product adopts the boom structure design with high stability and minimum horizontal drop of the weight when the amplitude changes;
2, the hook and the bulk grab as one, can realize the function of multi-purpose;
3, the main working mechanism adopts full digital AC frequency conversion, PLC control speed regulation, the application of intelligent path optimization technology, the working mechanism running speed, stable work, energy saving, high efficiency of equipment loading and unloading;
4, real-time monitoring of boom pitching, rotation, walking position and grab relative coordinates, complete emergency control, pedestrian collision prevention, rail collision prevention, grab collision prevention, overrun detection and other safety protection, to ensure safe and reliable operation.

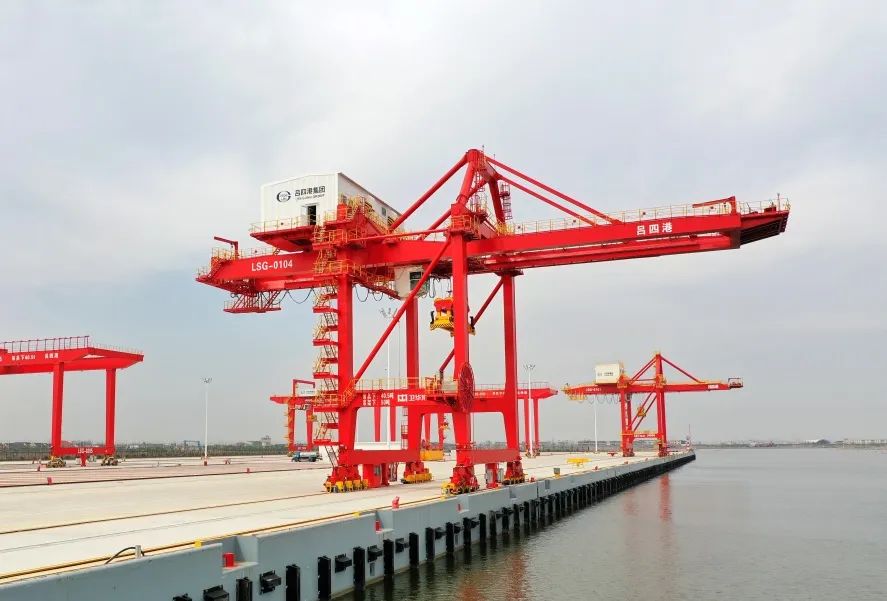

Quayside Container Crane:
The main mechanism of this product includes lifting mechanism, trolley traction, tilting device, trolley operation and emergency mechanism. The machine room is equipped with a full range of maintenance cranes for parts maintenance, which are used to undertake the container loading and unloading at the front of the wharf in the operation area of Lusi Port.
1, the whole machine adopts PLC control system, full frequency stepless speed regulation and fault monitoring system;
2. Electric control remote control interface is reserved for the reconstruction and addition of the terminal remote control system and its auxiliary system in the later stage, so as to realize the requirements of remote control and automatic intelligent loading and unloading;
3. Intelligent Chinese “status monitoring and control screen” is installed in the driver’s room to implement fault monitoring and provide troubleshooting help; To realize dynamic monitoring of running state and provide dynamic change graphic display; At the same time with safety information alarm, lubrication maintenance management and other functions.
Post time: Apr-21-2023
