QB Type Double Girder Overhead Crane for Explosion Proof Use
OVERVIEW

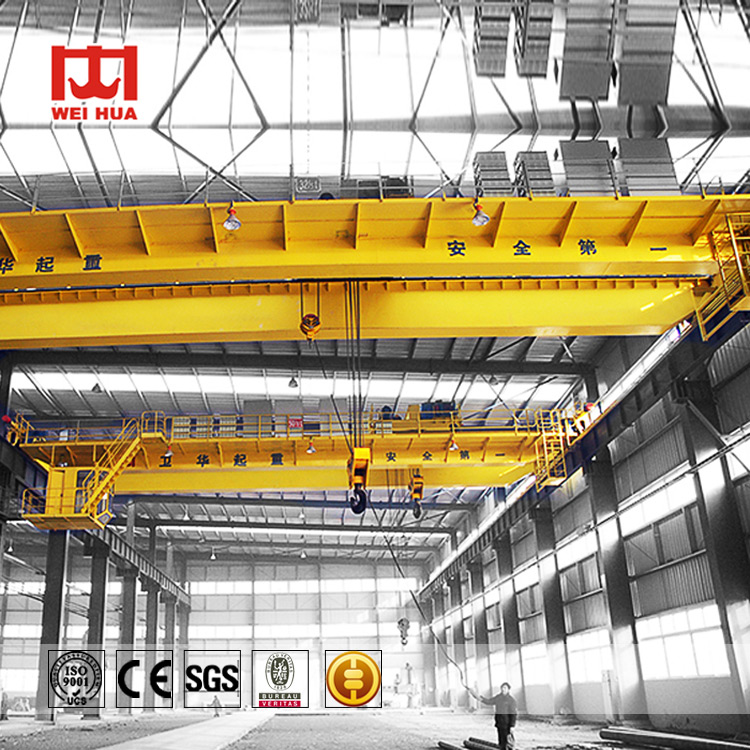

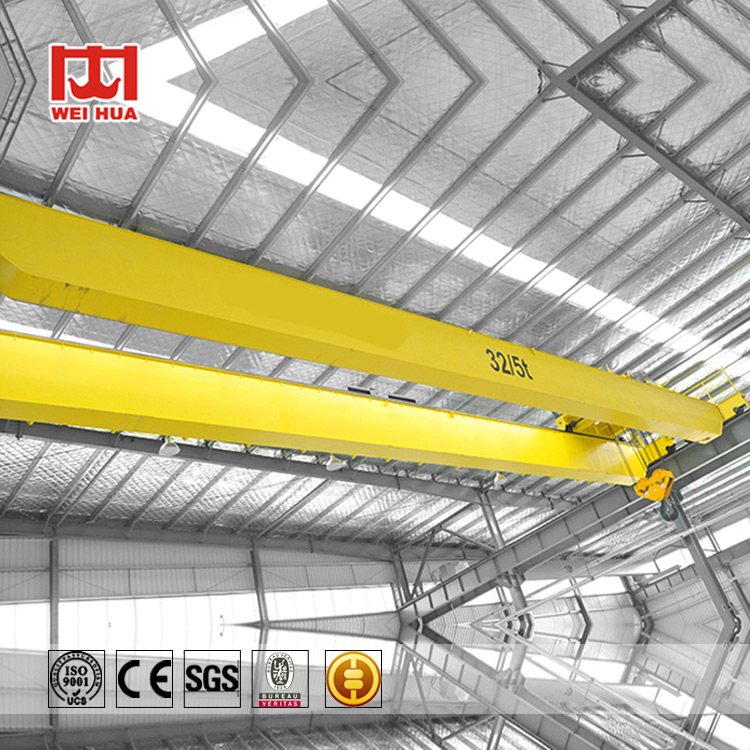

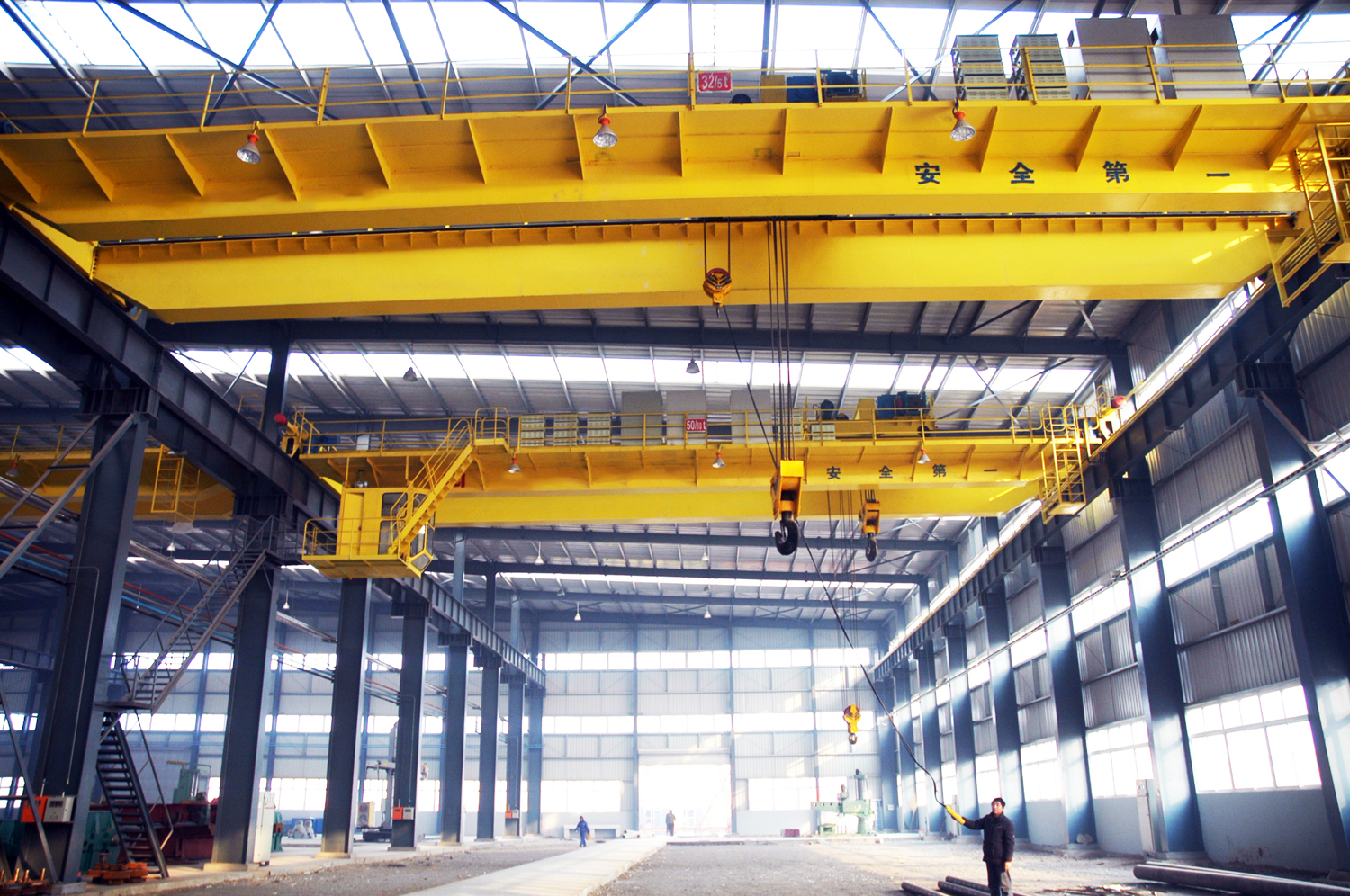

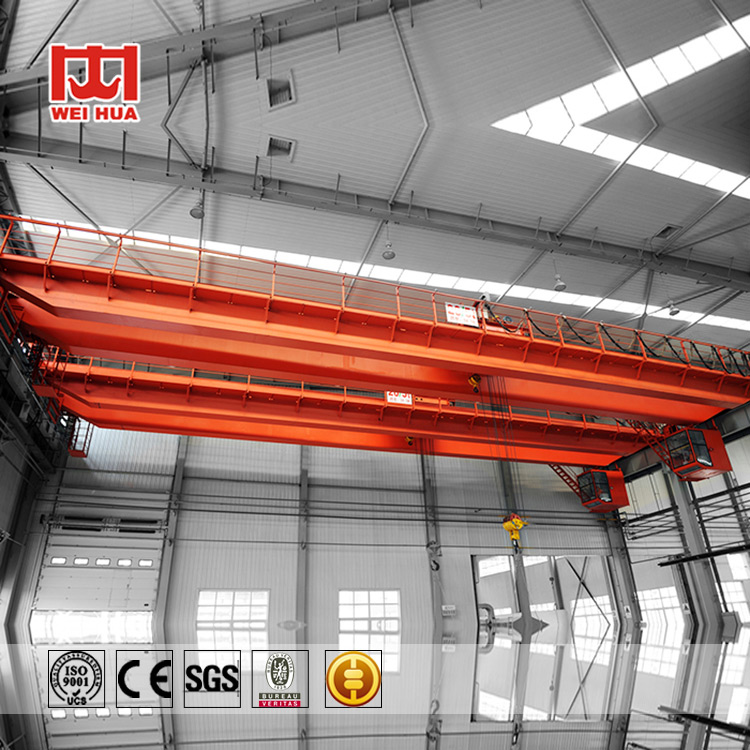

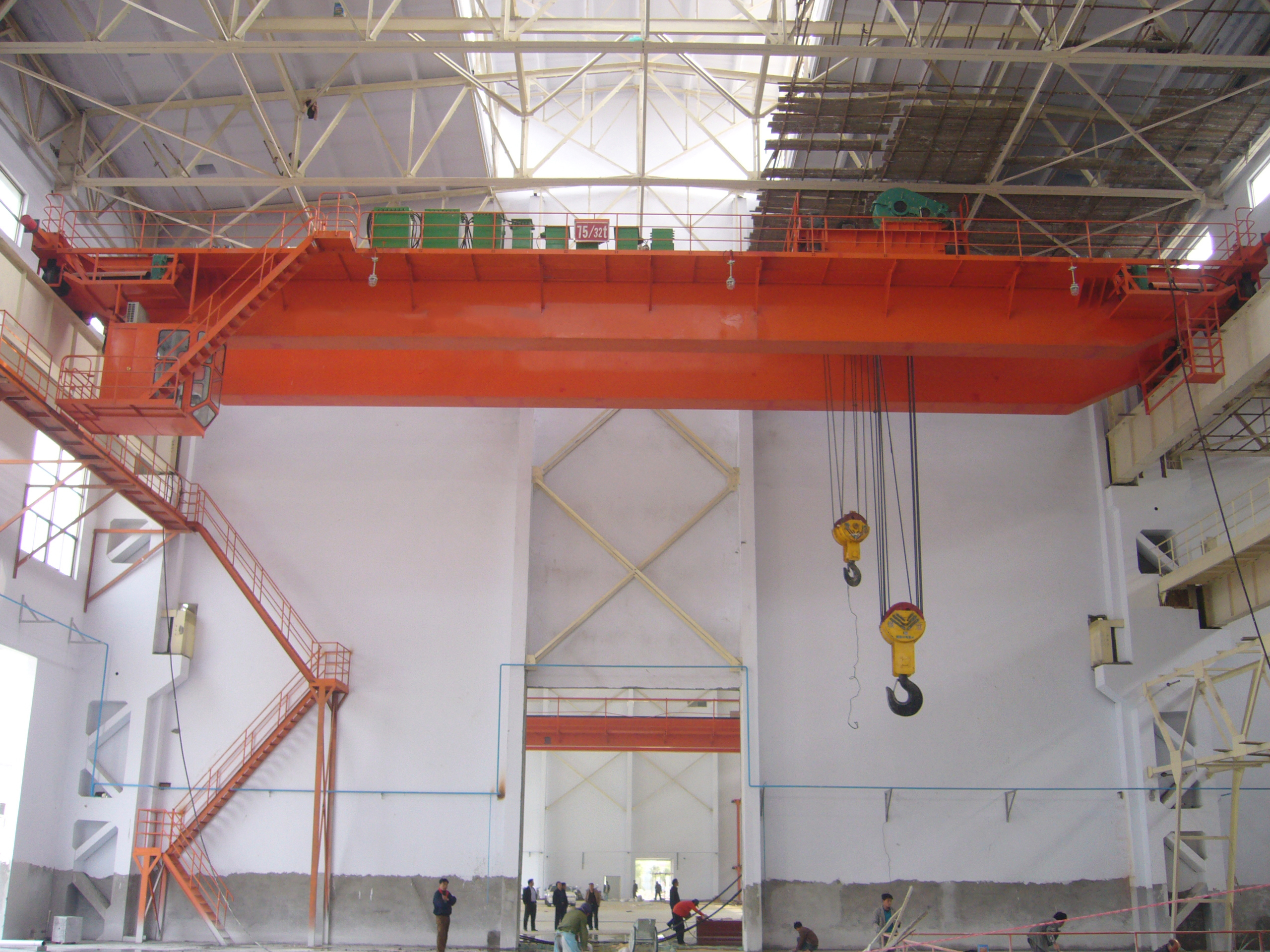

All the electric motors and electrical compoinents of QB type explosion-proof double girder overhead crane conforms to the prescriptions of GB3836.2-2000 explosion-proof electrical equipment for explosive gas atmospheres – Part 2: Flameproof type “d”. The performance of the whole machine complies with the requirements of the JB/T5897-2006 “Explosion-proof Bridge Crane” standard. The explosion-proof marks are ExdIIBT4, ExdIICT4. QB type explosion-proof double girder overhead crane has the same structuer as the QD type double girder overhead crane: two main girders, two end carriages, an electrical system and one electric trolley, etc.
specification
| Lifting Weight | t | 5 | 10 | 16/3.2 | 20/5 | 32/5 | 50/10 | ||||||||||||||||||||||||||
| Working Duty | A5 | ||||||||||||||||||||||||||||||||
| Span | m | 18 | 22 | 26 | 30 | 35 | 18 | 22 | 26 | 30 | 35 | 18 | 22 | 26 | 30 | 35 | 18 | 22 | 26 | 30 | 35 | 18 | 22 | 26 | 30 | 35 | 18 | 22 | 26 | 30 | 35 | ||
| Lifting Height | Main | 10 | 11 | 10 | 11 | 10 | 11 | 10 | 11 | 10 | 11 | 10 | 12 | ||||||||||||||||||||
| Aux. | 10.725 | 11.725 | 10.446 | 11.446 | 10.73 | 11.73 | 10.918 | 12.918 | |||||||||||||||||||||||||
| Speed | Hoisting | Main | m / min |
11.3 | 8.5 | 7.9 | 7.2 | 7.5 | 5.9 | ||||||||||||||||||||||||
| Aux | 14.6 | 15.4 | 15.4 | 10.4 | |||||||||||||||||||||||||||||
| Cross Travelling | 37.3 | 35.6 | 36.6 | 36.6 | 37 | 36 | |||||||||||||||||||||||||||
| Long Travelling | 37.3 | 39.7 | 40.1 | 39.7 | 39.7 | 37.3 | 39.7 | 39.4 | 38.5 | ||||||||||||||||||||||||
| Power | kw | 40.8 | 51.8 | 41.5 | 52.8 | 80 | 77 | 84 | 81 | 99.3 | 117.3 | 126.5 | |||||||||||||||||||||
| Dead Weight | t | 48 | 52 | 57 | 65 | 73 | 52 | 60 | 70 | 78 | 88 | 64 | 75 | 86 | 95 | 106 | 70 | 78 | 88 | 101 | 115 | 83 | 94 | 105 | 120 | 137 | 103 | 114 | 130 | 143 | 162 | ||
| Steel Track | 43kg/m/QU70 | ||||||||||||||||||||||||||||||||
| Power Source | 3phaseAC 380V 50Hz | ||||||||||||||||||||||||||||||||
FEATURES
Open structure, new style, beautiful outlooking;
Good in usability with long service life;
High lifting capacity, high working duty;
Flexible operating, safe and reliable;
Suitable for flammable and explosive environments.
About KORIGCRANES
KORIGCRANES ( HENAN WEIHUA KORIG CRANES CO., LTD) located in crane hometown of China (cover more than 2/3 crane market in China), who is a trusted professional industry crane manufacturer and leading exporter. Specialized in design, manufacturing, installation and service of Overhead crane, Gantry crane, Port crane, Electric hoist etc, we have passed ISO 9001:2000, ISO 14001:2004, OHSAS 18001:1999, GB/T 19001-2000, GB/T 28001-2001, CE, SGS, GOST, TUV, BV and so on.
Product Application
To meet the demands of the oversea market, we independent research and development European type overhead crane, gantry crane; electrolytic aluminum multi-purpose overhead crane, hydro-power station crane etc. European type crane with light dead weight, compact structure, lower energy consumption etc. Many main performance reach the industry advanced level.
KORIGCRANES Widely used in machinery, metallurgy, mining, electric power, railway, petroleum, chemical, logistics and other industries. Service for hundreds of large enterprises and national key projects such as China Datang Corporation, China Guodian Corporation, SPIC, Aluminum Corporation Of China（CHALCO）, CNPC, Power China, China Coal, Three Gorges Group, China CRRC, Sinochem International, etc.
Our Market
Our cranes has been exported cranes to more than 110 countries for example Pakistan, Bangladesh, India, Vietnam, Thailand, Indonesia, Philippines, Malaysia、USA, Germany, France, Australia, Kenya, Ethiopia, Nigeria, Kazakhstan, Uzbekistan, Saudi Arabia、UAE、Bahrain、Brazil, Chile, Argentina, Peru etc and received good feedback from them. Very happy to be friends with each other come from all of the world and hope to establish long-terms good cooperation.
KORIGCRANES has steel pre-treatment production lines, automatic welding production lines, machining centers, assembly workshops, electrical workshops, and anti-corrosion workshops. Can independently complete the whole process of crane production.
Q. What’s the information should I provide when inquiry?
More details or drawings, better.
A: Lift capacity B: span C: lift height D: power source; other specials you give us will be more appreciated.
Q. How many operating methods for my selection?
Standard operating methods:
A: remote control with push buttons
B: cabin (space capsule seat) control with joystick. Choose any type as you like.
Q. Can this type work in hazardous environment?
A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q. Can you provide the serious lifting tools?
A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
Q. How can we install the crane?
A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
