QN model two purpose double girder overhead crane with grab and hook

Short Description:

QN model overhead crane is a kind of crane which with two purposes for grab and hook. It is a combination of QD type bridge machine and QZ type grab crane.


  • Brand Name: KORIG
  • Place of Origin: Henan, China
  • Customize Service: Available
  • Certification: CE ISO SGS
  • Min.Order Quantity: 1 set
  • Payment Terms: L/C, T/T, Western Union
  • Delivery Time: 20~30 Workdays
  • Supply Ability: 1000 Set/Month
  • Port of Shipment: Qingdao Port, Tianjin Port, Shanghai Port
  • Packaging Details: Electrical parts are packed in wooden boxes, and steel structural parts are packed in color tarpaulin.
  • Product Detail

    company information

    FAQ

    Product Tags

    Introduction

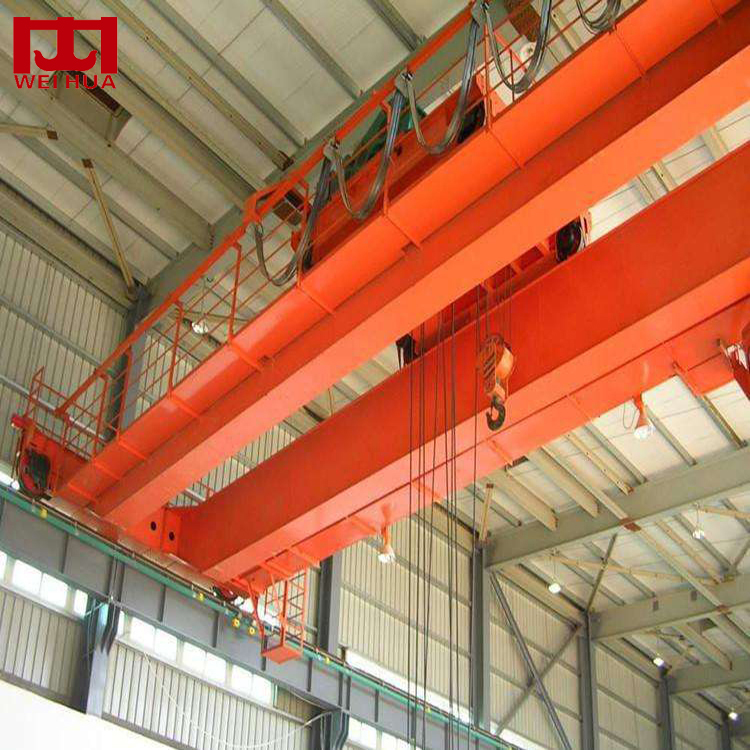

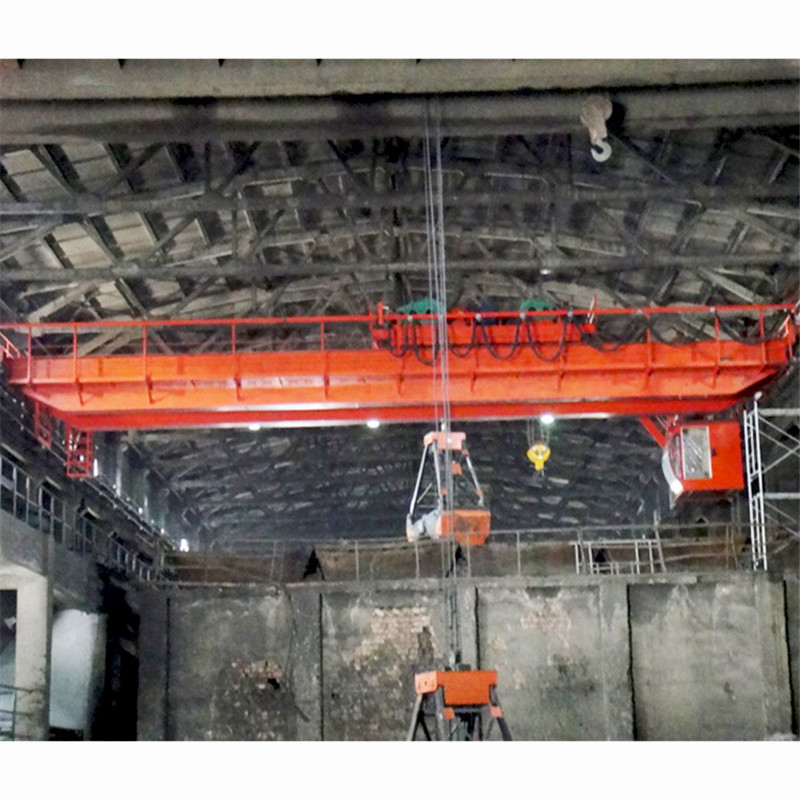

    QN type grapple hook double-purpose bridge crane refers to a double girder bridge crane that can use the hook as a spreader and can also use the grapple as a spreader. Lifting weight 5 ~ 16t; span 10.5m ~ 50m; working level A6 ~ A8; widely used in lifting and transportation, metallurgy, electric power, port terminals and other industries, especially suitable for the metallurgical industry feeding operation conditions.

    parameter

    item
    value
    Feature
    Bridge Crane
    Applicable Industries
    Building Material Shops, Machinery Repair Shops, Construction works , Energy & Mining
    After Warranty Service
    Video technical support, Online support
    Local Service Location
    United States, Russia, Malaysia, Kenya, Argentina, Chile, Colombia, Algeria, Nigeria
    Showroom Location
    United Kingdom, United States, Italy, Germany, Philippines, Indonesia, Spain, Morocco, Chile, Romania, South Africa, Nigeria
    Video outgoing-inspection
    Provided
    Machinery Test Report
    Provided
    Marketing Type
    Hot Product 2021
    Warranty of core components
    1.5 years
    Core Components
    PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
    Condition
    New
    Max. Lifting Load
    16/16t
    Max. Lifting Height
    no limited
    Span
    10.5-31.5m
    Place of Origin
    China
    Brand Name
    Yuntian
    Certification
    CE GOST ISO,TU
    Warranty
    1 Year
    Field maintenance and repair service
    Weight (KG)
    10000kg
    All crane GB/T standard
    Pass
    All crane system current protection
    overload protection
    Crane spare parts
    Could supply
    Crane feature
    Two lifting mechanism
    Control method
    Wireless Remote Control+Cab Control
    Painting Color
    Coustomized
    Electrical system
    Voltage lower protection function
    Brake
    Emergency stop system
    Material
    Q345 Steel
    Capacity
    5/5-16/16ton

    sketch design

    QN model two purpose double girder overhead crane with grab and hook (2)



    features

    1). Reasonable structure,strong bearing capacity

    2). Low noise, soft starting and stopping

    3). Safe and reliable operation

    4). Commodious cabin and open view

    5). Low cost maintenance, long working life

    6). Strong box type,welding by machine hand.

    7). Wheels are vacuum casting,medium frequency quenching

    8). Wheels,wirerope drum,gears, couplings are processed by CNC manchine center, TOP quality control.

    9). Heavy duty slipring motor,Or Sq.cage motor with VVVF, IP54 or IP44,insulation class F or H,soft starting and smooth running.

    10). Siemens main electric parts are used for durable and safe operation

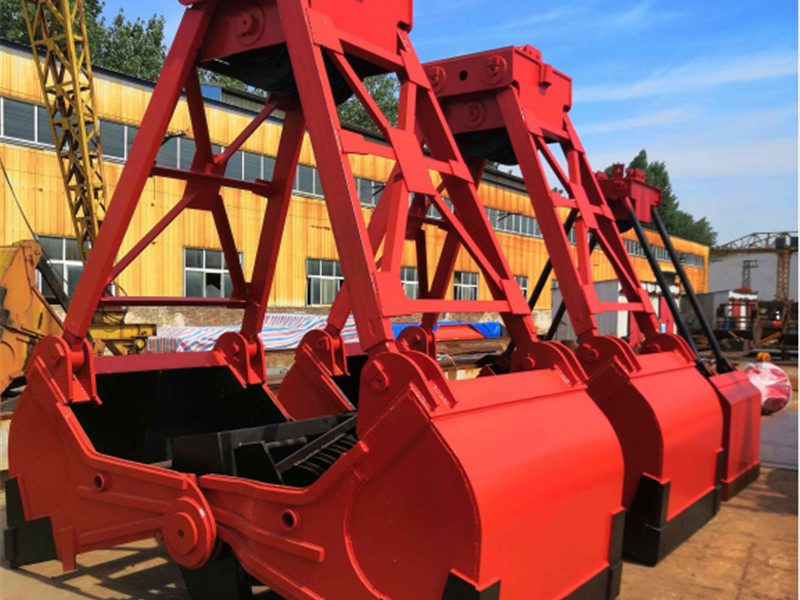

    • QN model two purpose double girder overhead crane with grab and hook03

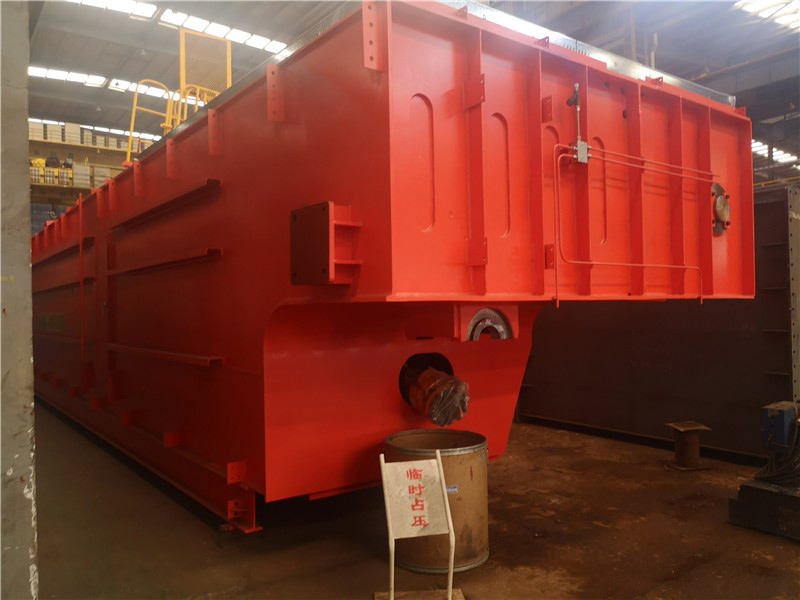

    • cof

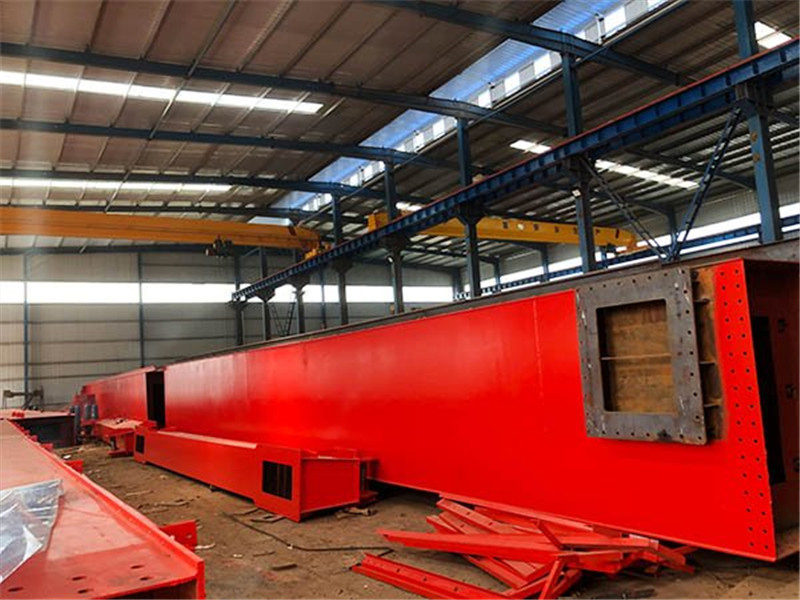

    • QN model two purpose double girder overhead crane with grab and hook02

  • Previous:
  • Next:

  • About KORIGCRANES

    KORIGCRANES ( HENAN WEIHUA KORIG CRANES CO., LTD) located in crane hometown of China (cover more than 2/3 crane market in China), who is a trusted professional industry crane manufacturer and leading exporter. Specialized in design, manufacturing, installation and service of Overhead crane, Gantry crane, Port crane, Electric hoist etc, we have passed ISO 9001:2000, ISO 14001:2004, OHSAS 18001:1999, GB/T 19001-2000, GB/T 28001-2001, CE, SGS, GOST, TUV, BV and so on.

    Product Application

    To meet the demands of the oversea market, we independent research and development European type overhead crane, gantry crane; electrolytic aluminum multi-purpose overhead crane, hydro-power station crane etc. European type crane with light dead weight, compact structure, lower energy consumption etc. Many main performance reach the industry advanced level.
    KORIGCRANES Widely used in machinery, metallurgy, mining, electric power, railway, petroleum, chemical, logistics and other industries. Service for hundreds of large enterprises and national key projects such as China Datang Corporation, China Guodian Corporation, SPIC, Aluminum Corporation Of China(CHALCO), CNPC, Power China, China Coal, Three Gorges Group, China CRRC, Sinochem International, etc.

    Our Market

    Our cranes has been exported cranes to more than 110 countries for example Pakistan, Bangladesh, India, Vietnam, Thailand, Indonesia, Philippines, Malaysia、USA, Germany, France, Australia, Kenya, Ethiopia, Nigeria, Kazakhstan, Uzbekistan, Saudi Arabia、UAE、Bahrain、Brazil, Chile, Argentina, Peru etc and received good feedback from them. Very happy to be friends with each other come from all of the world and hope to establish long-terms good cooperation.

    KORIGCRANES has steel pre-treatment production lines, automatic welding production lines, machining centers, assembly workshops, electrical workshops, and anti-corrosion workshops. Can independently complete the whole process of crane production.

    Q. What’s the information should I provide when inquiry?
    More details or drawings, better.
    A: Lift capacity B: span C: lift height D: power source; other specials you give us will be more appreciated.

    Q. How many operating methods for my selection?
    Standard operating methods:
    A: remote control with push buttons
    B: cabin (space capsule seat) control with joystick. Choose any type as you like.

    Q. Can this type work in hazardous environment?
    A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.

    Q. Can you provide the serious lifting tools?
    A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!

    Q. How can we install the crane?
    A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
