QP model two purpose double girder overhead crane with grab and magnet
overview

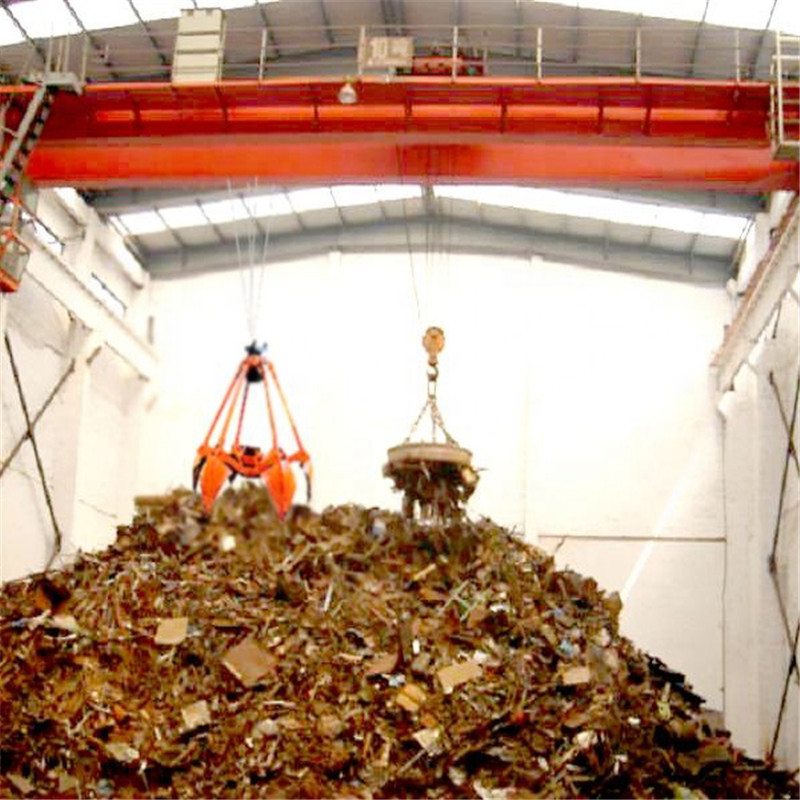

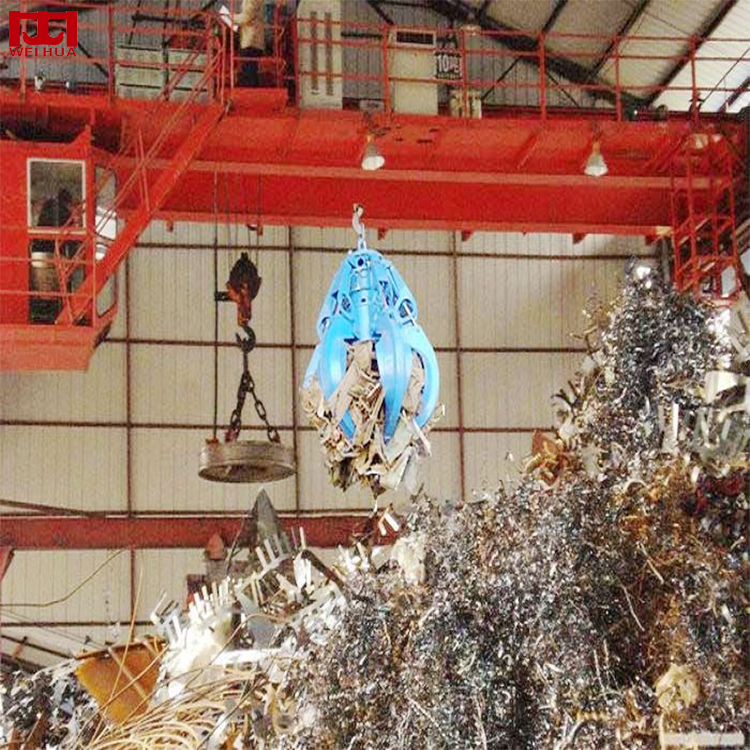

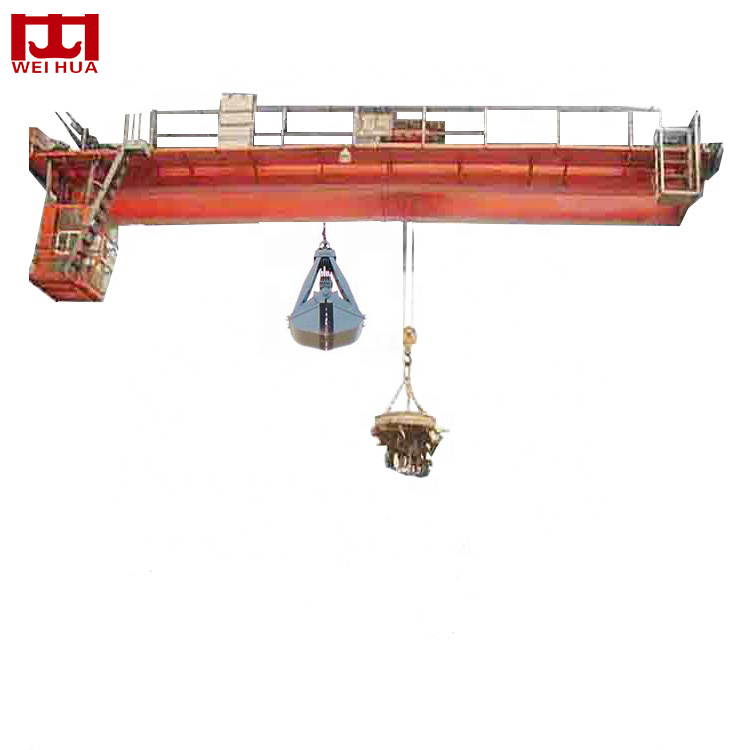

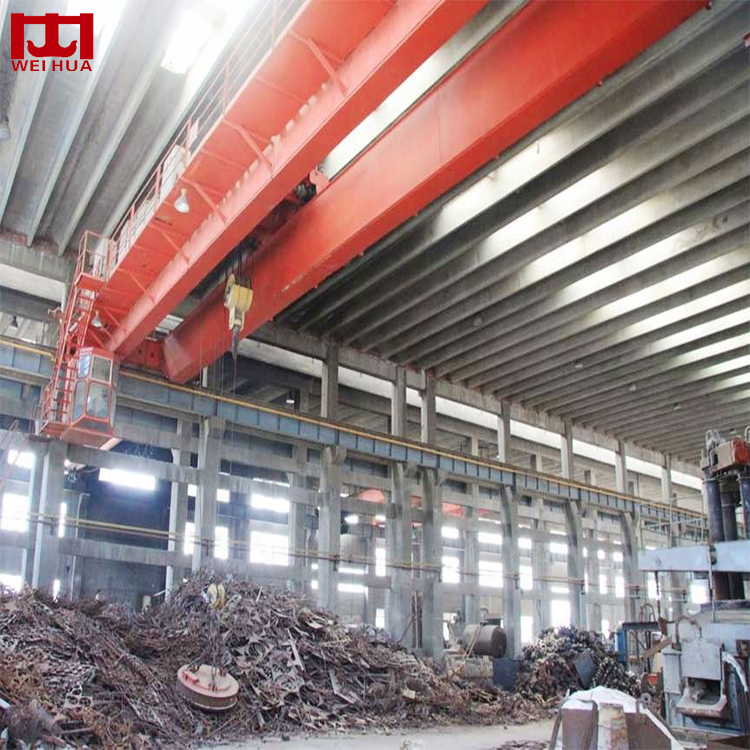

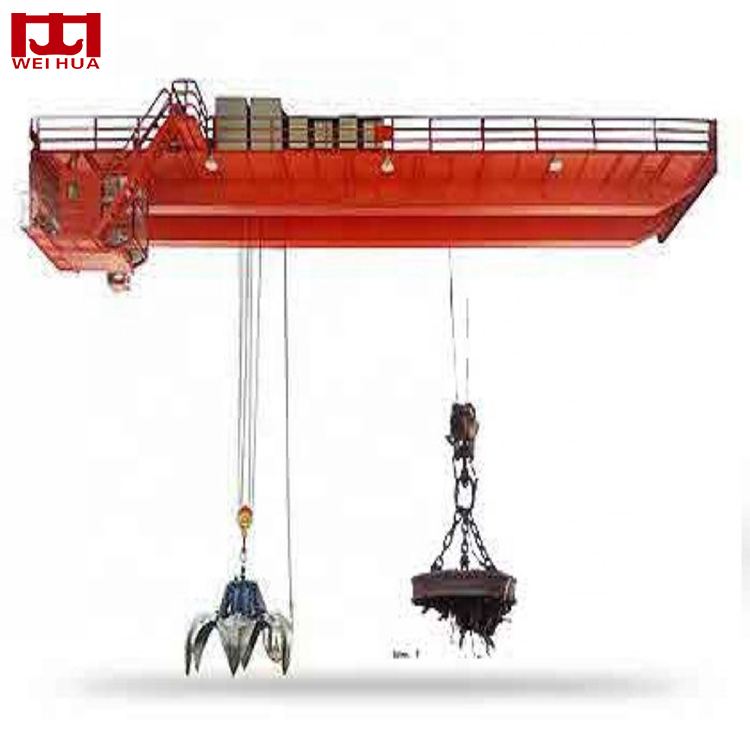

Double Beam Grab,Bucket,Grapple and Magnet, Magnetic,Electromagnetic two purpose EOT Crane, Overhead Bridge Traveling Crane is widely used to transport, assemble, load and unload incompact goods in mine, port, factory, workshop, warehouses, and goods yard, etc. Grab,Bucket,Grapple open direction is divided into parallel and vertical with main beam.The winch trolley wiht Magnet,Magnetic,Electromagnetic Chuck and the grab can be double or four wire rope, mechanical or electric hydraulic type according to different work duty and materials.
parameter
|
QP Grapple and Magnet Overhead Crane |
|||||
| Lifting Capacity | 5/5 Ton | 10/10 Ton | 16/16 Ton | ||
| Span M | 10.5-31.5 | ||||
| Working Duty | ISO A6 & FEM 3m | ||||
| Lifting height M | Grab | 20 | 18 | 22 | |
| Magnet Chuck | 16 | 22 | 22 | ||
| Speed m/min | Lifting | Grab | 40.1 | 40 | 41.8 |
| Magnet Chuck | 15.6 | 10.4 | 13 | ||
| Trolley travelling | 37.2 | 43.8 | 44.6 | ||
| Bridge travelling | 93.7 | 76 | 75.3 | ||
| Motor | Lifting | Grab | YZR225M-8/22 | YZR225S-10/37 | YZR315M-10/75 |
| Magnet Chuck | YZR180L-6/15 | YZR200L-6/22 | YZR225M1-6/37 | ||
| Trolley travelling | YZR225M-8/22 | YZR225M-8/22 | YZR225M-8/22 | ||
| Crane travelling | YZR160M-6/7.5*2 | YZR160L-6/11*2 | YZR160L-6/11*2 | ||
| Weight Ton | Trolley | 8.4 | 13.3 | 21.2 | |
| Total Weight | 24.7~45.7 | 29.3~51.2 | 24.5~74.2 | ||
| Power Source |
220V,380V,400V,415,440V,50 or 60HZ,3 Phase |
||||
features
1. Two lifting mechanism, one is for the grab, bucket, grapple; the other is for magnet, magnetic, electromagnetic plate.
2. Simple structure in linear type, easy in installation and maintain.
3. Heavy duty, soft start, 3-5 speeds to operate, very stable to lift and running.
4. Strong box type steel structure.
5. Full safety system as follows:
Weight overload protection; Emergency stop system; Over current protection, Short-circuit protection; Phase sequence protection; Zero position protection; Voltage loss protection; Limit switch and stopper for crane long traveling and cross traveling; Lifting overhigh and overlow limit switch Six direction movement.
About KORIGCRANES
KORIGCRANES ( HENAN WEIHUA KORIG CRANES CO., LTD) located in crane hometown of China (cover more than 2/3 crane market in China), who is a trusted professional industry crane manufacturer and leading exporter. Specialized in design, manufacturing, installation and service of Overhead crane, Gantry crane, Port crane, Electric hoist etc, we have passed ISO 9001:2000, ISO 14001:2004, OHSAS 18001:1999, GB/T 19001-2000, GB/T 28001-2001, CE, SGS, GOST, TUV, BV and so on.
Product Application
To meet the demands of the oversea market, we independent research and development European type overhead crane, gantry crane; electrolytic aluminum multi-purpose overhead crane, hydro-power station crane etc. European type crane with light dead weight, compact structure, lower energy consumption etc. Many main performance reach the industry advanced level.
KORIGCRANES Widely used in machinery, metallurgy, mining, electric power, railway, petroleum, chemical, logistics and other industries. Service for hundreds of large enterprises and national key projects such as China Datang Corporation, China Guodian Corporation, SPIC, Aluminum Corporation Of China（CHALCO）, CNPC, Power China, China Coal, Three Gorges Group, China CRRC, Sinochem International, etc.
Our Market
Our cranes has been exported cranes to more than 110 countries for example Pakistan, Bangladesh, India, Vietnam, Thailand, Indonesia, Philippines, Malaysia、USA, Germany, France, Australia, Kenya, Ethiopia, Nigeria, Kazakhstan, Uzbekistan, Saudi Arabia、UAE、Bahrain、Brazil, Chile, Argentina, Peru etc and received good feedback from them. Very happy to be friends with each other come from all of the world and hope to establish long-terms good cooperation.
KORIGCRANES has steel pre-treatment production lines, automatic welding production lines, machining centers, assembly workshops, electrical workshops, and anti-corrosion workshops. Can independently complete the whole process of crane production.
Q. What’s the information should I provide when inquiry?
More details or drawings, better.
A: Lift capacity B: span C: lift height D: power source; other specials you give us will be more appreciated.
Q. How many operating methods for my selection?
Standard operating methods:
A: remote control with push buttons
B: cabin (space capsule seat) control with joystick. Choose any type as you like.
Q. Can this type work in hazardous environment?
A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q. Can you provide the serious lifting tools?
A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
Q. How can we install the crane?
A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
