RTG Rubber Tyre Container Gantry Crane
overview

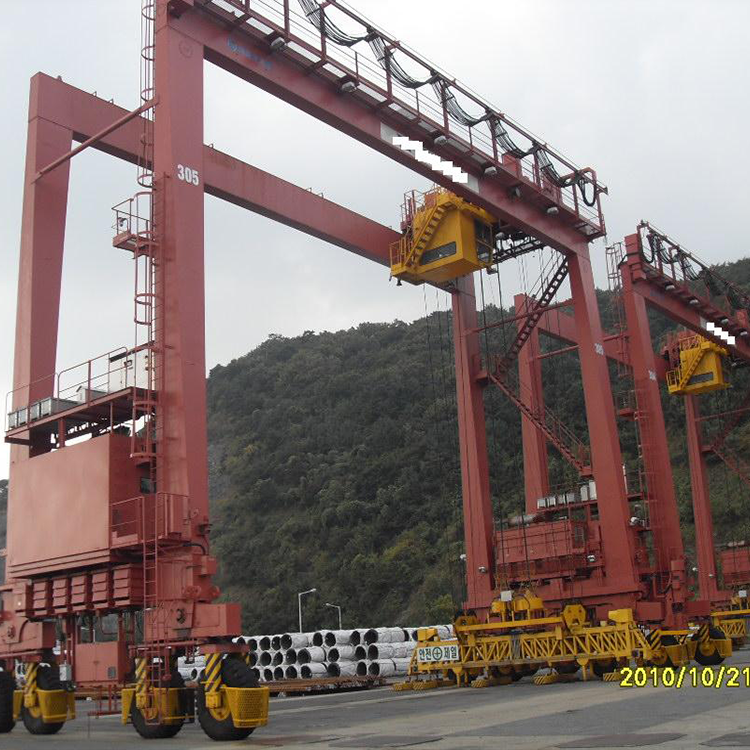

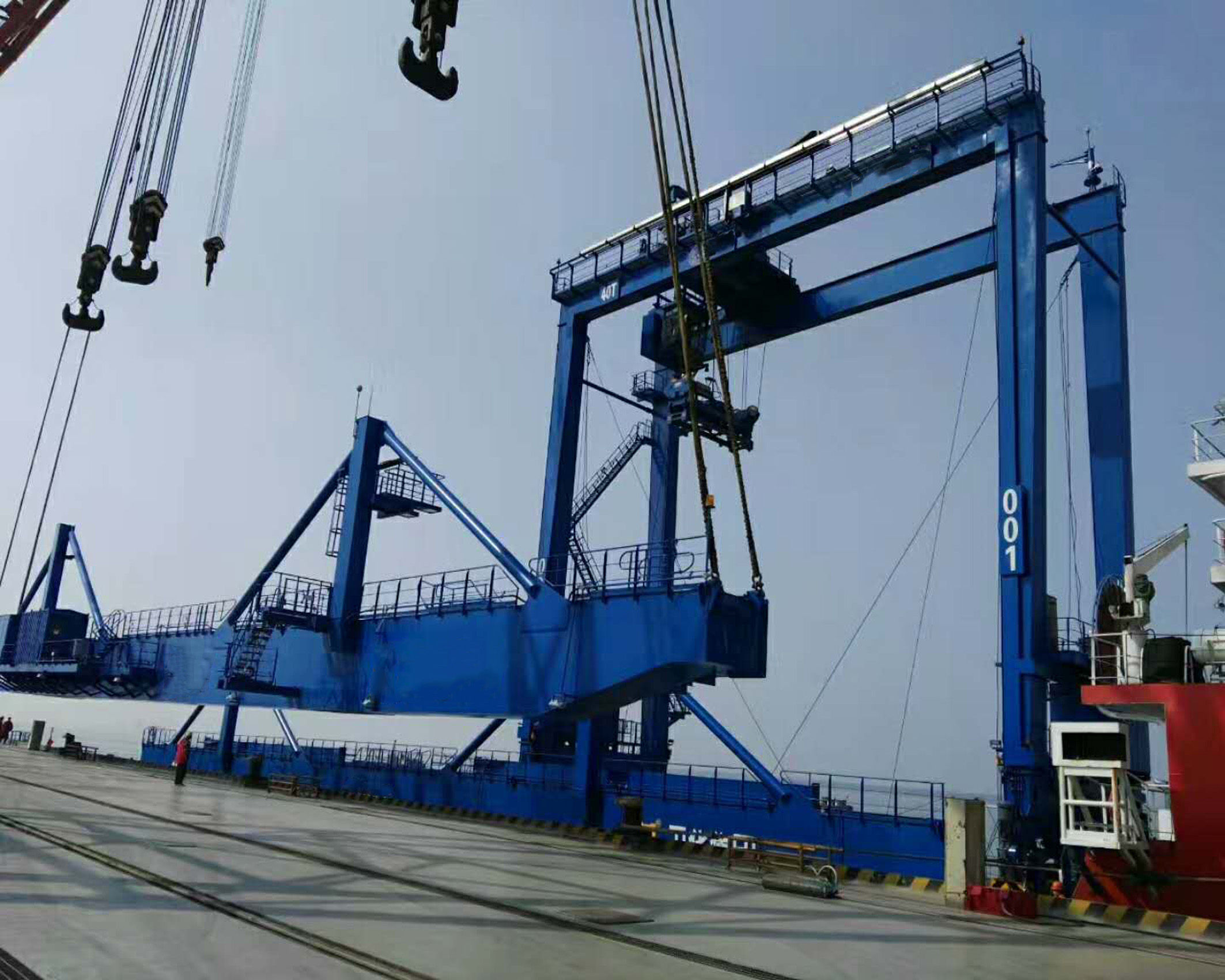

The rubber tyre container gantry crane (refered to “RTG” as below) is used to offload, stack and load 20ft and 40ft containers. The crane contains three mechanisms: hoisting, trolley travelling and gantry travelling. The trolley running along the track which mounted on gantry beam is capable to serve among legs. The crane is able to make straight movement along rails.
Full hydraulic drive for crane traveling mechanism with Step less speed change. The long traveling use hydraulic closed circuit with good transmission efficiency, less fault. There are safety indicator and overlord limiter to ensure safety of operators and products. All operation are controlled by CAN-BUS control.
The crane is equipped with appropriate container spreader, which should be able to handle single unit 20ft and 40 ft containers；Or twin-lift container;
Hoisting mechanism and trolley travel are able to work simultaneously or separately with load; the same applies to gantry travel and trolley travel.
Electrical drive of main working mechanism equipped with full digital AC frequency convertor, PLC speed governor and constant power adjustment device for hoisting mechanism.
Technical Parameter Table
|
Model |
LJ35/40-23 |
Light Type LJ40-32 |
|
Lifting Capacity( under spreader)(t) |
35, 40 |
40 |
|
Work Duty |
A7, A8 |
A6, A7 |
|
Span (m) |
23, 47 |
23, 47 |
|
Lifting Height (m) |
12.2~17.8 |
16.5 |
|
Stack Layers/Passing Layers |
3/4~5/6 |
5/6 |
|
Container Model |
20′,40′, 45′ |
20′,40′, 45′ |
|
Spreader Rotating Angle |
±5° |
±5° |
|
Hoisting Speed (m/min) |
13/26， 23/52 |
12/18, 18/28 |
|
Cross Travel Speed (m/min) |
50，70 |
24 |
|
Long Travel Speed (m/min) |
Full Load-90, Without Load-130 |
Full Load-20 Without Load-40 |
|
Max. Wheel Load (KN) |
310 |
310 |
|
Total Rating (KW) |
150, 230 |
110, 150 |
|
Power Supply |
Electric, Diesel Engine, Electric-disel Engine |
|

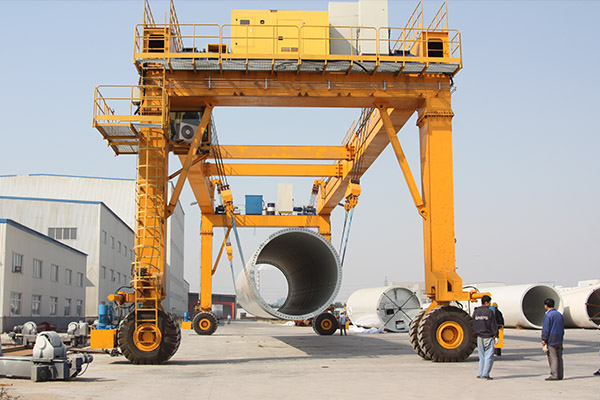

Features of RTG
1.Handle 20ft,40ft,45ft container.
2. All mechanism are interlock to ensure operation safety;
3.Wind cable,electric hydraulic rail clamp,anchor, lighting rod etc.as safety device.
4. PLC control, AC frequency speed control, stable and reliable running;
5. Diesel engine power ;
6. Adequate protection devices, communication and lighting system.
7.Crane Monitoring Management system (CMS) to monitor each mechanism working condition and fault diagnose;
PAINTING
The RTG shall use the zinc epoxy painting system.
They paint could guarantee a minimum paint life of minimum 5 years against cracks, rusty, peeling and discolourtion.
Every surface of metal have surface cleaning according to standard sis st3 or sa2.5. Then they are
painted with one coat of epoxy zinc rich primer with dry film thickness of 15 microns.
The primer coat – shall be painted with one coat epoxy zinc rich primer, dry film thickness of 70 microns.
The intermediate paint shall be painted with one coat epoxy micaceous iron oxide, dry film thickness of 100 microns.The finish coat shall be painted with two coats, poly urethane, the thickness of each coat is 50 microns.the total dry film thickness shall be not less than 285 microns to
Crane Management System (CMS)
The crane management system shall be full computerised operation, complete with sensors and transducers which shall be installed permanently on each crane and work in conjunction with the plc. provide with the monitor to monitoring diagnostics of crane, telling the data collection on the crane’s operating system, operated jointly with the device at least including the electrical power supply device, motor controls, operator control, motor, gear reducers and etc., such programme shall be flexible enough to change or modify by the operator at later stage.
Having following function.
1.Condition Monitoring
2.Fault Diagnosis
3.Store the record and display system of the RTG
4.Preventive maintenance
Outline Drawing
About KORIGCRANES
KORIGCRANES ( HENAN WEIHUA KORIG CRANES CO., LTD) located in crane hometown of China (cover more than 2/3 crane market in China), who is a trusted professional industry crane manufacturer and leading exporter. Specialized in design, manufacturing, installation and service of Overhead crane, Gantry crane, Port crane, Electric hoist etc, we have passed ISO 9001:2000, ISO 14001:2004, OHSAS 18001:1999, GB/T 19001-2000, GB/T 28001-2001, CE, SGS, GOST, TUV, BV and so on.
Product Application
To meet the demands of the oversea market, we independent research and development European type overhead crane, gantry crane; electrolytic aluminum multi-purpose overhead crane, hydro-power station crane etc. European type crane with light dead weight, compact structure, lower energy consumption etc. Many main performance reach the industry advanced level.
KORIGCRANES Widely used in machinery, metallurgy, mining, electric power, railway, petroleum, chemical, logistics and other industries. Service for hundreds of large enterprises and national key projects such as China Datang Corporation, China Guodian Corporation, SPIC, Aluminum Corporation Of China（CHALCO）, CNPC, Power China, China Coal, Three Gorges Group, China CRRC, Sinochem International, etc.
Our Market
Our cranes has been exported cranes to more than 110 countries for example Pakistan, Bangladesh, India, Vietnam, Thailand, Indonesia, Philippines, Malaysia、USA, Germany, France, Australia, Kenya, Ethiopia, Nigeria, Kazakhstan, Uzbekistan, Saudi Arabia、UAE、Bahrain、Brazil, Chile, Argentina, Peru etc and received good feedback from them. Very happy to be friends with each other come from all of the world and hope to establish long-terms good cooperation.
KORIGCRANES has steel pre-treatment production lines, automatic welding production lines, machining centers, assembly workshops, electrical workshops, and anti-corrosion workshops. Can independently complete the whole process of crane production.
Q. What’s the information should I provide when inquiry?
More details or drawings, better.
A: Lift capacity B: span C: lift height D: power source; other specials you give us will be more appreciated.
Q. How many operating methods for my selection?
Standard operating methods:
A: remote control with push buttons
B: cabin (space capsule seat) control with joystick. Choose any type as you like.
Q. Can this type work in hazardous environment?
A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q. Can you provide the serious lifting tools?
A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!

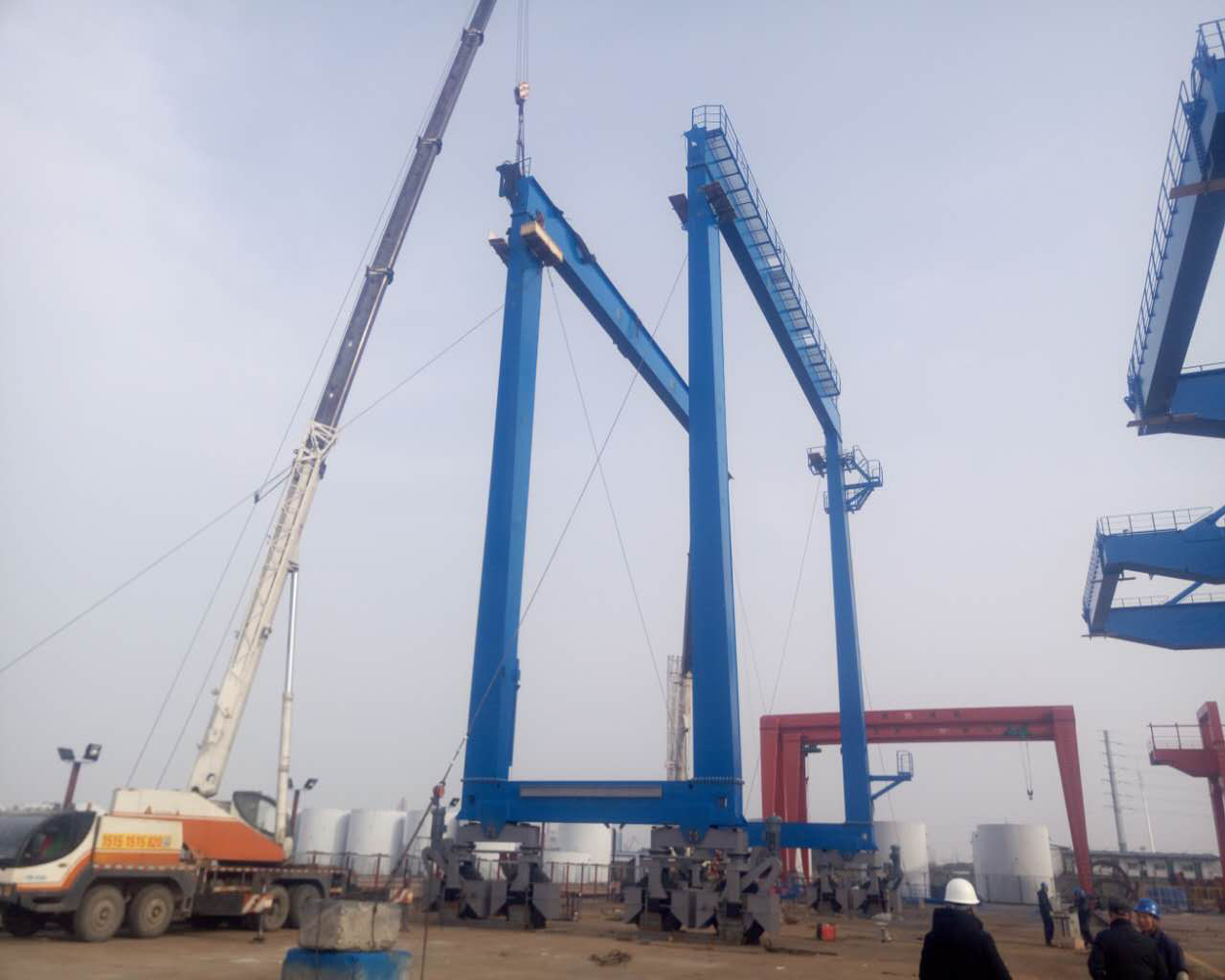

Q. How can we install the crane?
A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
