Electric Rubber Tyre Gantry crane

Short Description:

Rubber Tyre Gantry Crane is an ideal solution to lift or handle materials without building railway, it is widely used in various applications, such as port yard, outdoor storage and indoor warehouses.

Product name: Electric Rubber Tyre Gantry crane
Working load: 5t-600t
span:7.5-31.5m
lifting height:3-30m


  • Brand Name: KORIG
  • Place of Origin: Henan, China
  • Customize Service: Available
  • Certification: CE ISO SGS
  • Min.Order Quantity: 1 set
  • Payment Terms: L/C, T/T, Western Union
  • Delivery Time: 20~30 Workdays
  • Supply Ability: 1000 Set/Month
  • Port of Shipment: Qingdao Port, Tianjin Port, Shanghai Port
  • Packaging Details: Electrical parts are packed in wooden boxes, and steel structural parts are packed in color tarpaulin.
  • Product Detail

    company information

    FAQ

    Product Tags

    overview

    Electric Rubber tyre gantry crane has a a steel structure with high rigidity and stability that allows to handle the load in a very precise way and without shaking in their movement, even at high handling speeds.

    Tired electric hoist gantry crane (Briefly Crane) is a space transport tool. It can complete objects’ displacement quickly and timely by hoisting hook 、grab or electromagnetic disk in an interval and periodical way. It is an indispensable facility and device to realize mechanization and automation in produce procedure and ease heavy physical labor and improve efficiency in manufacturing.

    The products are widely used in machinery manufacture, assembling sites, warehouses and materials sites etc because of their characteristics of tight structure、strong rigidity、delicate operation、low noise、no pollution、safety、reliability and beautiful exterior.

    parameter

    No. Item parameter note
    1 Beam number Double beam or single beam
    2 Hoist number 2/4/6/8
    3 Hoist model Fixed or movable model
    4 capacity 5-60t
    5 span 3.5-22.5
    6 Gauge 3-15m
    7 Lift height 5-30m
    8 Long travel speed 0~30m/min
    9 Lifting speed 0-8m/min
    10 Climbing ability 3%
    11 Working class A3
    12 Rubber tyre number 4/4 or 2/2
    13 Power model Diesel model or electric model

    advantages

    1. Strong beams: One time foreminf without welding beam U frame, and carefully welding of the whole beams.This result in lower dead weight with a high degree of vertical and horizontal rigidity and smaller wheel loads.

    2. End carriage: Crane travelling system, motor-reducer-wheel driven system! & Soft start motor which result in very stable starting!

    3. Durable performance and high efficiency!

    4. Outstanding heat resistance with thermal-protective coating added at the bottom of the main beam!

    5. Electrical equipment: Electric systems are Siemens brand or Schneider brand! What’s more, we adopted Inverter, PLC and CMMS ( fault monitor system)!

    6. Special design spreader suitable for lifting 20feet, 40feet and 45feet! And we can design non-standard type according to customers’ demands.

    7.Long service life with a low-maintenance!

    images

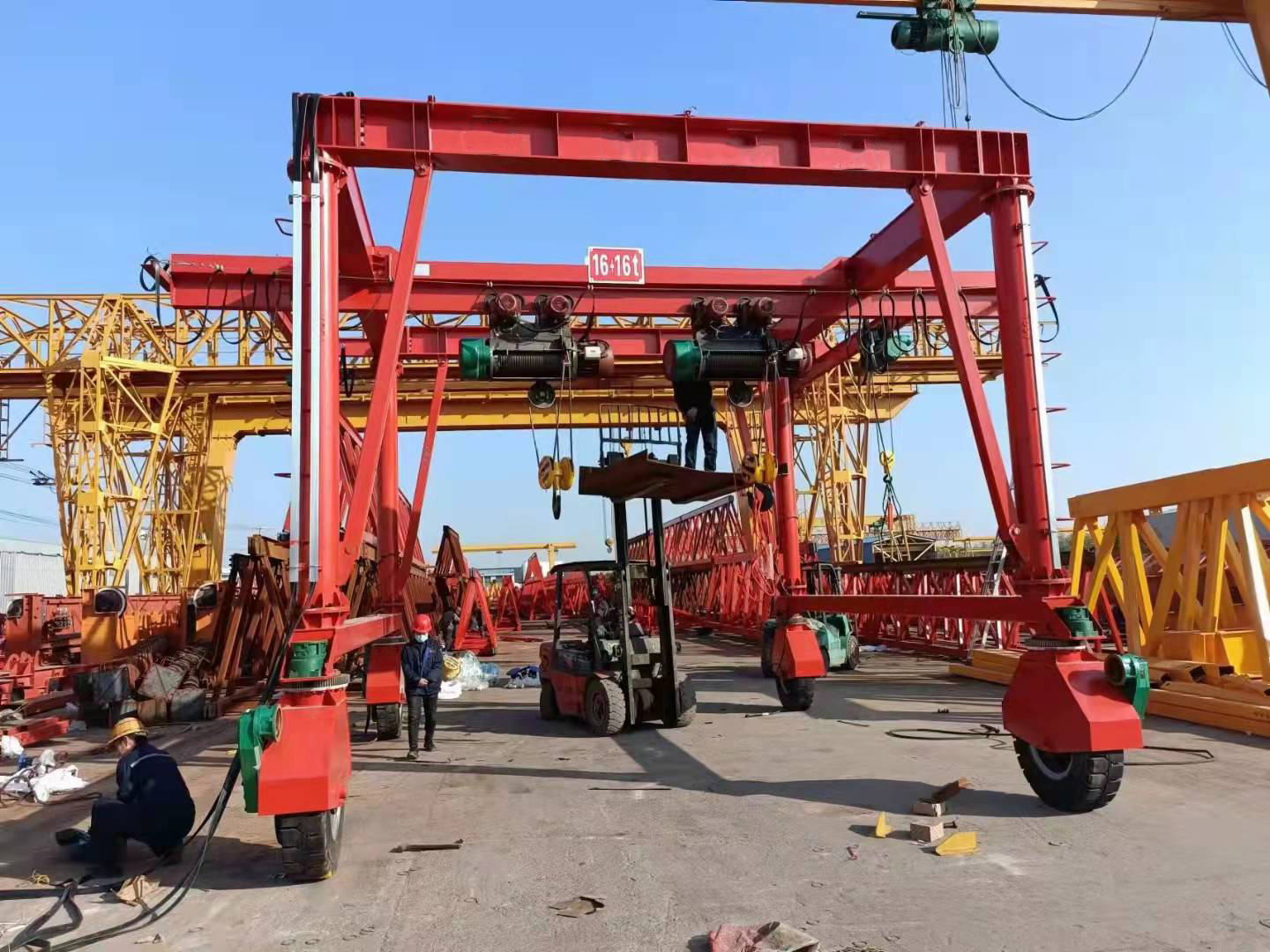

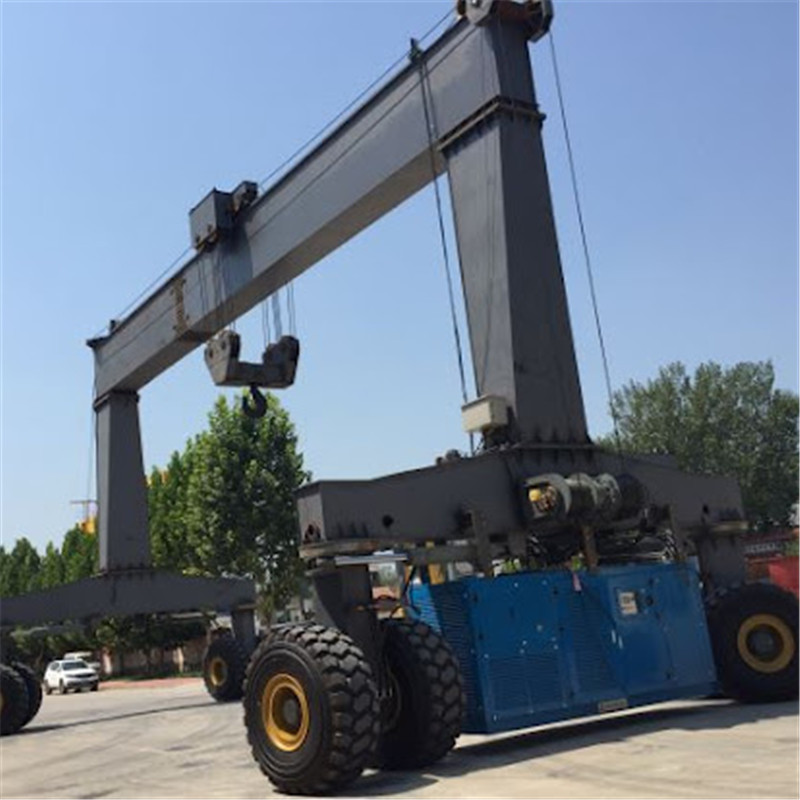

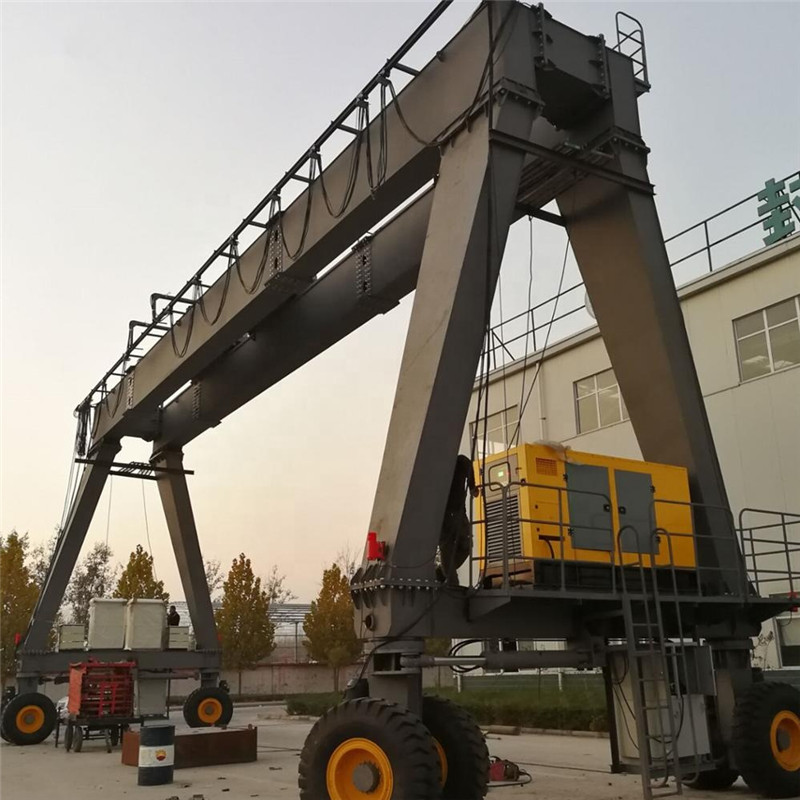

    Single beam or double beam Rubber Tyre Gantry crane with Hoist (2) Single beam or double beam Rubber Tyre Gantry crane with Hoist (3)Single beam or double beam Rubber Tyre Gantry crane with Hoist (3)微信图片_202112191720173

    • 微信图片_20230310151657
    • 微信图片_20230310151709

  • Previous:
  • Next:

  • About KORIGCRANES

    KORIGCRANES ( HENAN WEIHUA KORIG CRANES CO., LTD) located in crane hometown of China (cover more than 2/3 crane market in China), who is a trusted professional industry crane manufacturer and leading exporter. Specialized in design, manufacturing, installation and service of Overhead crane, Gantry crane, Port crane, Electric hoist etc, we have passed ISO 9001:2000, ISO 14001:2004, OHSAS 18001:1999, GB/T 19001-2000, GB/T 28001-2001, CE, SGS, GOST, TUV, BV and so on.

    Product Application

    To meet the demands of the oversea market, we independent research and development European type overhead crane, gantry crane; electrolytic aluminum multi-purpose overhead crane, hydro-power station crane etc. European type crane with light dead weight, compact structure, lower energy consumption etc. Many main performance reach the industry advanced level.
    KORIGCRANES Widely used in machinery, metallurgy, mining, electric power, railway, petroleum, chemical, logistics and other industries. Service for hundreds of large enterprises and national key projects such as China Datang Corporation, China Guodian Corporation, SPIC, Aluminum Corporation Of China(CHALCO), CNPC, Power China, China Coal, Three Gorges Group, China CRRC, Sinochem International, etc.

    Our Market

    Our cranes has been exported cranes to more than 110 countries for example Pakistan, Bangladesh, India, Vietnam, Thailand, Indonesia, Philippines, Malaysia、USA, Germany, France, Australia, Kenya, Ethiopia, Nigeria, Kazakhstan, Uzbekistan, Saudi Arabia、UAE、Bahrain、Brazil, Chile, Argentina, Peru etc and received good feedback from them. Very happy to be friends with each other come from all of the world and hope to establish long-terms good cooperation.

    KORIGCRANES has steel pre-treatment production lines, automatic welding production lines, machining centers, assembly workshops, electrical workshops, and anti-corrosion workshops. Can independently complete the whole process of crane production.

    Q. What’s the information should I provide when inquiry?
    More details or drawings, better.
    A: Lift capacity B: span C: lift height D: power source; other specials you give us will be more appreciated.

    Q. How many operating methods for my selection?
    Standard operating methods:
    A: remote control with push buttons
    B: cabin (space capsule seat) control with joystick. Choose any type as you like.

    Q. Can this type work in hazardous environment?
    A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.

    Q. Can you provide the serious lifting tools?
    A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!

    Q. How can we install the crane?
    A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
