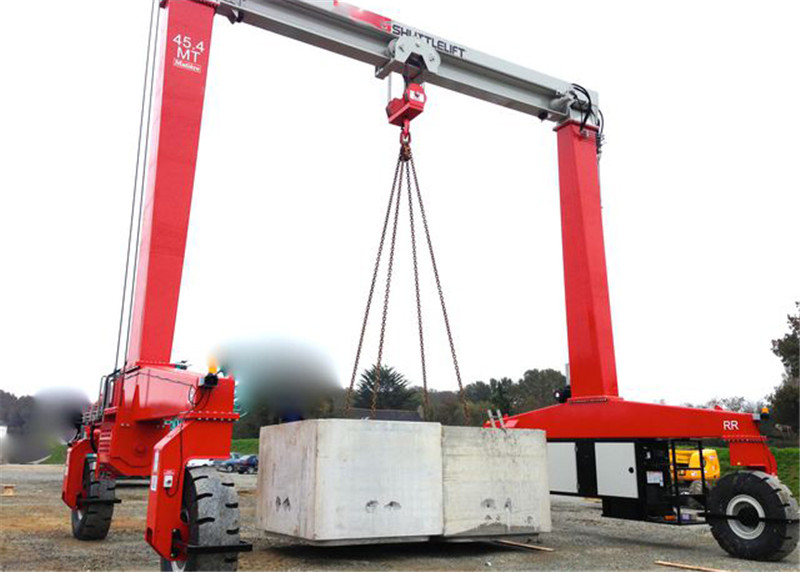

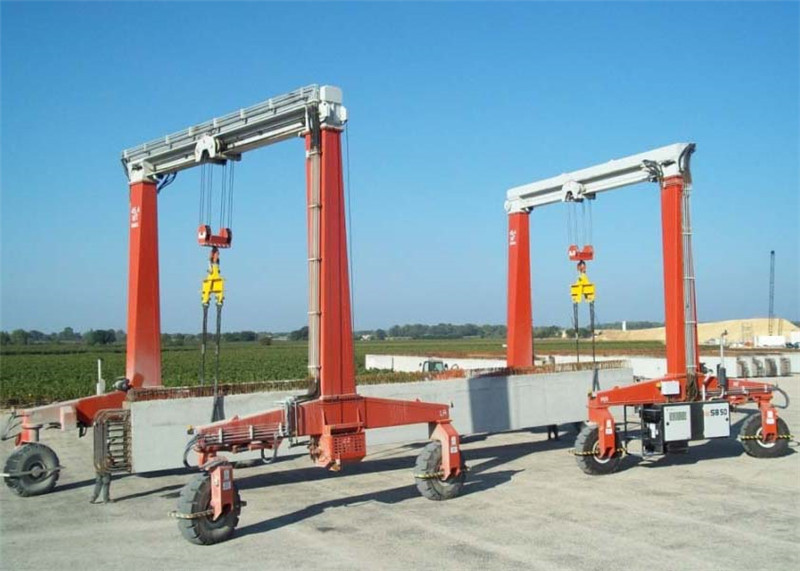

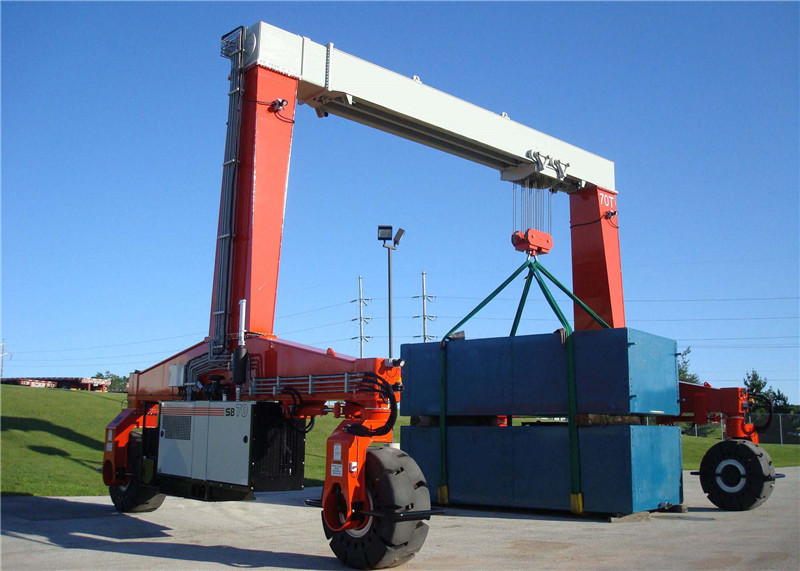

Single beam rubber type gantry crane

Short Description:

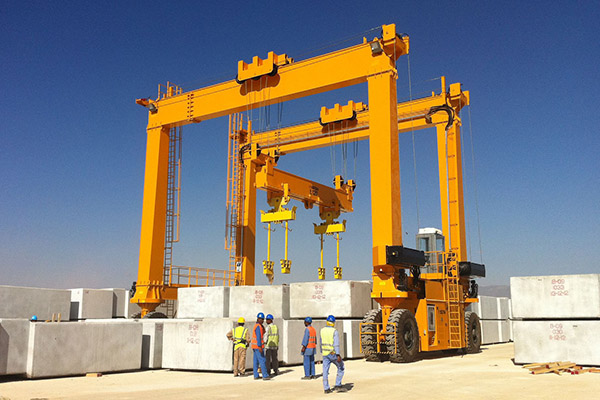

The gantry crane for railway construction is specially designed for the concrete span beam/bridge moving and transport for railway construction. Users can use 2 cranes 500t (450t) or 1 crane 1000t (900t) with 2 lifting points to handle railway beam.

This railway construction gantry crane consists of main girder, rigid and flexible supporting leg, travelling mechanism, lifting mechanism, electric control system, hydraulic system, driver room, railing, ladder and walking plat.

Brand Name: KORIG

Place of Origin: Henan, China

Customize Service: Available

Certification: CE ISO SGS

Min.Order Quantity: 1 set

Payment Terms: L/C, T/T, Western Union

Delivery Time: 20~30 Workdays

Supply Ability: 1000 Set/Month

Port of Shipment: Qingdao Port, Tianjin Port, Shanghai Port

Packaging Details: Electrical parts are packed in wooden boxes, and steel structural parts are packed in color tarpaulin.

Send email to us

Product Detail

FAQ

Product Tags

overview

1.With a special spreader is mainly used for loading and unloading of large bridges and transitions.
2.The crane can achieve 90 degree rotation suitable for multi-span use.
3.Lifting adopts four points lifting and three-points balance, to ensure that wire rope in balance force.
4.Trolley using hydraulic push rod device can achieve a variety of lifting of the bridge, while saving costs.

parameter

Lifting Capacity		Single	t	450 (without spreader)	Lifting Capacity		t	900 (without spreader)
Lifting Capacity		Double	t	450+450	Span		m	38.5
Span			m	38	Lifting Height		m	12
Lifting Height			m	30	Tracks Center Distance		m	1,200
Tracks Center Distance			m	1,500	Speed	Hoisting	m/min	0.05 ~ 0.5 ~ 1 (no load)
Speed	Hoisting		m/min	0.05 ~ 0.5 ~ 1 (no load)		Trolley		Hydraulic push rod
	Trolley			0.2 ~ 2 ~ 4 (no load)		Crane		1 ~ 10 ~ 12 (no load)
	Crane			0.5 ~ 5 ~ 10 (no load)	Electric Hoist	Model		WH164 20t-12D
oist	Model			CD1 16-30D		Lifting Capacity	t	20
	Lifting Capacity		t	16		Lifting Speed	m/min	3.3
	Lifting Speed		m/min	3.5		Traveling Speed		14
	Traveling Speed		m/min	20		Lifting Height	m	12
	Lifting Height		m	28.5		Work Duty		A3
	Work Duty			A3	No Load Steering			90°
Steel Track Recommended				P50, P60	Wheel Base		m	16
Max. Wheel Load			KN	360	Concrete Beam		m	20, 24, 32
Work Duty				A5	Steel Track Recommended			P50, P60
Total Weight			t	410	Max. Wheel Load		KN	225
Total Power			KW	175	Work Duty			A3
Power Source				3P, AC, 50Hz, 380V	Total Weight		t	505
					Total Power		KW	259
					Power Source			300KW

Specification

1. Load capacity: 20 t ~ 900 t
2. Span:   6 m ~ 50 m
3. Max.Lifting Height:   18m
4. Structurte: Box / truss structure type
6. Character: Single girder/Double griders
7. Power Supply :   Diesel generating set /380v-50hz,3Phase A.C
8. Grade ability: 1%-2%
9. Control mode: Remote/Cabin control
10 Running mode:Straight/across/diagonal
11. Image Design: Classic design (Ruby red, ruby blue, white)

Previous: Hatch Cover Gantry Crane

Next: U-Shaped Rubber Tyre Gantry Crane

About KORIGCRANES

KORIGCRANES ( HENAN WEIHUA KORIG CRANES CO., LTD) located in crane hometown of China (cover more than 2/3 crane market in China), who is a trusted professional industry crane manufacturer and leading exporter. Specialized in design, manufacturing, installation and service of Overhead crane, Gantry crane, Port crane, Electric hoist etc, we have passed ISO 9001:2000, ISO 14001:2004, OHSAS 18001:1999, GB/T 19001-2000, GB/T 28001-2001, CE, SGS, GOST, TUV, BV and so on.

Product Application

To meet the demands of the oversea market, we independent research and development European type overhead crane, gantry crane; electrolytic aluminum multi-purpose overhead crane, hydro-power station crane etc. European type crane with light dead weight, compact structure, lower energy consumption etc. Many main performance reach the industry advanced level.
KORIGCRANES Widely used in machinery, metallurgy, mining, electric power, railway, petroleum, chemical, logistics and other industries. Service for hundreds of large enterprises and national key projects such as China Datang Corporation, China Guodian Corporation, SPIC, Aluminum Corporation Of China（CHALCO）, CNPC, Power China, China Coal, Three Gorges Group, China CRRC, Sinochem International, etc.

Our Market

Our cranes has been exported cranes to more than 110 countries for example Pakistan, Bangladesh, India, Vietnam, Thailand, Indonesia, Philippines, Malaysia、USA, Germany, France, Australia, Kenya, Ethiopia, Nigeria, Kazakhstan, Uzbekistan, Saudi Arabia、UAE、Bahrain、Brazil, Chile, Argentina, Peru etc and received good feedback from them. Very happy to be friends with each other come from all of the world and hope to establish long-terms good cooperation.

KORIGCRANES has steel pre-treatment production lines, automatic welding production lines, machining centers, assembly workshops, electrical workshops, and anti-corrosion workshops. Can independently complete the whole process of crane production.

Q. What’s the information should I provide when inquiry?
More details or drawings, better.
A: Lift capacity B: span C: lift height D: power source; other specials you give us will be more appreciated.

Q. How many operating methods for my selection?
Standard operating methods:
A: remote control with push buttons
B: cabin (space capsule seat) control with joystick. Choose any type as you like.

Q. Can this type work in hazardous environment?
A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.

Q. Can you provide the serious lifting tools?
A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!

Q. How can we install the crane?
A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
