Single Boom Floating Dock Crane

Short Description:

Single boom floating dock crane is widely used in floating dock for ship construction.The crane is certified with BV,ABS,CCS,and other classification society certificate.

Product Name: Single Boom Floating Dock Crane
Capacity: 5-30t
Working radius:5~35m
Lifting height:10~40m


  • Brand Name: KORIG
  • Place of Origin: Henan, China
  • Customize Service: Available
  • Certification: CE ISO SGS
  • Min.Order Quantity: 1 set
  • Payment Terms: L/C, T/T, Western Union
  • Delivery Time: 20~30 Workdays
  • Supply Ability: 1000 Set/Month
  • Port of Shipment: Qingdao Port, Tianjin Port, Shanghai Port
  • Packaging Details: Electrical parts are packed in wooden boxes, and steel structural parts are packed in color tarpaulin.
  • Product Detail

    company information

    FAQ

    Product Tags

    Description

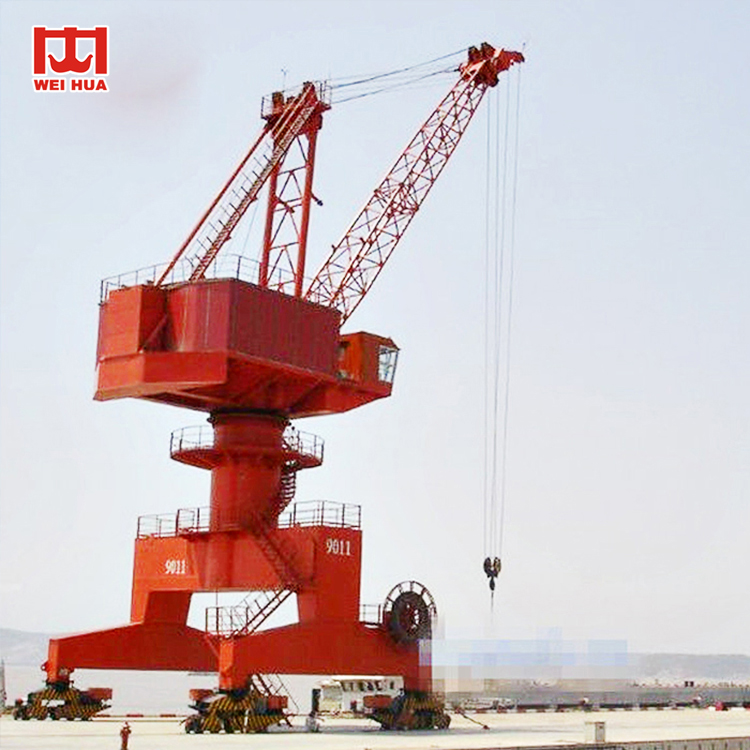

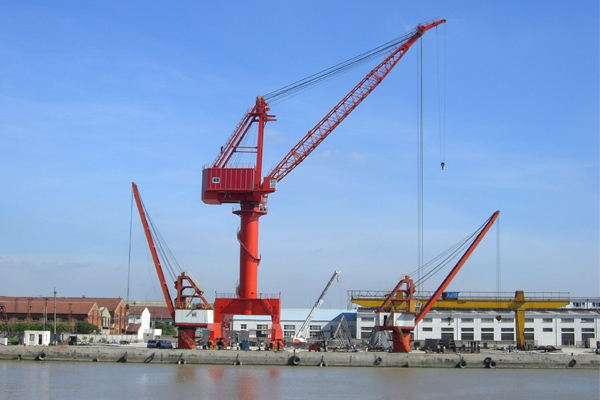

    Single Boom Floating Dock Crane, also called “Level luffing floating dock crane or Portal jib crane” is mainly used on floating dock to lifting ship parts for ship construction and repair in shipyard. The crane has lifting mechanism, luffing mechanism,slewing mechanism and crane traveling mechanism.Lifting mechanism, luffing mechanism and slewing mechanism could work independently or work together.

    The upper rotation part of the crane supported above the gantry frame,can rotate 360°.
    The upper rotation parts is composed of boom, slewing platform, upper revolving column, machine room, cabin and so on. It is made up of hoisting mechanism, luffing mechanism and rotating mechanism. And the lower traveling part includes gantry frame,power system,traveling system, anchor device, anti-dumping hook device, wind-resistant cable and other components.

    Boom beam adopt on the steel pipe welded truss structure, light weight and wind area and wind coefficient is small, so the whole weight is light.
    The hinge point of the boom system adopts rolling bearing, the whole machine adopts electric
    centralized lubrication system and manual segmented centralized lubrication two ways. Lubrication of
    the slewing ring adopts electric centralized lubrication. The lubrication of the A-Bracket and the head
    pulley of the boom, the arm hinge and the walking mechanism is centralized lubrication by manual
    segmentation. Hook lubrication points on the used of artificial oil tanker lubrication.

    In the term of safety facilities, each system are equipped with limit protection and interlock with PLC to ensure the gantry crane safe work , but also with overload limit torque protection device, amplitude indicator, wind speed indicator, anti-climbing wedge and anti-typhoon anchor fixed devices and so on.

    Technical Parameter Table

    Unit

    MQ7518

    MQ1020

    MQ1030

    MQ1524

    MQ2028

    Capacity

    Ton

    7.5

    10

    10

    15

    20

    Working duty

    A

    A5

    A5

    A5

    A5

    A5

    Working radius

    M

    7.5-18

    7-20

    9-30

    11-24

    11-28

    Lifting height above rail

    M

    20

    22

    22

    21.5

    30

    Lifting height below rail

    M

    -10

    -13

    -13

    -13.5

    19

    Speed

    Lifting speed

    m/min

    15

    25

    25

    14

    14

    Luffing speed

    m/min

    15

    25

    25

    14

    14

    Slewing speed

    r/min

    0.8

    1.2

    1.2

    0.8

    0.6

    Traveling speed

    m/min

    20

    20

    20

    26

    26

    End slewing radius

    M

    7.50

    4.8

    5.1

    6.4

    7

    Gauge× Base

    M

    3.4×6.5

    3.4×5

    5×5

    4×10.5

    4.65×8

    Max.wheel load

    KN

    165

    240

    250

    250

    200

    Wheel Qty.

    PCS

    16

    12

    16

    24

    24

    Heel/Trim

    3°/2°

    3°/2°

    3°/2°

    3°/2°

    3°/2°

    Power source

    380V 50HZ 3Ph

    Features of Floating Dock Crane

    1. Certified by ABS,BV,CCS or other IACS;
    2. All mechanism design conforms to classification society standard requirement;
    3. 360° slewing, wide working scope;
    4. PLC control, AC frequency speed control, stable and reliable running;
    5. Heel 3 °, Trim 2 °;
    6. All parts such as motor,reducer,slewing bearing,brake,wire rope,electrics elements,cable etc.has IACS certificate;
    7.Marine corrosion proof paint adopts HEMPEL, JOTUN international known brand paint;

    Outline drawing

    MQ Single Boom Portal Jib Crane01
