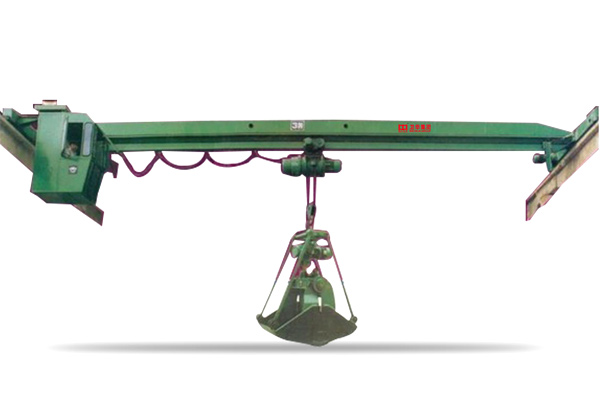

Grab crane is mainly consisted of bridge frame, crane traveling mechanism, lifting trolley, electric equipment, grab bucket, etc. This single girder overhead crane with grab is usually used to grab and lift common materials with work duty not more than A4.
Lifting capacity: 10t;
Span: 7.5m ~ 22.5m;
Working temperature: -20℃ ~ 40℃;
Relative humidity ≦ 85%.
Working materiel density: 0.6 ~ 2.9 t/m³
Volume of grabs: 0.75m³, 1m³, 1.5m³and 2.5m³.

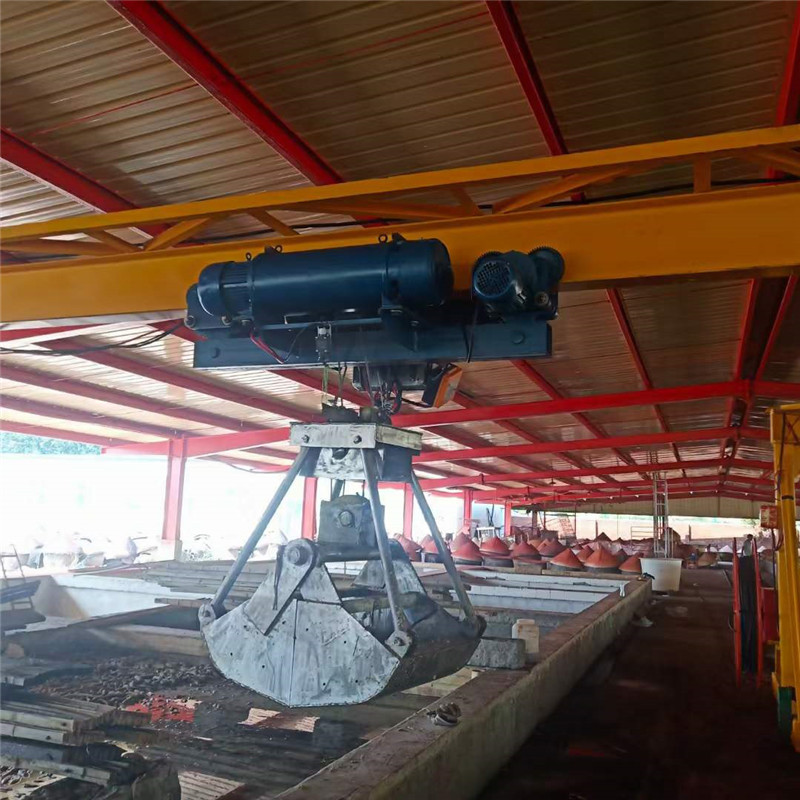

Two electric hoists are equipped on this crane, one works as lifting mechanism, another one works as open-and-close mechanism. This single girder overhead crane with grab has advantages of compact structure, beautiful exterior, convenient for operating, economical and practical. And it’s a perfect small equipment to grab materials.
Lifeting Capacity (t) | 3 | 5 | ||||||
Span(m) | 4.5~28.5 | 4.5~28.5 | ||||||
Lifting Height (m) | 18 | 18 | ||||||
Lifting Speed (m/min) | 16 | 16 | ||||||
Materiel Density (t/m³) | ≤1 | ≦1 | ||||||
Work Duty | FC=25% A4 | FC=25% A4 | ||||||
Traveling Speed (m/min) | Trolley | 20/30 | 20/30 | |||||
Grab | Crane | 20/30/45 | 20/30/45 | |||||
Type | Deadweight(t) | Volume (M³) | Type | Deadweight(t) | Volume (M³) | |||
DZ12-1 | 1.12 | 0.5 | DZ12-2 | 1.2 | 0.75 | |||
Notes: Specification Customizable |
Optimal designed grab cranes are widely used for serving stores and bunkers with automatic, semiautomatic and manual control.
Laser-assisted height measurement is equipped with the grab overhead crane.
Grab cranes can work all around clock.
Safety protection devices such as limit switches for lift and CT are equipped for safe lifting and traveling.
Overload Protection Device increases performance security.
Easy and convenient operation is realized by remote control of grab cranes.
Equipped with double speed mechanism, our grab cranes have a better working performance in terms of precision.
Low voltage protection, phase sequence protection and emergency stop device are equipped to grab cranes.
Warning indicators are installed: flashing lights and warning sound.

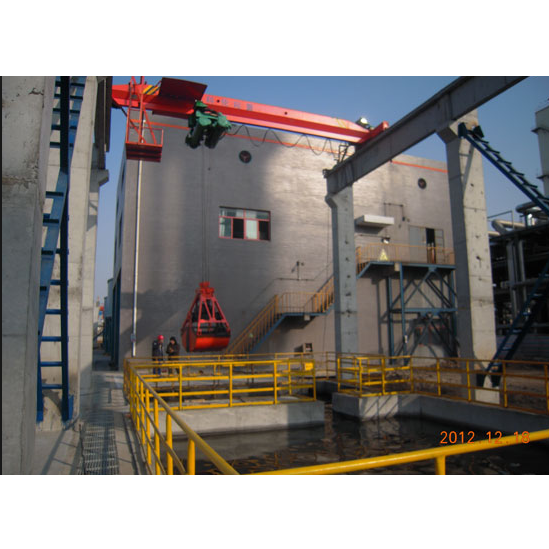

Grab crane is widely used in power station, storage, smelting workshop of steel mill, port, cement plant, and waste recycling station, etc. to load and unload scattered objects. The grab crane has a high requirements on heat, dust, and aggressive environment.
Grab bucket is a tool for efficiently loading and unloading materials such as, sands, coal, mineral powder and bulk chemical fertilizer, etc. The grab bucket is equipped for the crane to grab bulk materials.
There are two types of grab buckets, the orange grab and clamshell grab. The orang grab is suitable for handling materials, such as, steel scrap, big iron stock, garbage, and steel mills whereas the clamshell grab is used to lift small bulk materials, such as, grain, bulk fertilizer, etc.
KORIGCRANES ( HENAN WEIHUA KORIG CRANES CO., LTD) located in crane hometown of China (cover more than 2/3 crane market in China), who is a trusted professional industry crane manufacturer and leading exporter. Specialized in design, manufacturing, installation and service of Overhead crane, Gantry crane, Port crane, Electric hoist etc, we have passed ISO 9001:2000, ISO 14001:2004, OHSAS 18001:1999, GB/T 19001-2000, GB/T 28001-2001, CE, SGS, GOST, TUV, BV and so on.
To meet the demands of the oversea market, we independent research and development European type overhead crane, gantry crane; electrolytic aluminum multi-purpose overhead crane, hydro-power station crane etc. European type crane with light dead weight, compact structure, lower energy consumption etc. Many main performance reach the industry advanced level.
KORIGCRANES Widely used in machinery, metallurgy, mining, electric power, railway, petroleum, chemical, logistics and other industries. Service for hundreds of large enterprises and national key projects such as China Datang Corporation, China Guodian Corporation, SPIC, Aluminum Corporation Of China(CHALCO), CNPC, Power China, China Coal, Three Gorges Group, China CRRC, Sinochem International, etc.
Our cranes has been exported cranes to more than 110 countries for example Pakistan, Bangladesh, India, Vietnam, Thailand, Indonesia, Philippines, Malaysia、USA, Germany, France, Australia, Kenya, Ethiopia, Nigeria, Kazakhstan, Uzbekistan, Saudi Arabia、UAE、Bahrain、Brazil, Chile, Argentina, Peru etc and received good feedback from them. Very happy to be friends with each other come from all of the world and hope to establish long-terms good cooperation.

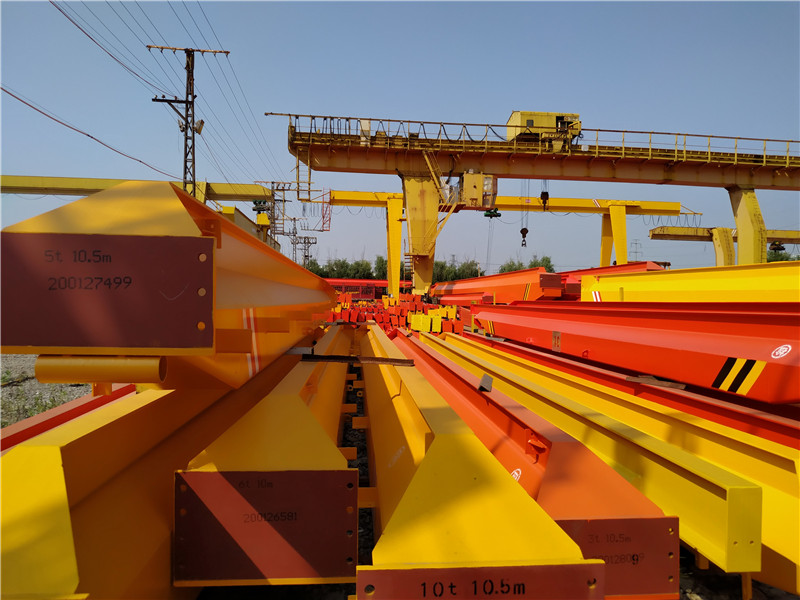

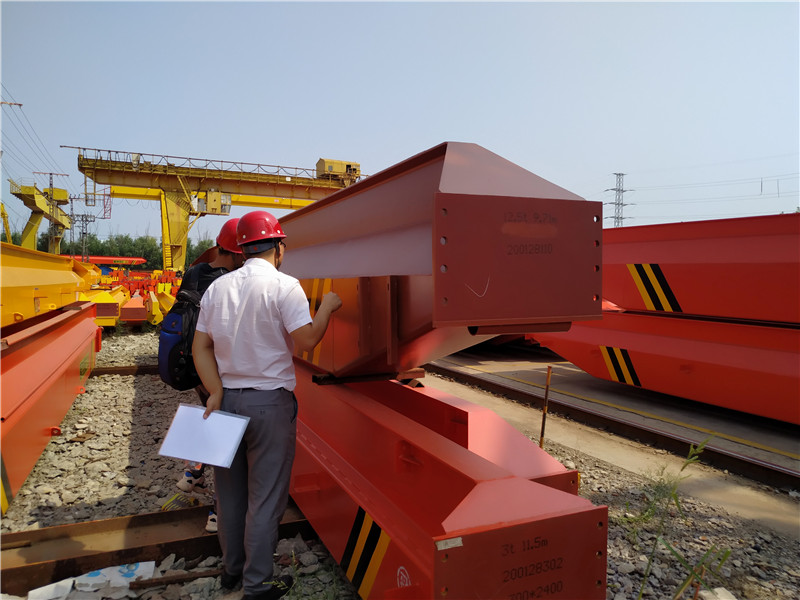

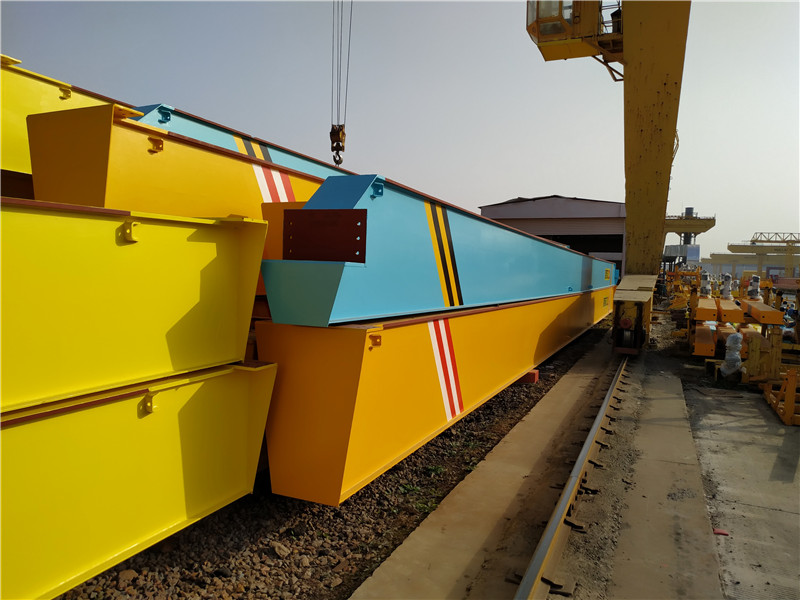

KORIGCRANES has steel pre-treatment production lines, automatic welding production lines, machining centers, assembly workshops, electrical workshops, and anti-corrosion workshops. Can independently complete the whole process of crane production.
Q. What’s the information should I provide when inquiry?
More details or drawings, better.
A: Lift capacity B: span C: lift height D: power source; other specials you give us will be more appreciated.
Q. How many operating methods for my selection?
Standard operating methods:
A: remote control with push buttons
B: cabin (space capsule seat) control with joystick. Choose any type as you like.
Q. Can this type work in hazardous environment?
A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q. Can you provide the serious lifting tools?
A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
Q. How can we install the crane?
A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
