Trailer Mounted Boom Lifting Platform

Short Description:

The trailer mounted boom lifting platform is made of pick steel and has the characteristics of precision and sensitivity. It can cross obstacles, has a fast erection speed, and automatically supports hydraulic feet; it can adjust the height of each foot according to the terrain to achieve a level state of the platform; it can cross certain obstacles to achieve work. The trailer type is easy to transport and can be towed directly and quickly.


  • Brand Name: KORIG
  • Place of Origin: Henan, China
  • Customize Service: Available
  • Certification: CE ISO SGS
  • Min.Order Quantity: 1 set
  • Payment Terms: L/C, T/T, Western Union
  • Delivery Time: 20~30 Workdays
  • Supply Ability: 1000 Set/Month
  • Port of Shipment: Qingdao Port, Tianjin Port, Shanghai Port
  • Packaging Details: Electrical parts are packed in wooden boxes, and steel structural parts are packed in color tarpaulin.
  • Product Detail

    company information

    FAQ

    Product Tags

    overview

    The trailer mounted boom lifting platform is widely used in installation, maintenance and climbing operations in municipal, electric power, street lamps, advertising, communications, photography, gardening, transportation, docks, airports, ports, large industrial and mining enterprises and other industries. It is suitable for various rugged terrains in the wild and has a wide range of space operations. It is mainly used for construction machinery and equipment for construction, bridge construction, shipbuilding, airports, mines, port terminals, communication and power facilities, and outdoor advertising.

    The trailer mounted boom lifting platform height is 8-20m. The working platform size is 1.2*0.8m, height is 1.1m and the loading capacity is 200kg. Power is AC,DC, diesel or both. The lift arm uses a new type of high-quality steel, high strength, lightweight, direct access to AC power to start, it can quickly set up safe and simple operation. The working table has a large working radius and it can be 360 degrees rotated.

    parameter

    Model TGZ08 TGZ10 TGZ12 TGZ14 TGZ16 TGZ18 TGZ20
    Maximum Working Height 10m 12m 14m 16m 18m 20m 22m
    Maximum Platform Height 08m 10m 12m 14m 16m 18m 20m
    Maximum Load 200kg 200kg 200kg 200kg 200kg 200kg 200kg
    Maximum Working Distance 4.5m 5.7m 6.4m 8.5m 9.5m 10.9m 12.5m
    Platform Size (Length x Width x Height) 1.2X0.8X1.1m 1.2X0.8X1.1m 1.2X0.8X1.1m 1.2X0.8X1.1m 1.2X0.8X1.1m 1.2X0.8X1.1m 1.2X0.8X1.1m
    Outrigger Span (Vertical x Horizontal) 3.4 X 3.2m 3.7X3.45m 3.7X3.45m 3.97X4.18m 4.2 X 4.3m 4.94X4.76m 5.14X4.76m
    Turntable Rotation Angle (Continuous) 360° 360° 360° 360° 360° 360° 360°
    Platform Rotation Angle 160° 160° 160° 160° 160° 160° 160°
    Tire 185/75R14C 185/75R14C 185/75R14C 215/75R16C 215/75R16C 245/75R16C 245/75R16C
    Gross Weight 1538kg 1600kg 1800kg 2350kg 2900kg 4300kg 4450kg

    Safely Device

    1. Overload protection: Hydraulic unit with overload protection device. If overload, the hydraulic station automatically relief pressure and stop running.
    2. Emergency Stop: The lift can be stopped immediately in case of any emergency.
    3. Emergency Lowering: The platform can be lowered down manually in case of power failure.
    4. Explosion-proof valve: The hydraulic system is equipped with explosion-proof valves, which can prevent the sudden drop of the platform if the oil pipe breaks.
    5. Safe sensor: When the platform declines, if it touches anything, it will be stopped, so it can protect goods or operators.

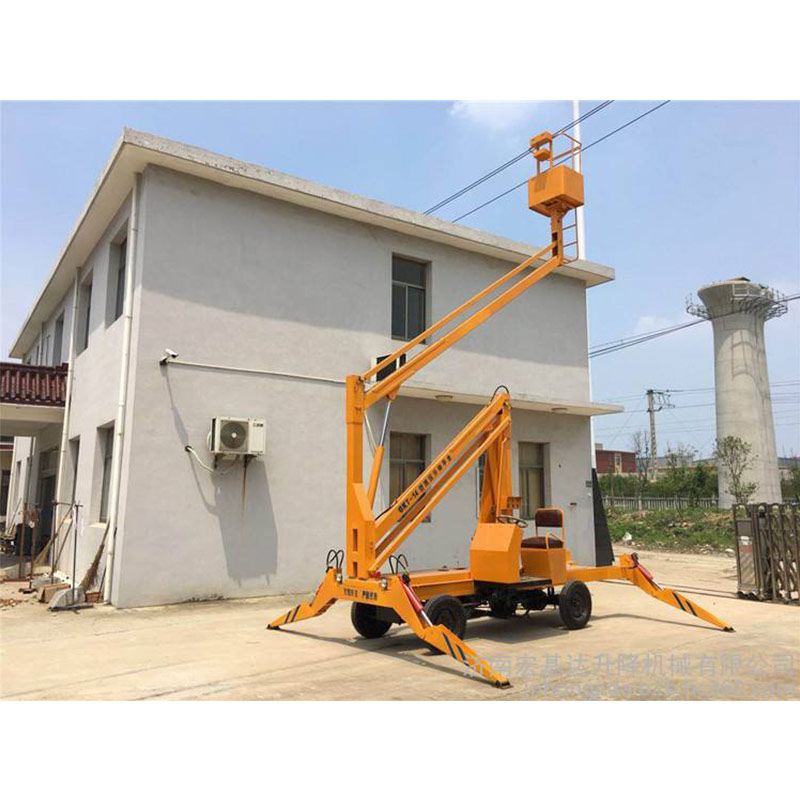

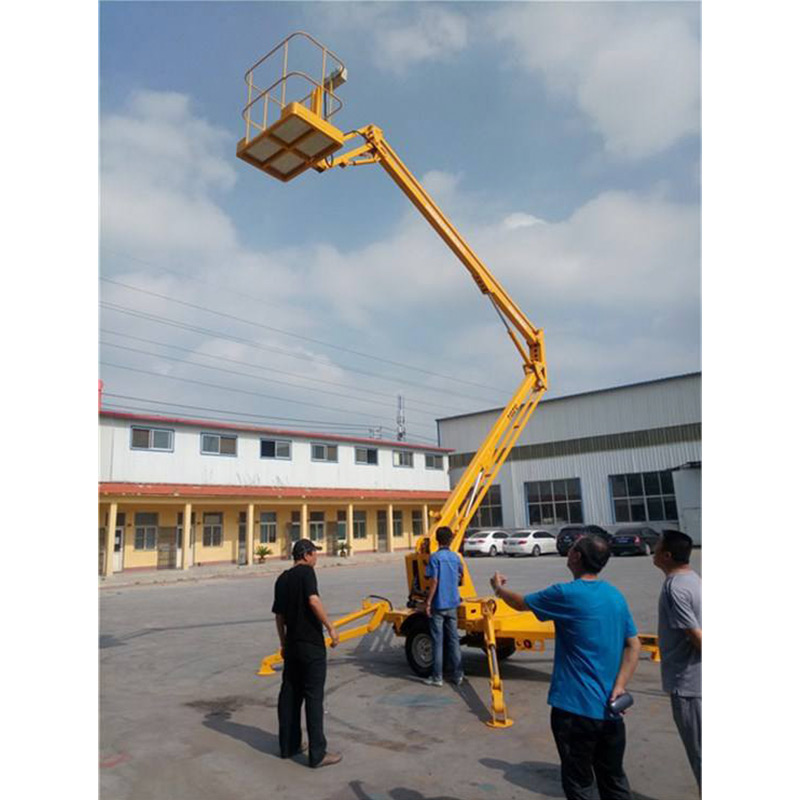

    images

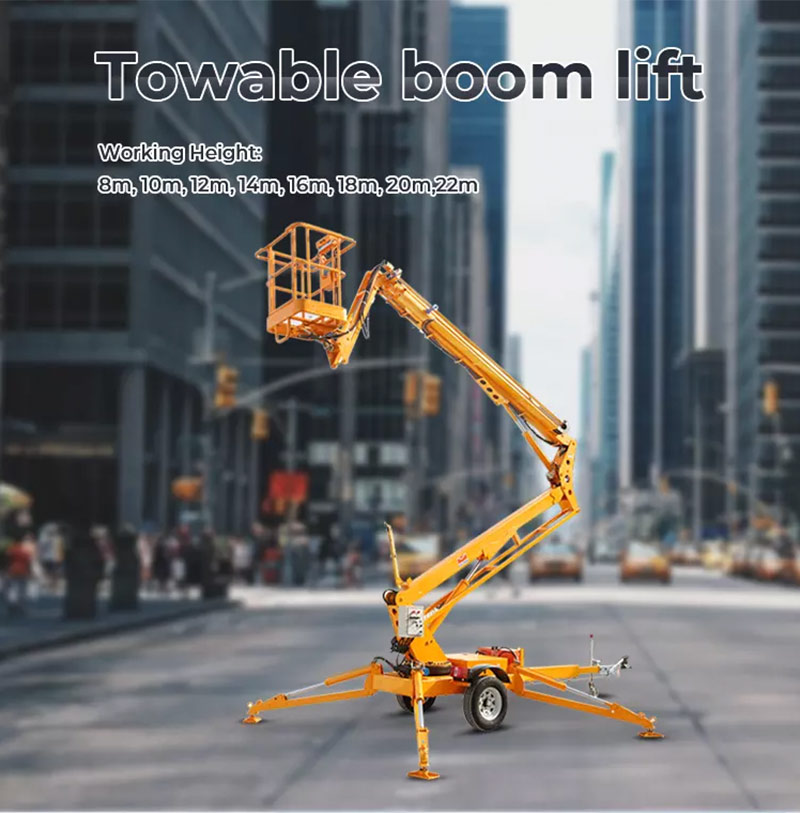

    trailer-mounted-boom-lifting-platform-5
