U Type Subway Turn Slag Hook Gantry Crane
overview

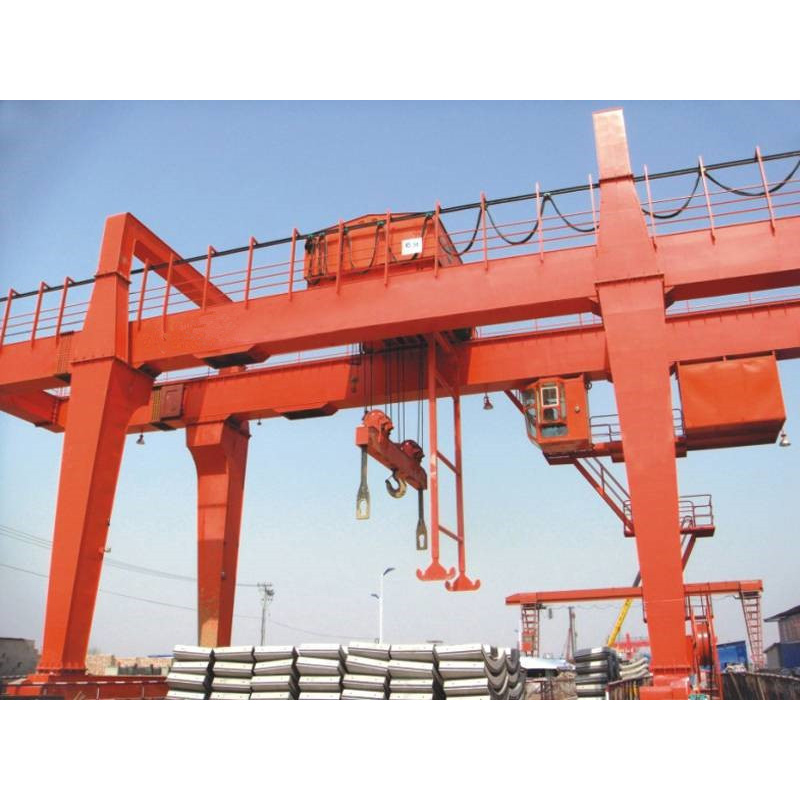

A U-shaped double-girder gantry crane is a type of heavy lifting equipment that features more outrigger space than an A-shaped gantry crane, enabling it to lift and move large cargo such as containers. U-shaped gantry cranes are widely used in open cargo yards, railway terminals, shipyards and ports, with working loads of A5 and A6.
parameter
| Project | mian lift | project | trolley travel | crane travel | ||||
| capavity | t | 75 | gauge | mm | 9000 | 30000 | ||
| lift speed | m/min | 1:10 | travel speed | m/min | 2:20 | 3:30 | ||
| working class | / | m6 | work class | / | m6 | m6 | ||
| max.lift height | m | 16.5 | based distance | mm | 3560 | 11740 | ||
| power sourece | / | customed | ||||||
| reel diameter | mm | 800 | max.wheel pressure | kn | 285 | 248 | ||
| motor | model | YZP400L1-10 | motor | model | / | YZP160M1-6 | YZP160L-6 | |
| power | kw | 160 | power | kw | 2X5.5 | 4X11 | ||
| speed | r/min | 585 | speed | r/min | 970 | 945 | ||
| reducer | model | ZQA1000-i-3C | reducer | model | ZSCA600-i-5/6 | ZSC(A）600-i-1/2 | ||
| speed ratio | i | 25 | speed ratio | i | 77.5 | 59 | ||
| brake | model | YWA4-500/E201 | brake | model | / | YWZ-200/25 | YWZ4-200/T4O | |
| brakeing torque | N.m | 2X3600 | braking torque | N.m | 2X200 | 4X270 | ||
| limit switch | dxz | limit swith | lx10-11 | |||||
features
The crane travel system adopts 8-wheel 4-drive form, and is equipped with a windproof rail clamper, while the crane is working normally, the clamp of the rail clamp leaves the track.While the crane stops working, the operator will put the clamp down, clamp the track, and prevent the crane from sliding.
The lifting mechanism adopts the hanging beam as the spreader, and the middle of the hanging beam is provided with a freely rotatable hook for lifting the pipe segment and other materials.

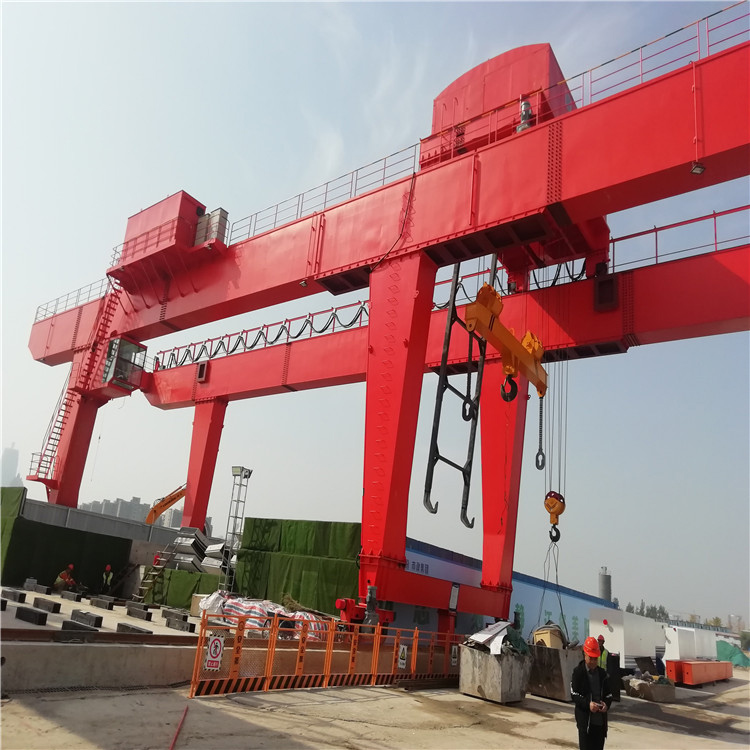

The gantry crane trolley is equipped with a hydraulic flip mechanism, which consists of a hydraulic workstation and a slag turning hook. While the hanging beam lifts the slag bucket before it rises, the driver controls the hydraulic flip mechanism action, the hydraulic cylinder pushes the slag hook back to a specific position, and then the slag bucket rises above the slag hook, the driver controls the slag hook to advance to the slag bucket, the slag bucket falls, the eccentric flip shaft on both sides falls on the slag hook, continues to fall, and the slag bucket uses its own weight eccentricity to start flipping, and then complete the dumping work.
In order to meet the characteristics of short construction period of subway and frequent replacement of construction sites, our company has added a variable span function on the main beam in a targeted manner, so that the span changes after the construction site is replaced. For example, the span is continuously variable between 20-27 meters.
About KORIGCRANES
KORIGCRANES ( HENAN WEIHUA KORIG CRANES CO., LTD) located in crane hometown of China (cover more than 2/3 crane market in China), who is a trusted professional industry crane manufacturer and leading exporter. Specialized in design, manufacturing, installation and service of Overhead crane, Gantry crane, Port crane, Electric hoist etc, we have passed ISO 9001:2000, ISO 14001:2004, OHSAS 18001:1999, GB/T 19001-2000, GB/T 28001-2001, CE, SGS, GOST, TUV, BV and so on.
Product Application
To meet the demands of the oversea market, we independent research and development European type overhead crane, gantry crane; electrolytic aluminum multi-purpose overhead crane, hydro-power station crane etc. European type crane with light dead weight, compact structure, lower energy consumption etc. Many main performance reach the industry advanced level.
KORIGCRANES Widely used in machinery, metallurgy, mining, electric power, railway, petroleum, chemical, logistics and other industries. Service for hundreds of large enterprises and national key projects such as China Datang Corporation, China Guodian Corporation, SPIC, Aluminum Corporation Of China（CHALCO）, CNPC, Power China, China Coal, Three Gorges Group, China CRRC, Sinochem International, etc.
Our Market
Our cranes has been exported cranes to more than 110 countries for example Pakistan, Bangladesh, India, Vietnam, Thailand, Indonesia, Philippines, Malaysia、USA, Germany, France, Australia, Kenya, Ethiopia, Nigeria, Kazakhstan, Uzbekistan, Saudi Arabia、UAE、Bahrain、Brazil, Chile, Argentina, Peru etc and received good feedback from them. Very happy to be friends with each other come from all of the world and hope to establish long-terms good cooperation.
KORIGCRANES has steel pre-treatment production lines, automatic welding production lines, machining centers, assembly workshops, electrical workshops, and anti-corrosion workshops. Can independently complete the whole process of crane production.
Q. What’s the information should I provide when inquiry?
More details or drawings, better.
A: Lift capacity B: span C: lift height D: power source; other specials you give us will be more appreciated.
Q. How many operating methods for my selection?
Standard operating methods:
A: remote control with push buttons
B: cabin (space capsule seat) control with joystick. Choose any type as you like.
Q. Can this type work in hazardous environment?
A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q. Can you provide the serious lifting tools?
A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
Q. How can we install the crane?
A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
