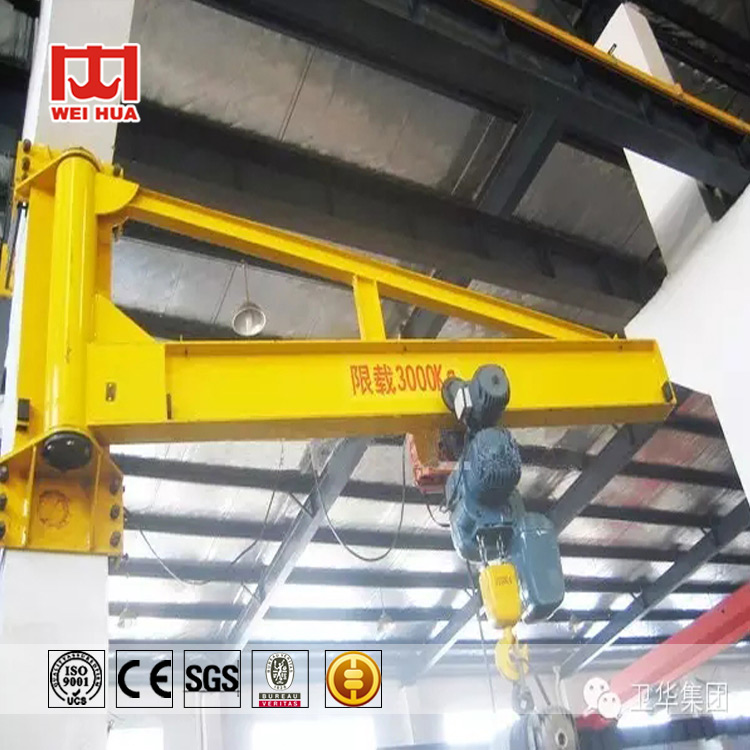

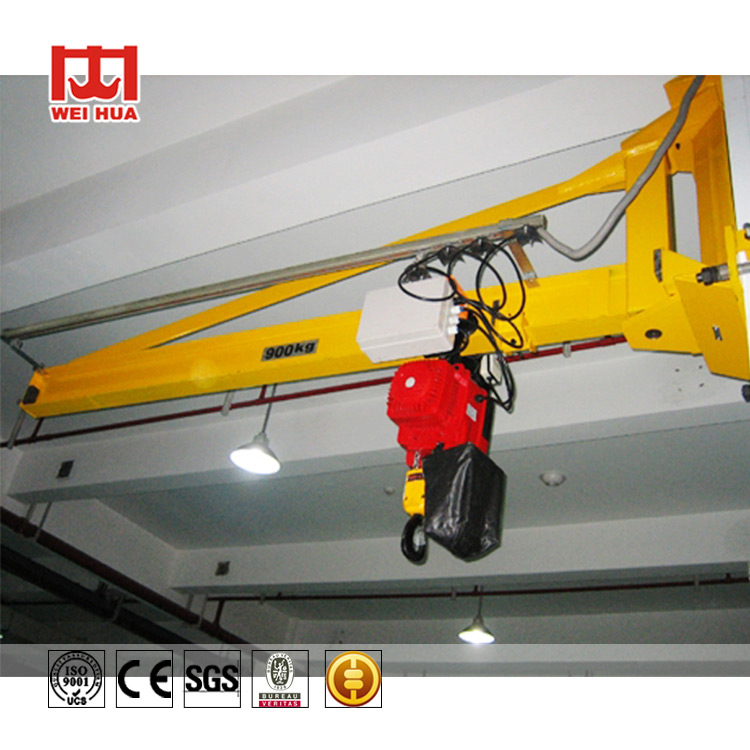

Wall mounted jib crane
overview

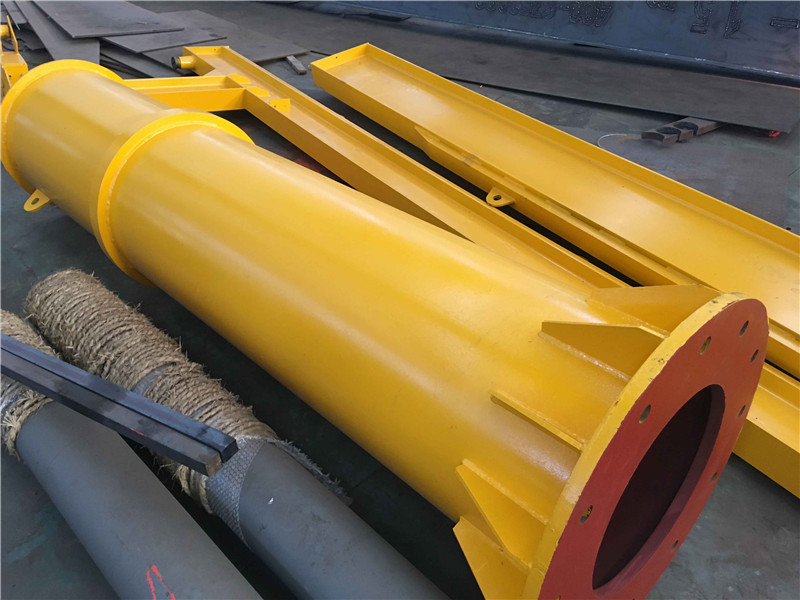

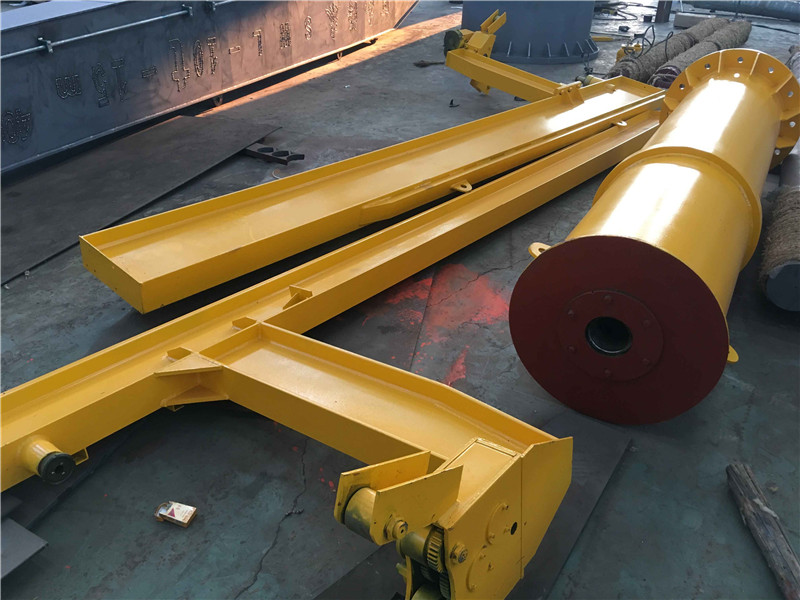

Jib crane is mainly composed of top column, low column, main girder, main girder pole, electric hoist, rotation mechanism and electrical system, etc.Normally control model of jib crane with remote control or pendent line with press button or both.
Advantage
1. Installation with high strength bolt connection;
2. Convenient in operation,safe and turn to flexible;
3. Low noise,commodious cabin and good looking;
4. High quality and efficiency, competitive price;
5. Reasonable and simple whole structure,Light self-weight, conform to the state standards;
6. Inexpensive handling systems doesn't require modification of the building structure around.

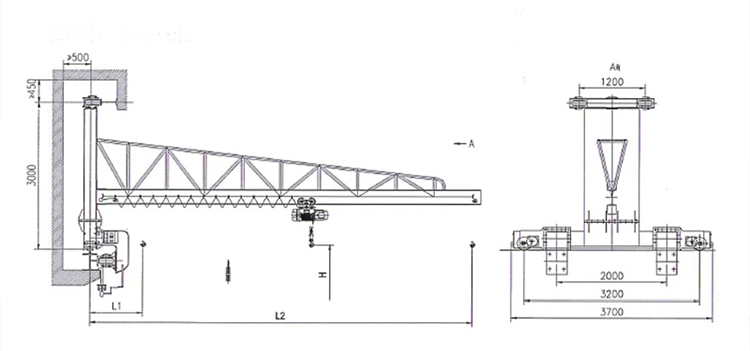

parameter
| Lifting height | h(m) | 5 | 5.5 | 6 |
| Effective radius | R(m) | 4 | 5 | 5.5 |
| Lifting speed | m/min | 8 | 8 | 8 |
| Travelling speed | m/min | 20 | 20 | 20 |
| Rotating speed | ° | arbitrarily | arbitrarily | arbitrarily |
| Overall height | H(m) | 2.56 | 2.56 | 2.56 |
| Overall length | L(m) | 4.525 | 5.025 | 5.525 |
| Total weight | kg | 768 | 782 | 810 |
Main Features
Economic price, flexible, space-saving, easy operation.
1.Prices are ideal for low-cost lifting and handling goods effectively within a plant.
2.It can be mounted to your facility floor, foundation, column, pillar or wall to accommodate any space constraints or work plans.
3.Our Swing level offer an extensive range of installation options and capacities, with the power to create the best material handling solution with maximum space utilization.
4.Classification of Swing level jib crane: Free standing jib crane; Wall mounted jib crane; Wall travelling jib crane; Articulating jib crane, etc.
5.Free standing jib crane have a load capacity from 0.5t to 5t.
6.It is useful where overhead hoists are neither practical nor feasible.
7.This machine utilize 300 degree floor coverage, allowing unrestricted placement of machinery and equipment.
About KORIGCRANES
KORIGCRANES ( HENAN WEIHUA KORIG CRANES CO., LTD) located in crane hometown of China (cover more than 2/3 crane market in China), who is a trusted professional industry crane manufacturer and leading exporter. Specialized in design, manufacturing, installation and service of Overhead crane, Gantry crane, Port crane, Electric hoist etc, we have passed ISO 9001:2000, ISO 14001:2004, OHSAS 18001:1999, GB/T 19001-2000, GB/T 28001-2001, CE, SGS, GOST, TUV, BV and so on.
Product Application
To meet the demands of the oversea market, we independent research and development European type overhead crane, gantry crane; electrolytic aluminum multi-purpose overhead crane, hydro-power station crane etc. European type crane with light dead weight, compact structure, lower energy consumption etc. Many main performance reach the industry advanced level.
KORIGCRANES Widely used in machinery, metallurgy, mining, electric power, railway, petroleum, chemical, logistics and other industries. Service for hundreds of large enterprises and national key projects such as China Datang Corporation, China Guodian Corporation, SPIC, Aluminum Corporation Of China（CHALCO）, CNPC, Power China, China Coal, Three Gorges Group, China CRRC, Sinochem International, etc.
Our Market
Our cranes has been exported cranes to more than 110 countries for example Pakistan, Bangladesh, India, Vietnam, Thailand, Indonesia, Philippines, Malaysia、USA, Germany, France, Australia, Kenya, Ethiopia, Nigeria, Kazakhstan, Uzbekistan, Saudi Arabia、UAE、Bahrain、Brazil, Chile, Argentina, Peru etc and received good feedback from them. Very happy to be friends with each other come from all of the world and hope to establish long-terms good cooperation.
KORIGCRANES has steel pre-treatment production lines, automatic welding production lines, machining centers, assembly workshops, electrical workshops, and anti-corrosion workshops. Can independently complete the whole process of crane production.
Q. What’s the information should I provide when inquiry?
More details or drawings, better.
A: Lift capacity B: span C: lift height D: power source; other specials you give us will be more appreciated.
Q. How many operating methods for my selection?
Standard operating methods:
A: remote control with push buttons
B: cabin (space capsule seat) control with joystick. Choose any type as you like.
Q. Can this type work in hazardous environment?
A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q. Can you provide the serious lifting tools?
A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
Q. How can we install the crane?
A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
