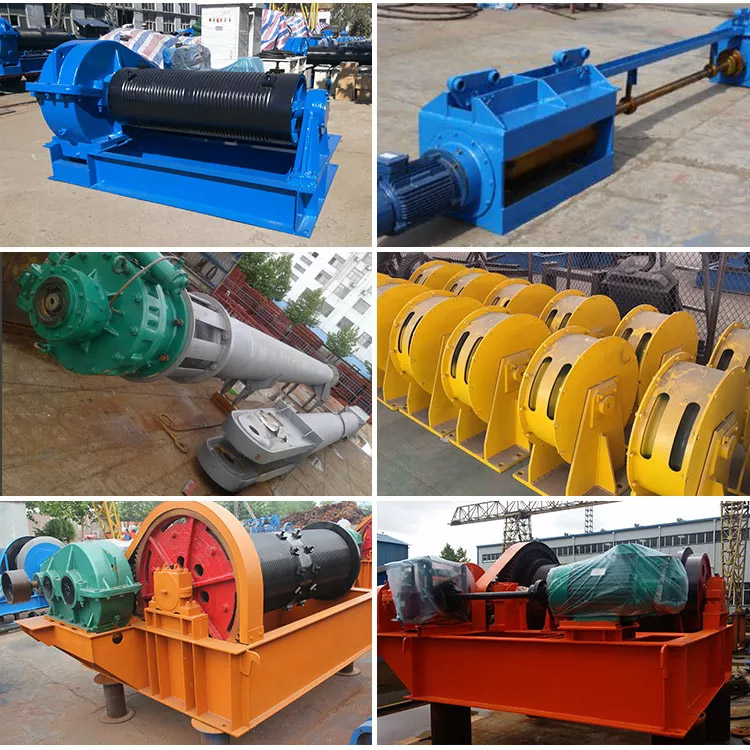

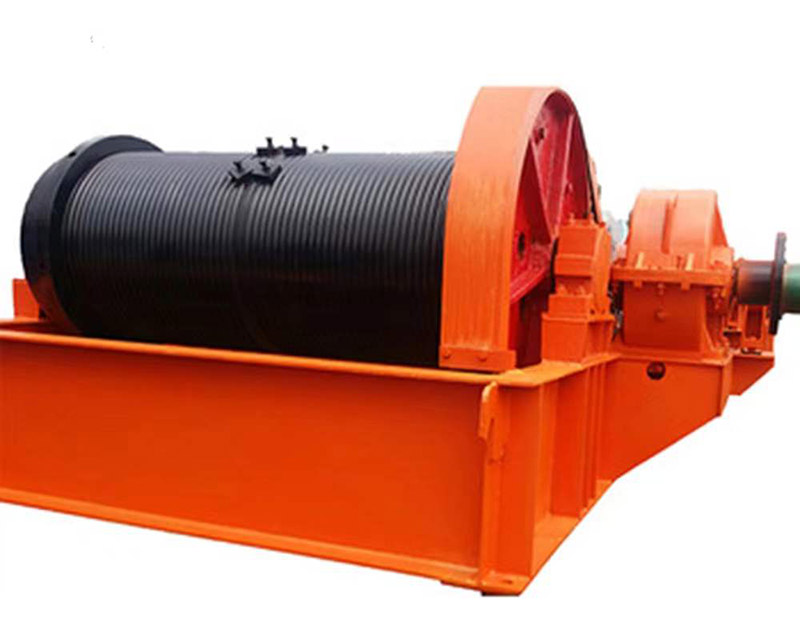

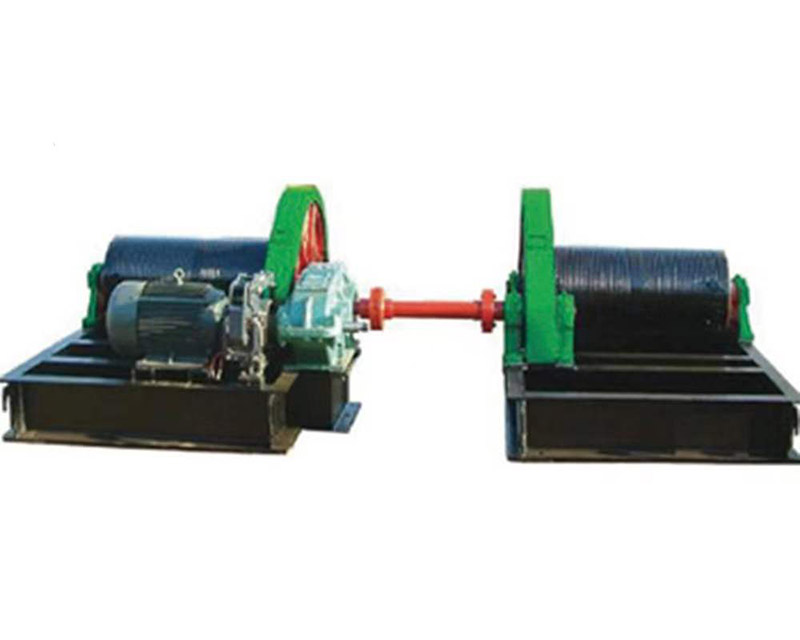

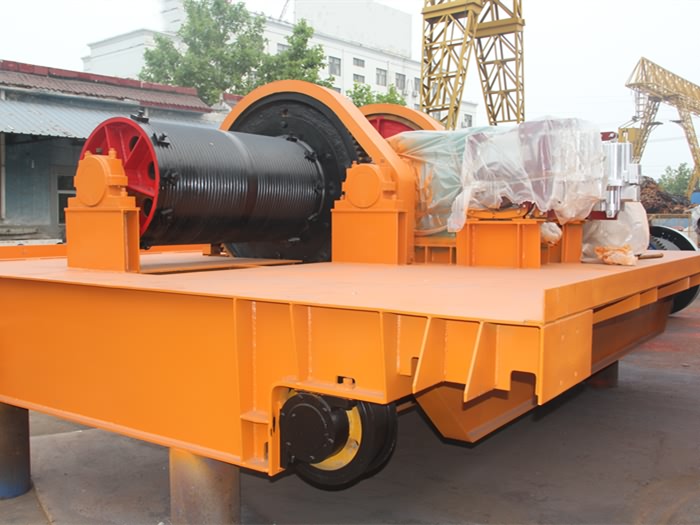

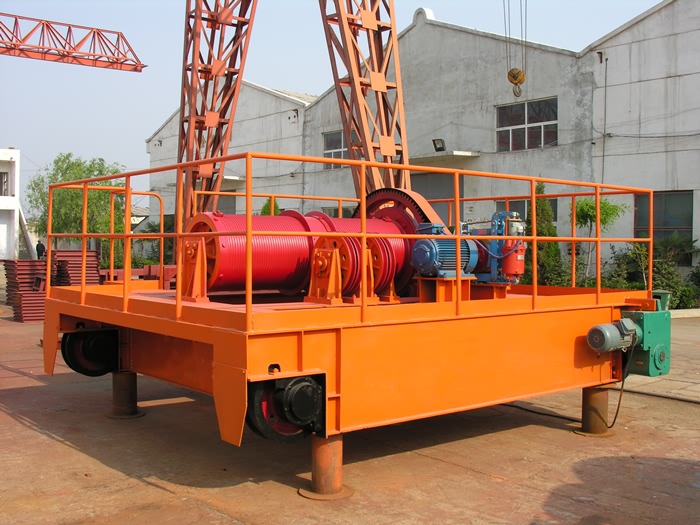

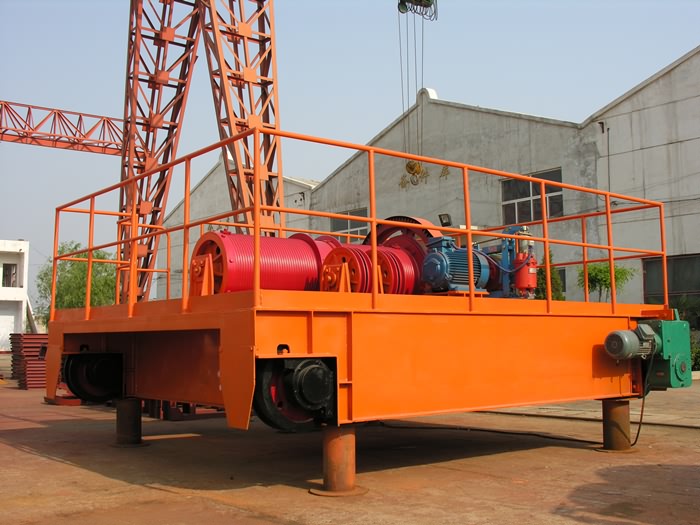

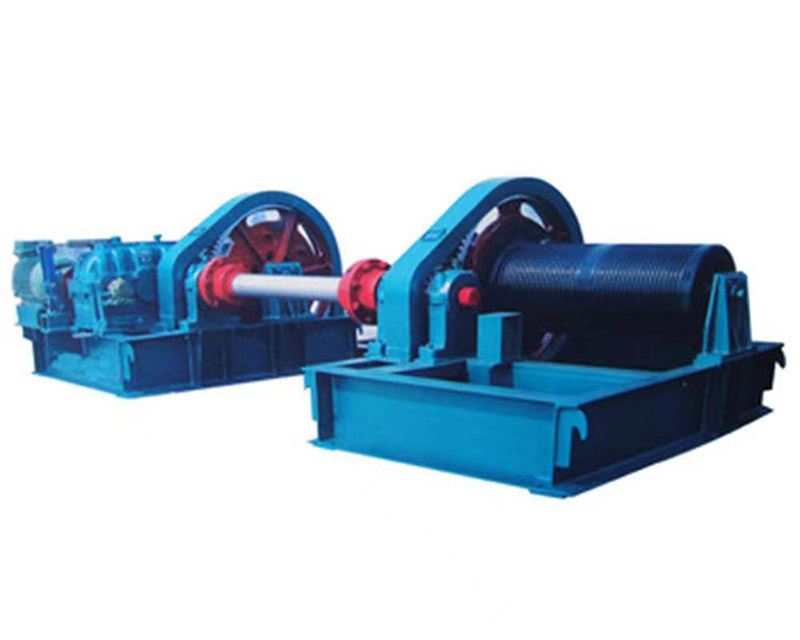

Winch type Gate Hoist Sluice Gate Hoist for Dam
Hydro-power Station Gate Hoist Description
Hydroelectricity is a renewable energy resource
Hydro turbine/Pelton runner
1.Power: 200W-100MW;
2.Multi type: Pelton unit ; Kaplan unit ; Francis unit ;
3.Environment Friendly
4.Long lifespan:30-50 year
Small investment,high efficiency
Technical parameter table
| Item | Lifting force（KN） | Height（m） | Speed（m/min） | Lifting points distance（m） |
| Double lifting points | 2x60 | 10 | 1.24 | 2.5-8 |
| Double lifting points | 2x80 | 10 | 1.24 | 2.5-8 |
| Double lifting points | 2x100 | 10 | 1.58 | 5.1-10 |
| Double lifting points | 2x125 | 11 | 1.6 | 5.1-10 |
| Double lifting points | 2x150 | 10 | 1.58 | 5.1-10 |
| Double lifting points | 2x250 | 15 | 1.58 | 5.4-12 |
Safety features
● Widely used in hydro-power station, river and water conservancy facilities.
● Especially for FLAT/SLUICE GATE hoisting and lowering.
● Single or double lifting points on optional.
● Hoisting slings is wire rope, pulley block falling from drums;
● Electric motorized, Centralized drive or individual drive.
● Manual drive assembled when electricity fails.
● Overload limiter, height indicator are all included. etc.
Advantages
■Hydro-power station electric gate hoist winch is a renewable energy resource.No greenhouse gases or other dangerous gases are produced so there is no damage of this kind to the environment.Regardless of size, all turbines are manufactured with only high-quality components, and undergo rigid quality inspections to ensure high efficiency and reliable operation.We are also committed to fulfilling all essential requirements with respect to quality, health, safety and continuously aim to reduce the harmful impact on the environment.
■The gate hoist includes motor,hoist,frame,protective cover, etc.; it adopts a three-stage speed reduction method, a screw pair drive, and the output torque is larger. The steel frame supporting the hoist overcomes the unevenness of the civil construction to reduce the noise and vibration of the whole machine.
■ It adopts an outdoor long-time working motor with protection grade ≥IP65. The stroke control mechanism adopts the principle of decimal counter to control the stroke error of 0.5%. Torque protection control is the principle of protecting electrical appliances by triggering the microswitch through the axial displacement of the worm.
■ It is easy to operate and maintain, and can realize on-site and remote control operations.
