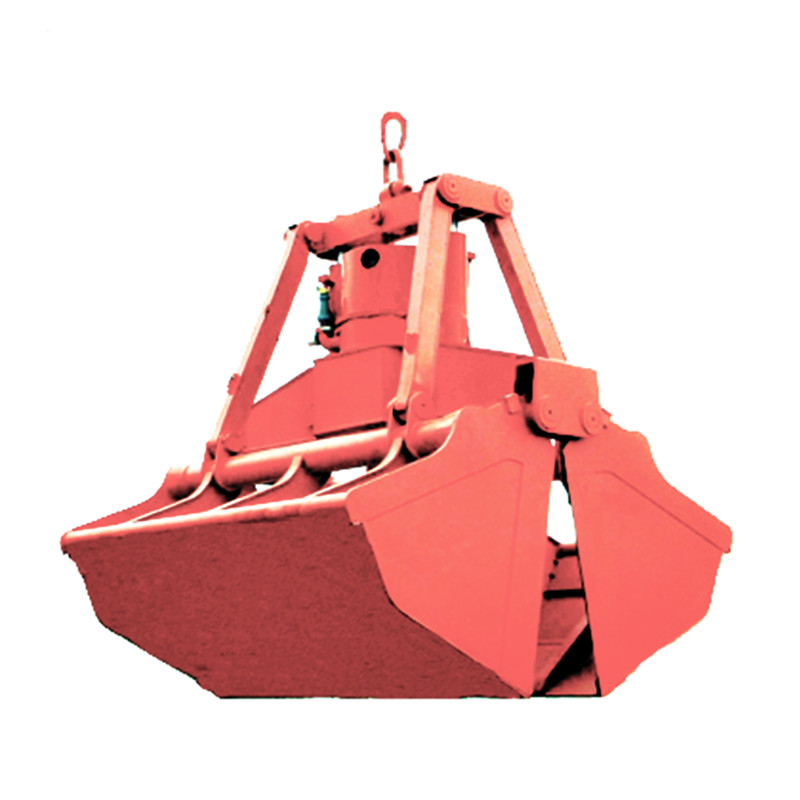

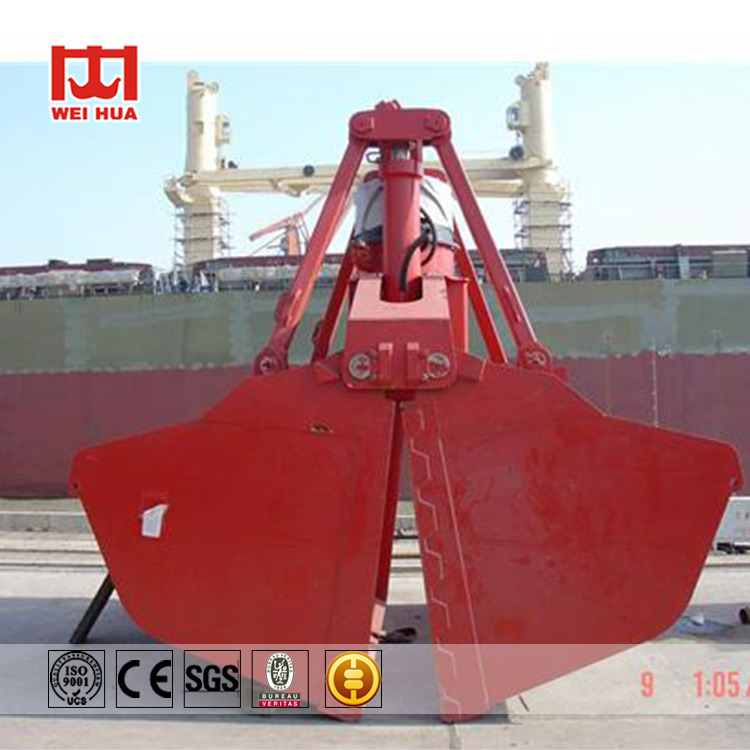

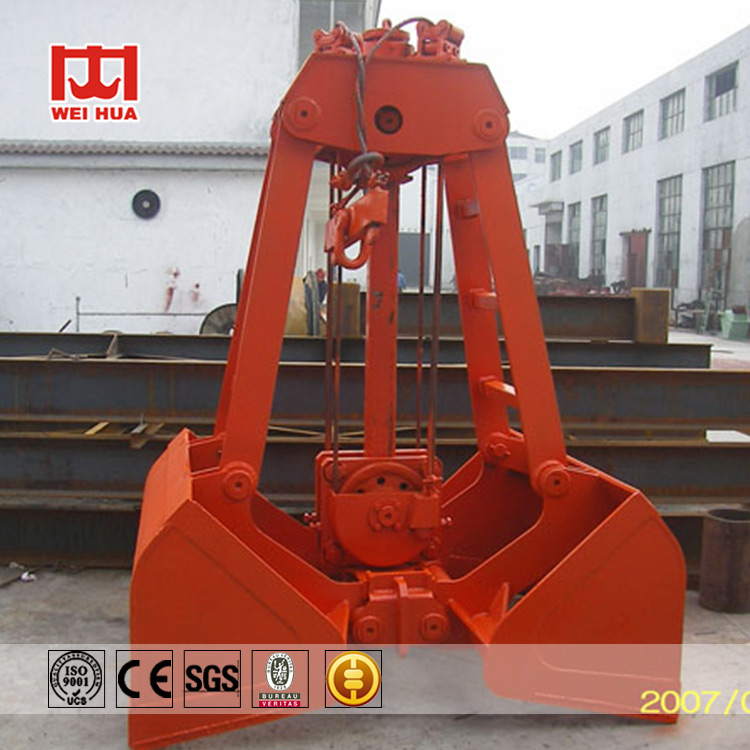

Wireless remote control Grab
Advantage
1.Designed to single wired cranes;
2.No need any electric supply or motor, runs with battery;
3.Opens by radio remote control, closes by rope equipment;
4.When a cylinder fails, it can work single cylinder for a while;
5.Manufactured in range of 1 CBM to 50 CBM capacity;
parameter
| Model | Volume m3 | Self weight t | A | B | C | D | E | Dia of pulley mm | Dia of steel ropemm | Rated lifting weightt |
| YK10 | 5 | 5.0 | 2653 | 3358 | 3519 | 3914 | 2600 | 445 | 24 | 10 |
| YK14 | 7 | 6.5 | 2780 | 3398 | 4092 | 4448 | 2800 | 520 | 28 | 14 |
| YK16 | 8 | 7.5 | 2780 | 3398 | 4092 | 4448 | 3000 | 520 | 28 | 16 |
| YK20 | 10 | 9.0 | 2810 | 3591 | 4192 | 4513 | 3560 | 560 | 32 | 20 |
| YK25 | 13 | 10.0 | 3000 | 3837 | 4487 | 4850 | 3800 | 650 | 36 | 25 |
| YK28 | 16 | 15 | 3060 | 3887 | 4559 | 4819 | 4320 | 650 | 36 | 28 |
| YK35 | 20 | 15 | 3270 | 4109 | 5008 | 5391 | 4600 | 720 | 40 | 35 |
| YK40 | 24 | 17 | 3520 | 4374 | 5136 | 5495 | 4700 | 880 | 45 | 40 |
application

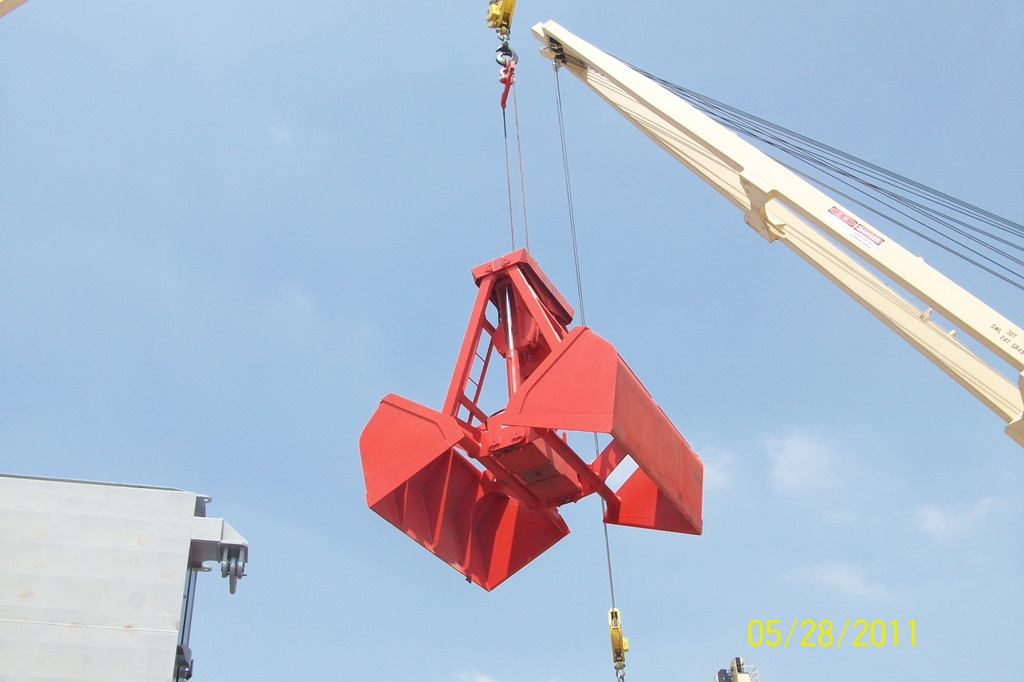

It is widely used in ships, ports, stations, factories, mines and other industries. It is an ideal tool for handling bulk cargoes such as coal, mineral powder, bulk chemical fertilizers, and yellow sand. As the pioneer of remote control grab,GBM wireless remote control grab can work under harsh environment such as high temperature, cold, dust, rain, etc. and its performance is not affected. The remote control distance can reach more than 100 meters. The grab uses high-performance battery. After each charge, the grab can be Continuous operation for more than 100 hours. Connection to the crane: The balance of the grab can be used directly on the hook of the crane.

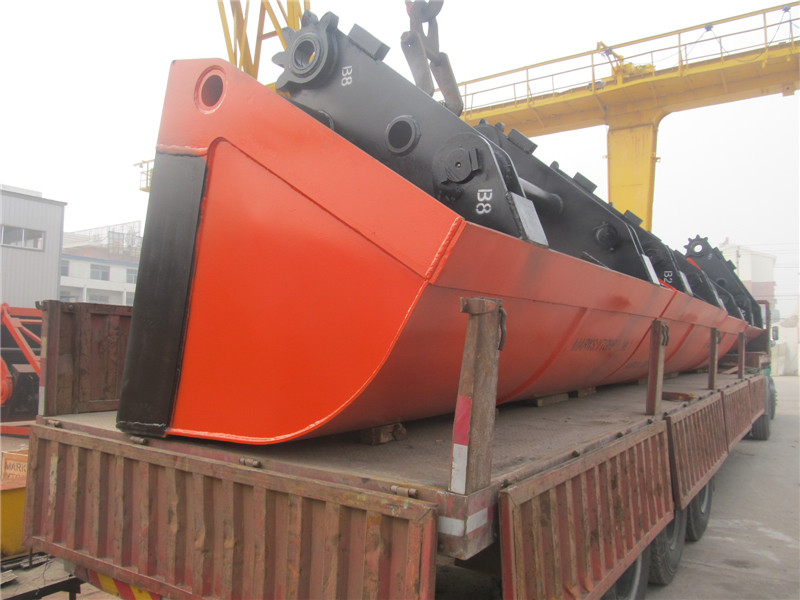

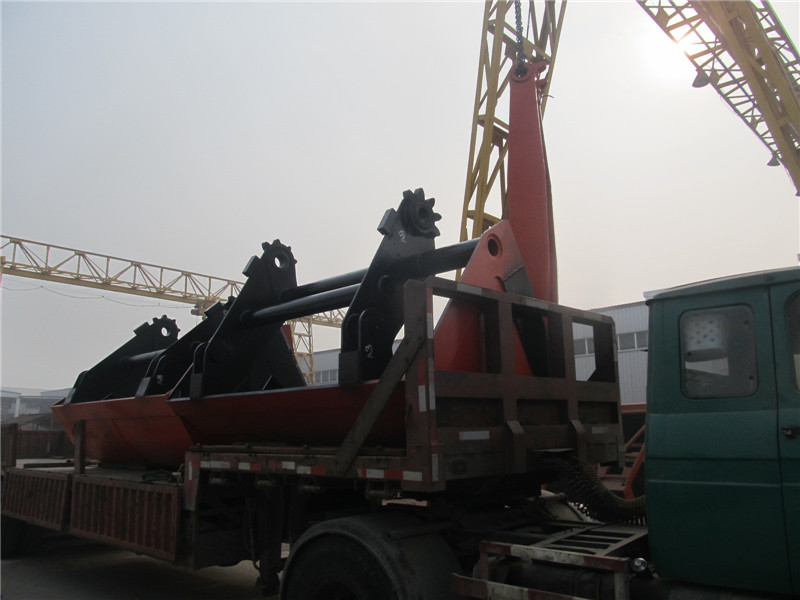

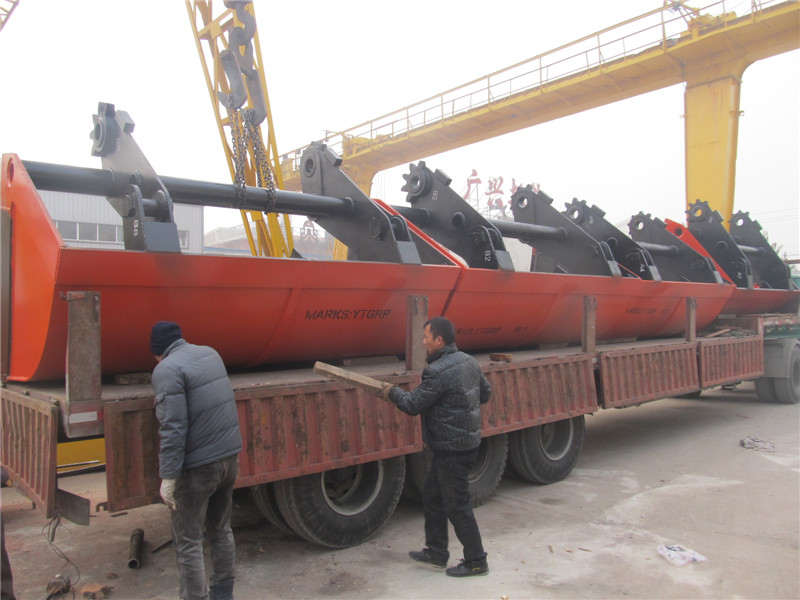

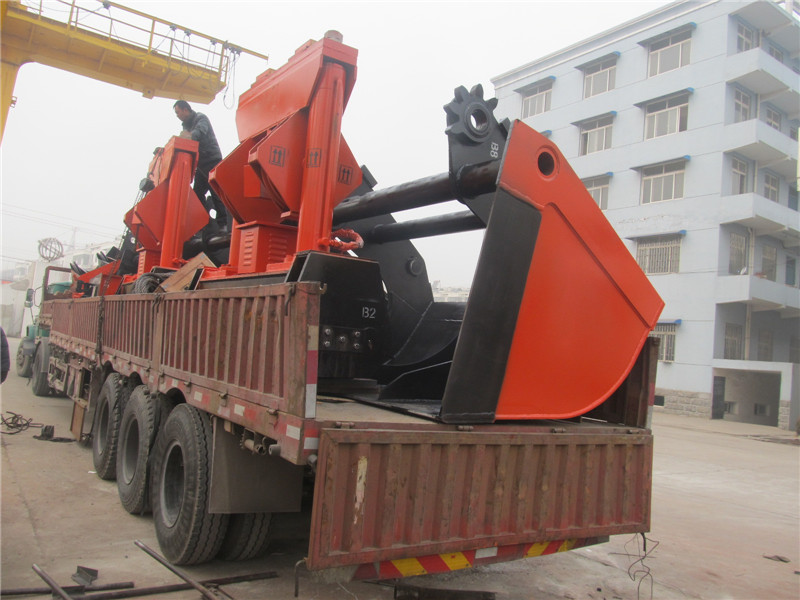

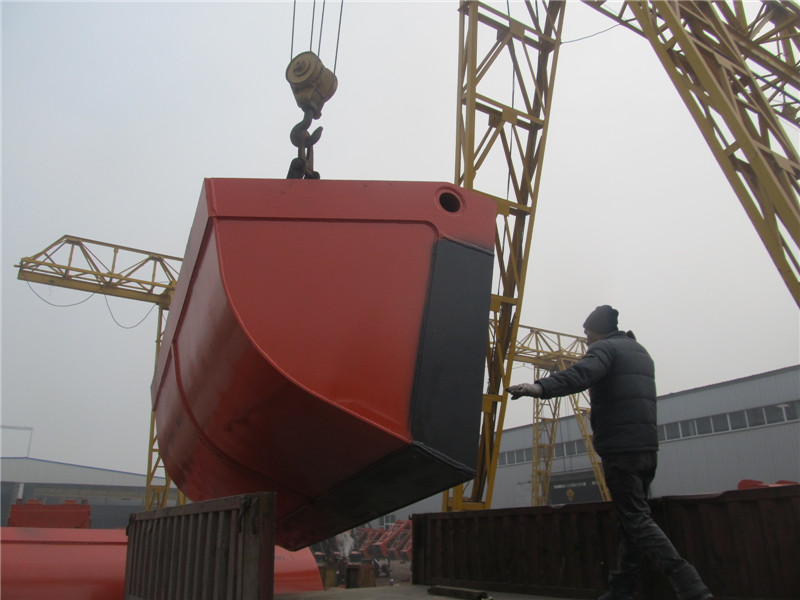

images
About KORIGCRANES
KORIGCRANES ( HENAN WEIHUA KORIG CRANES CO., LTD) located in crane hometown of China (cover more than 2/3 crane market in China), who is a trusted professional industry crane manufacturer and leading exporter. Specialized in design, manufacturing, installation and service of Overhead crane, Gantry crane, Port crane, Electric hoist etc, we have passed ISO 9001:2000, ISO 14001:2004, OHSAS 18001:1999, GB/T 19001-2000, GB/T 28001-2001, CE, SGS, GOST, TUV, BV and so on.
Product Application
To meet the demands of the oversea market, we independent research and development European type overhead crane, gantry crane; electrolytic aluminum multi-purpose overhead crane, hydro-power station crane etc. European type crane with light dead weight, compact structure, lower energy consumption etc. Many main performance reach the industry advanced level.
KORIGCRANES Widely used in machinery, metallurgy, mining, electric power, railway, petroleum, chemical, logistics and other industries. Service for hundreds of large enterprises and national key projects such as China Datang Corporation, China Guodian Corporation, SPIC, Aluminum Corporation Of China（CHALCO）, CNPC, Power China, China Coal, Three Gorges Group, China CRRC, Sinochem International, etc.
Our Market
Our cranes has been exported cranes to more than 110 countries for example Pakistan, Bangladesh, India, Vietnam, Thailand, Indonesia, Philippines, Malaysia、USA, Germany, France, Australia, Kenya, Ethiopia, Nigeria, Kazakhstan, Uzbekistan, Saudi Arabia、UAE、Bahrain、Brazil, Chile, Argentina, Peru etc and received good feedback from them. Very happy to be friends with each other come from all of the world and hope to establish long-terms good cooperation.
KORIGCRANES has steel pre-treatment production lines, automatic welding production lines, machining centers, assembly workshops, electrical workshops, and anti-corrosion workshops. Can independently complete the whole process of crane production.
Q. What’s the information should I provide when inquiry?
More details or drawings, better.
A: Lift capacity B: span C: lift height D: power source; other specials you give us will be more appreciated.
Q. How many operating methods for my selection?
Standard operating methods:
A: remote control with push buttons
B: cabin (space capsule seat) control with joystick. Choose any type as you like.
Q. Can this type work in hazardous environment?
A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q. Can you provide the serious lifting tools?
A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
Q. How can we install the crane?
A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
